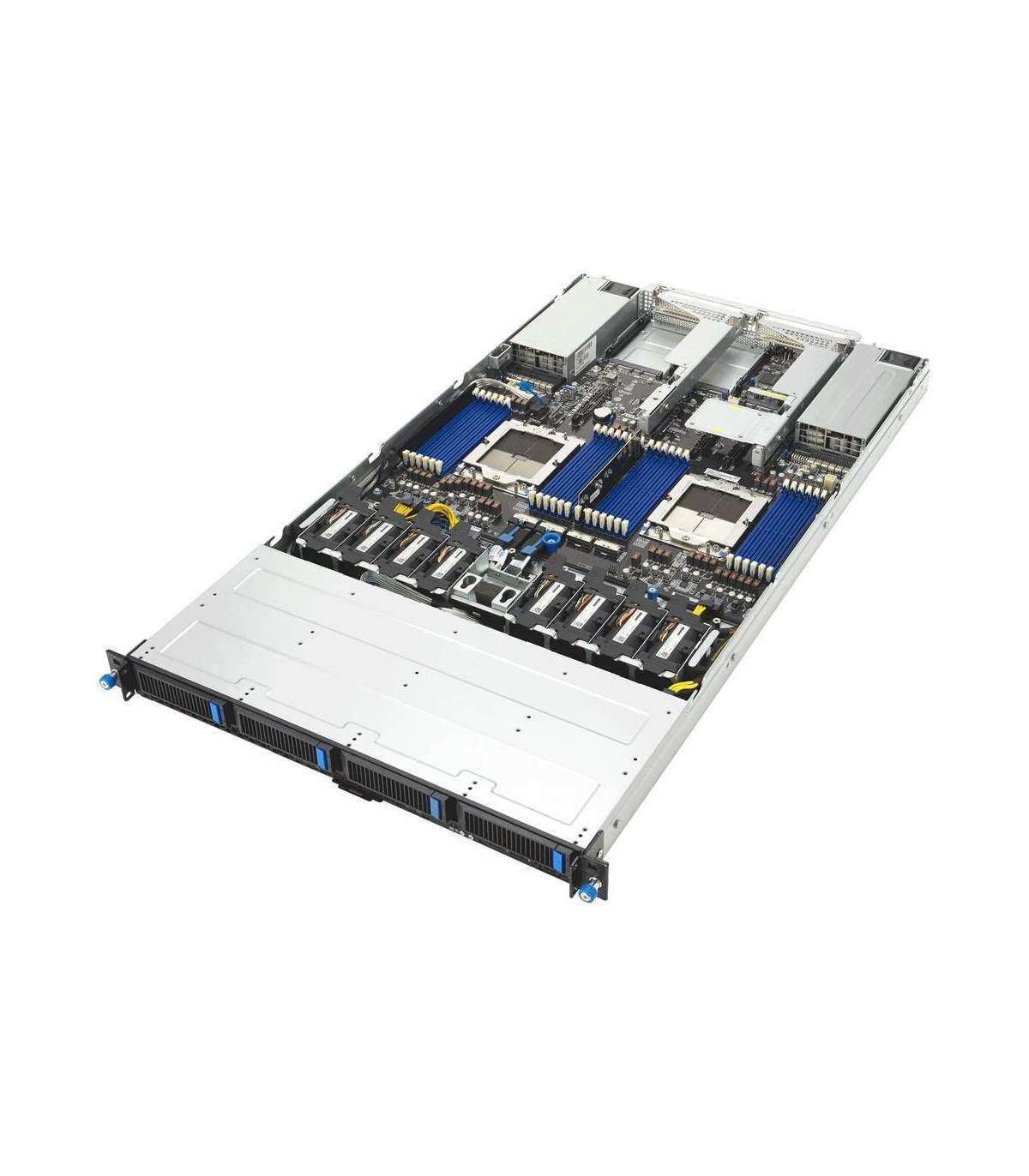

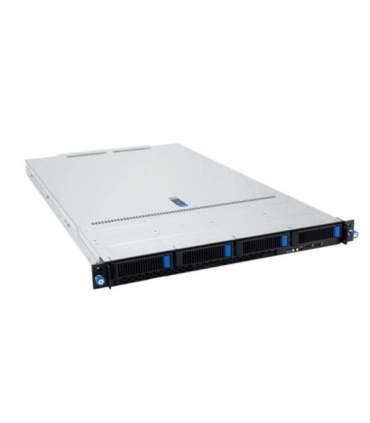

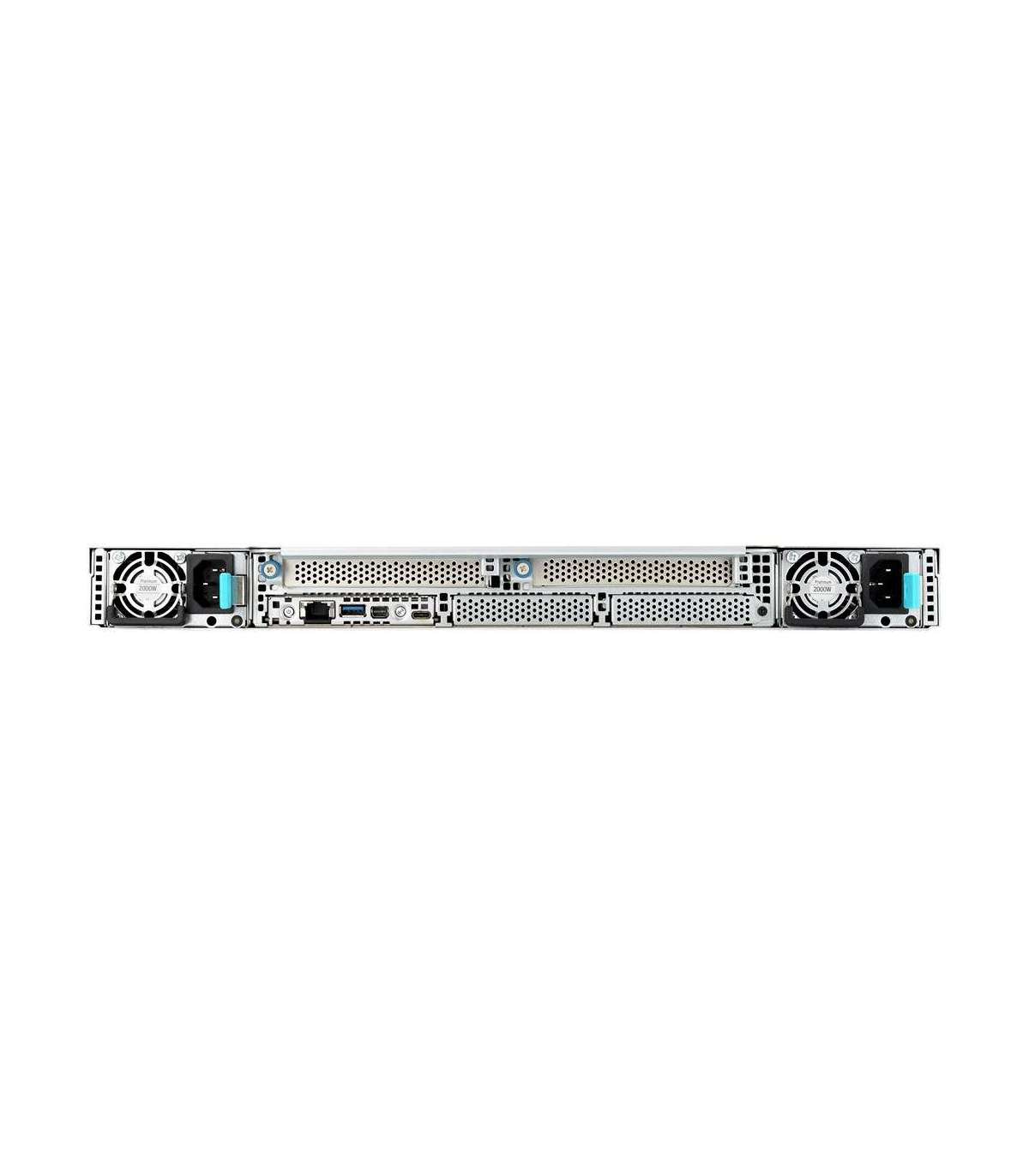

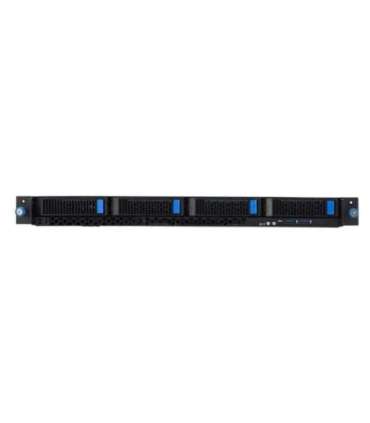

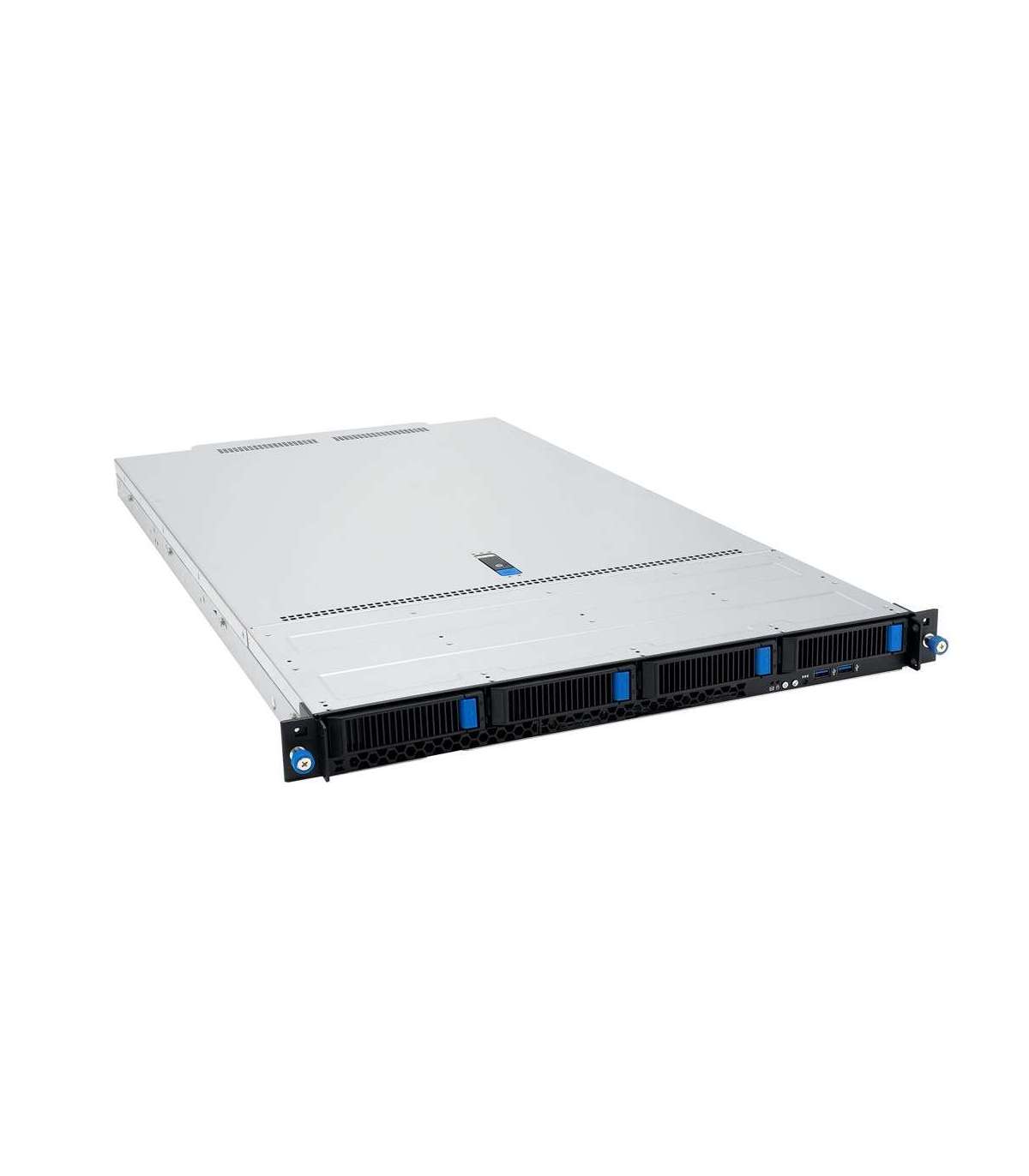

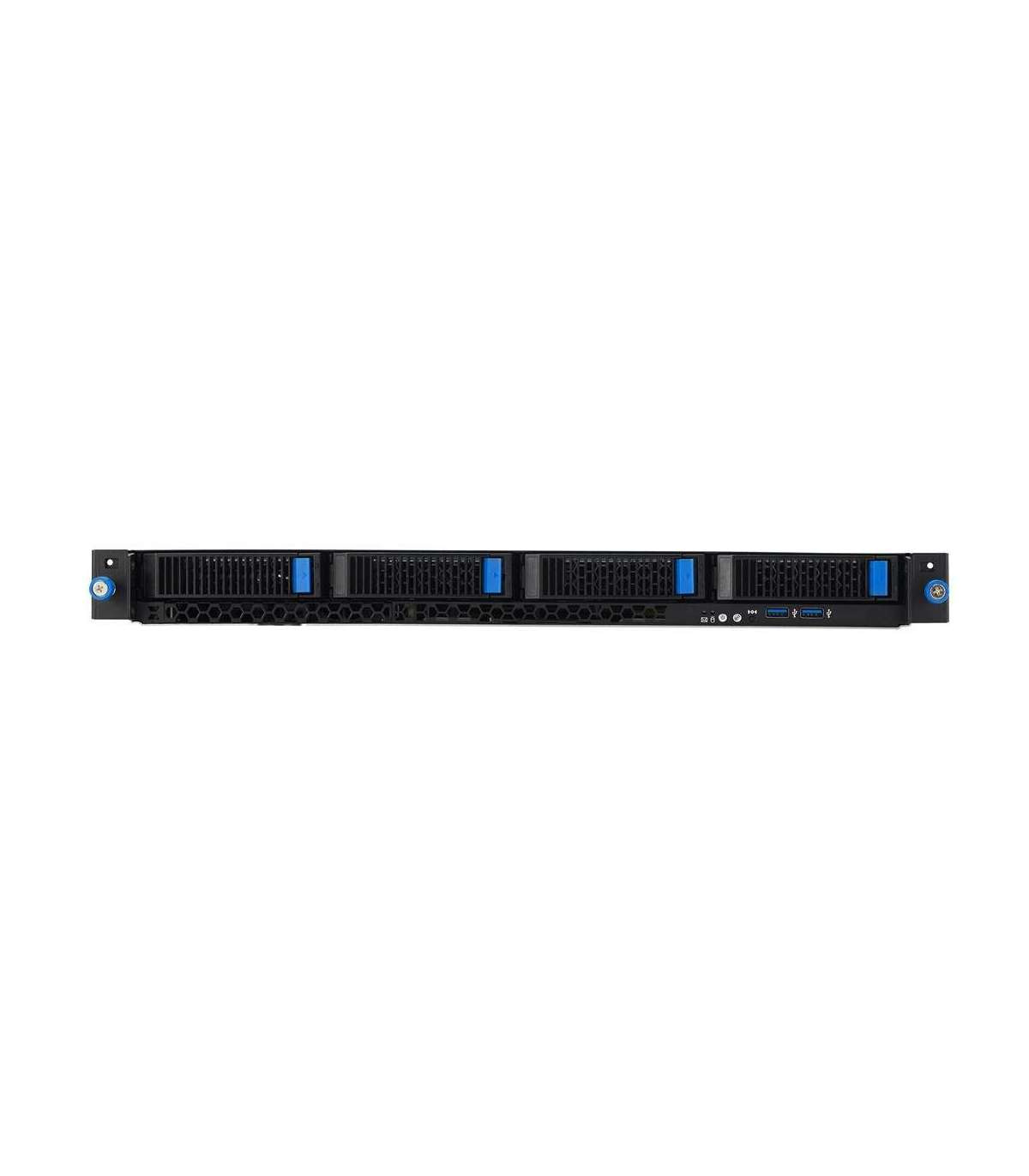

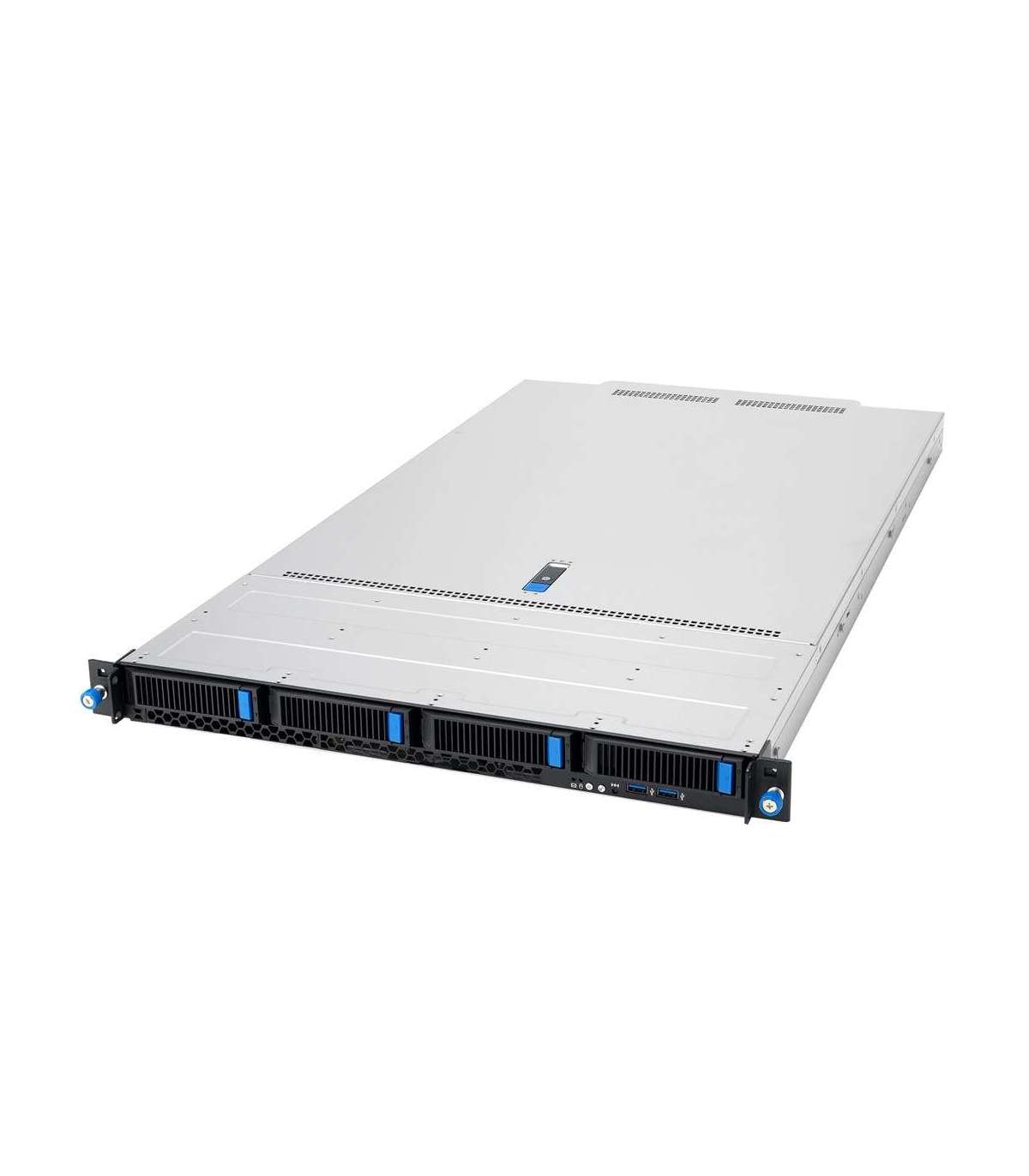

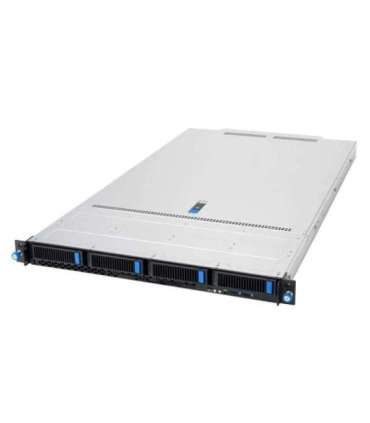

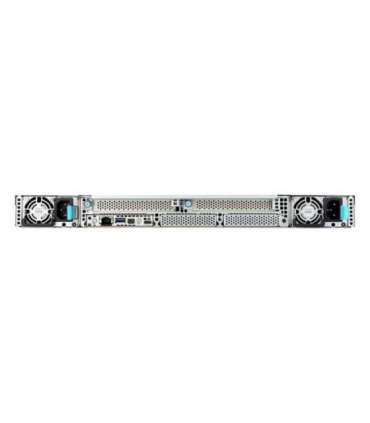

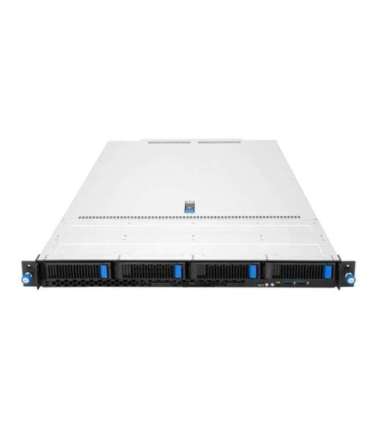

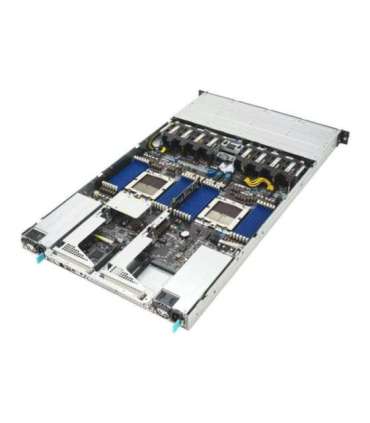

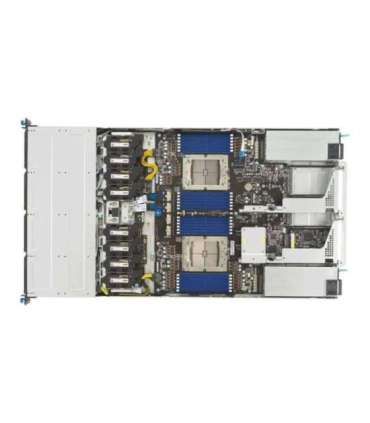

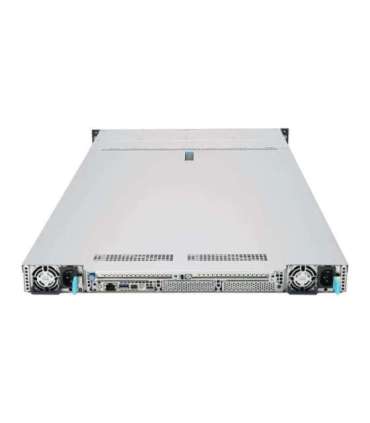

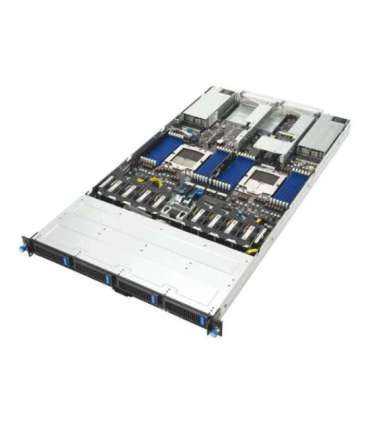

Asus Rack Platform (1U) AMD RS700A-E13-RS4U

Lisainfo

Depth

483 mm

Kaal

13.8 kg

Kõrgus

43.2 mm

Laius

821,7 mm

Package weight

16.7 kg

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

LED indicators

Yes

Certification

BSMI, CE, CB, RCM, FCC(Class A), ISED

AC input frequency

50/60 Hz

AC input voltage

100 - 127/220 - 240 V

Input current

12A / 10A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Power supply

2000 W

On-board graphics card model

Aspeed AST2600

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Processor socket

Socket SP5

PCI Express slots version

5.0

On-board graphics card memory

64 MB

Compatible processor series

AMD EPYC 9005

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Number of storage drives supported

4

PCI Express x16 (Gen 5.x) slots

2

Supported DIMM module capacities

32GB
64GB
96GB
128GB

Mini DisplayPorts quantity

1

Number of fans

8 fan(s)

Chassis type

Rack (1U)

Number of 3.5" bays

4

80 PLUS certification

80 PLUS Titanium

Number of processors supported

2

Maximum RDIMM memory

3.07 TB

Supported RDIMM clock speeds

5600
6400 MHz

Number of DIMM slots

24

Storage drive sizes supported

2.5
3.5"

Number of 2.5"/3.5" bays

4

Number of main power supplies

2

Hot-swap HDD bays

Yes

Integrated BMC with IPMI

Yes

Number of OCP3.0 ports

2
