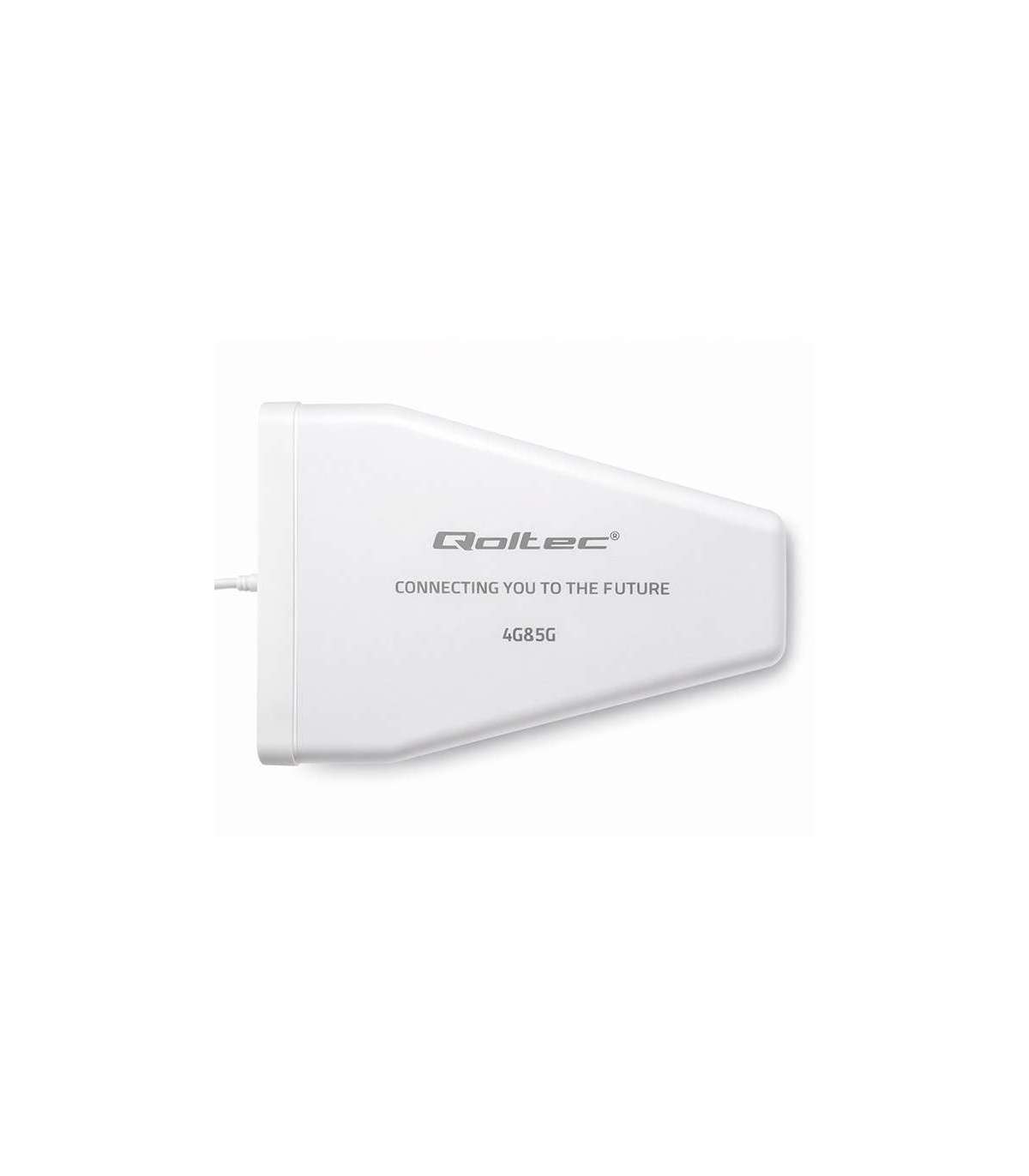

Antenna 4G 5G LTE 9dBi external N female 3m

Description:

Stable mobile Internet in all conditions

The 5G directional antenna with 9dBi gain has been designed to improve the quality and stability of the mobile network signal. Thanks to its directional radiation pattern, the antenna concentrates energy in a selected direction, allowing you to precisely "aim" at the base station and achieve significantly better connection parameters than with omnidirectional antennas. The N Female connector used ensures compatibility with a wide range of 5G modems and routers.

Wide frequency range of 600-2700MHz and 3300-3800 MHz

Covers the most important LTE bands used in Poland and Europe, including B28, B20, B3, B1 and B7, ensuring high compatibility with stationary and industrial routers as well as IoT devices. The additional 33003800 MHz range enables operation in modern 5G NR (n77/n78) networks, offering higher bandwidth and better transmission stability.

Excellent performance and weather resistance

The 5G antenna is designed to improve the quality of your internet connection at home, in the office, and in any other room with internet access. It increases transmission stability, improves download and upload speeds, and has a positive effect on overall internet performance. IP67 rating, combined with resistance to various weather conditions, can ensure connection stability even in harsh weather conditions.

Our solution offers:
- 5G standard support transmission speeds up to 600 Mbps,
- a wide frequency range of 600-2700 MHz and 3300-3800 MHz,
- professional N-female connector ensuring low signal loss and a secure, weather-resistant connection to the antenna cable,
- modern design thanks to the use of high-quality materials and attention to detail,
- 3-metre cable, allowing for convenient antenna installation.

Directional 5G antenna for outdoor applications

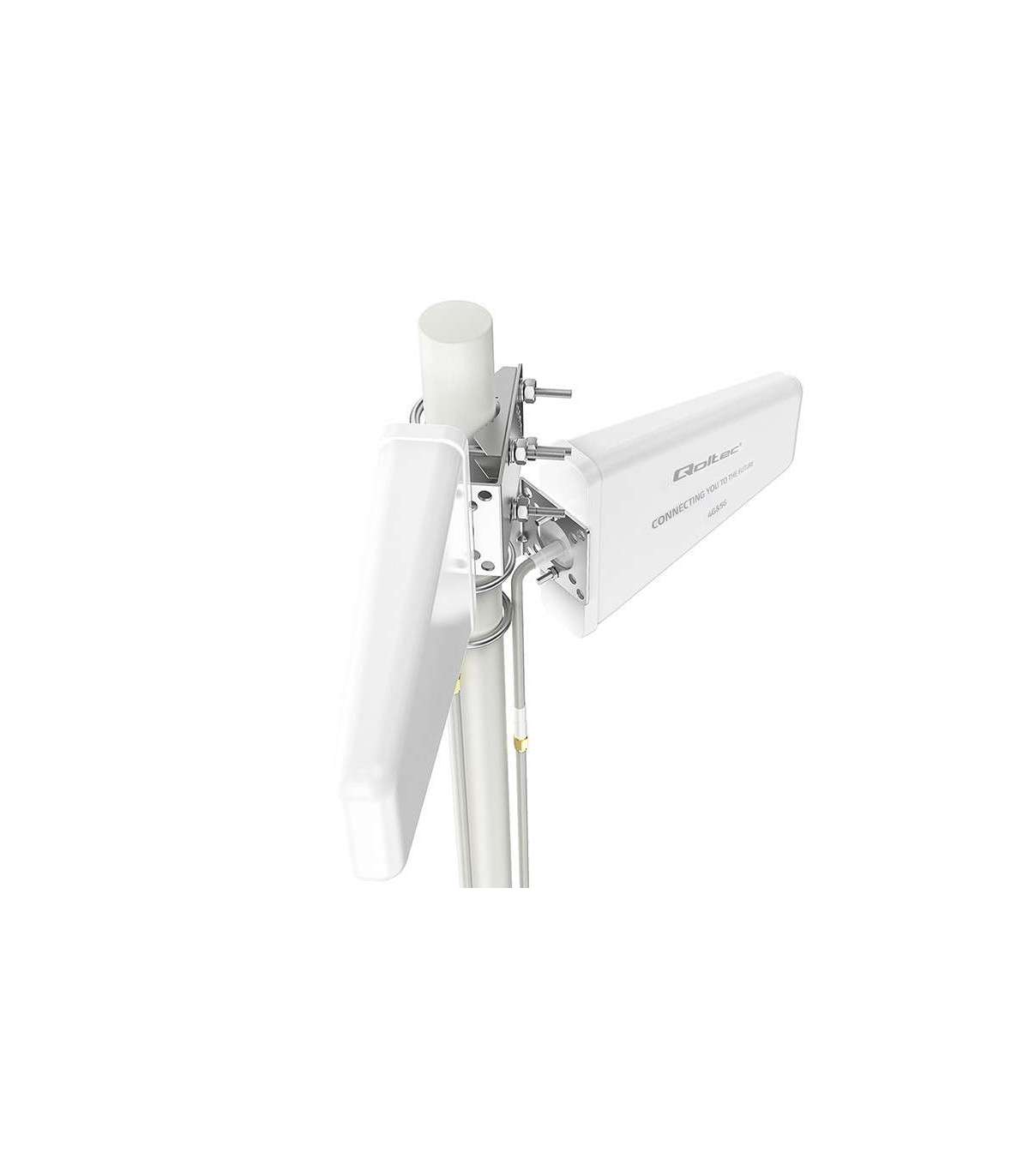

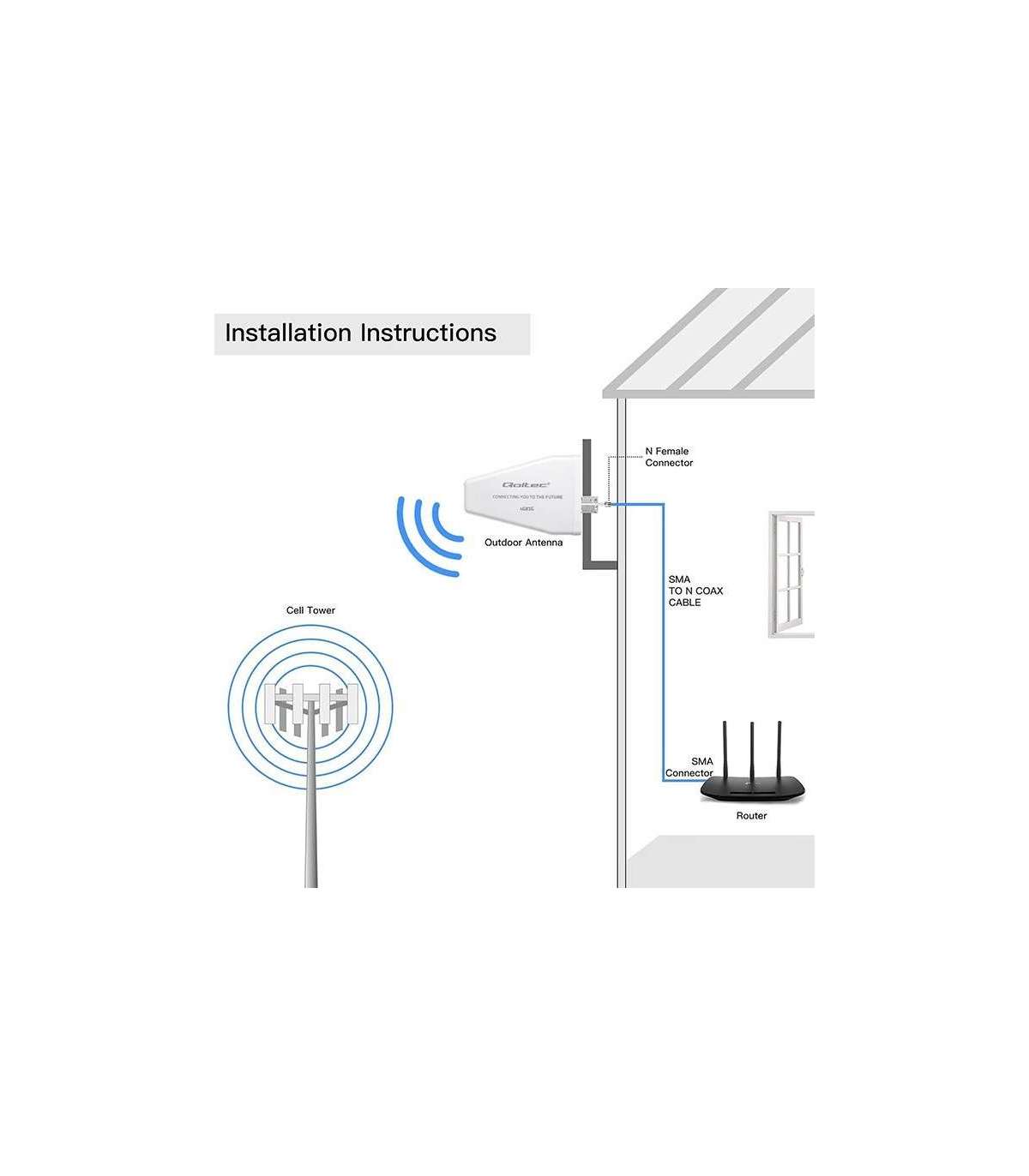

The antenna has been adapted for mounting on a mast or dedicated external bracket, which allows it to be installed on building facades, roofs and support structures. This method of installation allows the antenna to be placed at the appropriate height, ensuring better visibility of the transmitter and more stable signal parameters. The antenna's design allows for precise directional alignment, which is particularly important for 5G installations requiring accurate directionality.

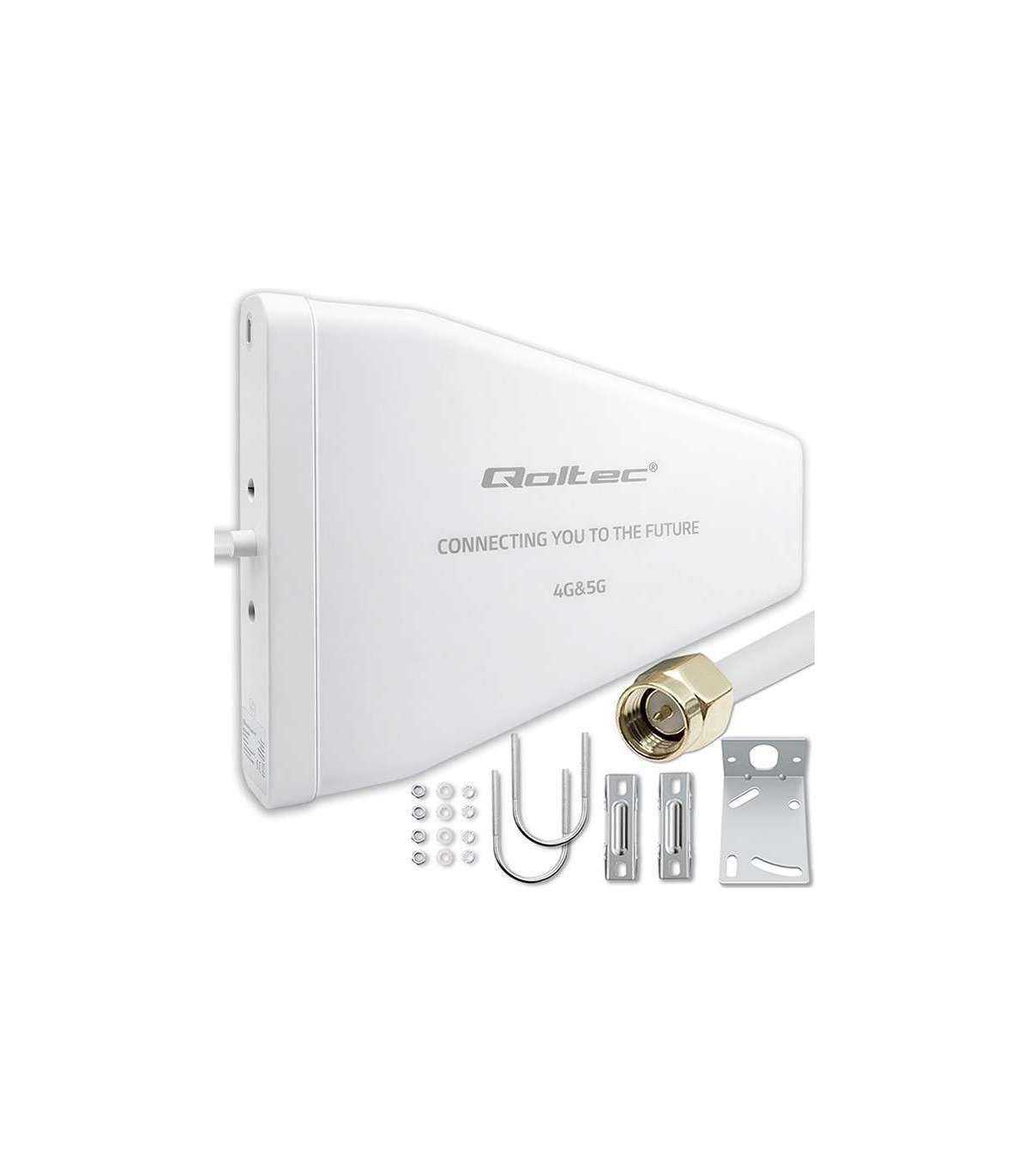

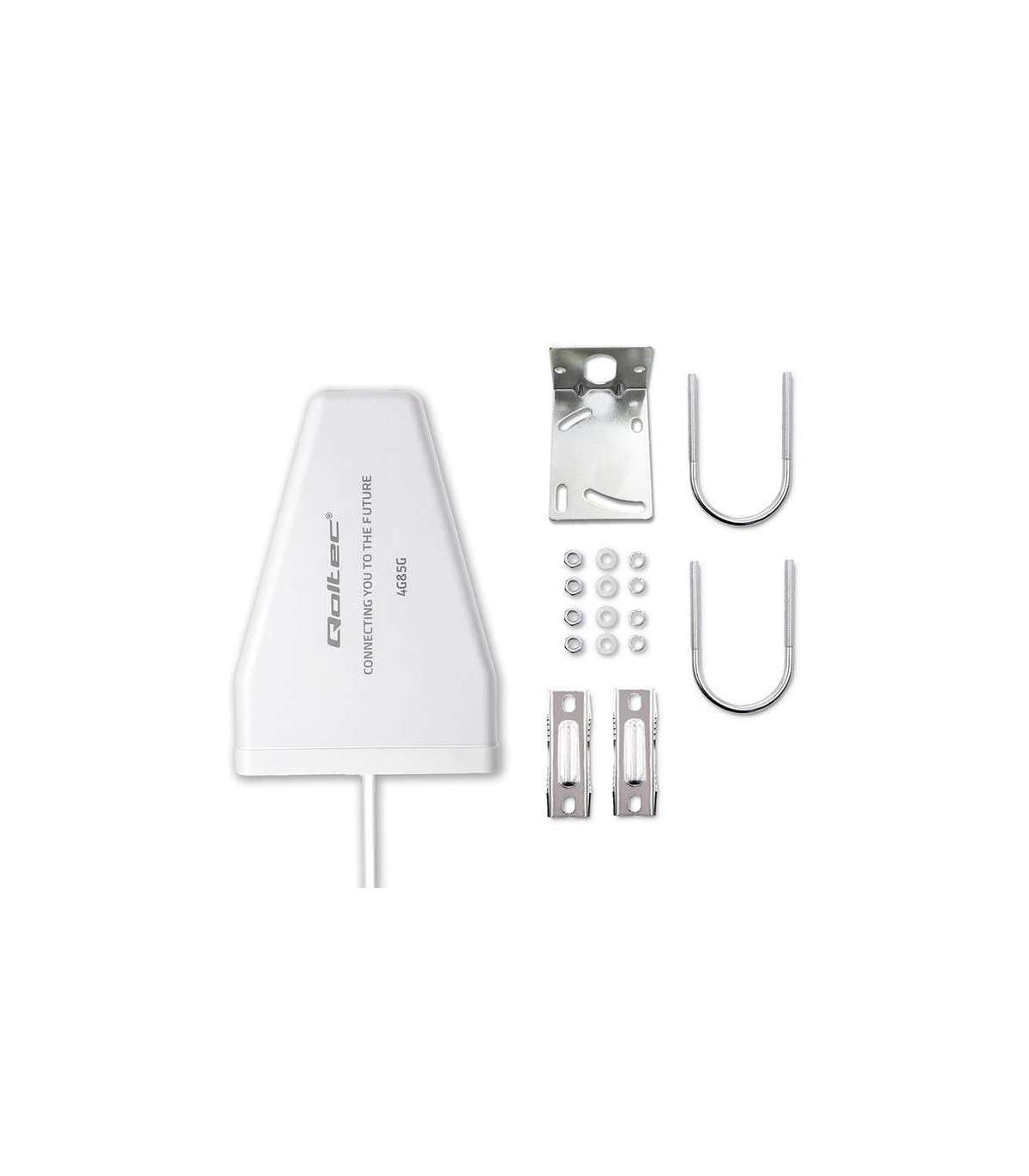

Accessories included:

• 1 x 5G antenna
• 1 x Mounting accessories

Dimensions:

(D/L x W x H): 210/110 x 292 x 65 mm

Other features:

Working frequency: 600-2700 MHz /3300-3800MHz

Designation:
