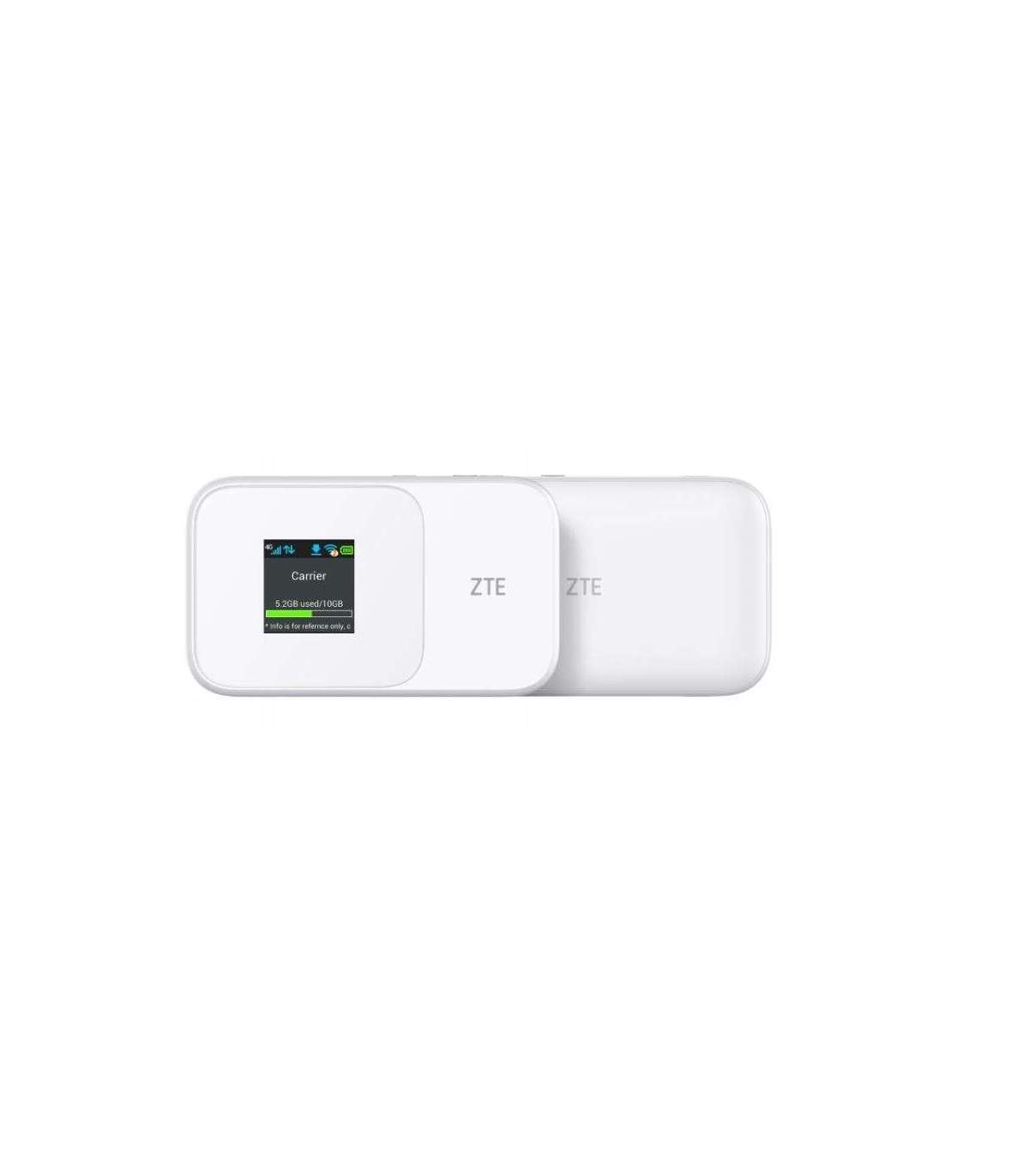

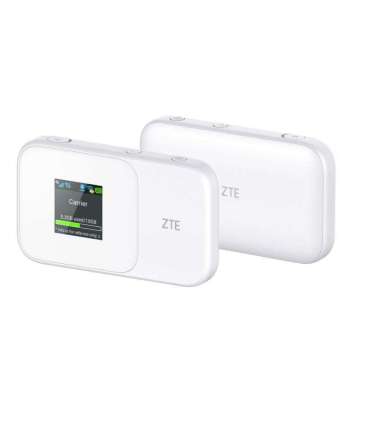

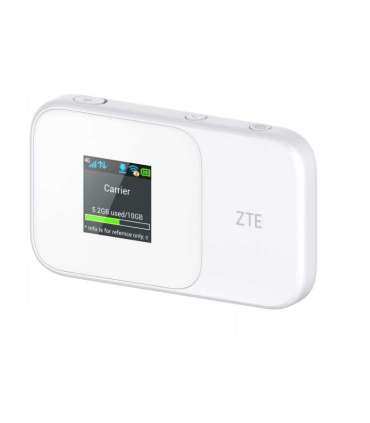

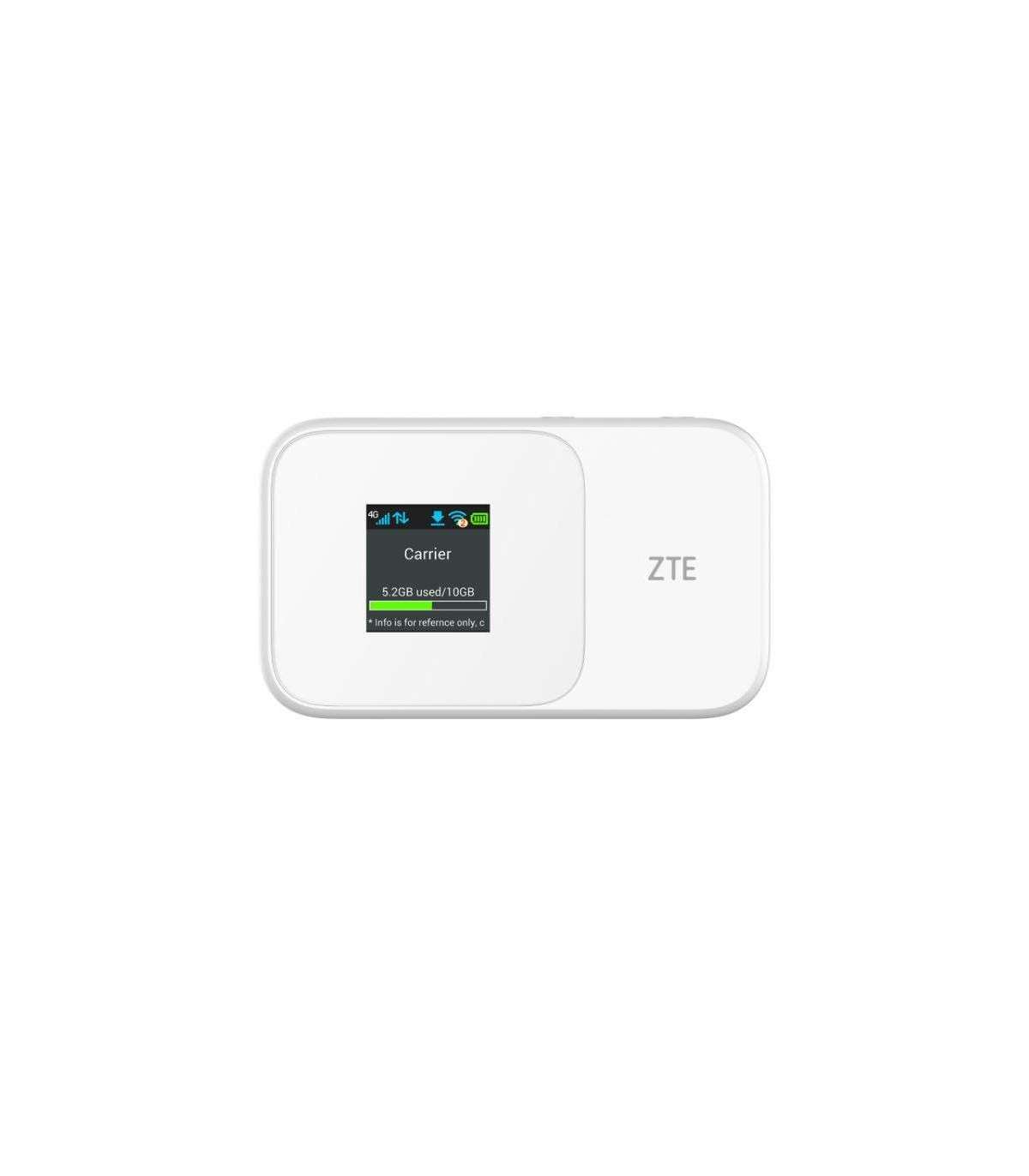

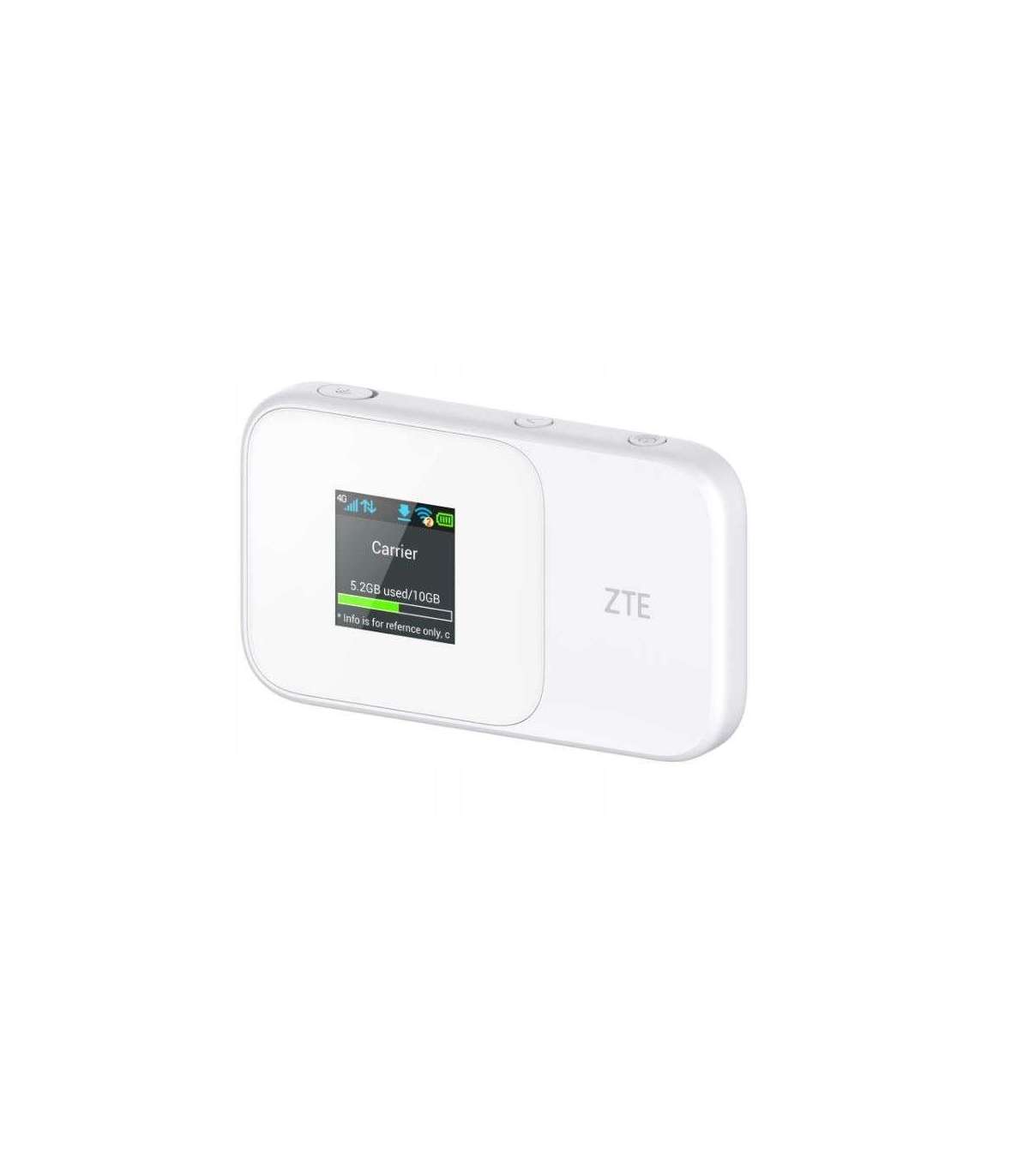

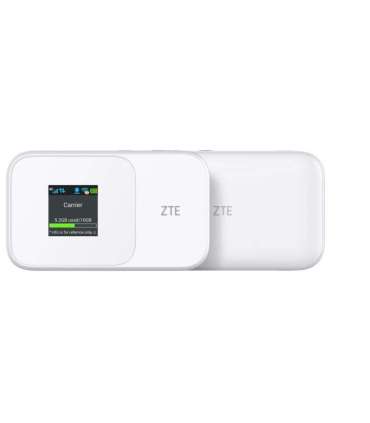

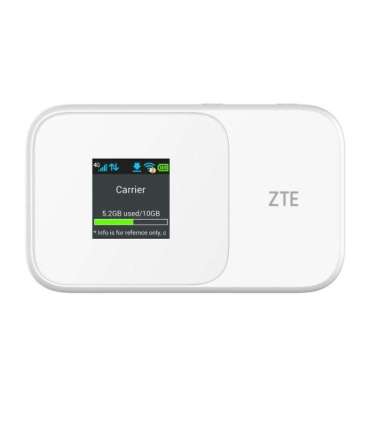

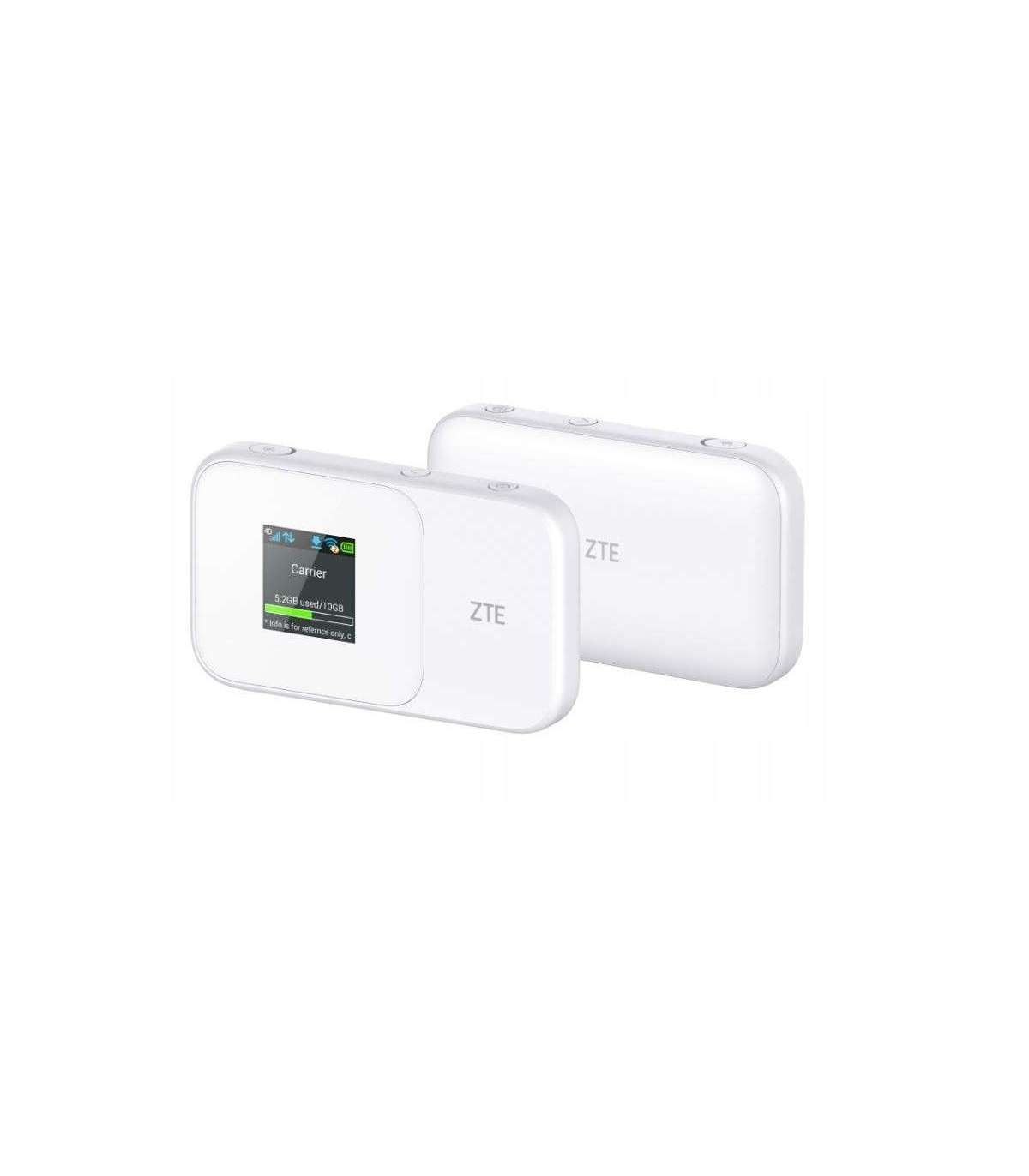

ZTE MF986D SIM LTE kat.12

Lisainfo

Universal Plug and Play (UPnP)

Yes

Antenna design

Internal

SIM card slot

Yes

Ethernet WAN

Yes

IP address filtering

Yes

VPN Passthrough

Yes

WAN connection type

RJ-45

Additional information

1 x USB Type-C 3.0, 1 x SIM (Nano SIM 4FF), 2x TS-9 external antenna connectors Battery: 3000 mAh, replaceable, Platform: Qualcomm Snapdragon X12 + QCA6174A

SSID-based VLAN assignment

Yes

Set contents

Router, battery, 5V 2A charger, USB C cable, user manual, ErP declaration, warranty card

Replaceable battery

Yes

Kaal

150 g

Wi-Fi standardid

802.11a
802.11ac
802.11ac 2.4
802.11g
802.11n
IEEE 802.3
IEEE 802.3u

Etherneti kohalik võrk

Ei

Kõrgus

107 mm

Laius

63 mm

Sügavus

14 mm

Liides

LCD 1,44” 128x128 pix

Toote tüüp

Tabletop router

Toetatud Maci operatsioonisüsteemid

Jah

LED-indikaatorid

Jah

SIM-kaardi tüüp

NanoSIM

Kaablid kaasas

LAN (RJ-45)

Toetatud Windowsi operatsioonisüsteemid

Jah

Lähtesta nupp

Jah

Etherneti LAN-liidese tüüp

Gigabit Ethernet

Funktsioonid

Firewall, port forwarding, IP/MAC/port/URL filter

Etherneti LAN-i andmeedastuskiirused

10
100
1000 Mbit/s

Toiteadapter kaasas

Yes

Võrgustandardid

IEEE 802.3
IEEE 802.3u

Automaatne MDI/MDI-X

Jah

MAC-aadressi filtreerimine

Jah

Turvalisuse algoritmid

WMM
WPA-PSK
WPA2-PSK
WPA3-SAE

Wi-Fi sagedusriba

Dual-band (2.4 GHz / 5 GHz)

DHCP-server

Jah

Tulemüür

Yes

WPS-nupp

Yes

Pistikud

TS-9 external antenna connectors

Toote värv

White

Hoiatused

Do not dismantle the unit yourself, there is a risk of electric shock.
Do not expose the device to extreme temperatures.
Do not expose the device to water or moisture.

Lühisõnumiteenus (SMS)

Yes

Mobiilivõrgu põlvkond

5G

Brauser on toetatud

Microsoft Internet Explorer 9.0+, Microsoft Edge 14.0, Firefox 60.0, Chrome 60.0, Safari 10.0, Opera 51.2

4G standard

LTE Cat. 12/13 DL up to 600 Mbps, UL up to 150 Mbps FDD 1,2,3,4,5,26,7,8,20（12/17）,28,32 TDD 38,40,41,42,43 Support 3CA for download, 2CA for upload UMTS 1/2/4/5/8 GSM 850/900/1800/1900 MHz UMTS 1/2/4

Parim Wi-Fi standard

Wi-Fi 5 (802.11aс)
