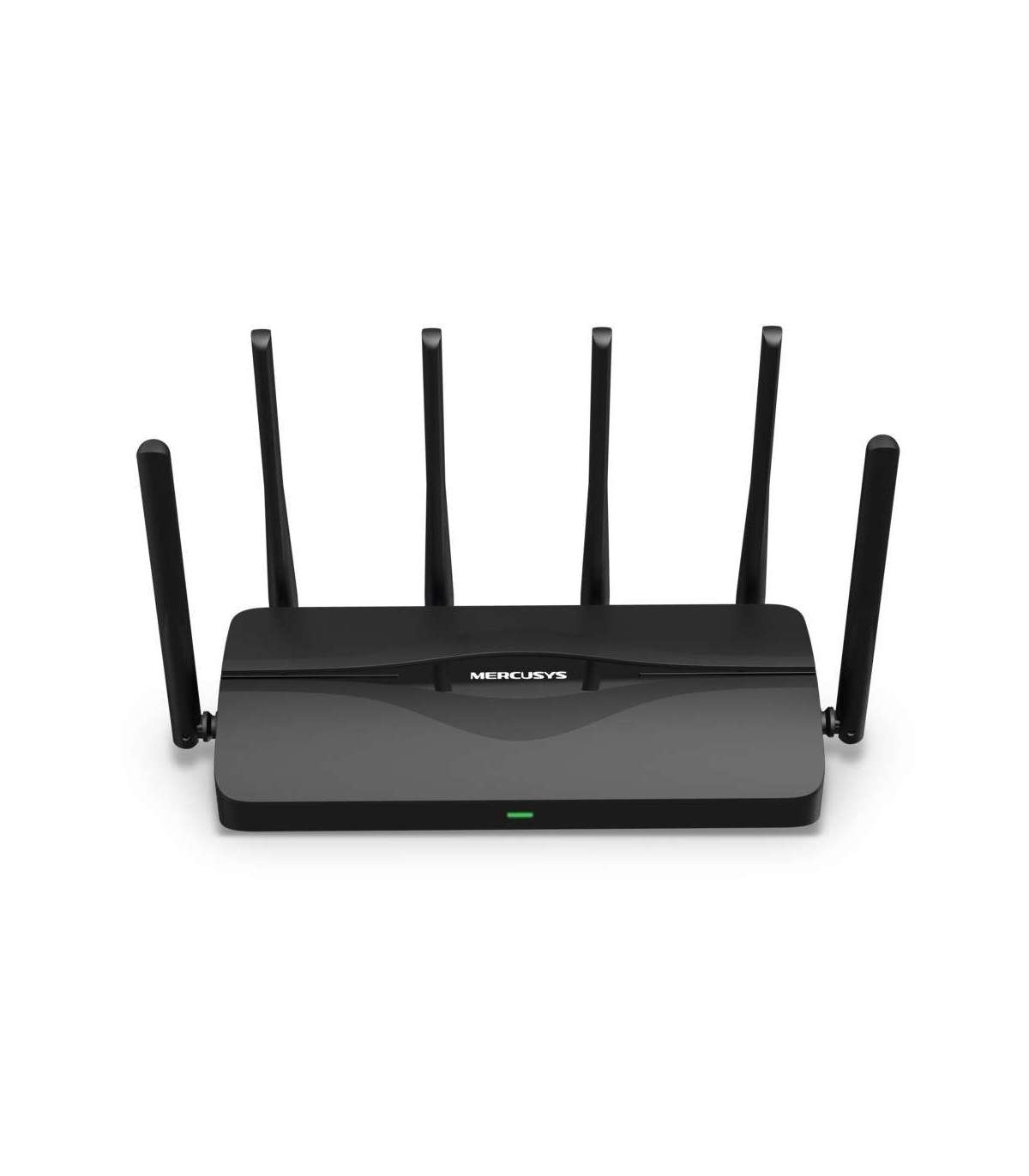

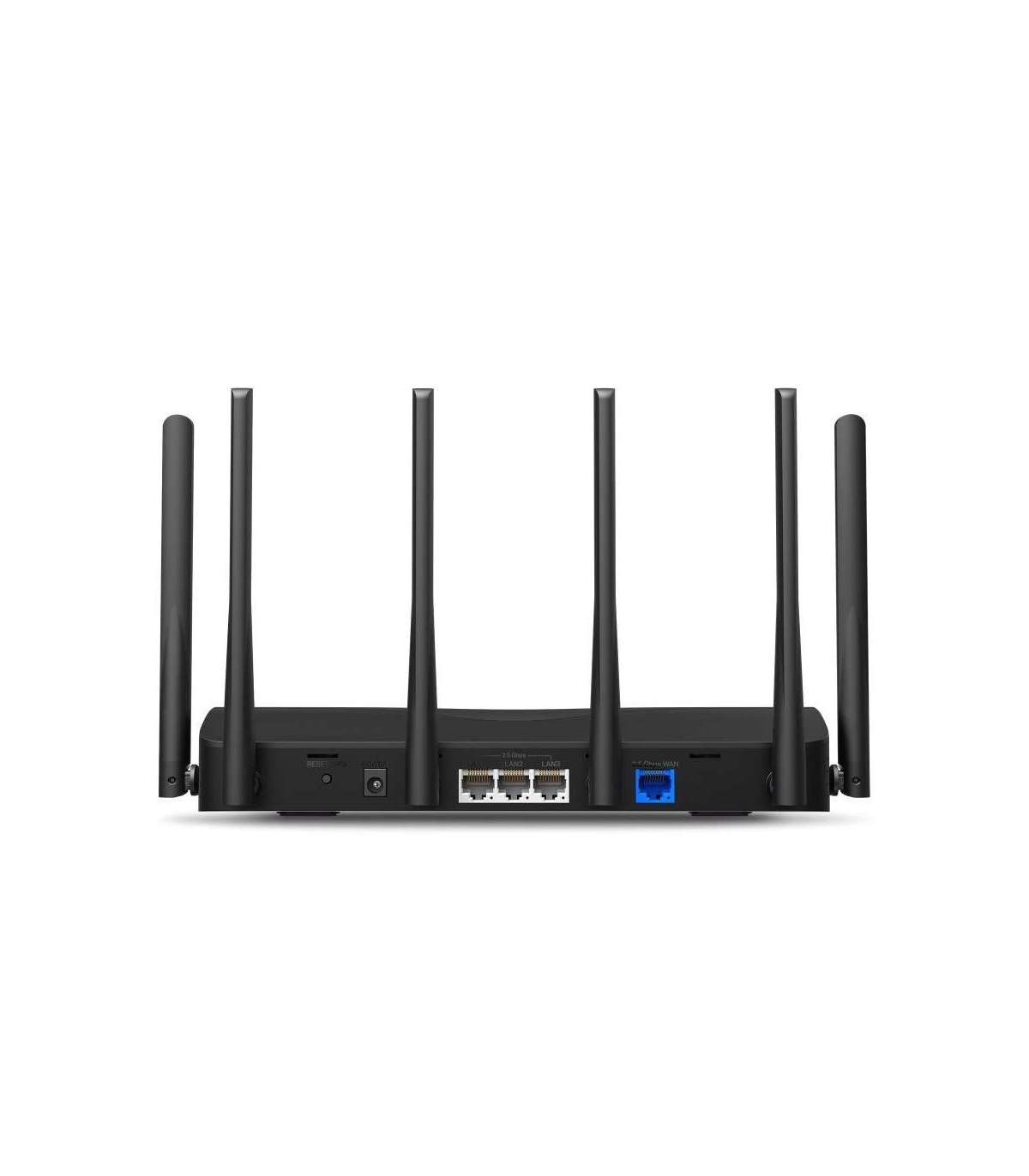

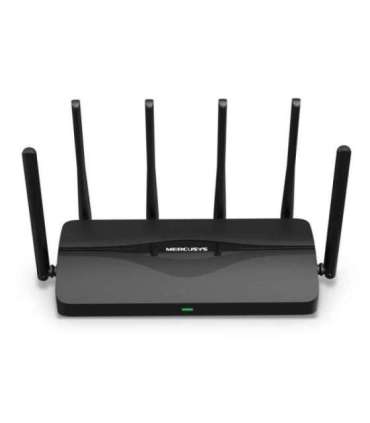

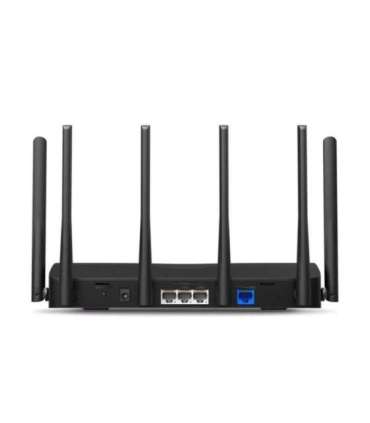

Mercusys BE9300 Tri-Band Wi-Fi 7 Router

Lisainfo

Product type

Tabletop router

Depth

119 mm

Kõrgus

43.3 mm

Laius

258 mm

Product colour

Must

Power source type

DC

Firewall

Yes

DMZ support

Yes

Access Control List (ACL)

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

WPS push button

Yes

VPN server

OpenVPN/PPTP/L2TP/ WireGuard VPN Server and Clients

Ethernet LAN

Yes

Port triggering

Yes

Ethernet LAN interface type

2.5 Gigabit Ethernet

Port forwarding

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

WLAN data transfer rate (first band)

574 Mbit/s

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

WLAN data transfer rate (second band)

2880 Mbit/s

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN data transfer rate (max)

9300 Mbit/s

DHCP client

Yes

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

Ethernet LAN (RJ-45) ports

3

Antennas quantity

6

Antenna design

External

DSL WAN

No

SIM card slot

No

3G/4G USB modem compatibility

No

Ethernet WAN

Yes

LED indicators

LAN, Power, WAN

Firewall security

SPI Firewall

Web-based management

Yes

Number of guest networks (2.4 GHz)

1

Ethernet LAN data rates

10
100 Mbit/s
1000 Mbit/s
2500 Mbit/s

USB port

No

DC-in jack

Yes

WAN connection type

RJ-45

Warnings

Avoid contact with liquids as this may cause electric shock.
Do not open the appliance housing - risk of electric shock.
The product may emit radio waves that may interfere with other electronic devices.

Number of guest networks (5 GHz)

1

Guest access

Yes

Wall mountable

Yes

Antenna direction type

Omni-directional

WLAN data transfer rate (third band)

5760 Mbit/s

Number of guest networks (6 GHz)

1
