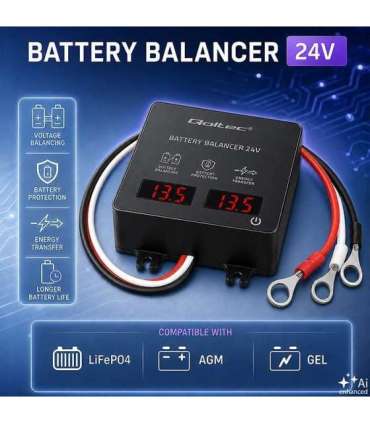

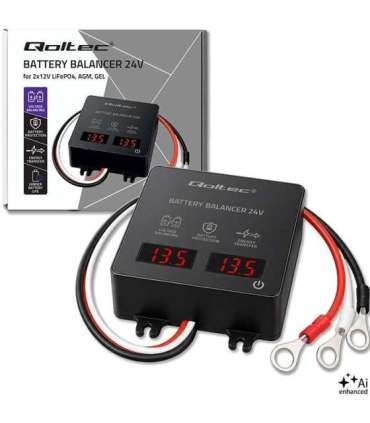

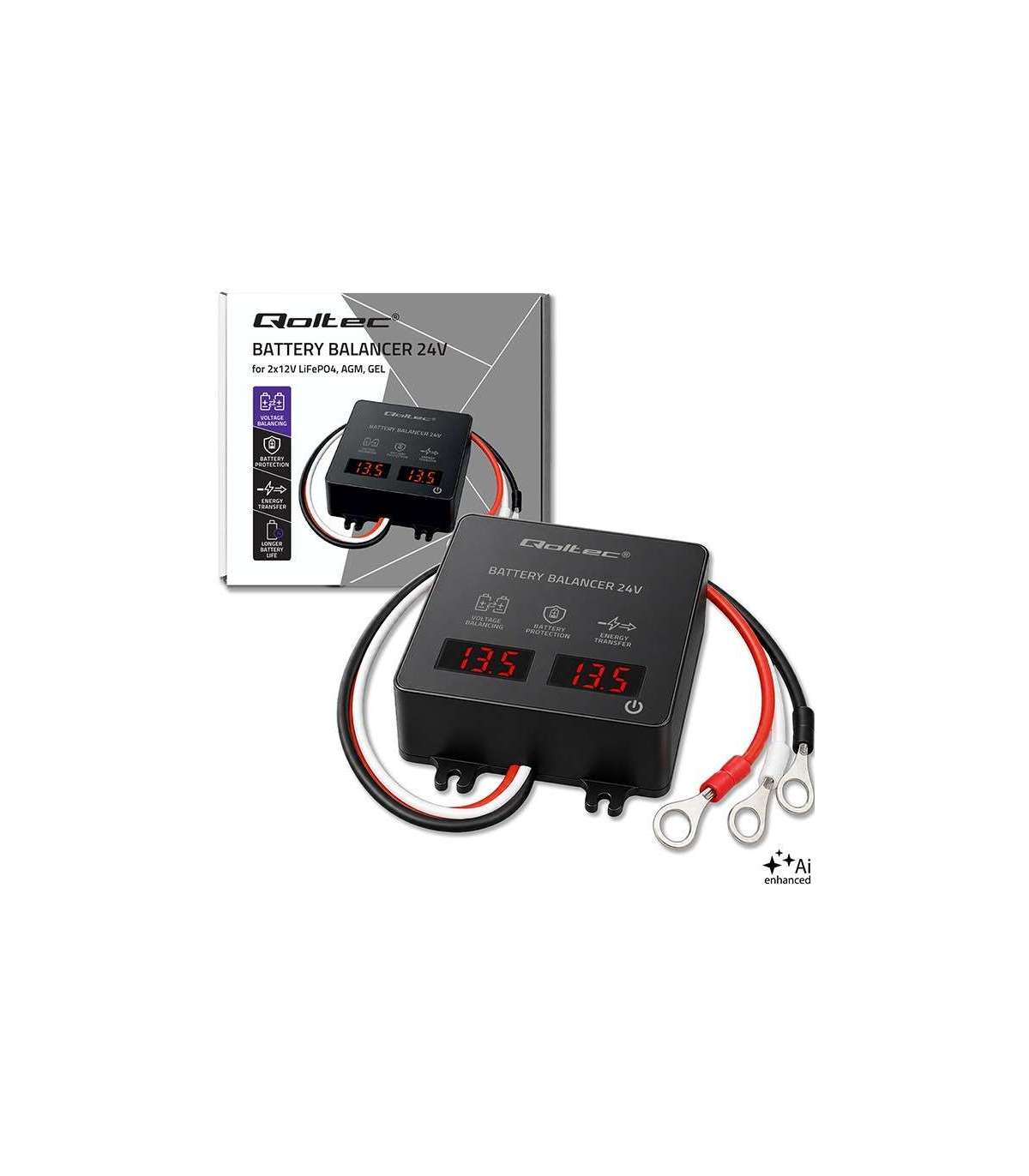

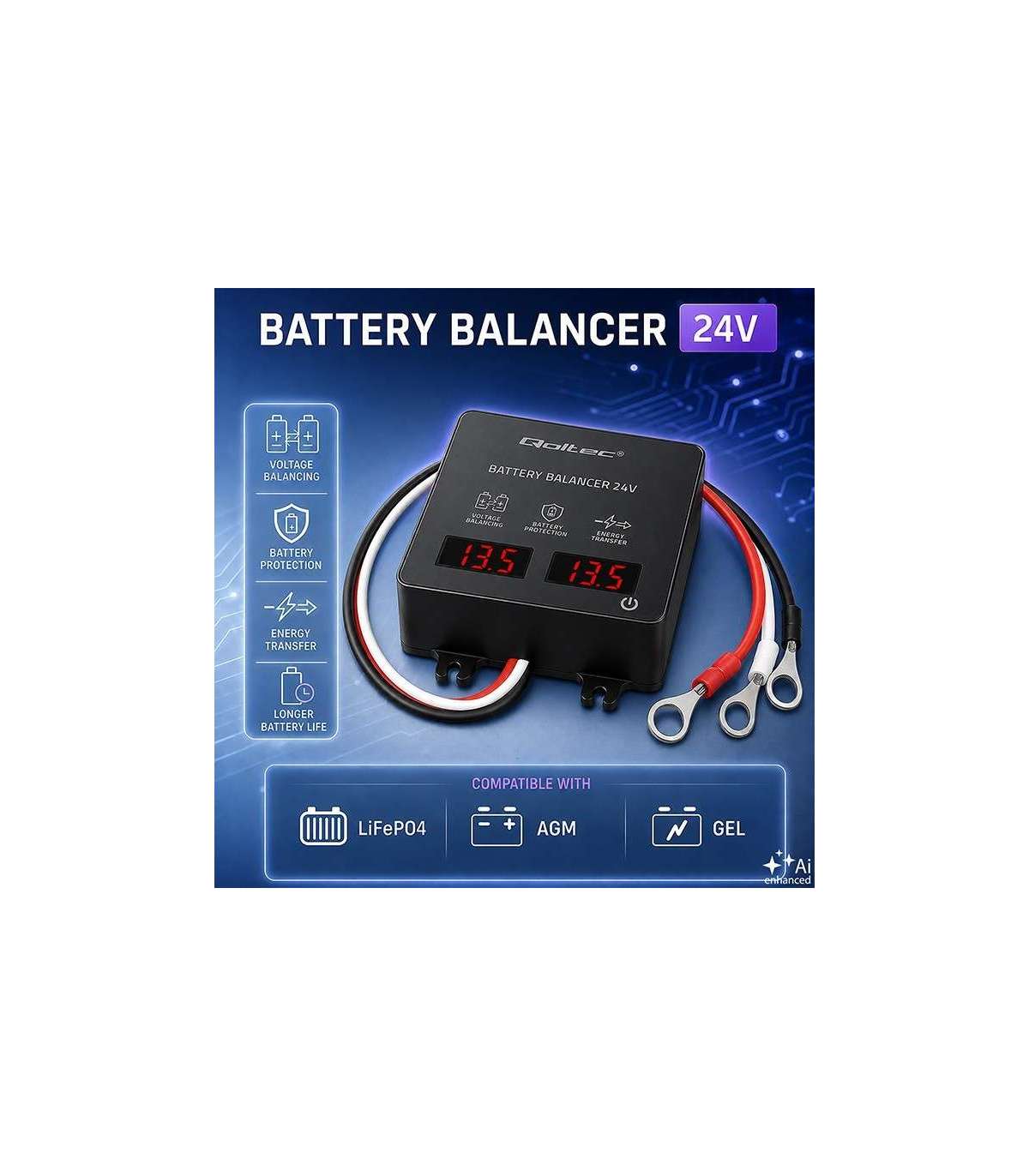

Voltage balancer for 24V batteries 2x12V 5A LED

Description:

Smart protection for your 24V installation - stability you can rely on

Automatically compensates for differences in battery voltage, protects against damage and increases battery life ensuring stable and safe operation of 24V installations All this in a compact, fireproof housing, ready to work in any conditions. Does not require connection to 230V mains, operates fully autonomously drawing power from connected batteries. Ideal for demanding and applications from photovoltaics to electric vehicles.

Balance tension, gain efficiency

• Automatic voltage equalization between 12V batteries in 24V systems
• Maximum equalization current: 5A
• Built-in reverse polarity protection

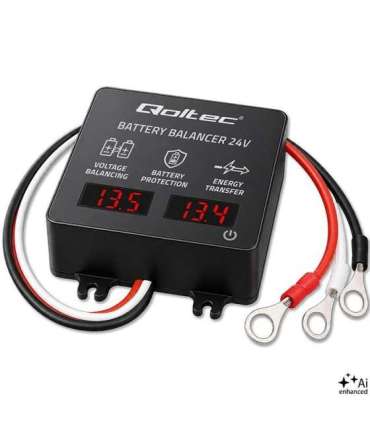

• Connection cable 35 cm with M8 eyelet - ready for immediate installation
• Support: 2 12V batteries - both lead-acid (AGM, GEL) and lithium batteries (LFP, NCM, LTO)
• Display showing the devices operating status
• Recommended battery capacity 20Ah - 200Ah
• Powered directly from batteries - no 230V AC mains connection required
• High-precision integrated circuits reduce component deviation

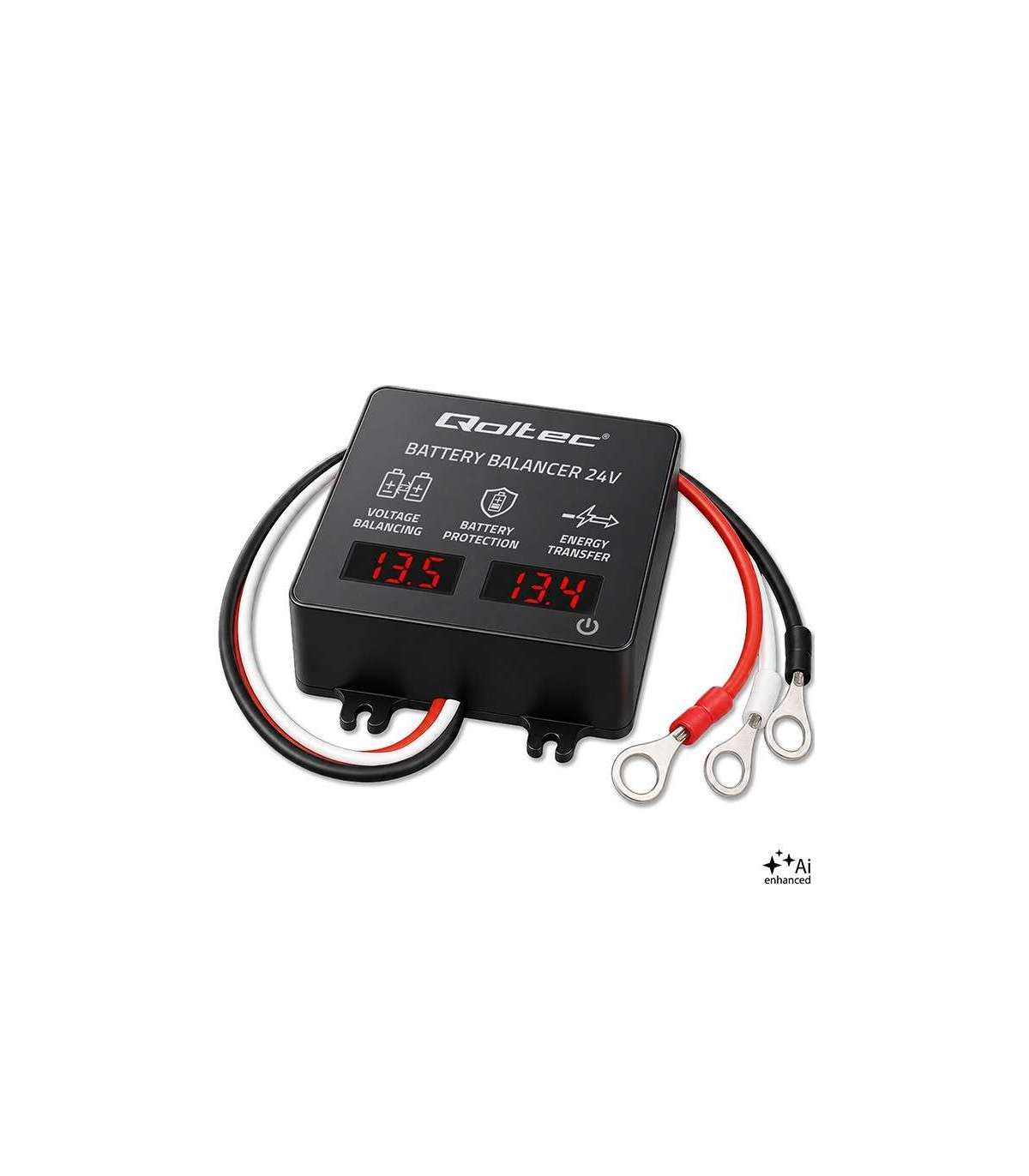

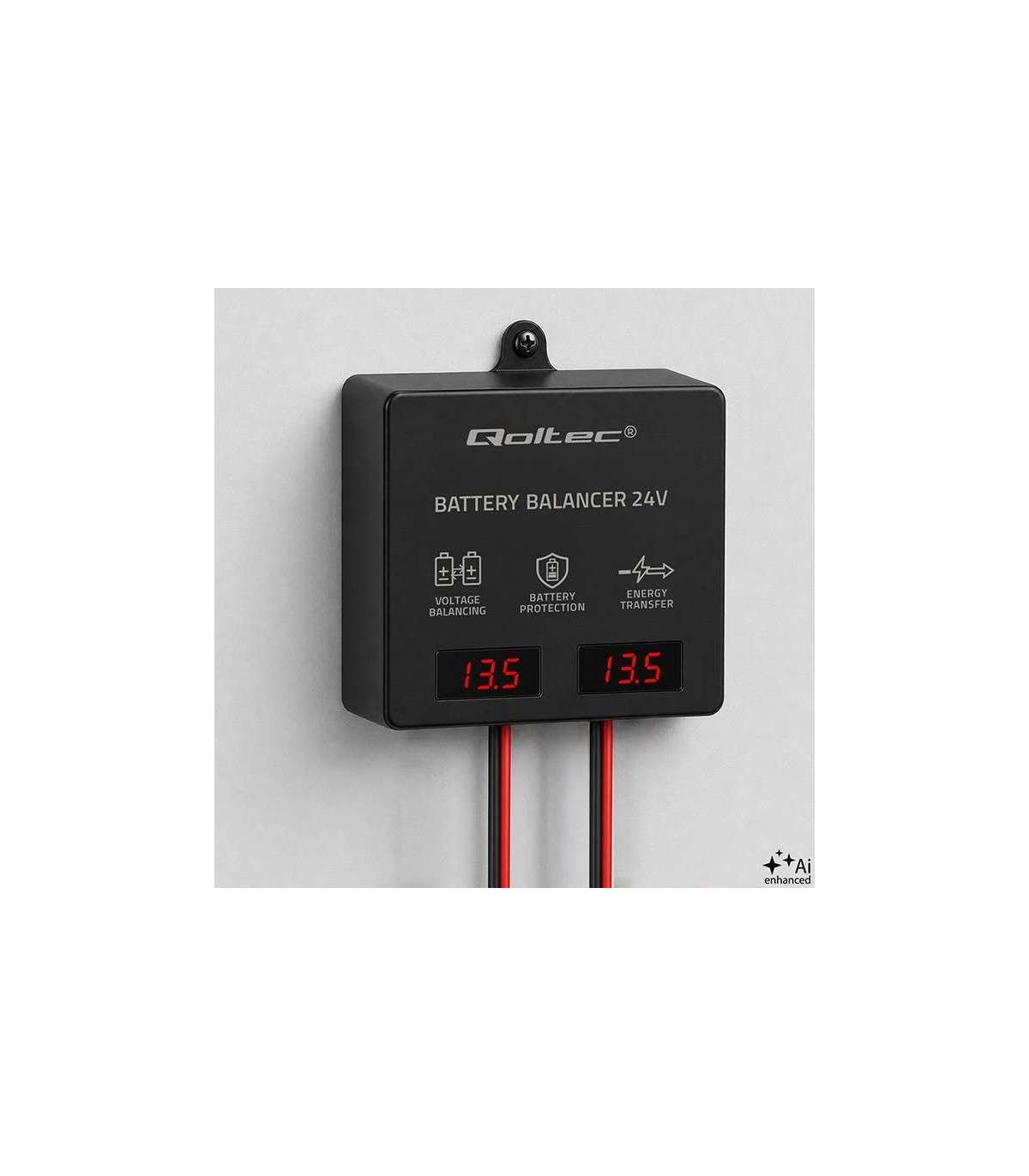

Clear dual LCD display full control over the balancers operation

The voltage balancer is fitted with a dual, easy-to-read display which shows the current voltage of each of the two 12V batteries operating in a 24V system. This allows the user to easily monitor the condition of the set and quickly spot any voltage differences between the batteries. The displayed values make it easier to assess the devices operation and allow you to check whether the voltage equalisation process is proceeding correctly.

Quick and safe installation

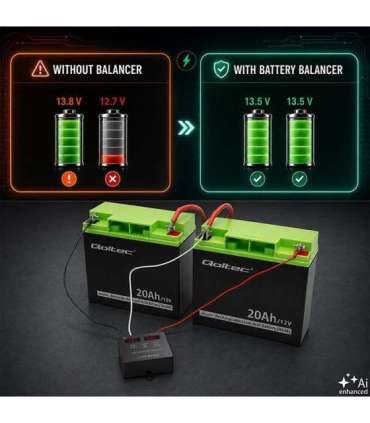

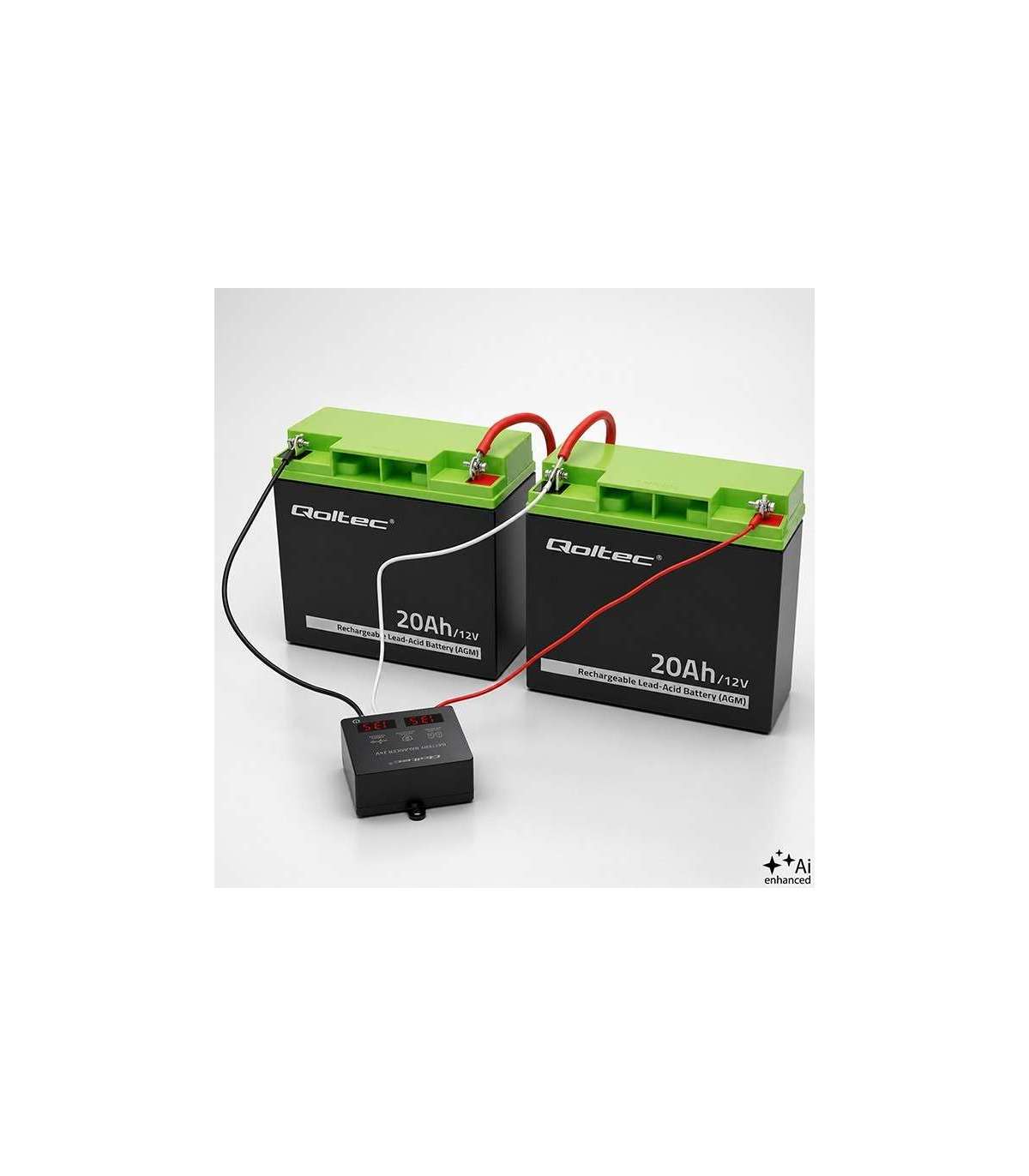

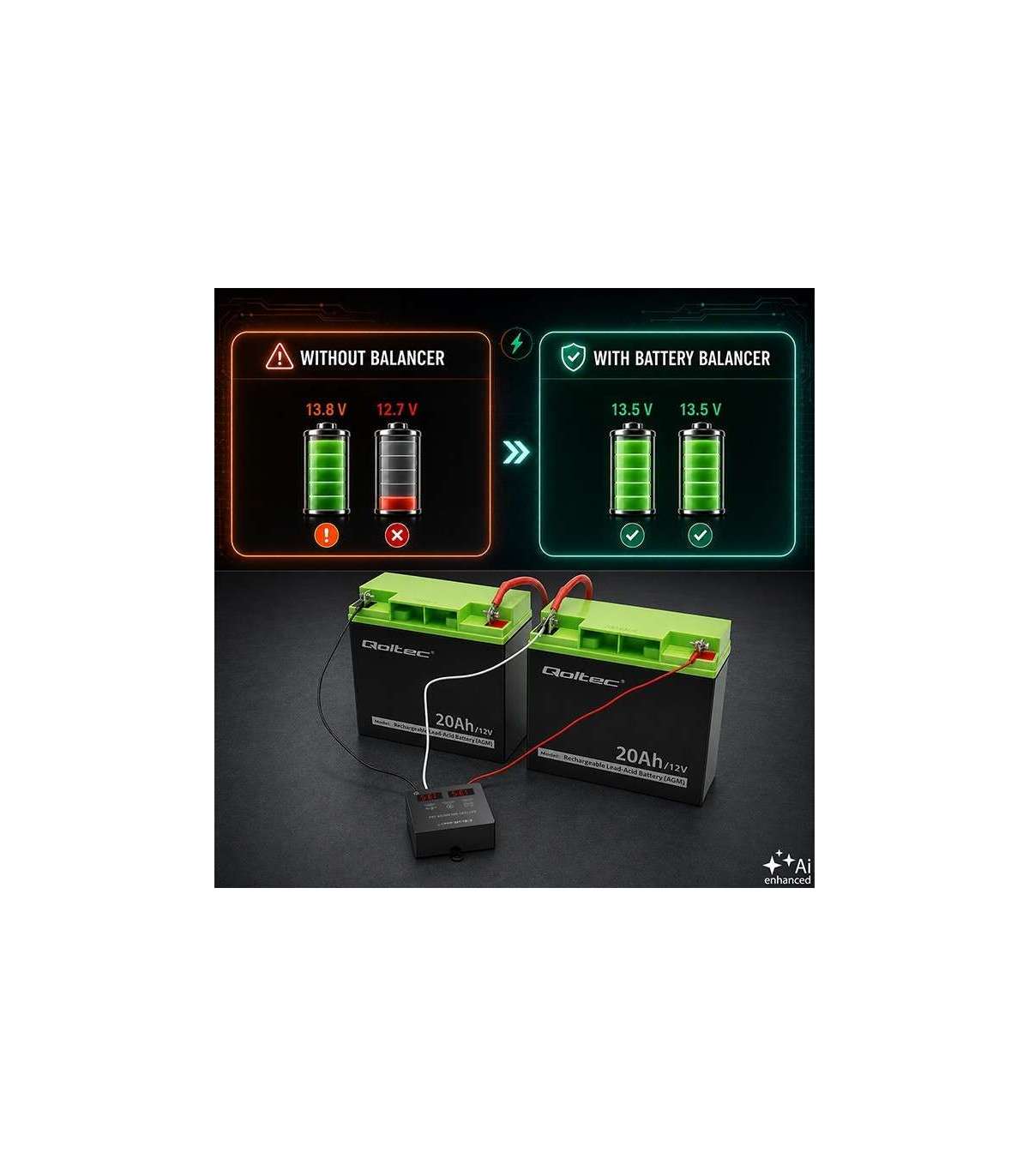

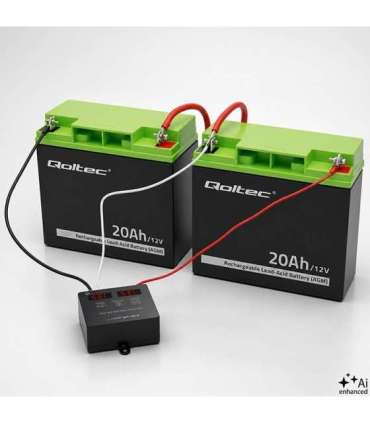

Before connecting the voltage equalizer Make sure that both batteries are fully charged, have the same type and identical capacity. The voltage difference between them should not exceed 0.2V. It is also extremely important that the batteries are properly connected in series, and the total voltage of the system is about 24V. Connecting the balancer is simple - just connect the black wire to the minus, red to the plus of the entire 24V set, and white to the point between the batteries The rest will be taken care of by the balancer. The device will start automatically and LEDs A and B will let you know that the system is working and taking care of your batteries.

Works with any 24V system - Universal application, wide compatibility

The 24V voltage balancer is an excellent choice wherever you use two 12V batteries connected in series. Ideal for campers, caravans, boats, solar systems, electric vehicles, forklifts and emergency power systems. No problem works with lead-acid batteries (AGM, GEL), as well as with lithium batteries, such as LiFePO4, NCM or LTO. This small device can significantly extend the life of the entire battery and prevent costly failures.

Compatible with:

12V lead-acid (AGM, GEL) and LiFePo4

Designation:

CE+WEEE
