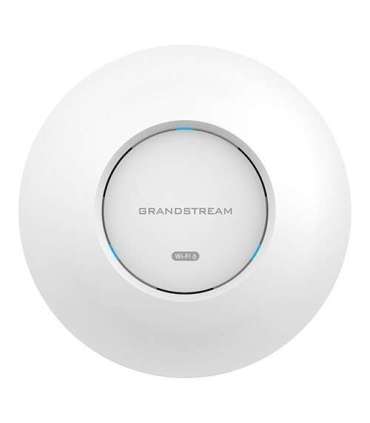

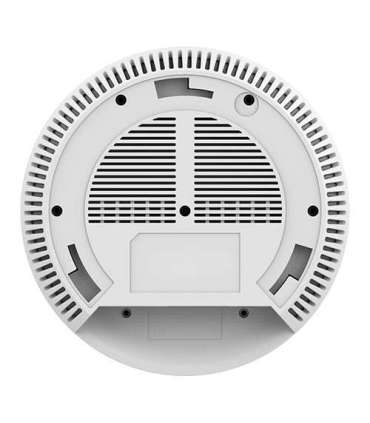

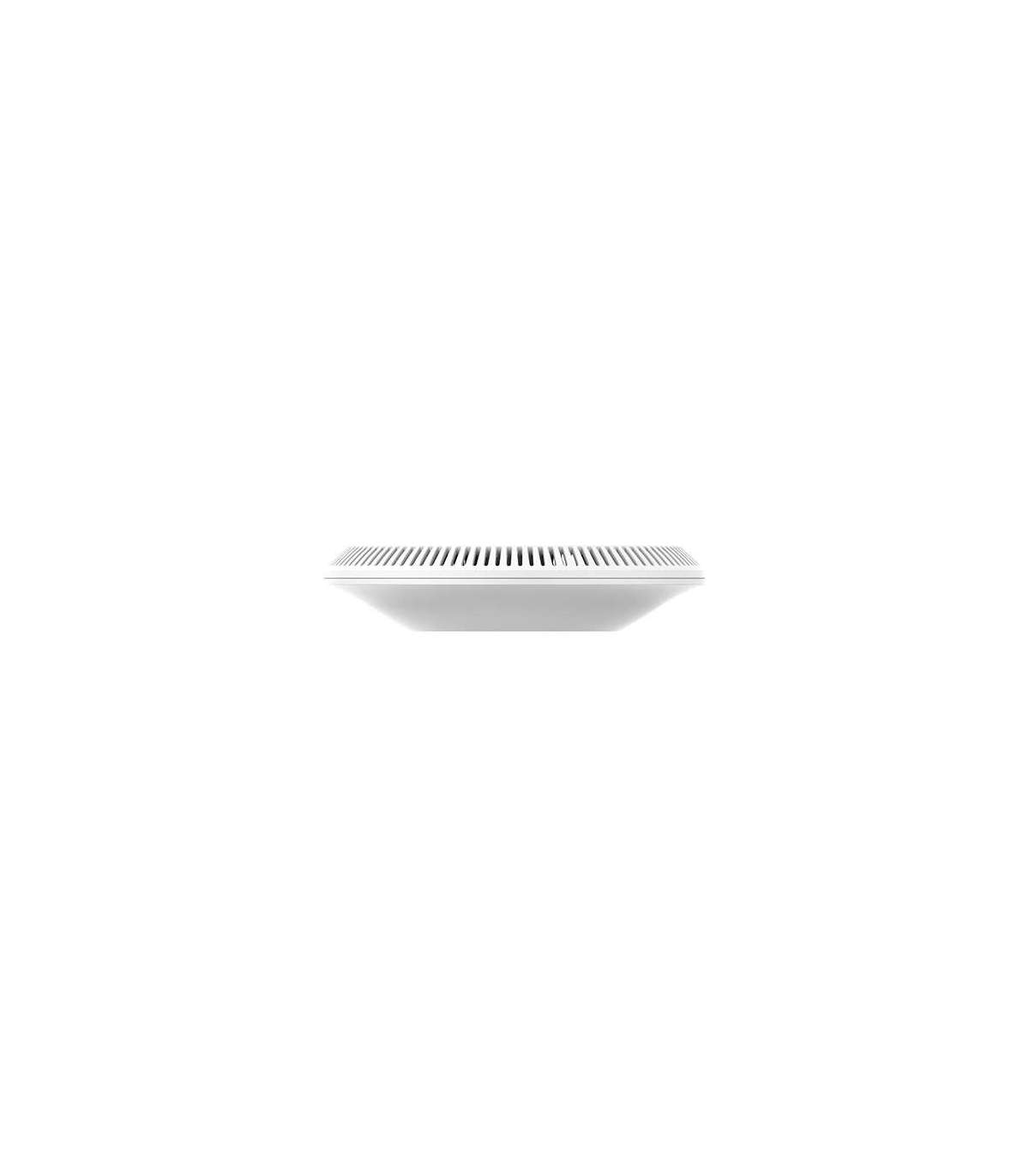

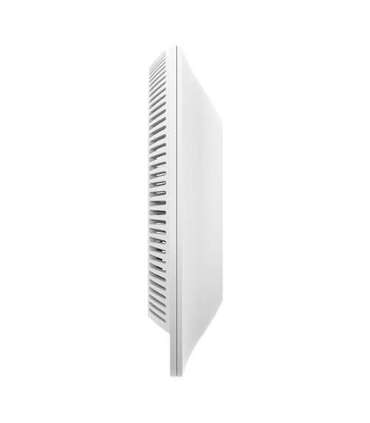

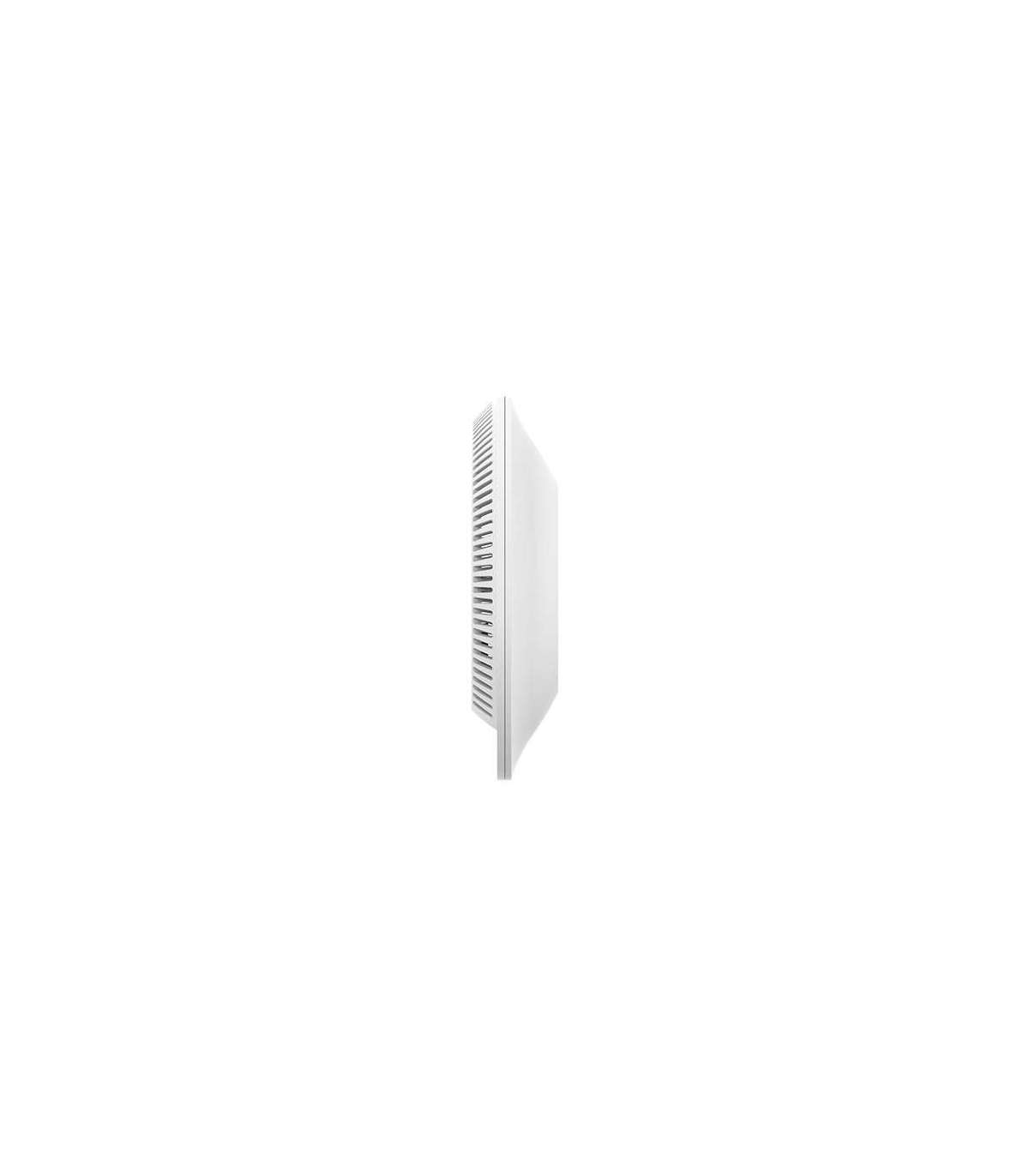

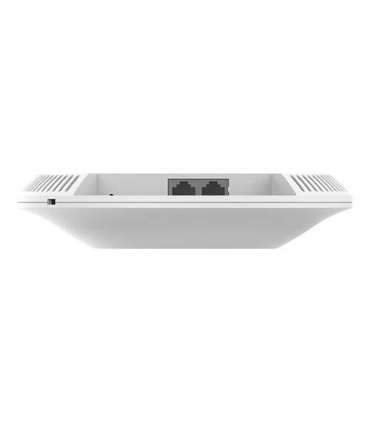

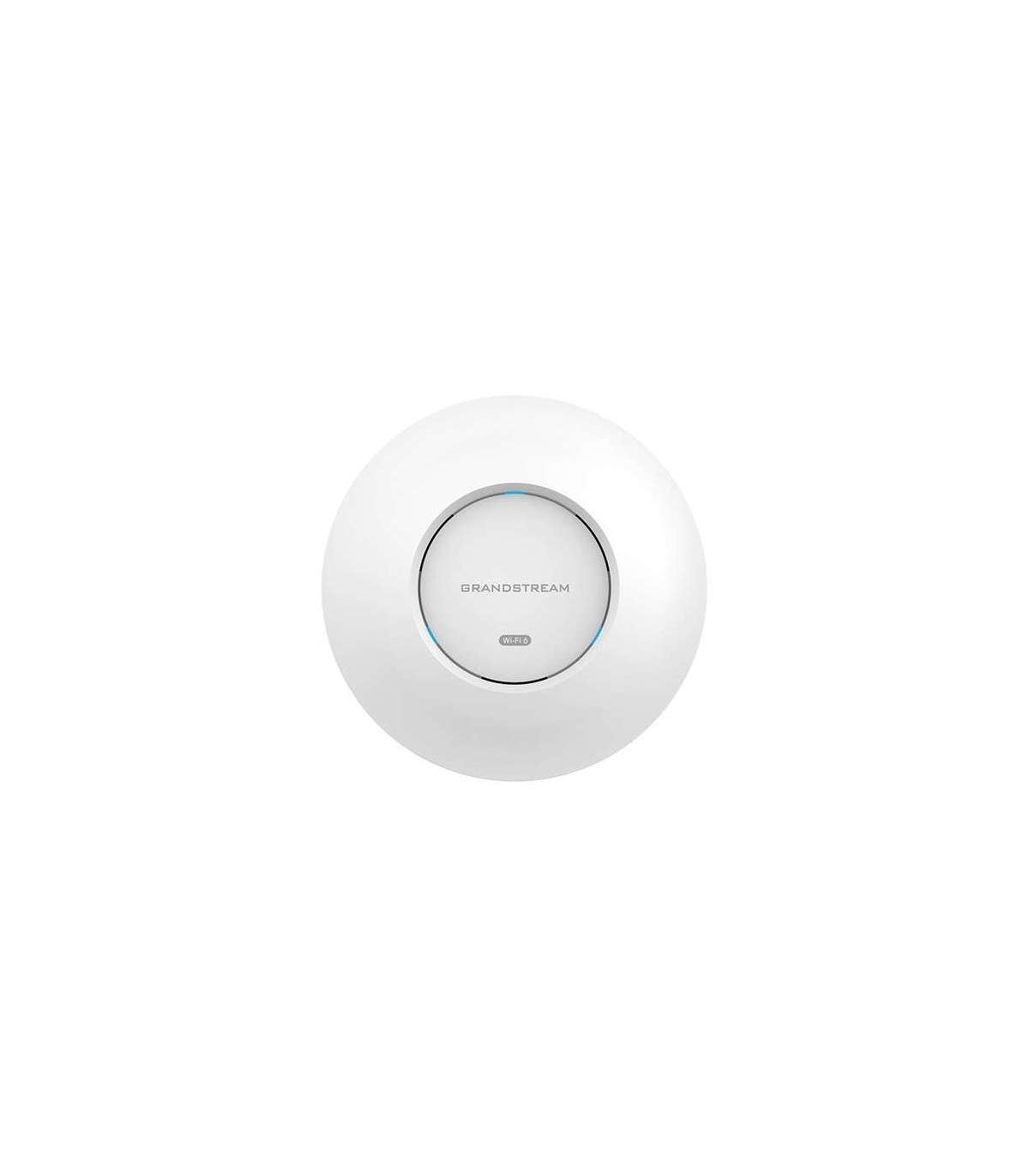

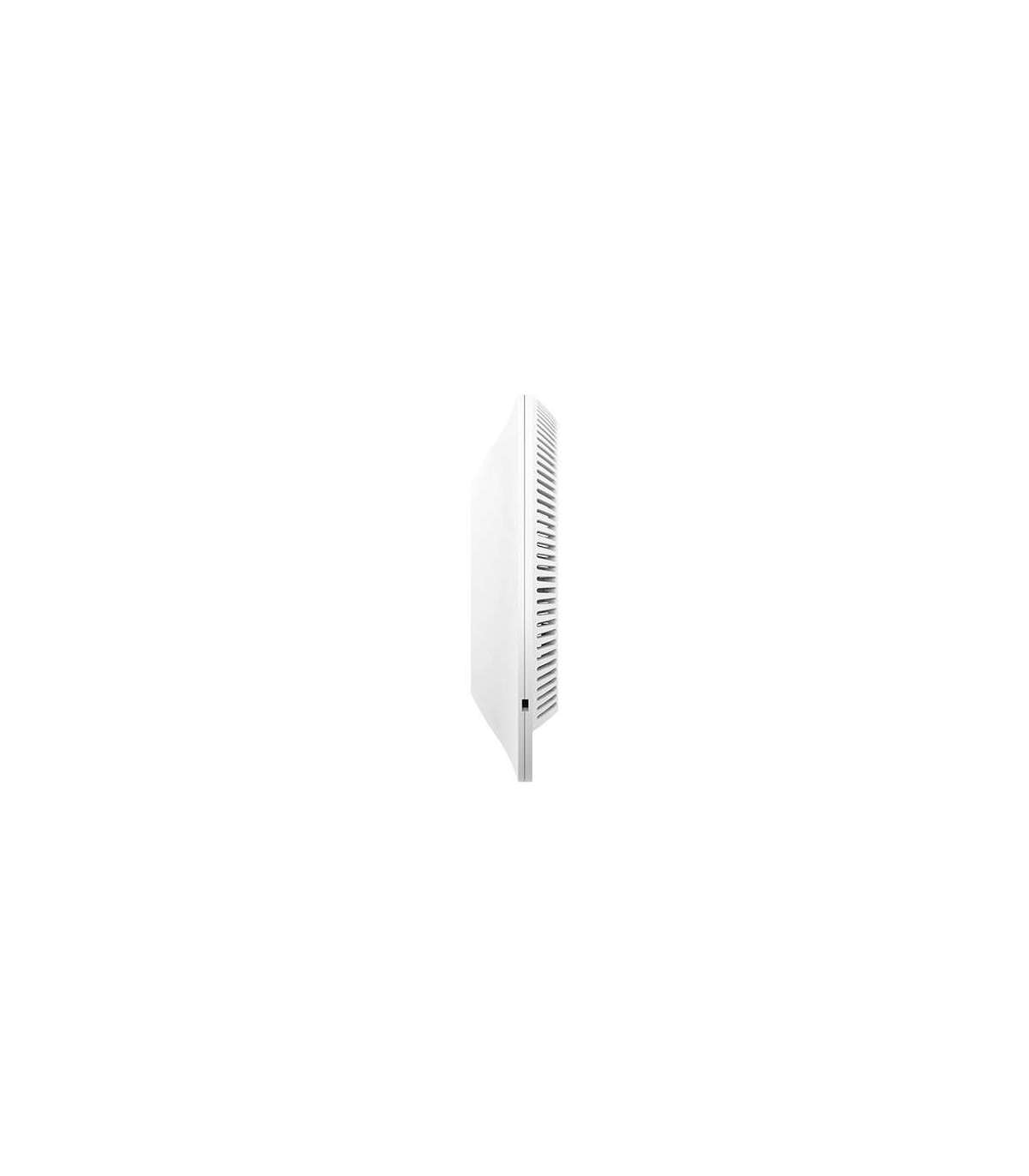

Grandstream GWN 7660 ACCESS POINT

Lisainfo

MU-MIMO technology

Yes

Maximum Tx power (2.4 GHz)

24 dBm

OFDMA

Y

Fast roaming

Yes

Maximum data transfer rate (5 GHz)

1201 Mbit/s

Maximum data transfer rate (2.4 GHz)

573.5 Mbit/s

Number of SSID supported

32

MU-MIMO

Yes 2x2:2

Cloud-managed

Yes

Network interface

Base-T 10/100/1000 with auto detection

PoE standard

IEEE 802.3af/at

Gamepad

Y

Receiver sensitivity 2.4 GHz

802.11ax 20 MHz: -60 dBm at MCS11
802.11ax 40 MHz: -58 dBm at MCS11
802.11b: -96 dBm at 1 Mb/s, -88 dBm at 11 Mb/s
802.11g: -93 dBm at 6 Mb/s, -75 dBm at 54 Mb/s
802.11n 20 MHz: -73 dBm at MCS7
802.11n 40 MHz: -70 dBm at MCS7

Receiver sensitivity 5 GHz

802.11a: -92 dBm at 6Mbps, -74 dBm at 54Mbps
802.11ac 20 MHz: -67 dBm at MCS8
802.11ac 80 MHz: -59 dBm at MCS9
802.11ac: HT40: -63 dBm at MCS9
802.11ax 20 MHz: -60 dBm at MCS11
802.11ax 40 MHz: -58 dBm at MCS11
802.11ax 80 MHz: -56 dBm with MCS11
802.11n 20 MHz: -73 dBm at MCS7
802.11n 40 MHz: -70 dBm with MCS7

Maximum transmission power (5 GHz)

22 dBm

Safe start-up

Yes

WebGui

Yes

Captive portal

Yes

QoS support

802.11e/WMM
TOS
VLAN

Kaal

443 g

Kõrgus

180.4 mm

Laius

180.4 mm

Sügavus

40.8 mm

Töötemperatuur (T-T)

0 - 40 °C

Etherneti LAN (RJ-45) pordid

2

LED-indikaatorid

Jah

Kaabliluku pesa

Jah

Lähtesta nupp

Jah

Võrgustandardid

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11k
IEEE 802.11n
IEEE 802.11r
IEEE 802.11v

Maksimaalne andmeedastuskiirus

1170 Mbit/s

MAC-aadressi filtreerimine

Jah

Toide üle Etherneti (PoE)

Jah

Teenuse kvaliteedi (QoS) tugi

Jah

Sobib kasutamiseks õues

Ei

Turvalisuse algoritmid

WEP
WPA
WPA2-AES
WPA2-Enterprise
WPA2-PSK
WPA2-TKIP

VLANi tugi

Jah

Power over Ethernet (PoE) koguvõimsuse eelarve

9 W

2,4 GHz

Jah

5 GHz

Jah

Paigalduskomplekt

Jah

Toetatud võrguprotokollid

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Kasutajate arv

256 user(s)

Haldustarkvara

Yes

Toote värv

White

Laskekaugus

175 m

Paigaldusstiil

Ceiling, wall
