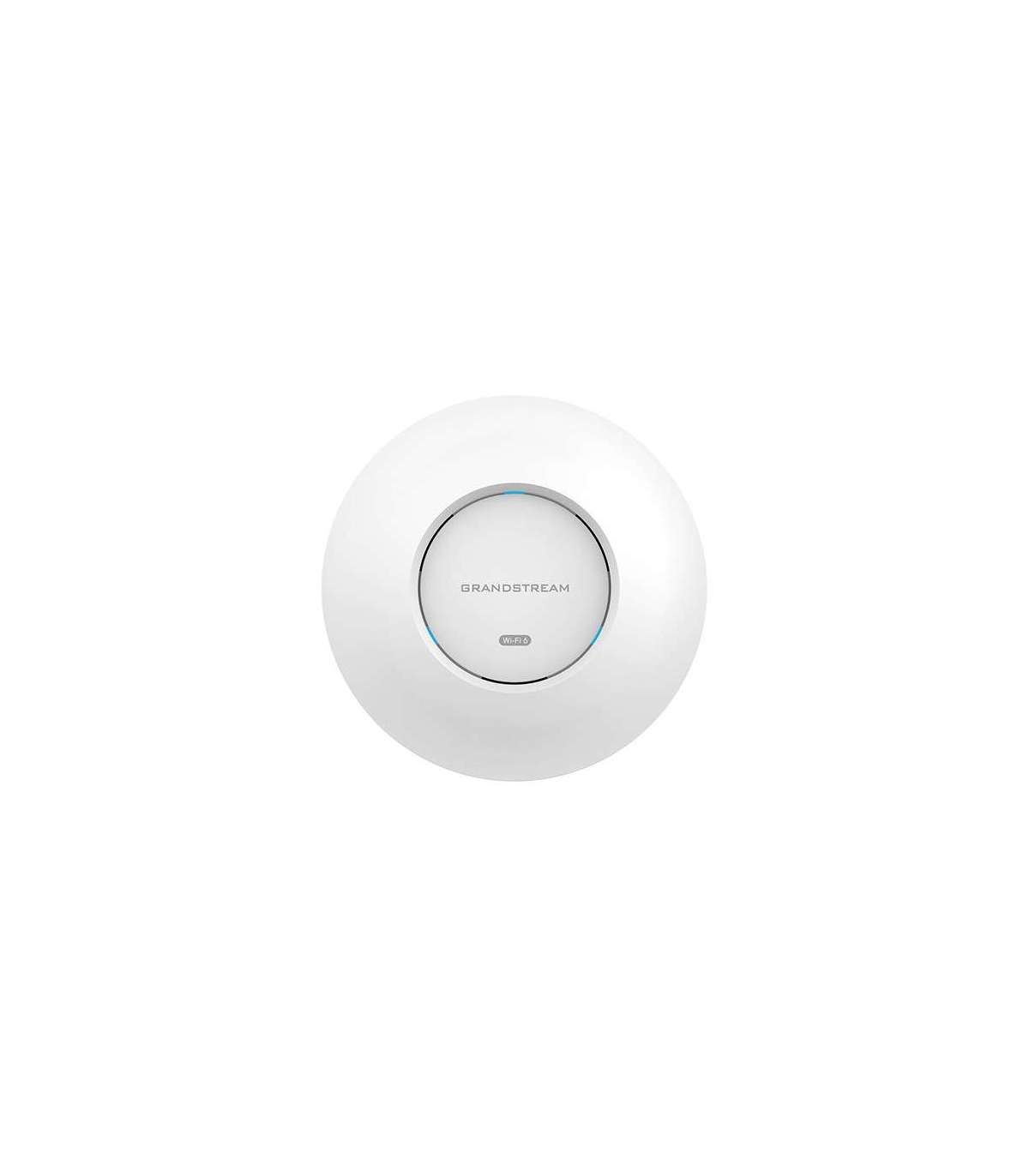

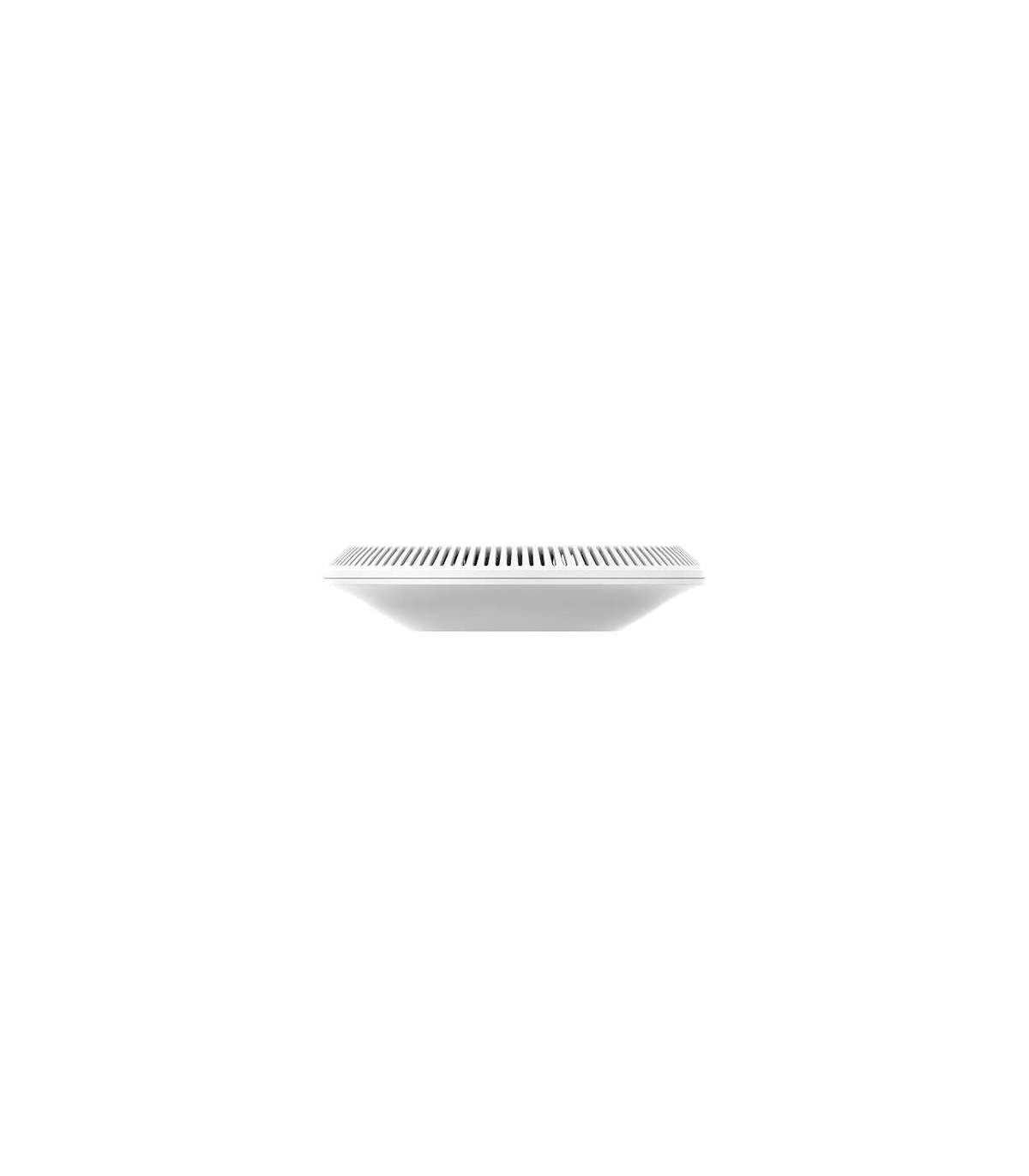

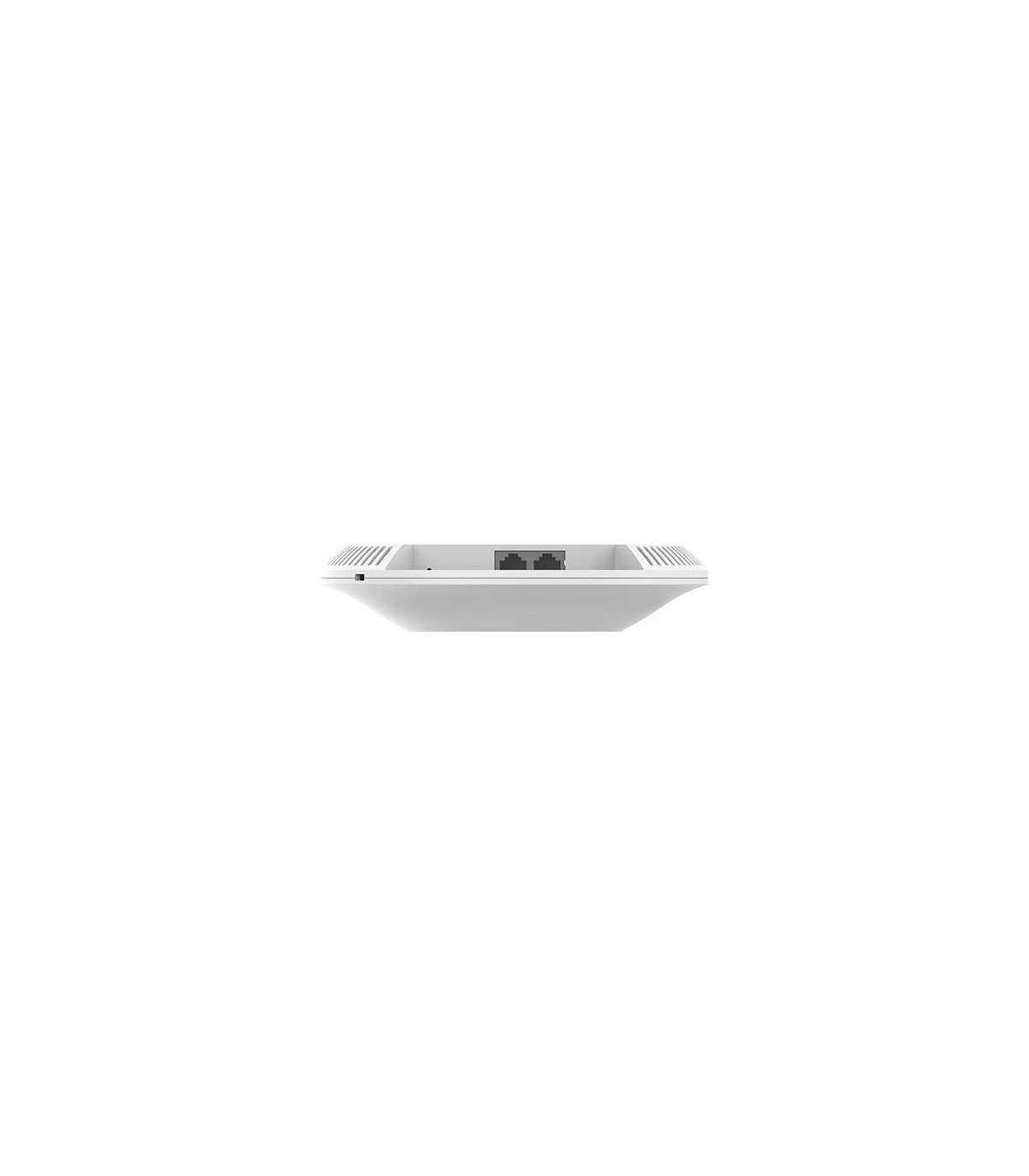

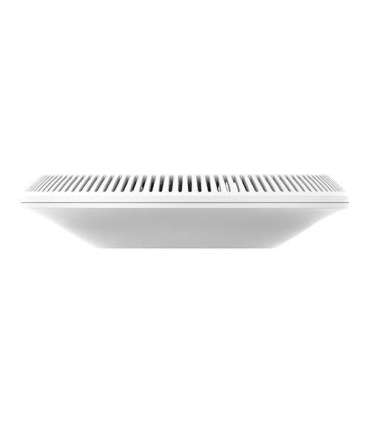

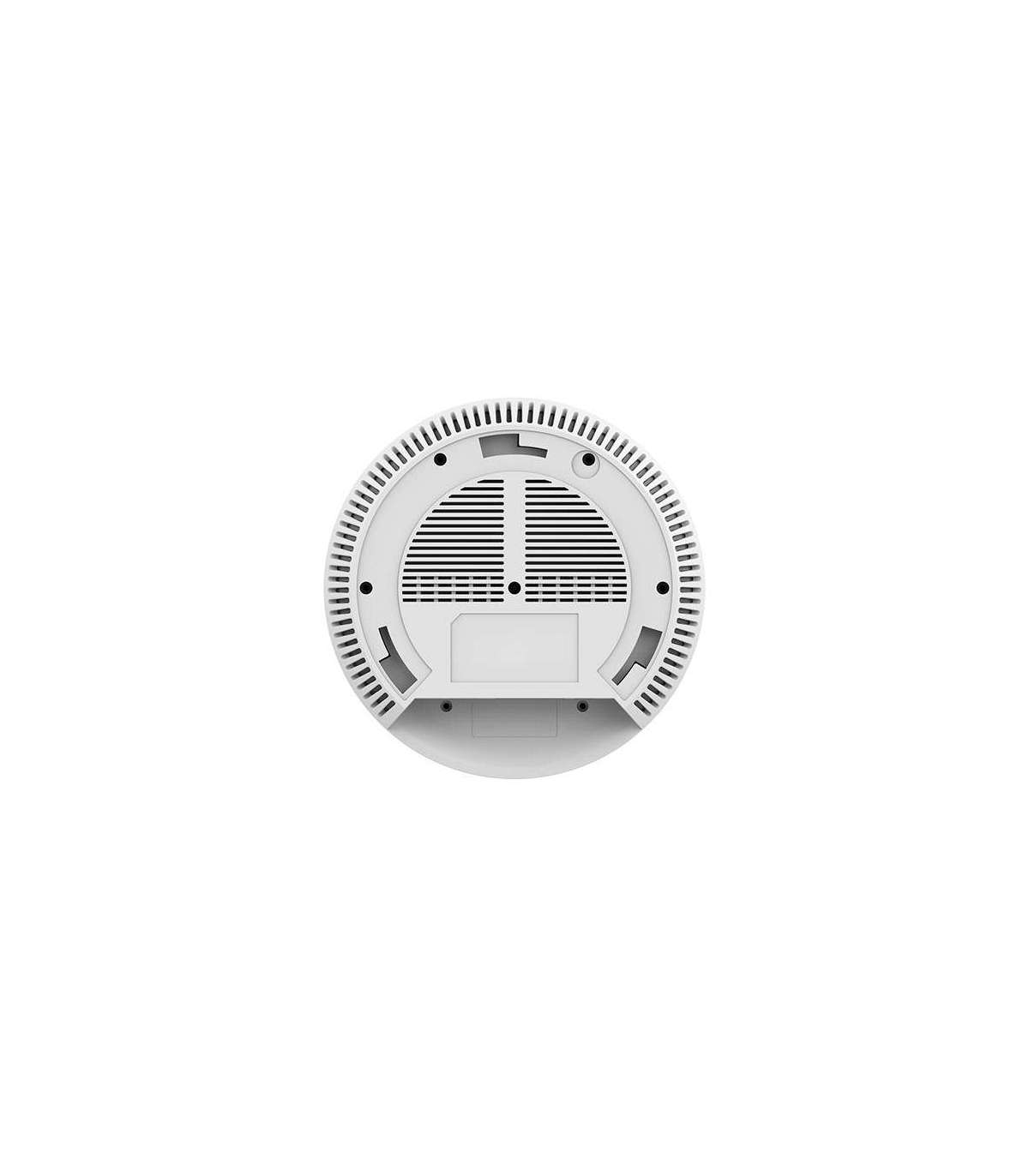

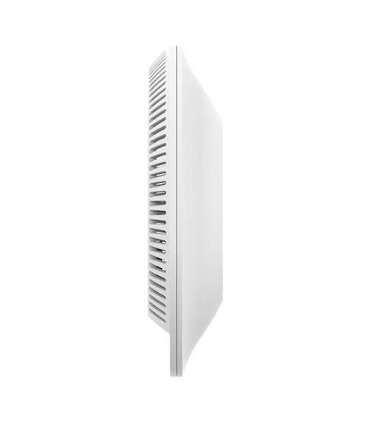

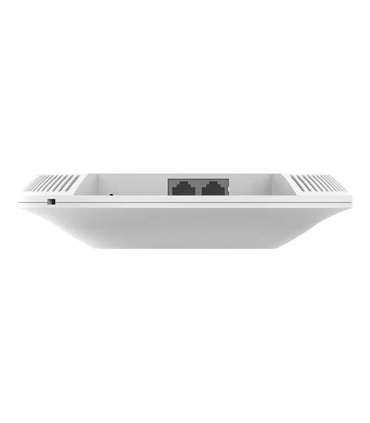

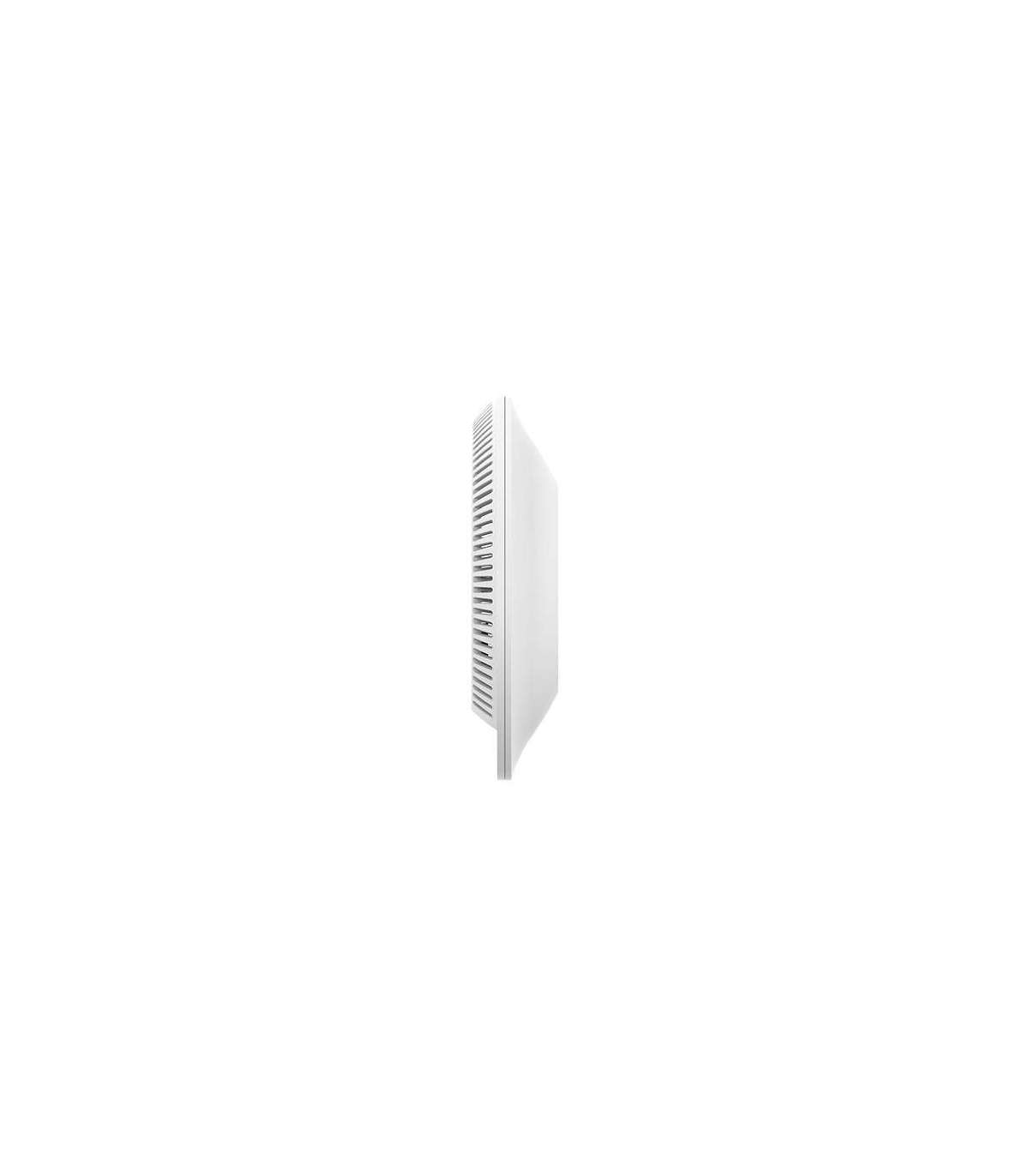

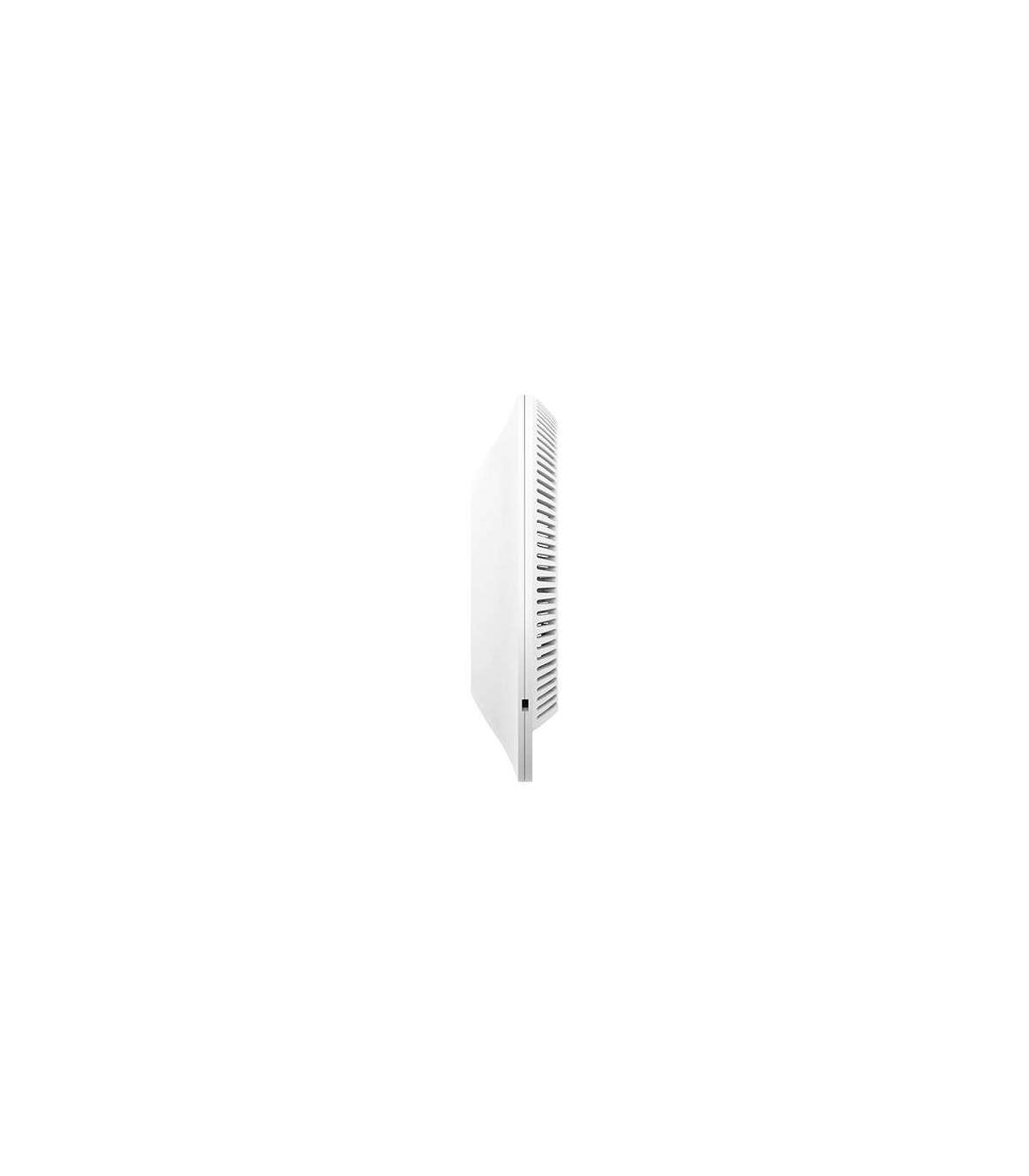

Grandstream GWN 7660 ACCESS POINT

Lisainfo

Depth

40.8 mm

Kaal

443 g

Kõrgus

180.4 mm

Laius

180.4 mm

Product colour

Valge

Security algorithms

WEP
WPA
WPA2-AES
WPA2-Enterprise
WPA2-PSK
WPA2-TKIP

Operating temperature (T-T)

0 - 40 °C

Reset button

Yes

MU-MIMO technology

Yes

Ethernet LAN (RJ-45) ports

2

LED indicators

Yes

MAC address filtering

Yes

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11k
IEEE 802.11n
IEEE 802.11r
IEEE 802.11v

Supported network protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Power over Ethernet (PoE)

Yes

Maximum Tx power (2.4 GHz)

24 dBm

OFDMA

Y

Maximum data transfer rate

1170 Mbit/s

Mounting kit

Yes

2.4 GHz

Yes

5 GHz

Yes

Fast roaming

Yes

Maximum data transfer rate (5 GHz)

1201 Mbit/s

Maximum data transfer rate (2.4 GHz)

573.5 Mbit/s

VLAN support

Yes

Number of users

256 user(s)

Number of SSID supported

32

Cable lock slot

Yes

MU-MIMO

Yes 2x2:2

Suitable for outdoor use

No

Cloud-managed

Yes

Management software

Yes

Network interface

Base-T 10/100/1000 with auto detection

PoE standard

IEEE 802.3af/at

Shooting distance

175 m

Gamepad

Y

Receiver sensitivity 2.4 GHz

802.11ax 20 MHz: -60 dBm at MCS11
802.11ax 40 MHz: -58 dBm at MCS11
802.11b: -96 dBm at 1 Mb/s, -88 dBm at 11 Mb/s
802.11g: -93 dBm at 6 Mb/s, -75 dBm at 54 Mb/s
802.11n 20 MHz: -73 dBm at MCS7
802.11n 40 MHz: -70 dBm at MCS7

Receiver sensitivity 5 GHz

802.11a: -92 dBm at 6Mbps, -74 dBm at 54Mbps
802.11ac 20 MHz: -67 dBm at MCS8
802.11ac 80 MHz: -59 dBm at MCS9
802.11ac: HT40: -63 dBm at MCS9
802.11ax 20 MHz: -60 dBm at MCS11
802.11ax 40 MHz: -58 dBm at MCS11
802.11ax 80 MHz: -56 dBm with MCS11
802.11n 20 MHz: -73 dBm at MCS7
802.11n 40 MHz: -70 dBm with MCS7

Maximum transmission power (5 GHz)

22 dBm

Mounting style

Ceiling, wall

Safe start-up

Yes

WebGui

Yes

Captive portal

Yes

QoS support

802.11e/WMM
TOS
VLAN

Total Power over Ethernet (PoE) budget

9 W
