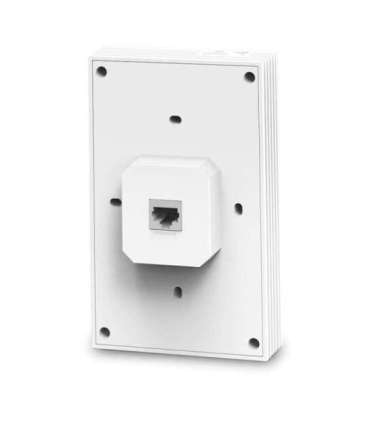

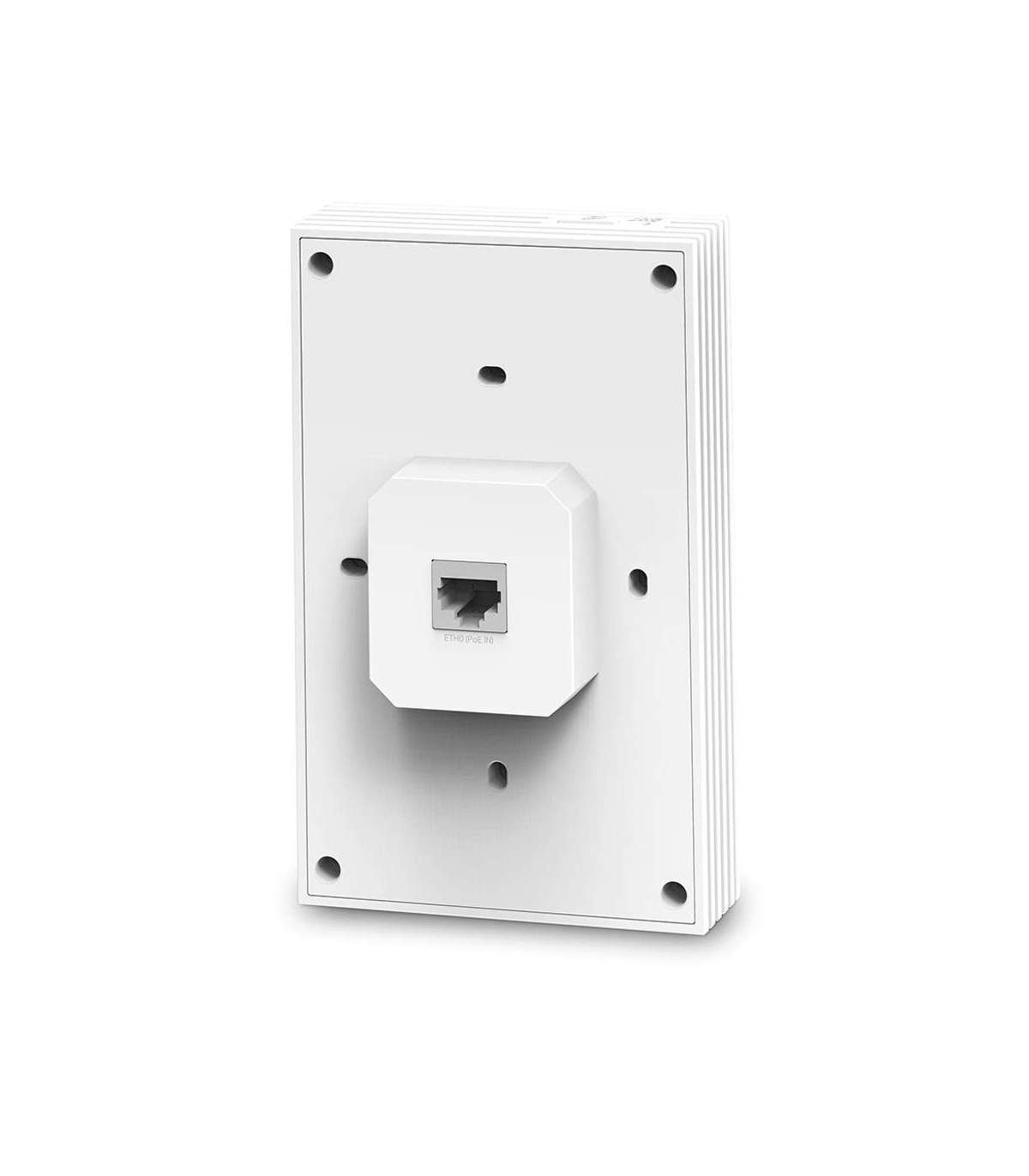

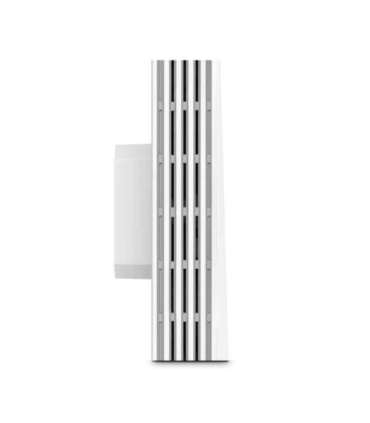

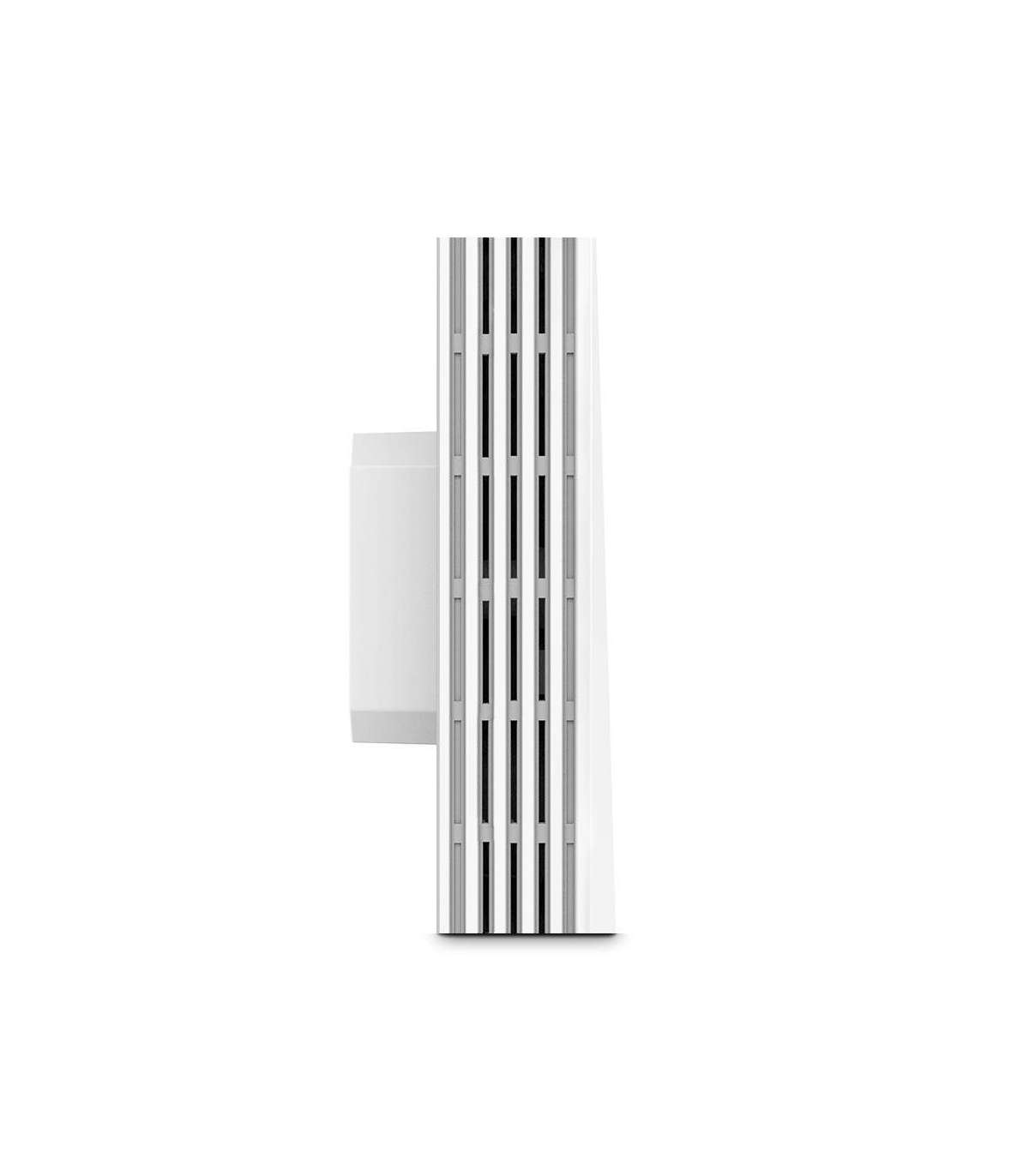

TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point

Lisainfo

Depth

86 mm

Kõrgus

42.6 mm

Laius

143 mm

Package weight

400 g

Quantity per pack

1 pc(s)

Product colour

Valge

Security algorithms

HTTPS
SNMP
SNMPv2
SNMPv3
SSH
WPA-Enterprise
WPA2-Enterprise
WPA3-Enterprise

Access Control List (ACL)

Yes

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

Ethernet LAN (RJ-45) ports

4

Antennas quantity

2

LED indicators

Yes

IP address filtering

Yes

MAC address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s
1000

Cabling technology

10/100/1000Base-T(X)

Networking standards

IEEE 802.1x
IEEE 802.3af
IEEE 802.3at
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Package width

117 mm

Package depth

184 mm

Package height

56 mm

Compliance certificates

RoHS

DC-in jack

Yes

Warnings

Avoid direct contact with water.
Do not expose to prolonged moisture.
Electronic products should be recycled at specialist electronic waste collection facilities.

Certification

FCC, RoHS

Antenna type

Internal

Wi-Fi Multimedia (WMM)/(WME)

Yes

Antenna gain level (max)

5 dBi

Power over Ethernet (PoE)

Yes

Power consumption (typical)

12 W

Frequency band

2.4, 5 GHz

Package type

Box

Firmware upgradeable

Yes

BeamForming

Yes

Maximum data transfer rate

2402 Mbit/s

Mounting kit

Yes

2.4 GHz

Yes

5 GHz

Yes

Placement

Wall

Maximum data transfer rate (5 GHz)

2402 Mbit/s

6 GHz

No

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

VLAN support

Yes

Syslog

Yes

Number of users

100 user(s)

Automatic channel selection

Yes

Number of SSID supported

16

Service Set Identifier (SSID) features

Multiple SSIDs

WAN connection

Ethernet (RJ-45)

Cable lock slot

No

Band steering

Yes

Transmitting power (FCC)

21 - 21 dBm

Transmitting power (CE)

20 - 23 - 26 dBm

Wireless isolation

Yes

Rate limiting

Yes

Airtime Fairness (ATF)

Yes

Remote Authentication Dial-In User Service (RADIUS)

Yes
