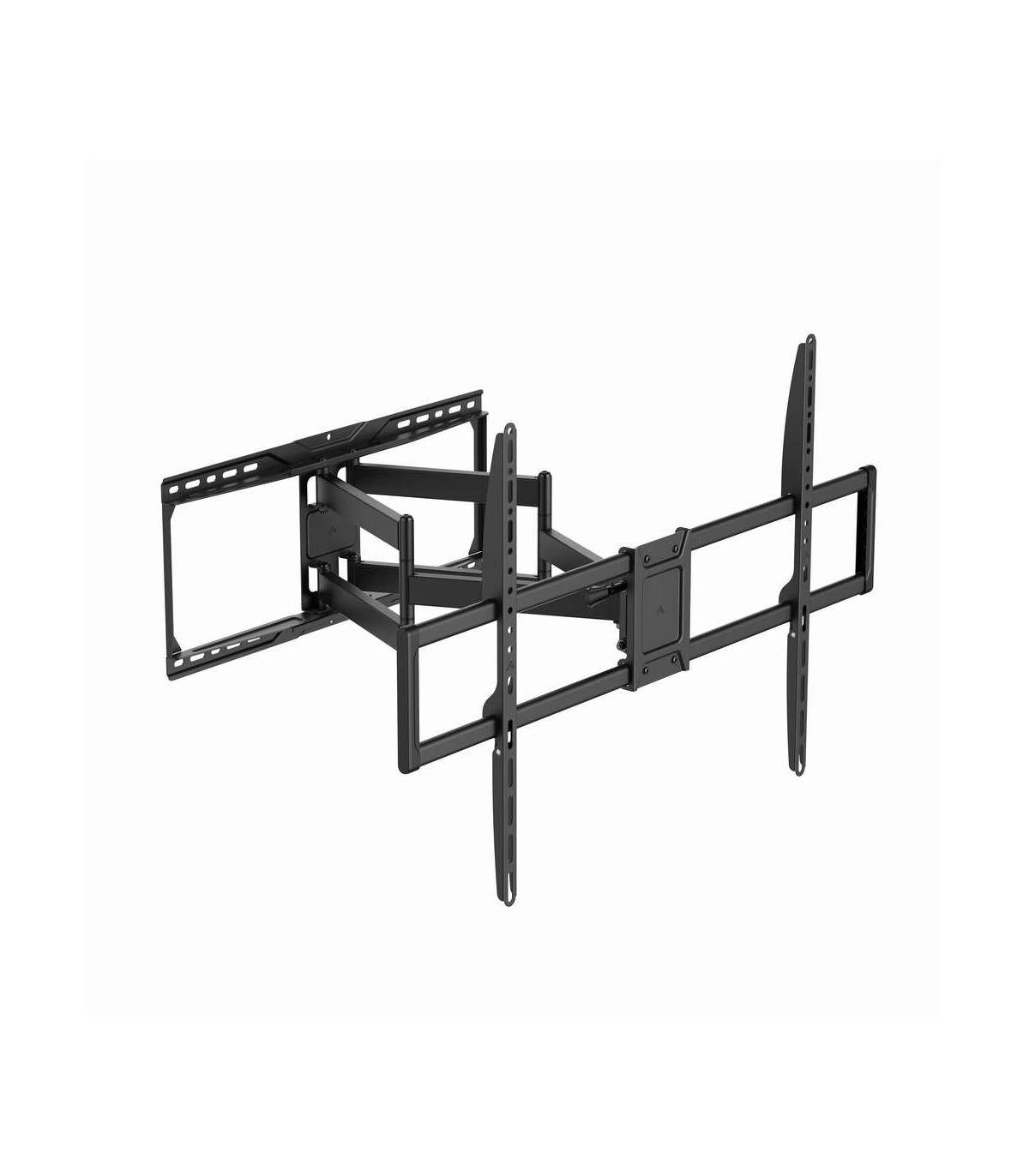

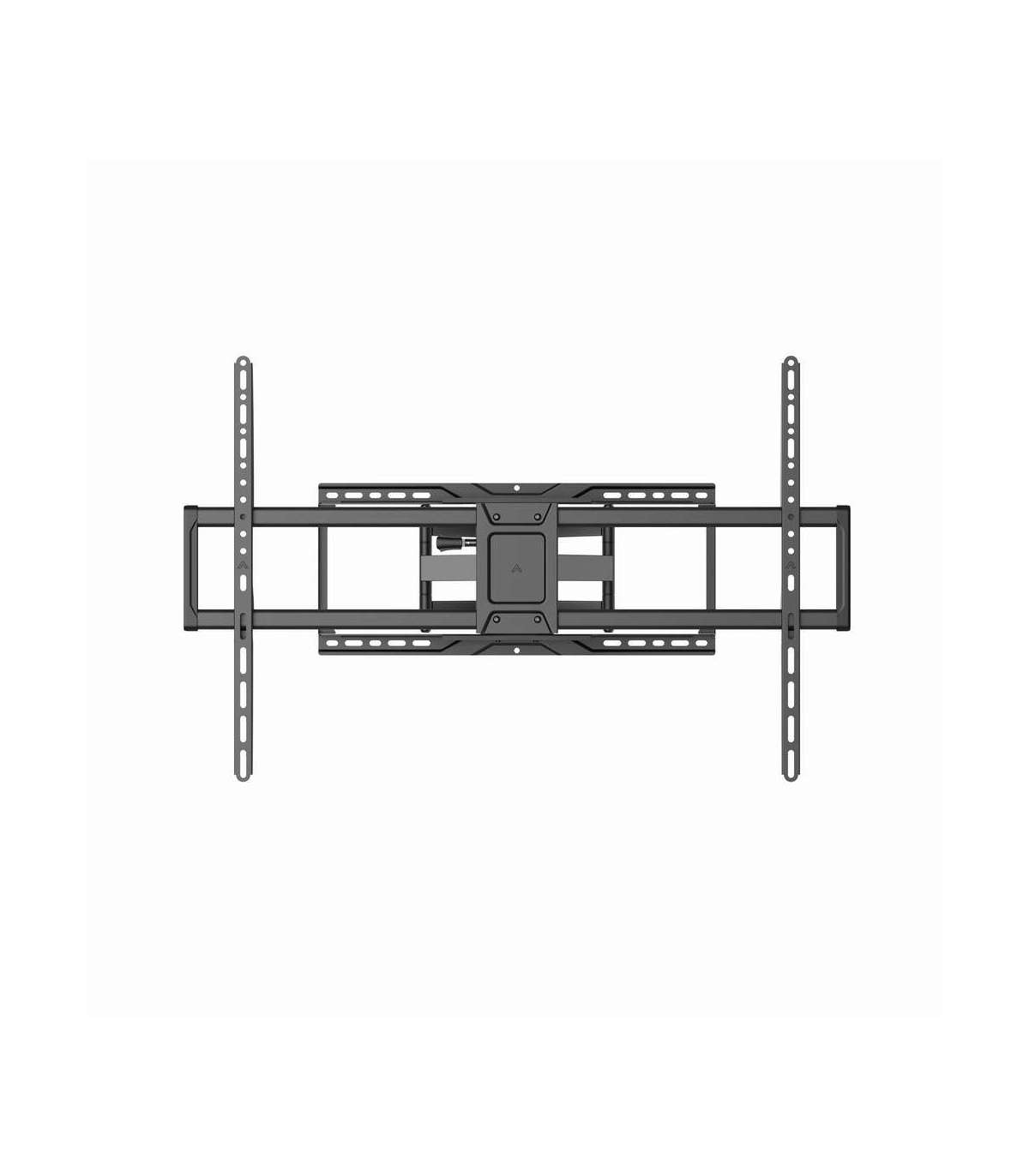

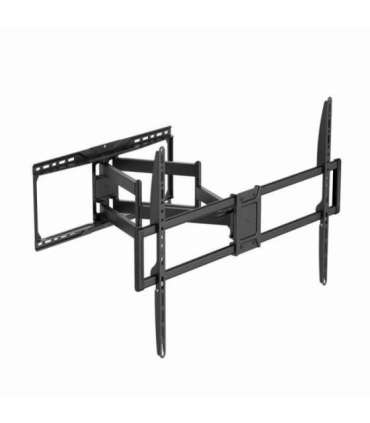

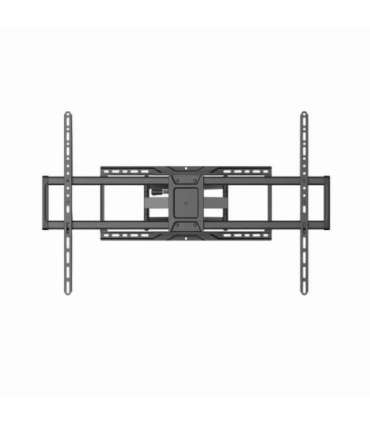

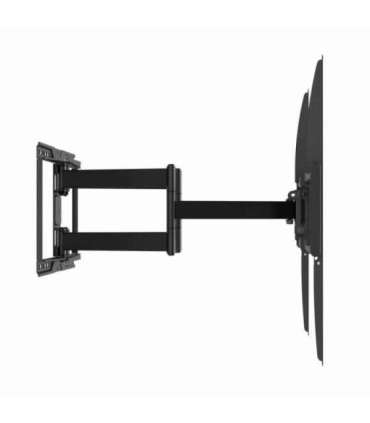

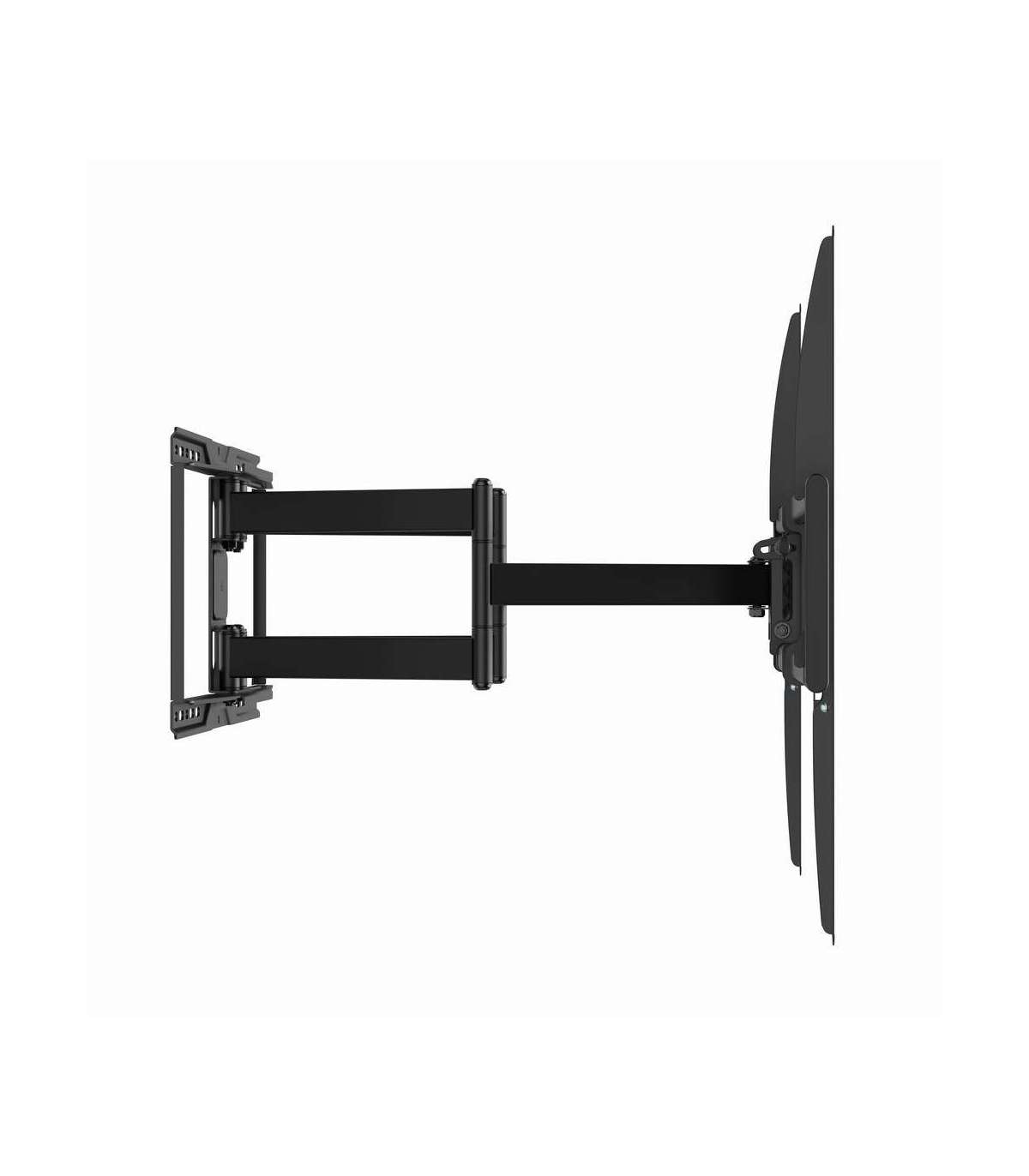

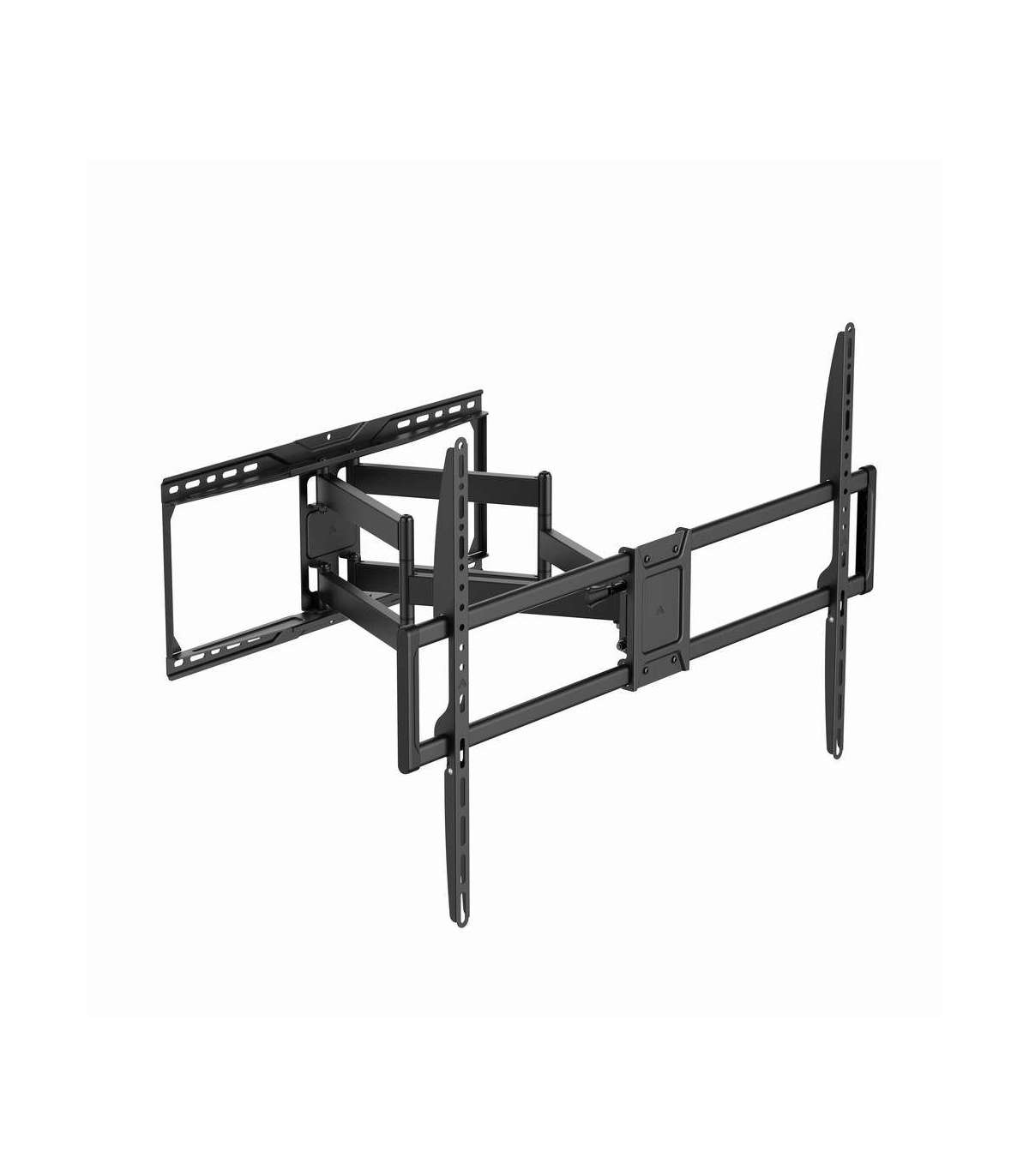

Gembird WM-105ST-01 Full-motion TV wall mount, 50" - 105'', black

Lisainfo

Depth

310 mm

Kaal

8.75 kg

Kõrgus

95 mm

Laius

675 mm

Product colour

Must

Compliance certificates

RoHS

Warnings

Do not exceed the maximum user weight recommended by the manufacturer.
Ensure that the holder is mounted on the correct wall/desk according to the manufacturer's instructions.
Regularly check the fixings and tighten screws as necessary to prevent the monitor/TV from falling.

Sustainability compliance

Yes

Manual

Yes

Housing material

Steel

Mounting kit

Yes

Number of displays supported

1

Maximum screen size

2.67 m (105")

Minimum screen size

127 cm (50")

Maximum weight capacity

75 kg

Easy to install

Yes

Tilt adjustment

Yes

Tilt angle range

-5 - 15°

Panel mounting interface

200 x 100
200 x 200
200 x 300
200 x 400
300 x 200
300 x 300
300 x 400 mm
400 x 200
400 x 300
400 x 400
400 x 600
500 x 300
500 x 400
600 x 200
600 x 300
600 x 400
600 x 600
700 x 400
800 x 400
800 x 500
800 x 600
900 x 600

Swivelling

Yes

Swivel angle range

-60 - 60°

Pivot angle

-3 - 3°

Cable management

Yes

Mounting type

Wall

Maximum VESA mount

900 x 600 mm

Minimum VESA mount

200 x 100 mm

Swivel angle

120°
