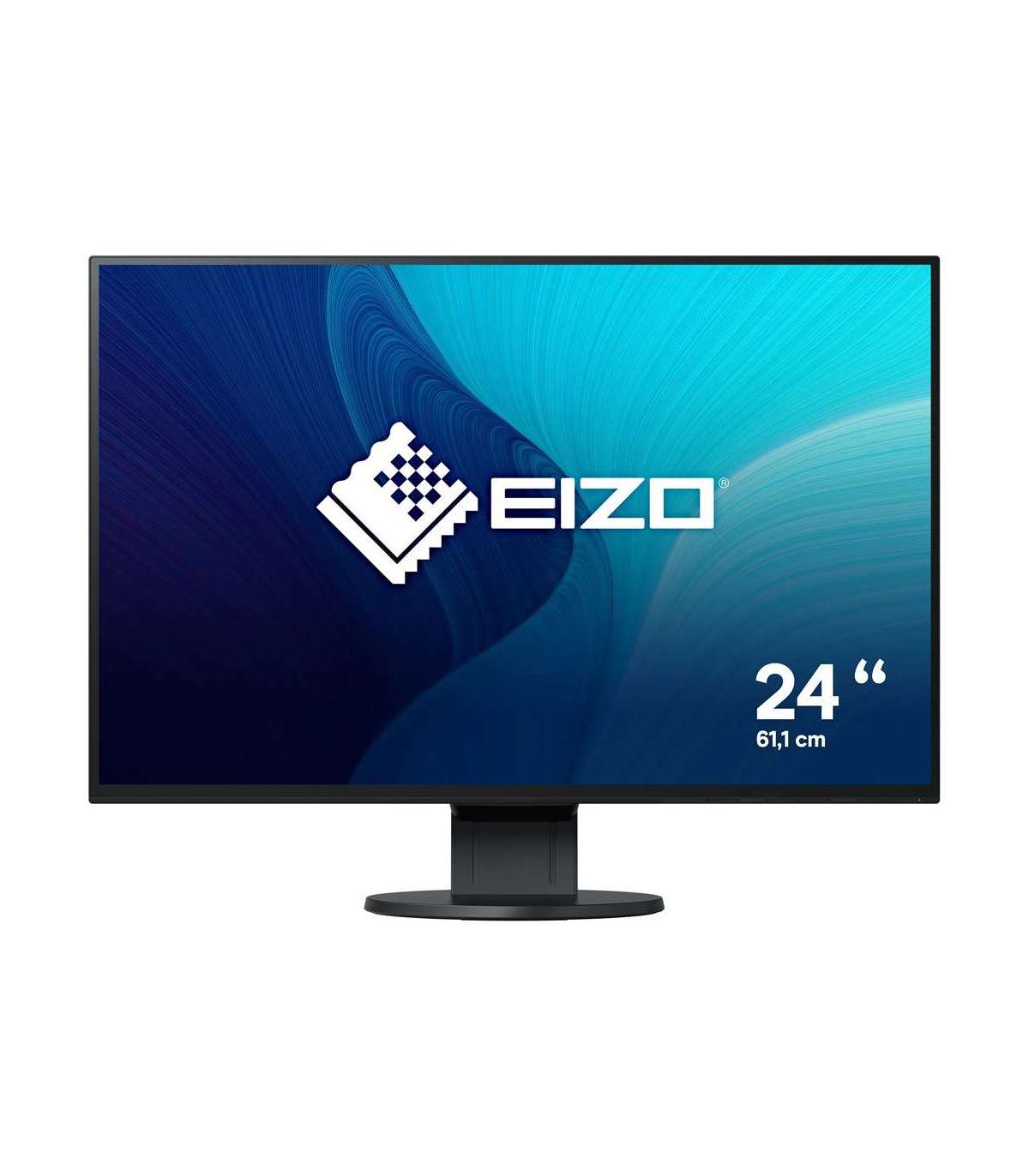

EIZO FlexScan EV2456-BK LED display 61.2 cm (24.1") 1920 x 1200 pixels WUXGA Black

Lisainfo

On/off switch

Yes

Product colour

Must

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

20 - 80%

Cables included

AC
USB

Compliance certificates

CB
CCC
CE
China RoHS
Federal Communications Commission (FCC)
ICES
PSE
RCM
RoHS
UKCA
VCCI
WEEE
cTUVus

Harmonized System (HS) code

85285210

Warnings

Do not disassemble the monitor casing to avoid risk of electric shock.
Place the monitor on a flat and stable surface to avoid tipping and damage.
Unplug the monitor from the power source before cleaning.

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR
EPEAT Bronze
TCO

Manual

Yes

Certification

CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 9, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Quick start guide

Yes

Plug and Play

Yes

Power consumption (typical)

13.5 W

Power consumption (max)

44 W

Display diagonal

61.2 cm (24.1")

HD type

WUXGA

Native aspect ratio

16:10

Touchscreen

No

Panel type

IPS

Display resolution

1920 x 1200 pixels

Built-in speaker(s)

Yes

HDMI ports quantity

1

Contrast ratio (typical)

1000:1

Number of speakers

2

Cable lock slot

No

Pixel pitch

0.27 x 0.27 mm

Headphone outputs

1

Response time

5 ms

Display

LCD

Display number of colours

16.78 million colours

Headphone connectivity

3.5 mm

Screen shape

Flat

VGA (D-Sub) ports quantity

1

DisplayPorts quantity

1

HDCP

Yes

DVI-D ports quantity

1

Energy efficiency scale

A to G

Built-in camera

No

Power consumption (standby)

0.5 W

Energy efficiency class (SDR)

D

Height (with stand)

351.4 mm

Width (without stand)

531 mm

Depth (with stand)

190 mm

Weight (with stand)

5.7 kg

Depth (without stand)

45.5 mm

Height (without stand)

341.9 mm

Weight (without stand)

3.7 kg

Width (with stand)

531 mm

AMD FreeSync

No

NVIDIA G-SYNC

No

Display brightness (typical)

350 cd/m²

Viewable size, vertical

32.4 cm

Viewing angle, vertical

178°

Viewable size, horizontal

51.8 cm

Viewing angle, horizontal

178°

Tilt adjustment

Yes

VESA mounting

Yes

Height adjustment

Yes

Panel mounting interface

100 x 100 mm

Headphone out

Yes

Built-in USB hub

Yes

Energy consumption (SDR) per 1000 hours

14 kWh

Display technology

LED

Vertical scan range

55 - 76 Hz

Horizontal scan range

31 - 81 kHz

Swivelling

Yes

Pivot

Yes

Adjustable height (max)

15.9 cm

European Product Registry for Energy Labelling (EPREL) code

346702

Stand included

Yes

Supported graphics resolutions

640 x 480 (VGA)
720 x 400
800 x 600 (SVGA)
1024 x 768 (XGA)
1280 x 1024 (SXGA)
1600 x 1200 (UXGA)
1680 x 1050 (WSXGA+)
1920 x 1200 (WUXGA)

On Screen Display (OSD)

Yes

USB Type-A downstream ports quantity

2

DVI port

Yes

RMS rated power

2 W

USB hub version

3.2 Gen 1 (3.1 Gen 1)

Number of upstream ports

1

USB upstream port type

USB Type-B

On Screen Display (OSD) languages

English
French
German
Italian
Japanese
Simplified Chinese
Spanish
Swedish
Traditional Chinese

Number of OSD languages

9

Thin client installed

No

3D

No

TV tuner integrated

No

No flickering

Yes

Separate H/V sync

Yes

User Guide on CD-ROM

Yes

Power management

Yes
