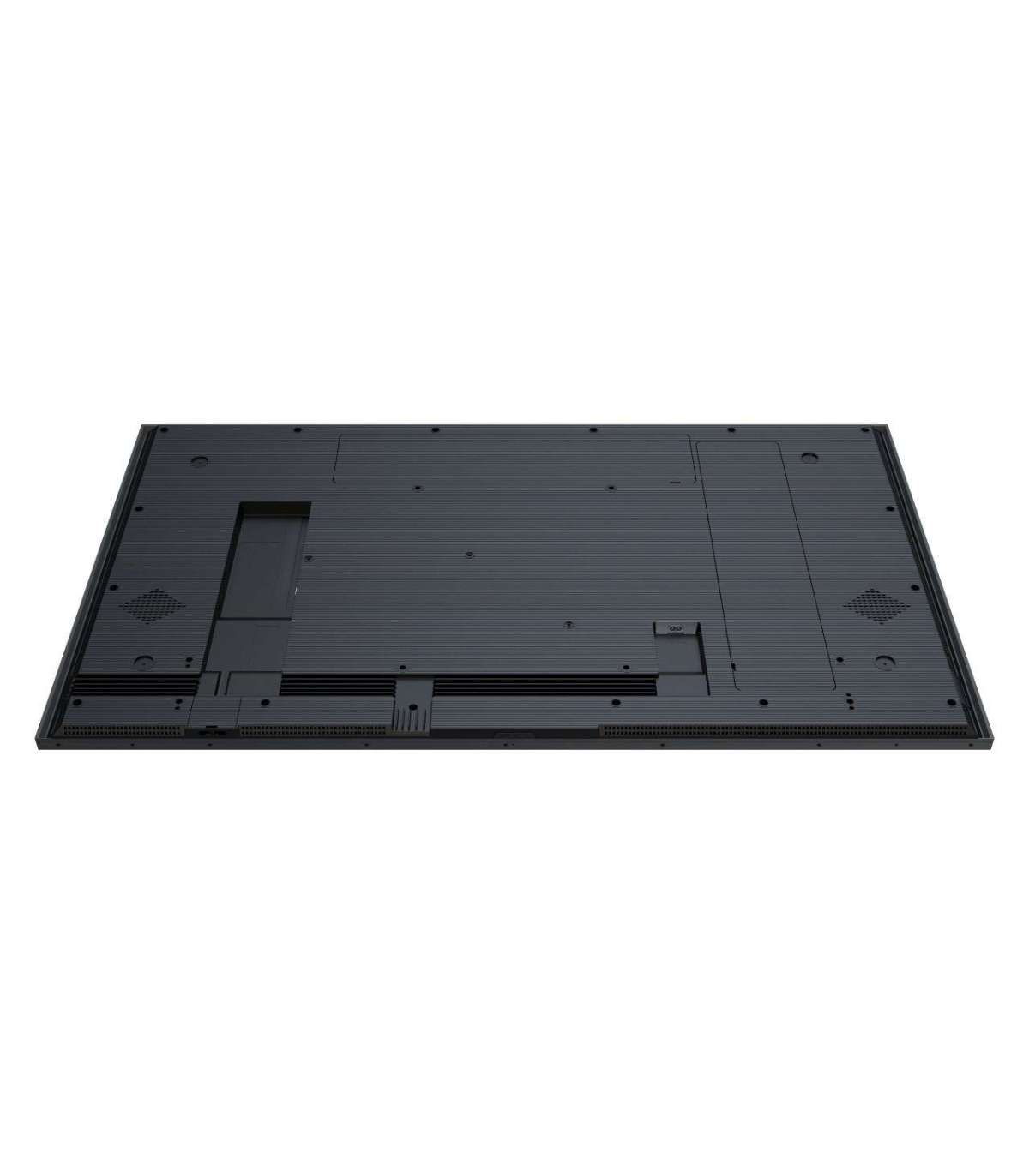

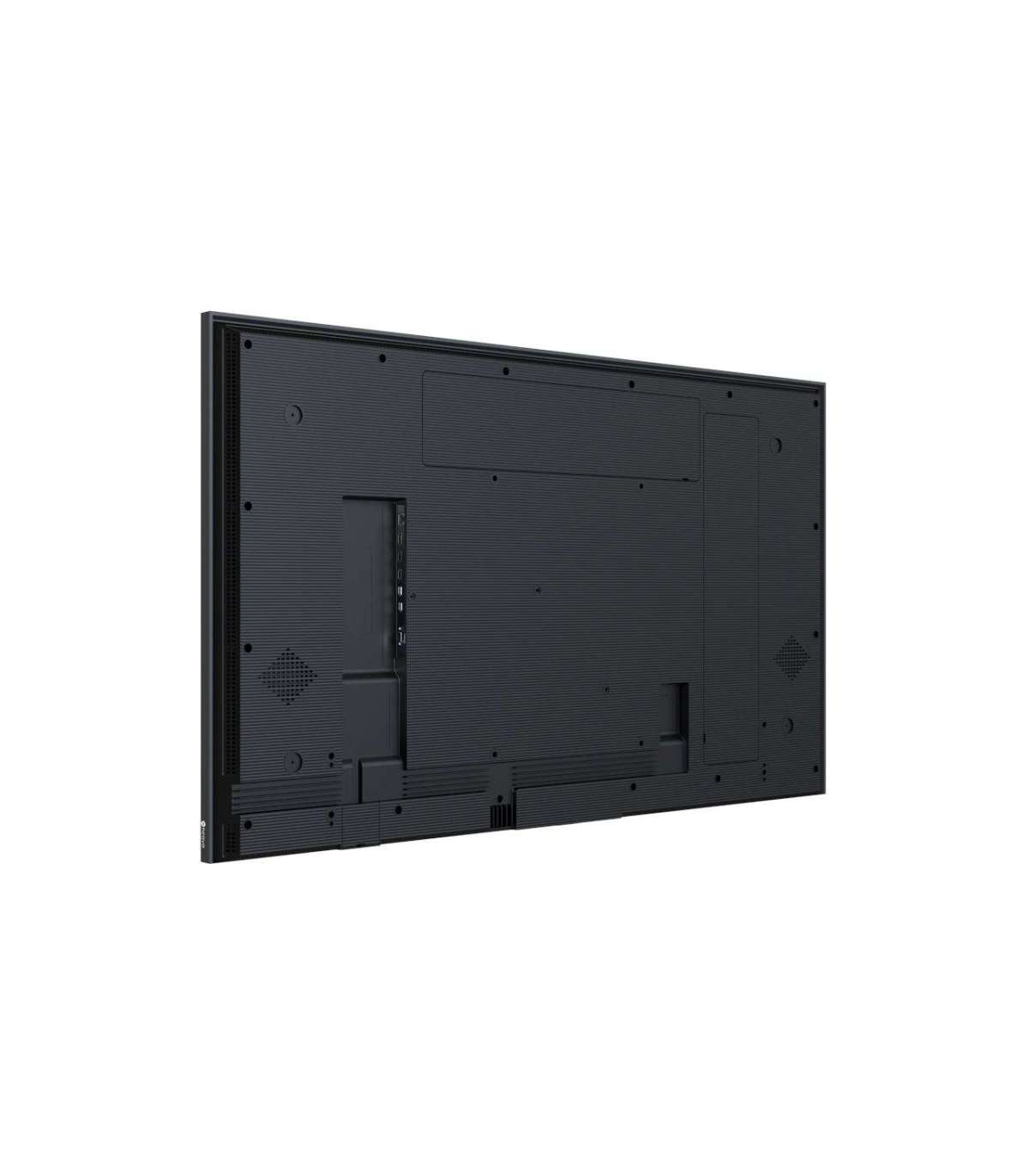

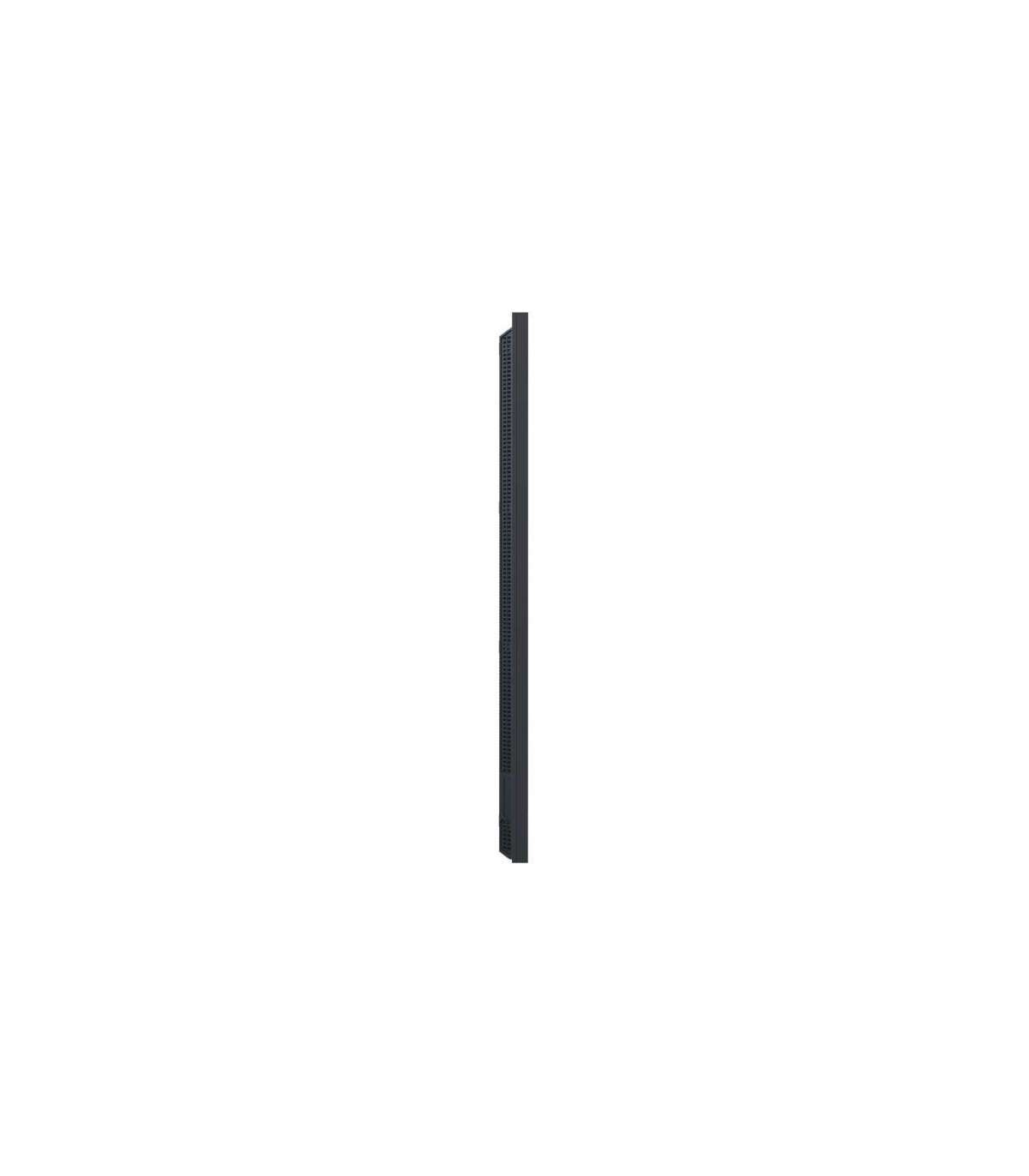

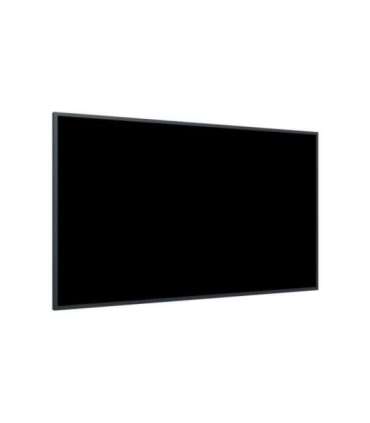

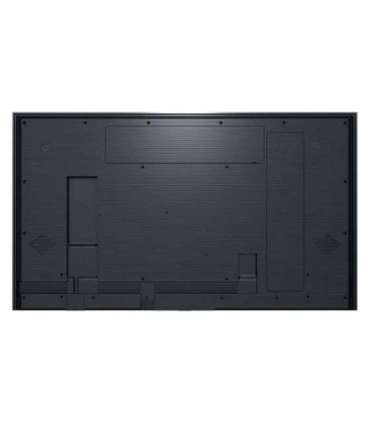

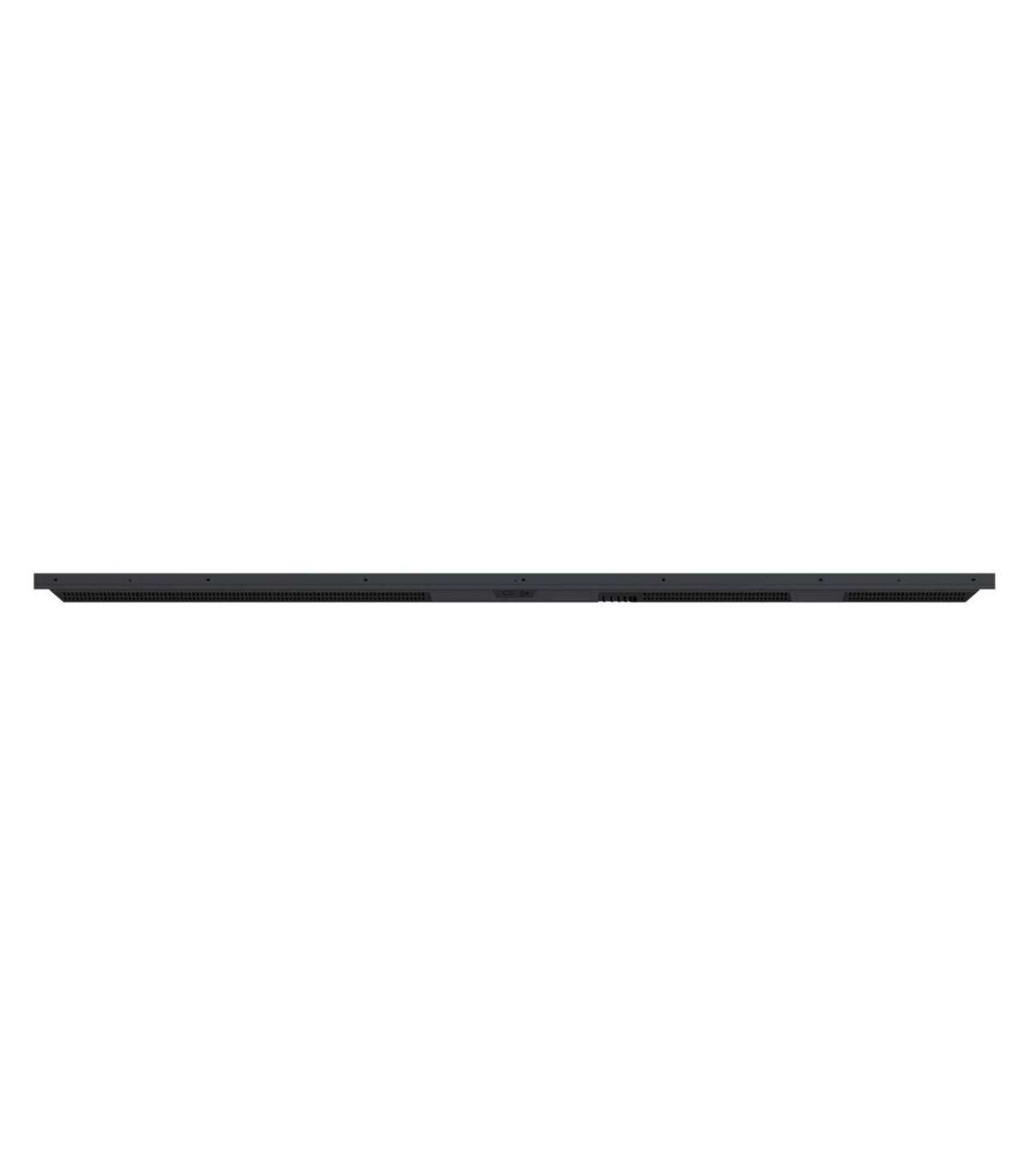

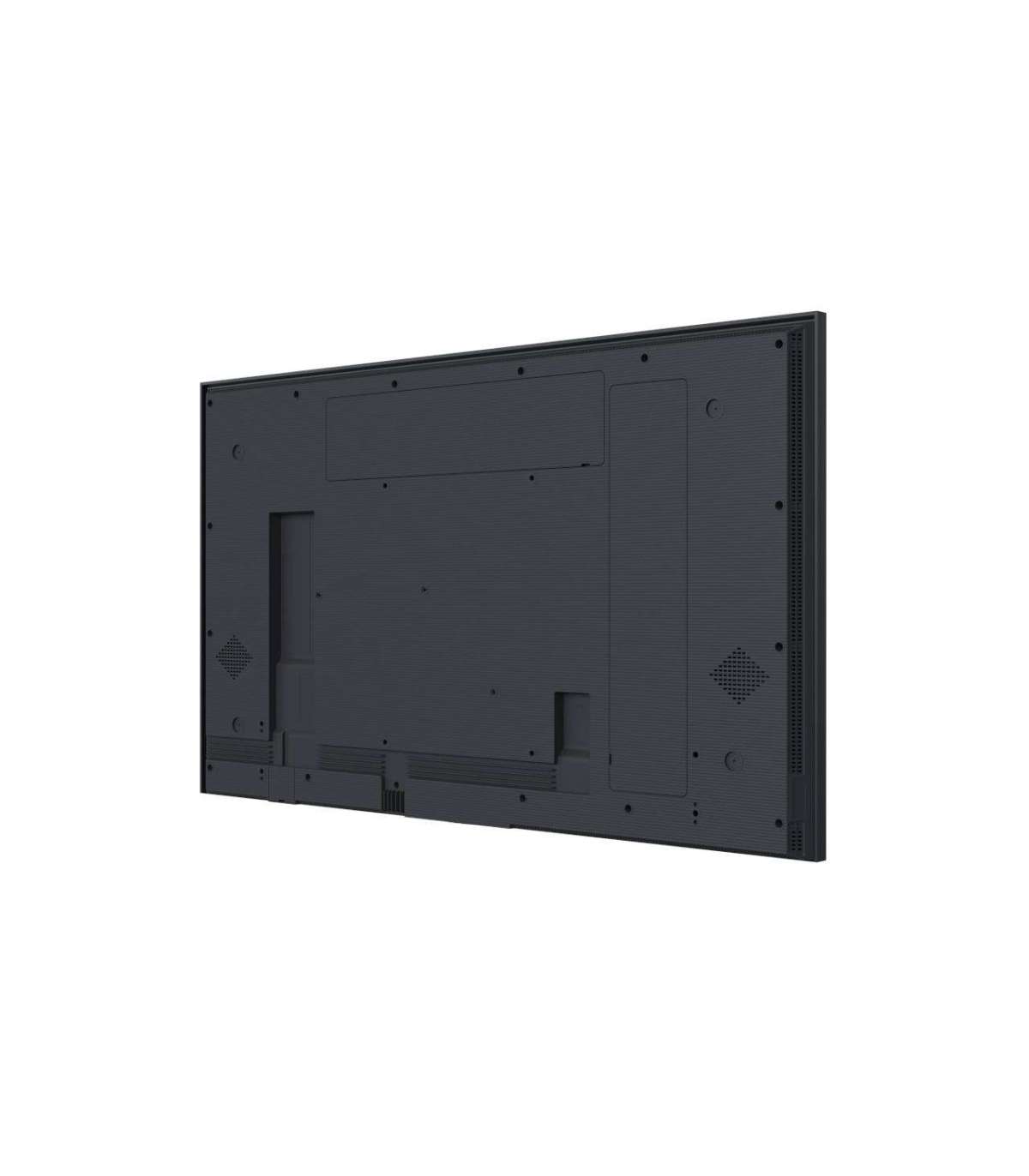

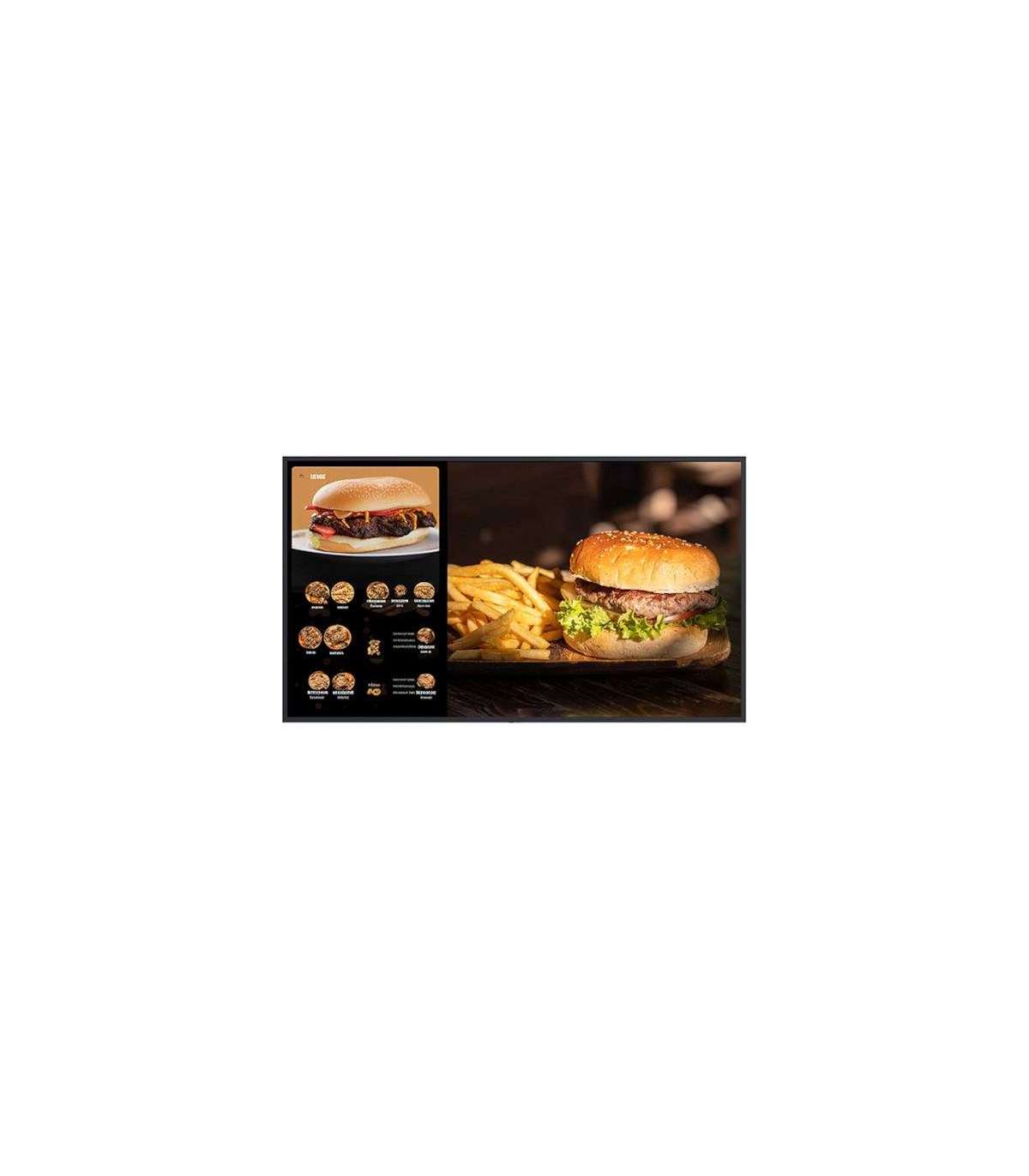

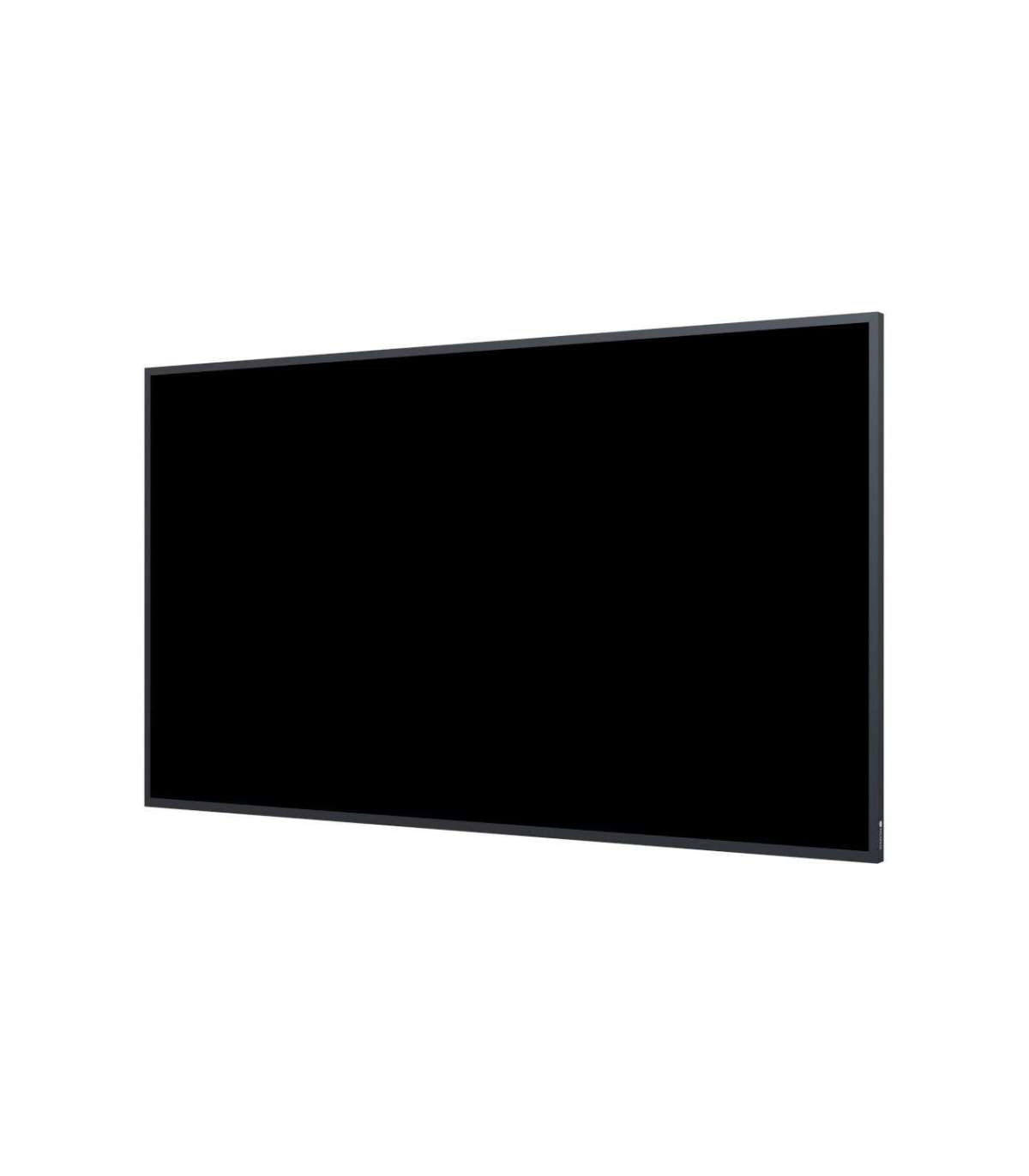

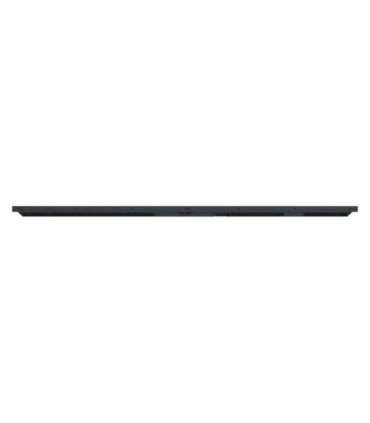

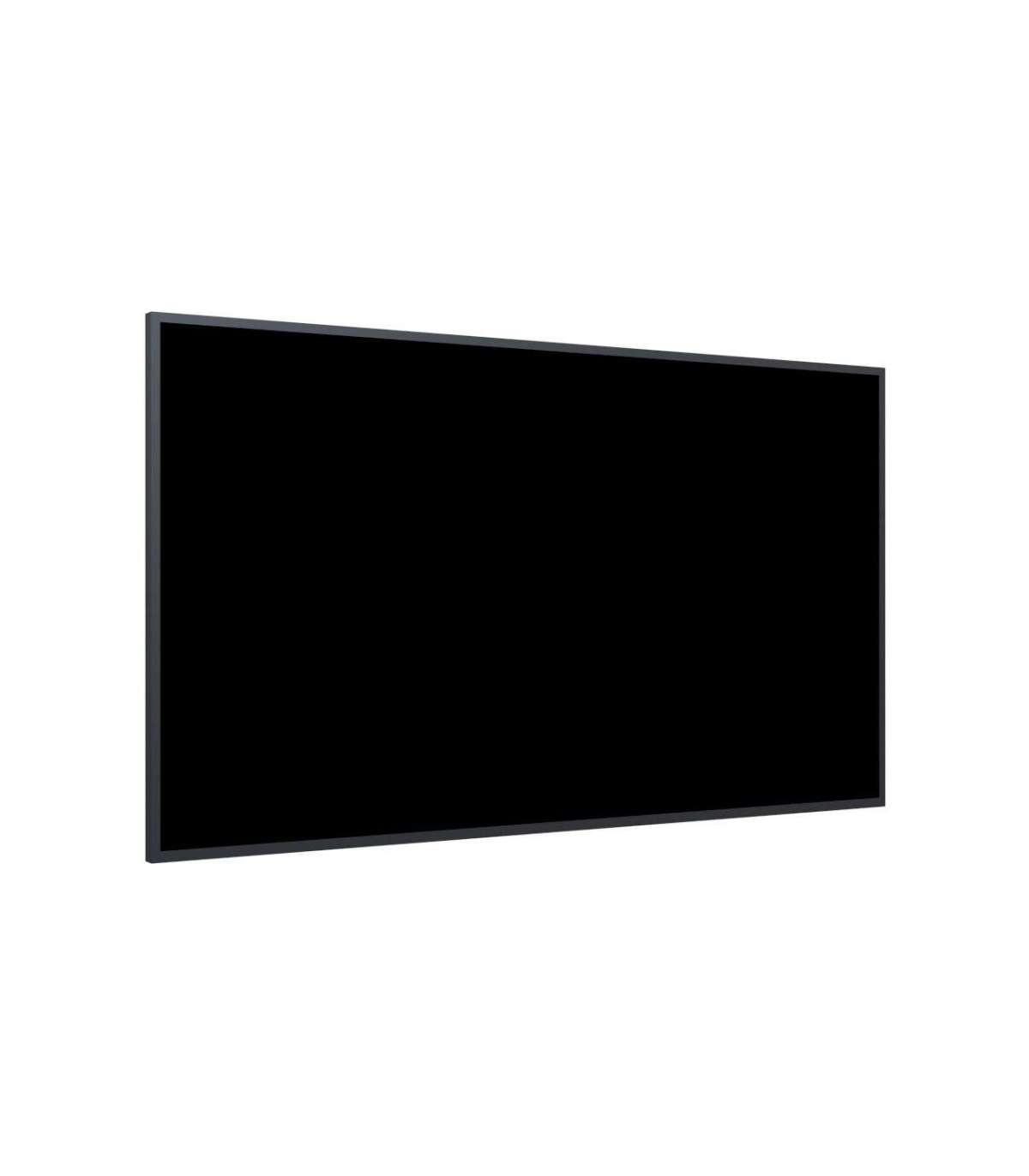

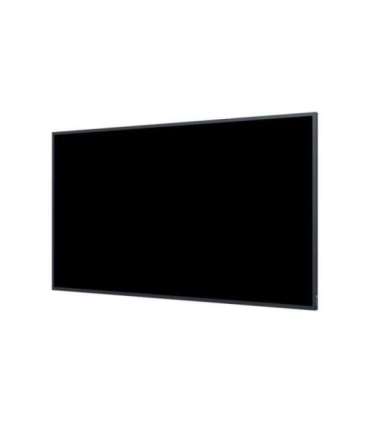

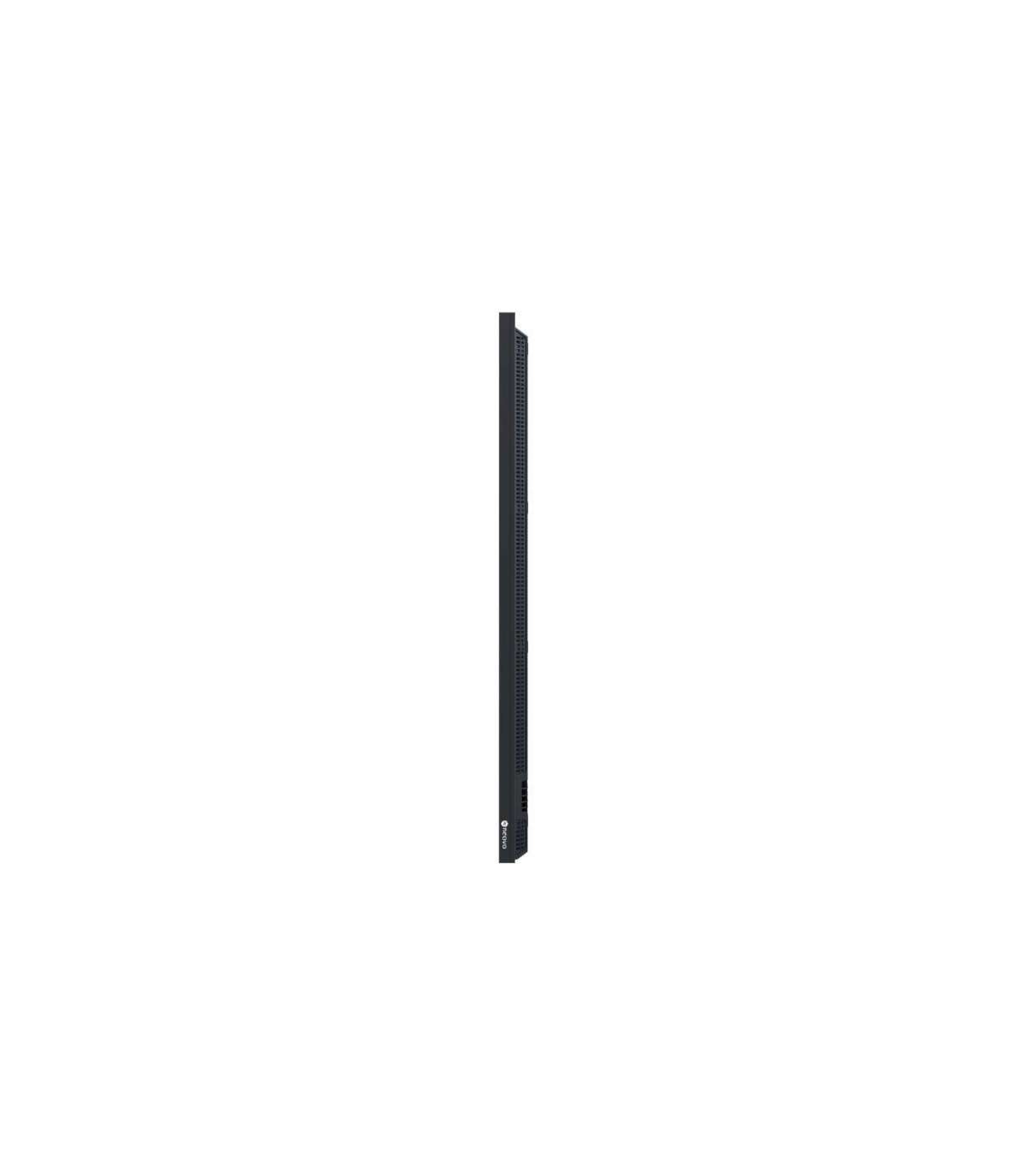

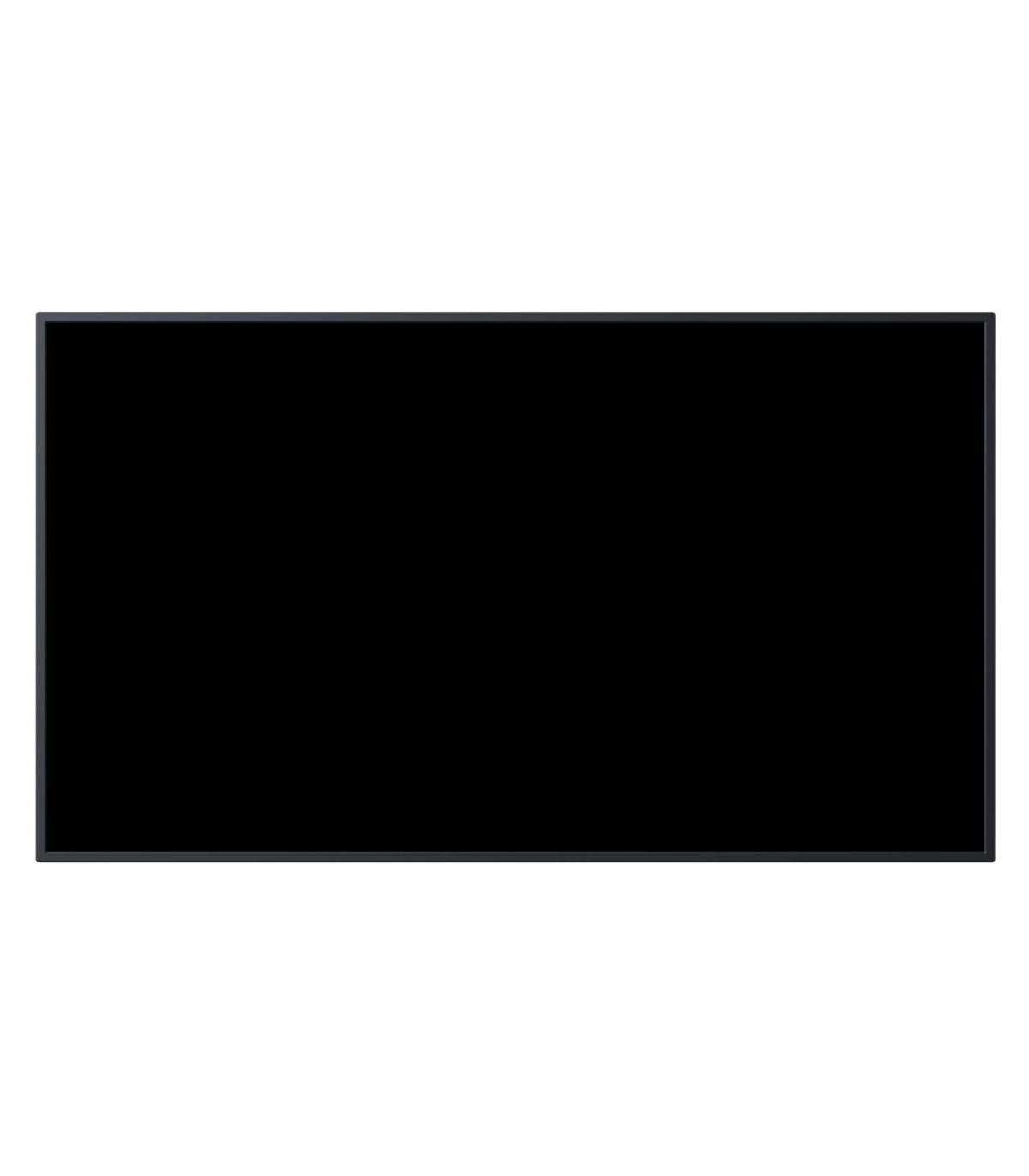

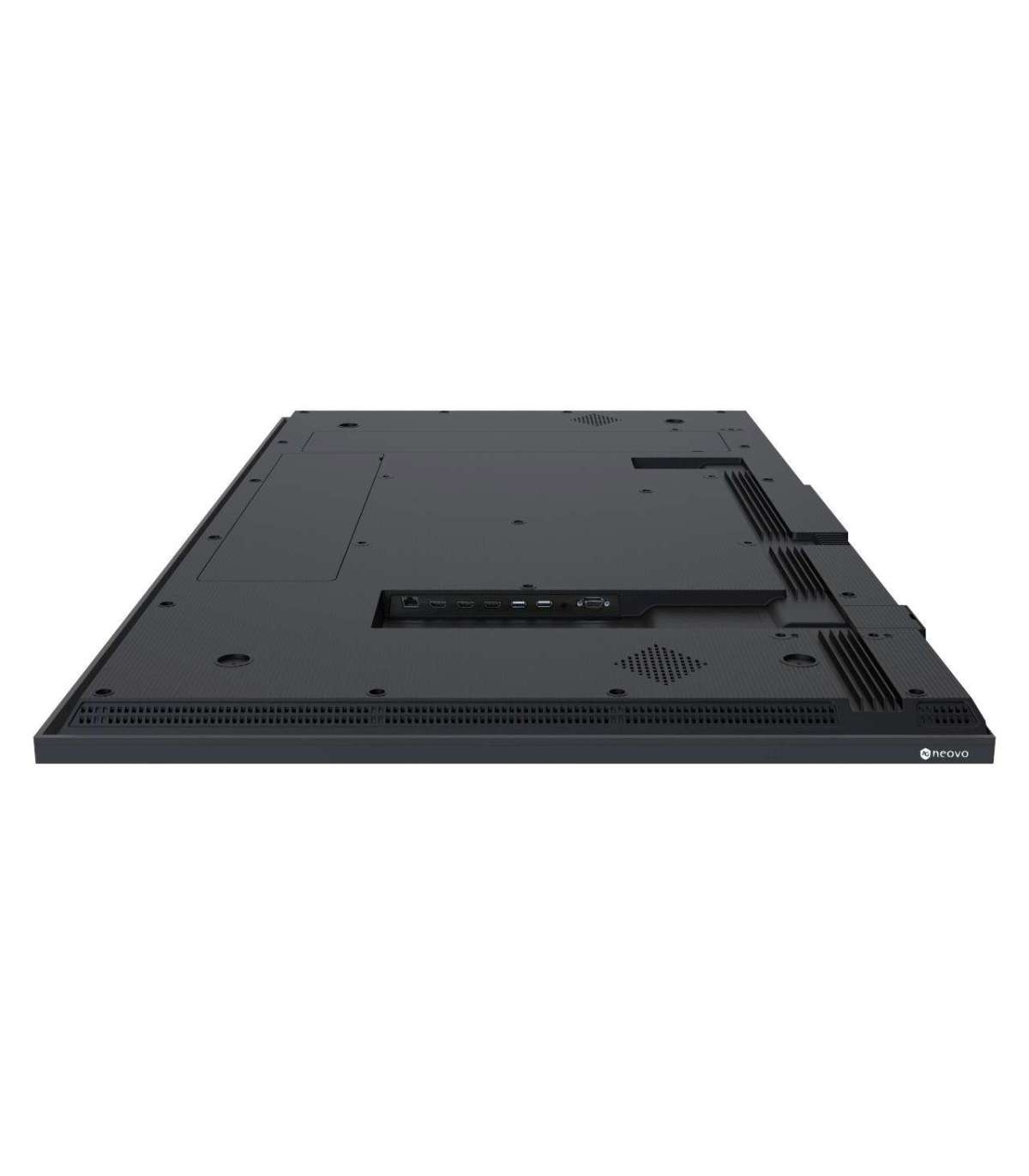

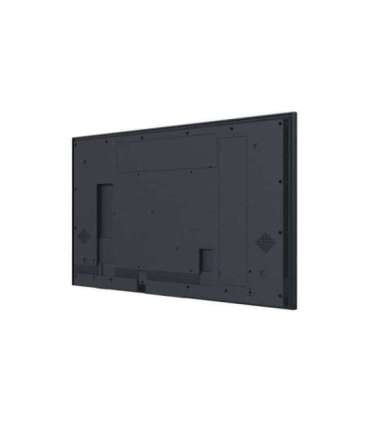

AG Neovo NSD-5503 - UHD 4K digital advertising display

Lisainfo

HDMI

Yes

Product colour

Must

Storage temperature (T-T)

-20 - 60 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Cables included

AC
HDMI

Ethernet LAN (RJ-45) ports

1

Compliance certificates

BSMI
CE
Federal Communications Commission (FCC)
ICES-003 Issue 7
Low Voltage Directive (LVD)
REACH
RoHS
WEEE

Warnings

Do not open the appliance housing, risk of electric shock.
The monitor contains substances hazardous to health, including mercury; avoid contact with damaged parts.

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Power consumption (typical)

89 W

Display diagonal

138.7 cm (54.6")

HD type

4K Ultra HD

Panel type

VA

Display resolution

3840 x 2160 pixels

Built-in speaker(s)

Yes

HDMI version

2.0

HDMI ports quantity

3

Number of speakers

2

Pixel pitch

0.315 x 0.315 mm

USB 2.0 connectors

2

Response time

5 ms

Energy efficiency class

G

Screen shape

Flat

Batteries included

Yes

Energy efficiency scale

A to G

Remote control type

Y

Power consumption (standby)

0.5 W

Width (without stand)

1239.7 mm

Depth (without stand)

38,6 mm

Height (without stand)

712,5 mm

Weight (without stand)

17.6 kg

Contrast ratio (dynamic)

4000:1

Display brightness (typical)

500 cd/m²

Viewing angle, vertical

178°

Viewing angle, horizontal

178°

VESA mounting

Yes

Panel mounting interface

300 x 400 mm

Vertical scan range

24 - 60 Hz

Horizontal scan range

18 kHz - 135 kHz

RMS rated power

2 x 10 W

RS-232 interface

Yes

Audio out (mini jack)

1
