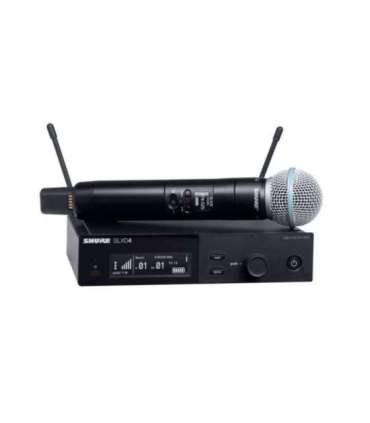

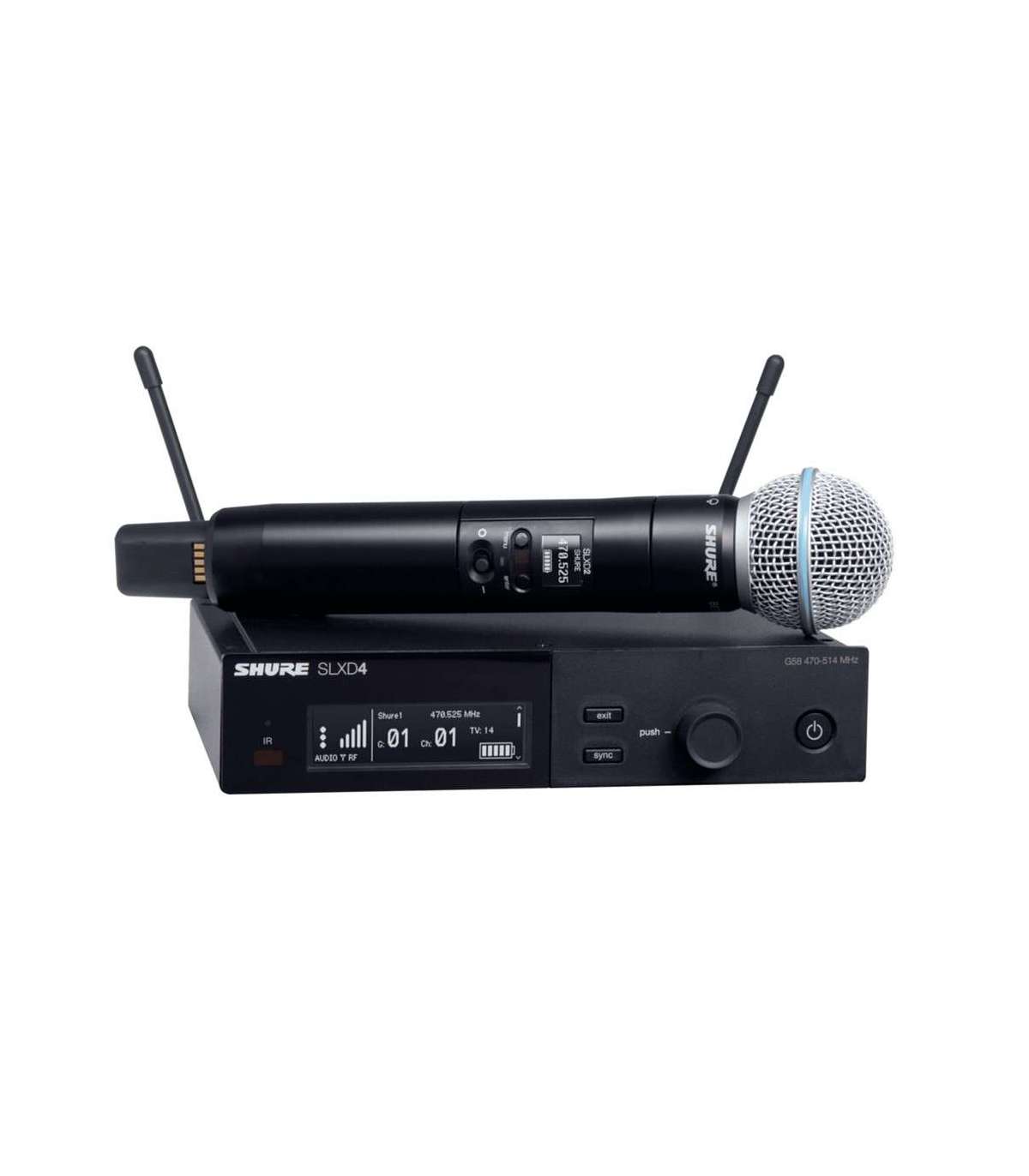

Shure SLXD24E/B58-G59 wireless microphone system

Lisainfo

Antennas quantity

2

RJ-45 ports quantity

1

Transmitter weight

147 g

Dynamic range

118 dB

Channels quantity

32 channels

6.35 mm (1⁄4-inch) output

1

XLR out

1

Transmitter dimensions (WxDxH)

37.1 x 37.1 x 176 mm

Transmitter type

Handheld transmitter

Receiver display

Yes

Radio Frequency (RF) range

470 - 514 MHz

Operating frequency type

Ultra High Frequency (UHF)

Operating voltage (receiver)

15 V

Number of transmitters included

1

Number of receivers included

1

Number of microphones included

1

Microphone frequency response

50 - 16000 Hz

Microphone transducer principle

Dynamic microphone

Transmitter housing material

Metal

Receiver housing material

Steel

Power consumption (receiver) (max)

600 mA

Aku tüüp

AA

Töötemperatuur (T-T)

-18 - 50 °C

Ladustamistemperatuur (T-T)

-29 - 74 °C

Aku tehnoloogia

Liitium-ioon (Li-ioon)

Antennipistiku tüüp

BNC

Aku pinge

1.5 V

Koguharmooniline moonutus (THD)

0.02%

Vastuvõtja tüüp

Stationary receiver

Vastuvõtja kaal

816 g

Mikrofoni ühenduvus

RF Wireless

Vastuvõtja mõõtmed (WxDxH)

197 x 152 x 42 mm

Hoiatused

Avoid contact with water.
Do not open the unit housing.
Use in accordance with the manufacturer's instructions.

Pick-up pattern

Super-Cardioid

Microphone power source type

Battery

Transmitter display

Yes

Receivers AF frequency response

20 - 20000 Hz

Mikrofoni tüüp

Handheld microphone
