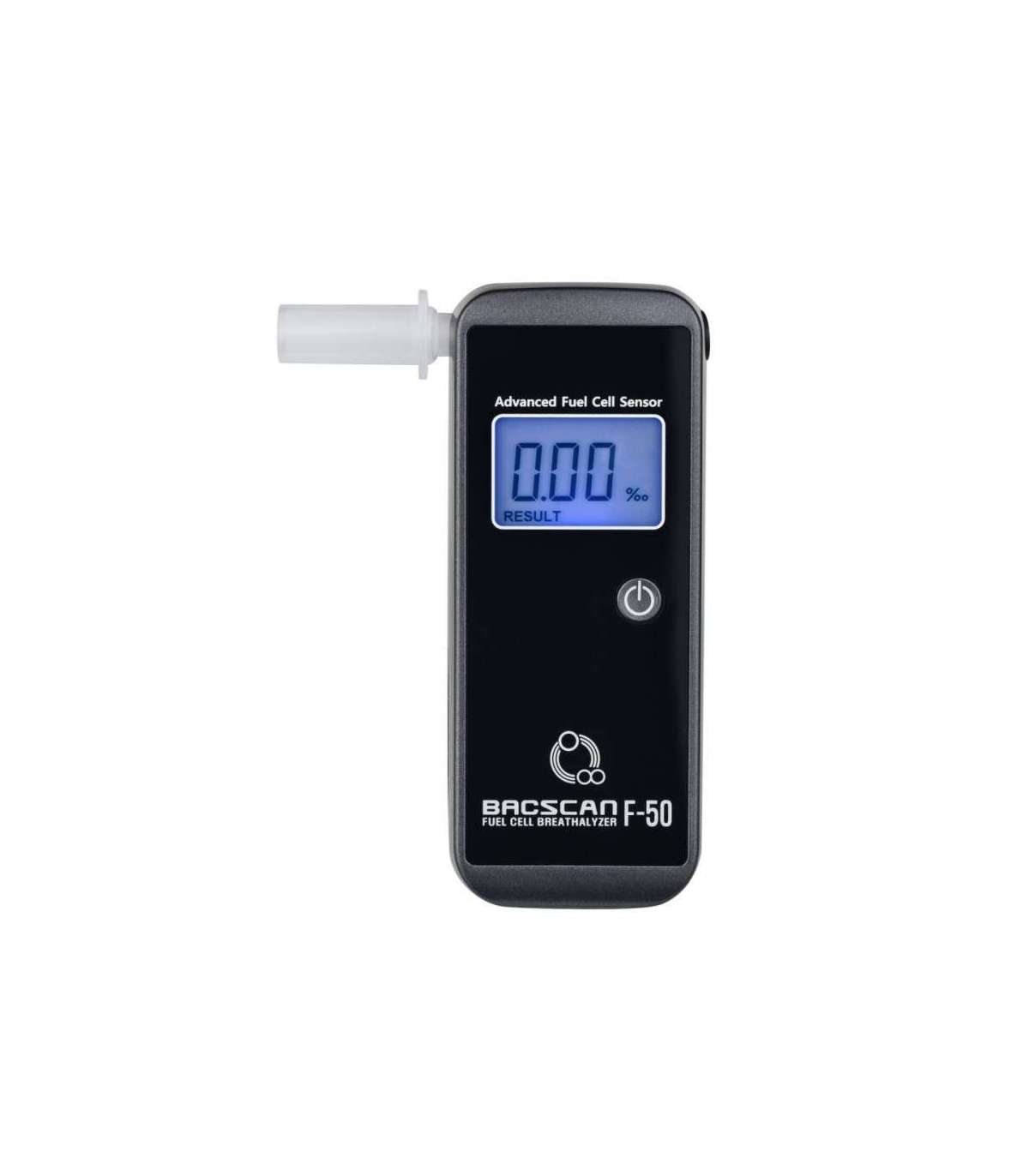

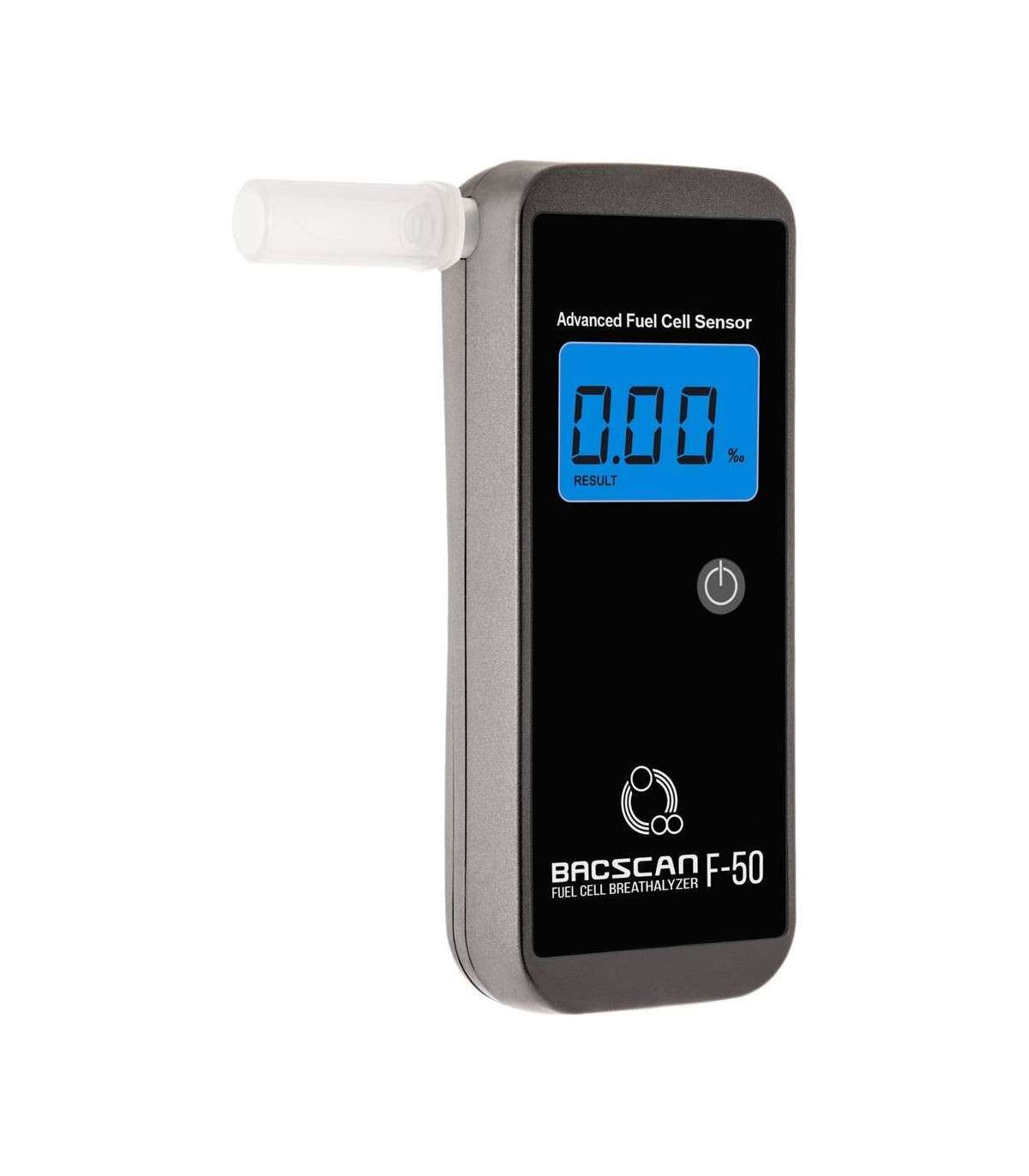

Breathalyser F-50

Description:

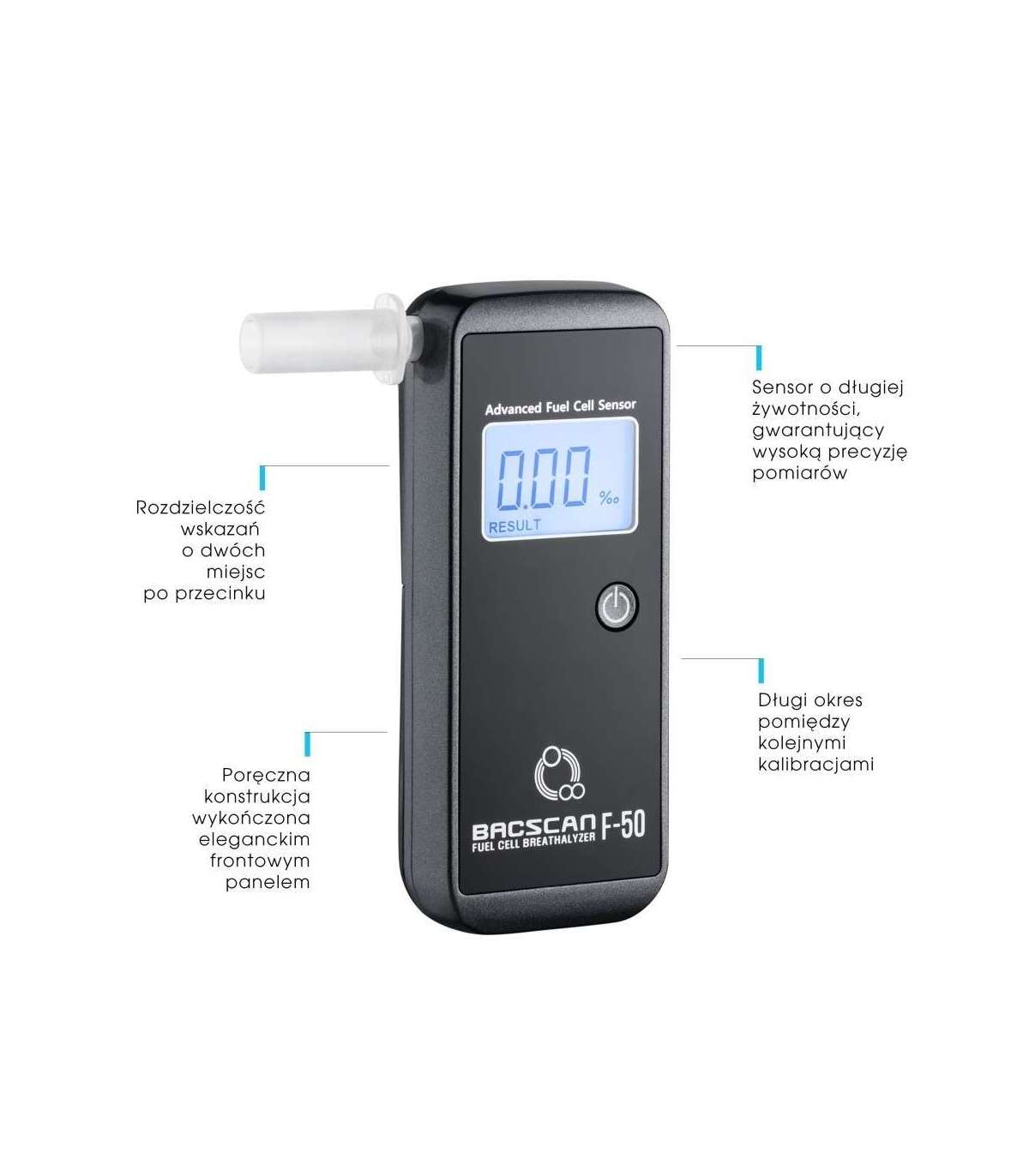

BACscan F50 is a technologically advanced device for controlling the alcohol content in the exhaled air. It is equipped with a high-class electrochemical sensor that guarantees precise and repeatable measurement results for the entire measuring range. The accuracy of the indications has been confirmed by an independent laboratory accredited by the Polish Center for Accreditation (PCA). F50 has a built-in air flow sensor, a system protecting the measuring cell against damage as a result of improperly performed tests, a counter for the number of measurements and a function reminding about the need to perform a calibration. The results of the last 10 measurements are automatically saved in the device memory. To minimize the measurement error and maximize the life of the sensor, the analyzer is equipped with a temperature control module. It makes it impossible to perform a measurement when the tester's operating temperature range is exceeded, which could result in damage to the components. The advantage of the device is the ability to define measurement units depending on the user's preferences (, mg / L,% BAC). * Functionality and simple operation, using one button, make the use of the BACscan F50 breathalyzer intuitive. APPLICATION BACscan F50 is recommended for companies, institutions and individual users who expect accurate and repeatable measurements. BENEFITS Precise, platinum electrochemical sensor Possibility to define measurement units according to the user's requirements Pneumatic system of feeding a precisely defined air sample to the sensor Built-in air flow sensor Long-term measurement stability over time Display resolution up to two decimal places High accuracy and repeatability of results Short time to prepare for work Signaling a badly performed test Built-in device temperature control module before taking the measurement Counter for the number of measurements performed Memory of the last 10 measurement results A function reminding you to perform a calibration Modern look and small dimensions 10-year warranty 24 months of unlimited calibrations

Display:

- 3 cyfrowy LCD
- Podświetlany

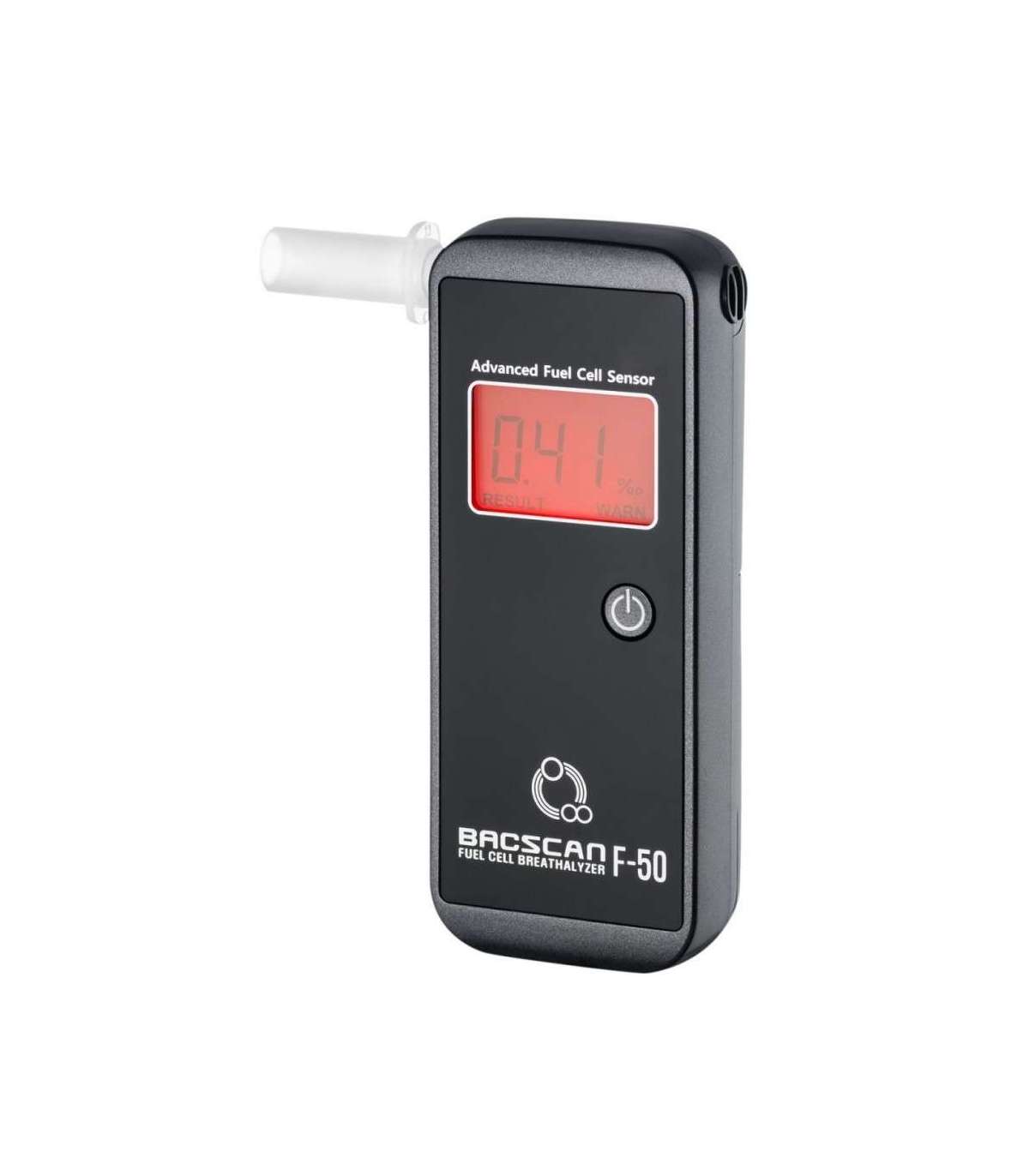

- Dwukolorowy

Special functions:

- HI - po przekroczeniu zakresu pomiarowego
- Jednostki pomiarowe*: (promile), mg/L, % BAC, g/L
- Rozdzielczość wskazań: 0.01
- Dokładność wskazań**: 0.05 dla 1.00 w temp. 25°C
- Czas przygotowania do pracy*** < 20 sek.
- Próg alarmowy: 0.20
- Pamięć: 10 ostatnich wyników pomiarów
- Automatyczne wyłączenie zasilania: po 20 sek. bezczynności, po 30 sek. od wykonania pomiaru

* możliwość zmiany jednostki pomiarowej przez serwis. Fabryczne ustawienie : promile
** patrz instrukcja obsługi . W celu zapewnienia dokładnych wskazań zalecane jest przeprowadzenie kalibracji urządzenia co 6-12 miesięcy lub po wykonaniu 500 pomiarów (w zależności, który warunek nastąpi wcześniej).
*** czas przygotowania urządzenia do pierwszego pomiaru.

Environment requirements:

- Warunki pracy: 0 - 40°C, wilgotność < 95% RH
- Warunki składowania: 0 - 50°C, wilgotność < 95% RH

Dimensions:

114 x 47 x 24 mm

Warranty:

10 letni okres gwarancyjny oraz 24 miesiące darmowych kalibracji bez limitu

Designation:

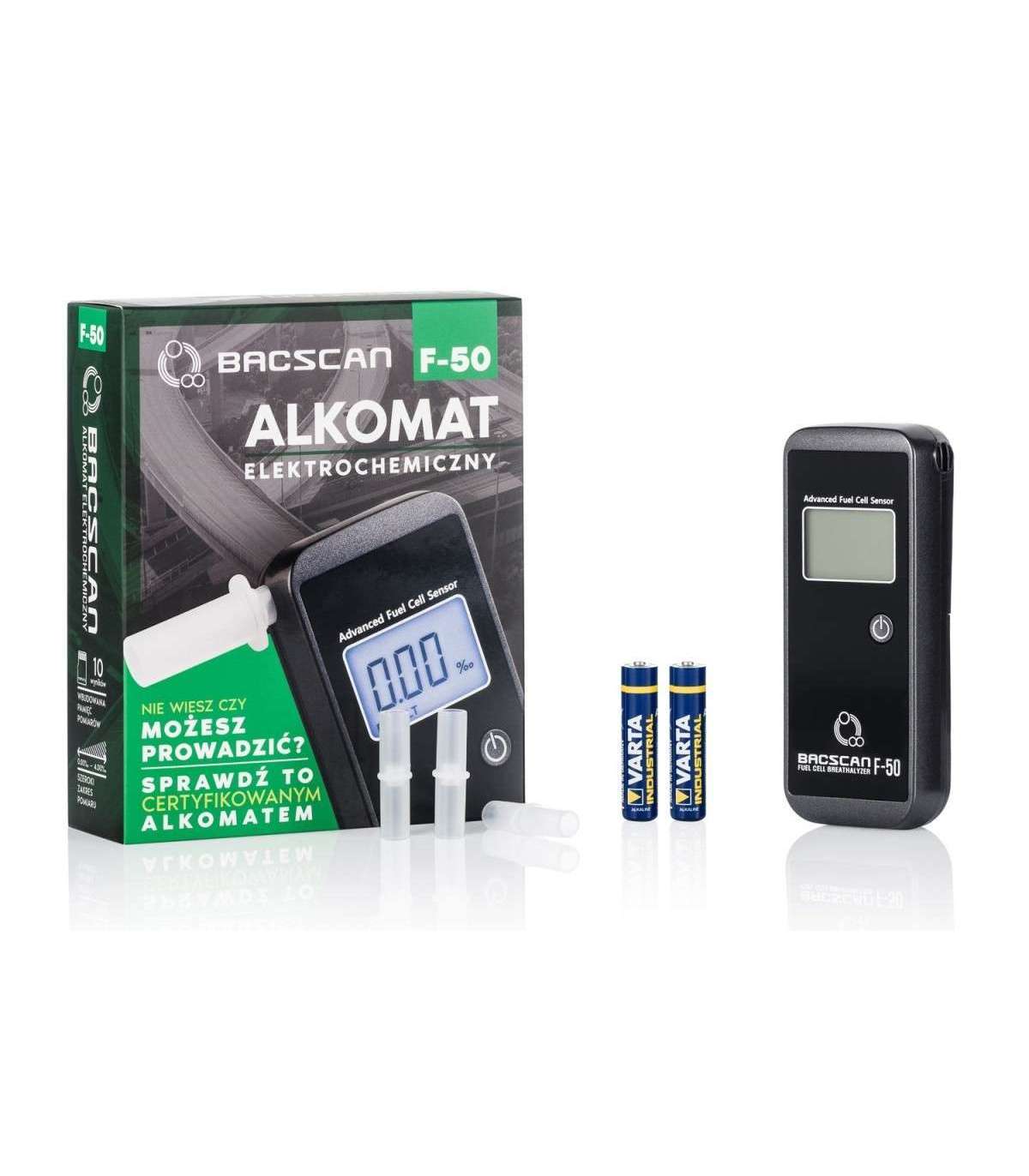

Unboxing:
