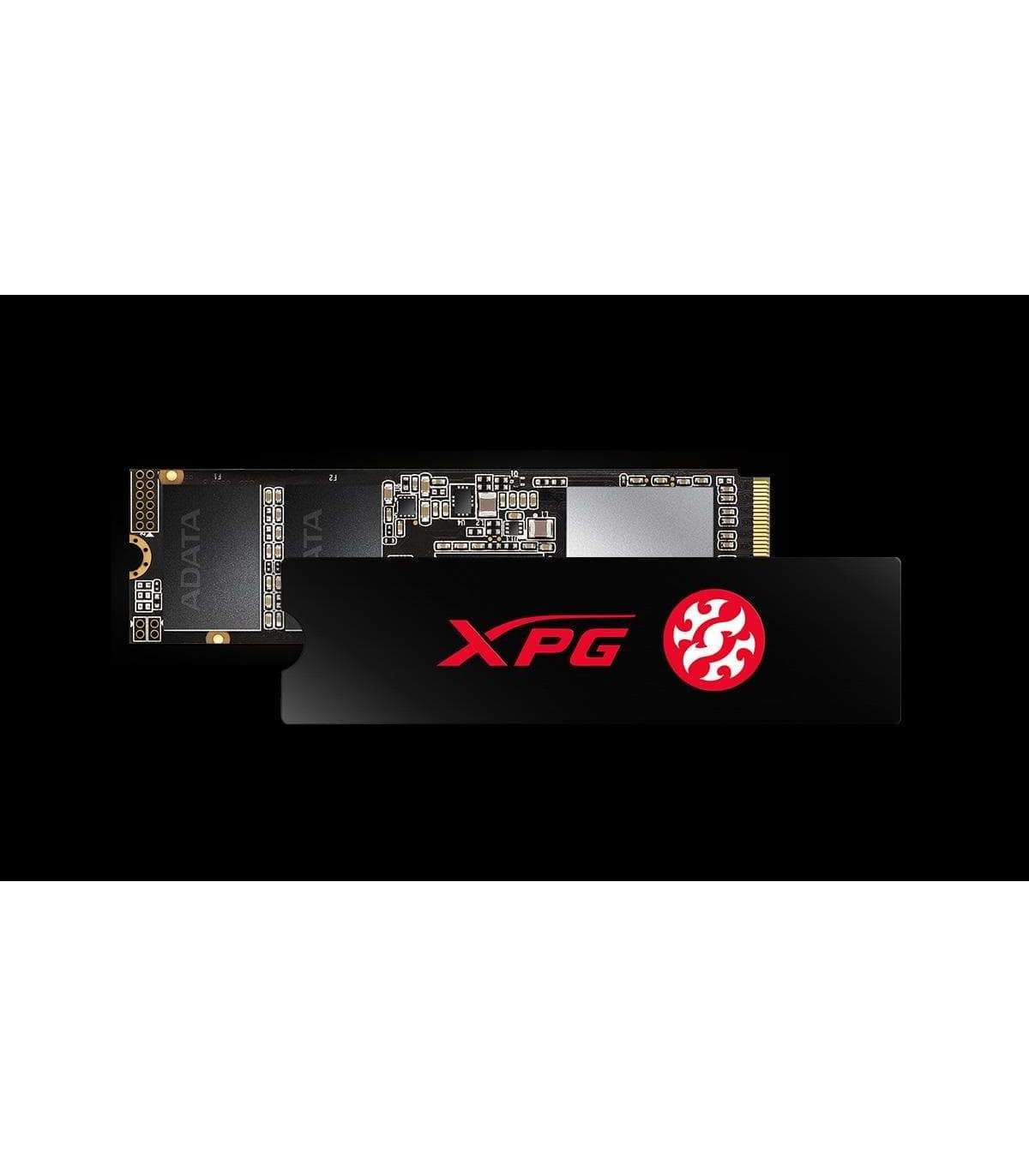

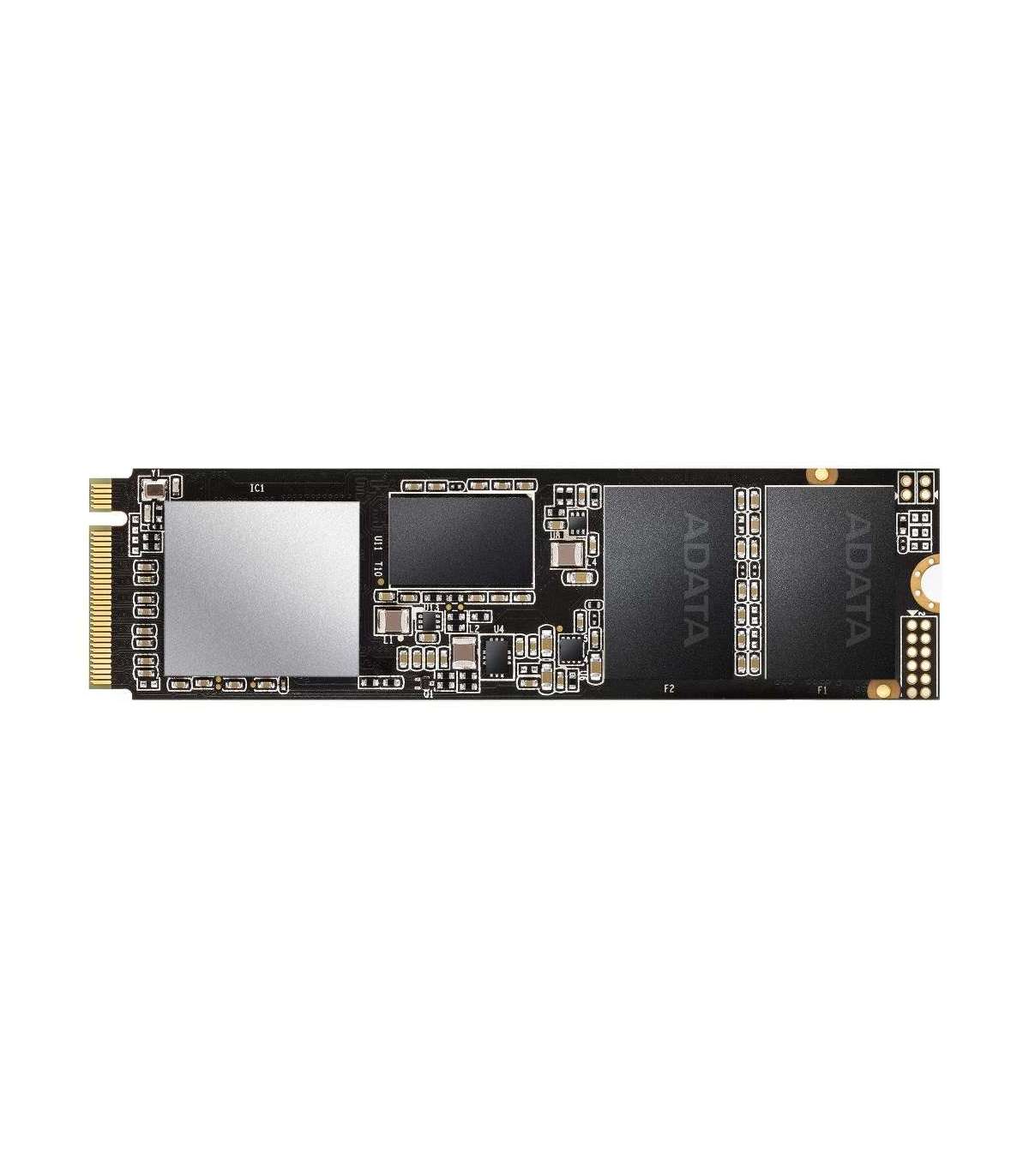

XPG SX8200 Pro M.2 1000 GB PCI Express 3.0 3D TLC NVMe

Lisainfo

Depth

22 mm

Kaal

8 g

Kõrgus

3.5 mm

Laius

80 mm

Product colour

Must

Storage temperature (T-T)

-40 - 85 °C

Operating temperature (T-T)

0 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Harmonized System (HS) code

84717070

Sustainability certificates

RoHS

Certification

CE, FCC, BSMI, VCCI, KC

Component for

PC/Laptop

Interface

PCI Express 3.0

Mean time between failures (MTBF)

2000000 h

Memory type

3D TLC

SSD capacity

1 TB

NVMe

Yes

SSD form factor

M.2

ECC

Yes

Operating shock

1500 G

Write speed

3000 MB/s

Read speed

3500 MB/s

Random read (4KB)

390000 IOPS

NVMe version

1.3

Random write (4KB)

380000 IOPS

Sequential write speed (ATTO)

2800 MB/s

Sequential read speed (ATTO)

3350 MB/s

Sequential read speed (AS SSD)

3000 MB/s

Sequential write speed (CDM)

3000 MB/s

Sequential write speed (AS SSD)

2500 MB/s

Sequential read speed (CDM)

3500 MB/s

PCI Express interface data lanes

x4

NAND flash type

TLC (Triple Level Cell)

End-to-End Data Protection

Yes

Low-density parity-check (LDPC)

Yes
