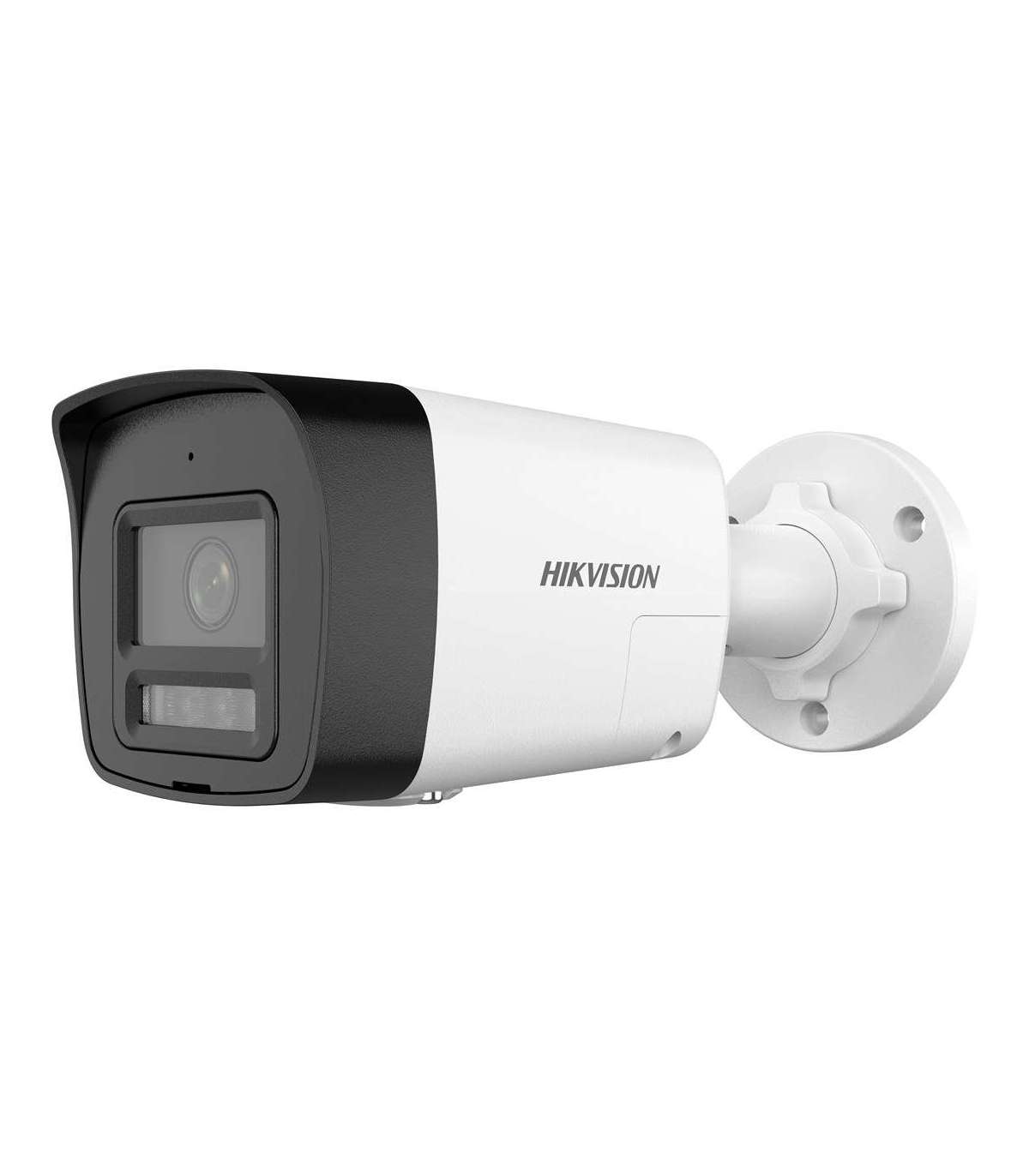

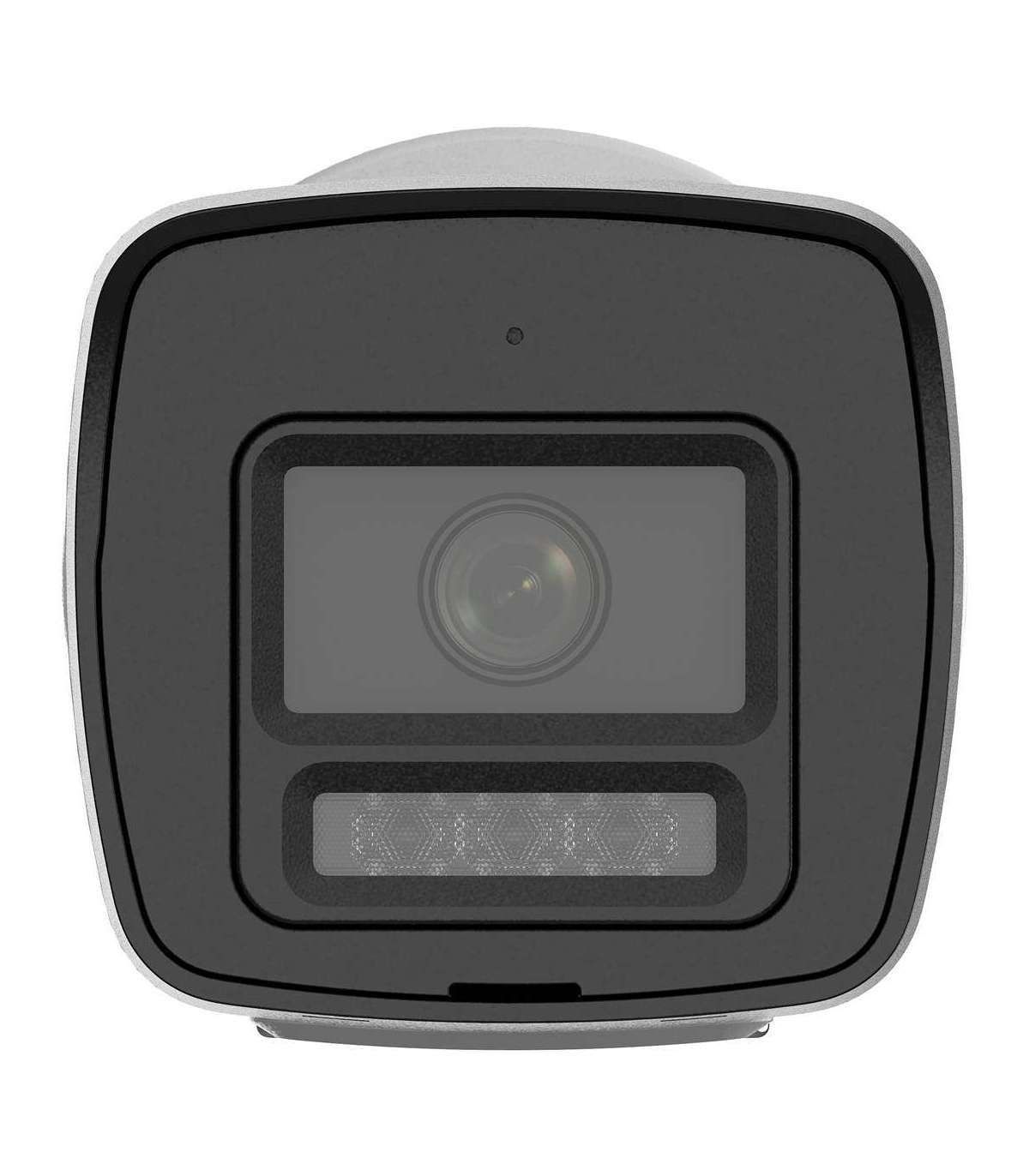

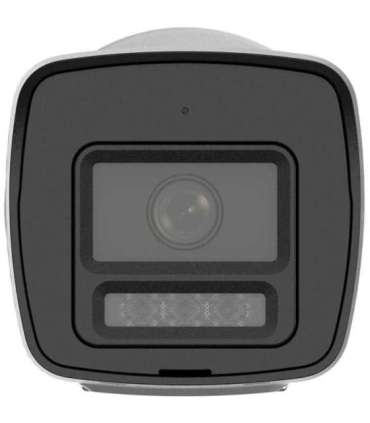

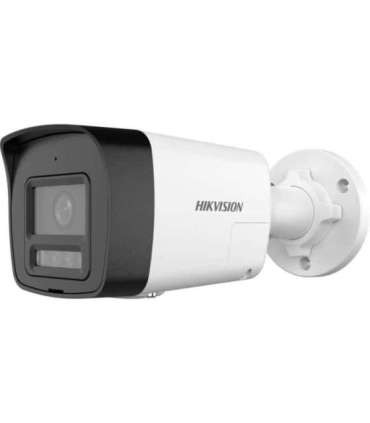

HIKVISION DS-2CD1043G2-LIUF/SL 2.8MM IP CAMERA

Lisainfo

Depth

67.4 mm

Kaal

315 g

Kõrgus

69.1 mm

Laius

179 mm

Package weight

520 g

Product colour

Valge

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Networking standards

IEEE 802.3af

Package width

216 mm

Package depth

121 mm

Package height

118 mm

Warnings

Do not expose the device to moisture or extreme temperatures.
The appliance should be installed by a qualified professional.
The product must be disposed of properly in accordance with local regulations for the disposal of electronics.

Housing material

Metal, Plastic

Power consumption (max)

7.5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Password protection

Yes

Bluetooth

No

DC output voltage

12

Maximum memory card size

512 GB

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Type

IP security camera

Number of cameras

1

Fixed focal length

2.8 mm

Tilt angle range

0 - 90°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2560 x 1440

Placement supported

Outdoor

Mounting type

Wall

Mirror

Yes

DC output current

0.62 A

Video motion detection

Yes

Frame rate

25 fps

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR/White

Night vision

Yes

Lens viewing angle, vertical

54°

Lens viewing angle, diagonal

114°

Lens viewing angle, horizontal

98°

Pan range

0 - 360°

Progressive scan

Yes

Maximum aperture number

1.6

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

9 W

Heartbeat

Yes

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Privacy masking

Yes

Bit rate

32 Kbps - 8 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Observe distance (wide)

25 m

Highlight Compensation (HLC)

Yes

Identify distance (wide)

6 m

Recognize distance (wide)

12 m

Detect distance (wide)

63 m
