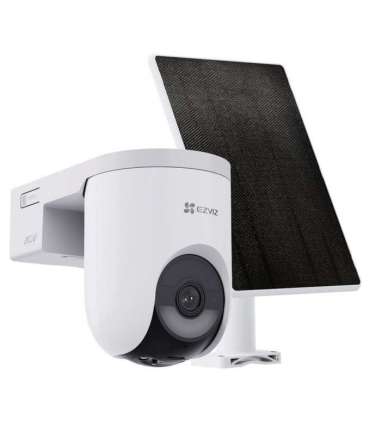

Ezviz HB8 IP camera + solar panel

Lisainfo

Kaal

320 g

Kõrgus

41.2 mm

Package weight

500 g

Product colour

Valge

Power source type

DC, PoE

Storage temperature (T-T)

-10 - 50 °C

Operating temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Package width

150 mm

Package depth

125 mm

Package height

99 mm

Compliance certificates

BIS
CB
CE
Industry Canada (IC)
KC
RoHS
UL

Sustainability compliance

Yes

Power consumption (max)

6 W

Wi-Fi

No

Connectivity technology

Wired

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Audio formats supported

AAC-LC
G.711 A-law
G.711 μ-law
G.722.1
G.726
MP2L2
PCM

Maximum memory card size

256 GB

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2560 x 1920 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12 cm

Number of cameras

1

Live view

Yes

Fixed focal length

1.05 mm

Supported graphics resolutions

640 x 480 (VGA)
1280 x 960
2048 x 1536 (QXGA)
2560 x 1920

Placement supported

Outdoor

Mounting type

Ceiling/Pole

Mirror

Yes

DC output current

0.5 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

5 MP

Infra-red wavelength

850 nm

Night vision distance

8 m

LED type

IR/White

Night vision

Yes

Number of lenses

1

Intelligent Video Surveillance (IVS) system features

Intrusion
Line crossing detection

Lens viewing angle, vertical

180°

Lens viewing angle, diagonal

180°

Lens viewing angle, horizontal

180°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

2.25

Power consumption (Power over Ethernet (PoE))

7.5 W

Heartbeat

Yes

HTTPS encryption

Yes

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Bit rate

32 Kbps - 16 Mbps

Active tampering alarm

Yes

Observe distance

8 m

Recognize distance

4 m

Detect distance

21 m

Identify distance

2 m

Minimum illumination

0 lx

Bit rate range

16 - 160 Kbit/s

Fixed focus

Yes

Alarm input channels

1

Alarm output channels

1

Audit log

Yes

Digest authentication

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Network access storage (NAS)

Yes

Sample rates

8 - 16 kHz

Terminal block port

Yes
