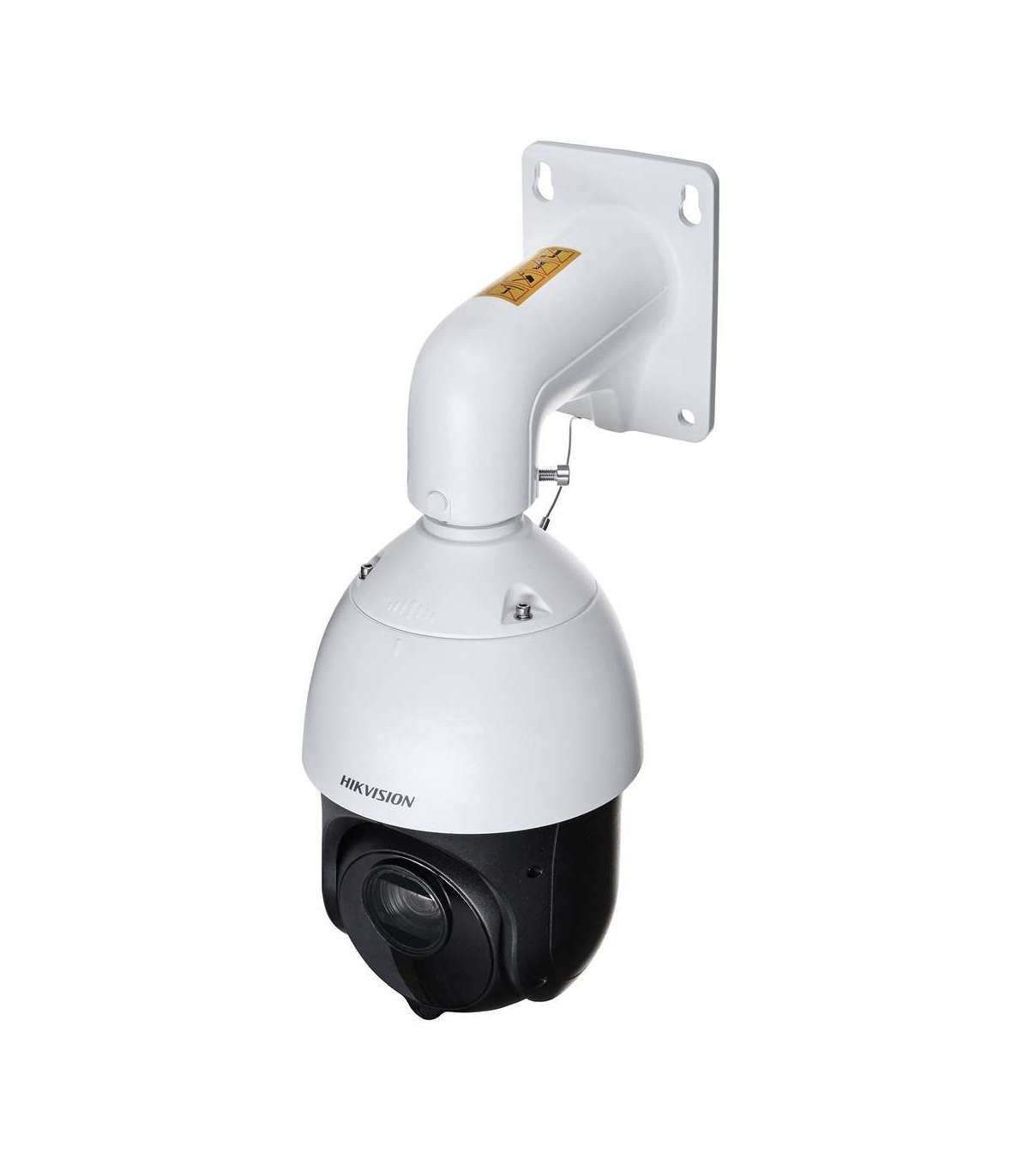

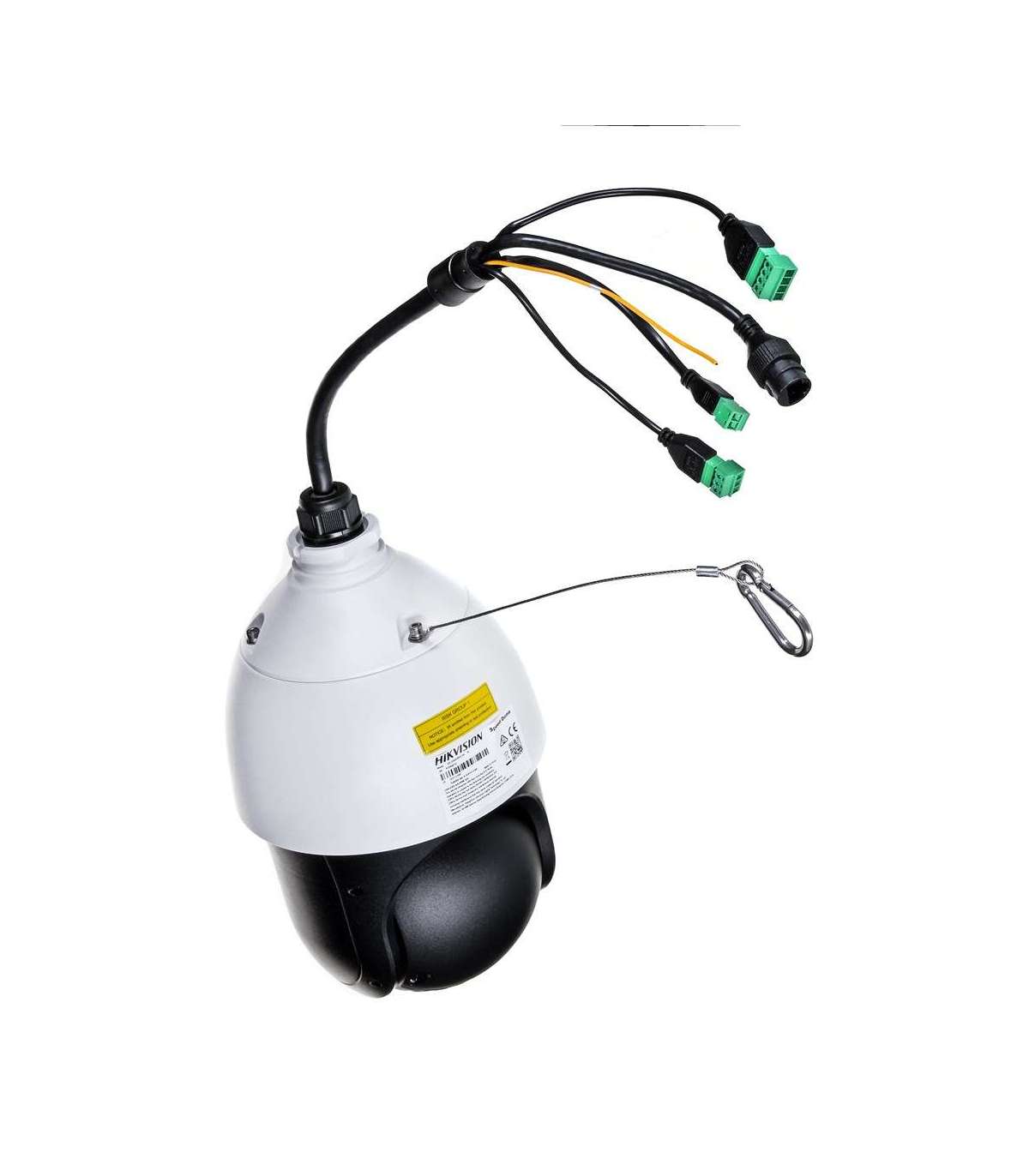

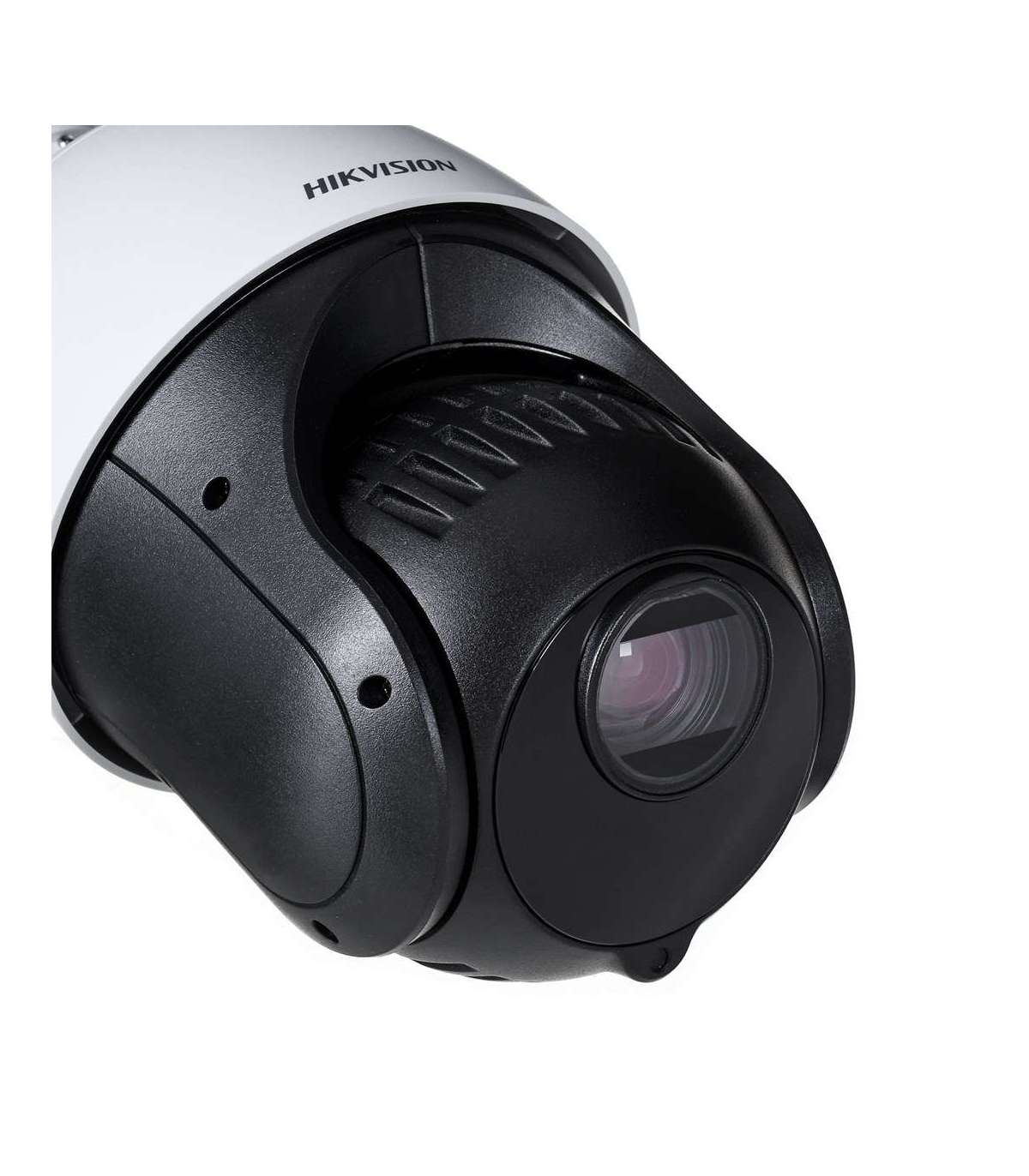

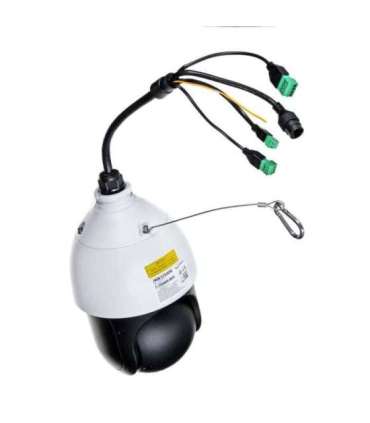

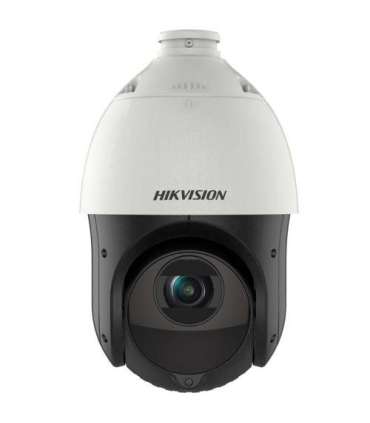

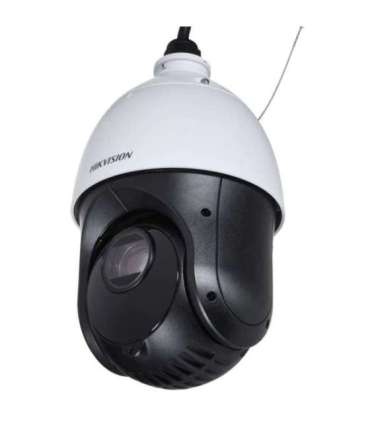

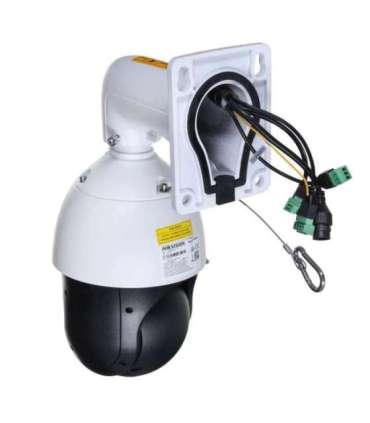

Hikvision PTZ DS-2DE4425IW-DE(T5) 4MP

Lisainfo

Kaal

2 kg

Kõrgus

290 mm

Product colour

Valge

Power source type

DC, PoE

Security algorithms

EAP-LEAP
EAP-MD5
EAP-TLS

Operating temperature (T-T)

-30 - 65 °C

Operating relative humidity (H-H)

0 - 90%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.1x
IEEE 802.3at

Power consumption (max)

18 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP66

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

DC output voltage

12

Maximum memory card size

256 GB

Digital zoom

16x

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Auto focus

Yes

Optical zoom

25x

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Audio output channels

1.0 channels

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

16.4 cm

Number of cameras

1

Video streaming

Yes

Tilt angle range

-15 - 90°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2560 x 1440

Placement supported

Outdoor

Mounting type

Ceiling/wall

Video motion detection

Yes

Alarm input/output

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Night vision distance

100 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Lens viewing angle, vertical

33°

Lens viewing angle, diagonal

61.5°

Lens viewing angle, horizontal

55°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Focal length range

4.8 - 120 mm

Maximum aperture number

1.6

Zoom capability

Yes

HTTPS encryption

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/1 - 1/30000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 16384 Kbps

Minimum illumination

0 lx

Voice codecs

AAC
G.711alaw
G.711ulaw
G.722.1
G.726
MP2L2
PCM

PTZ control

Yes

Pan speed

80 °/sec

Tilt speed

80 °/sec

Pan preset speed

80 °/sec

Highlight Compensation (HLC)

Yes

Sample rate

48 kHz

Audio input channels

1.0 channels

Focus

Motorized/Manual
