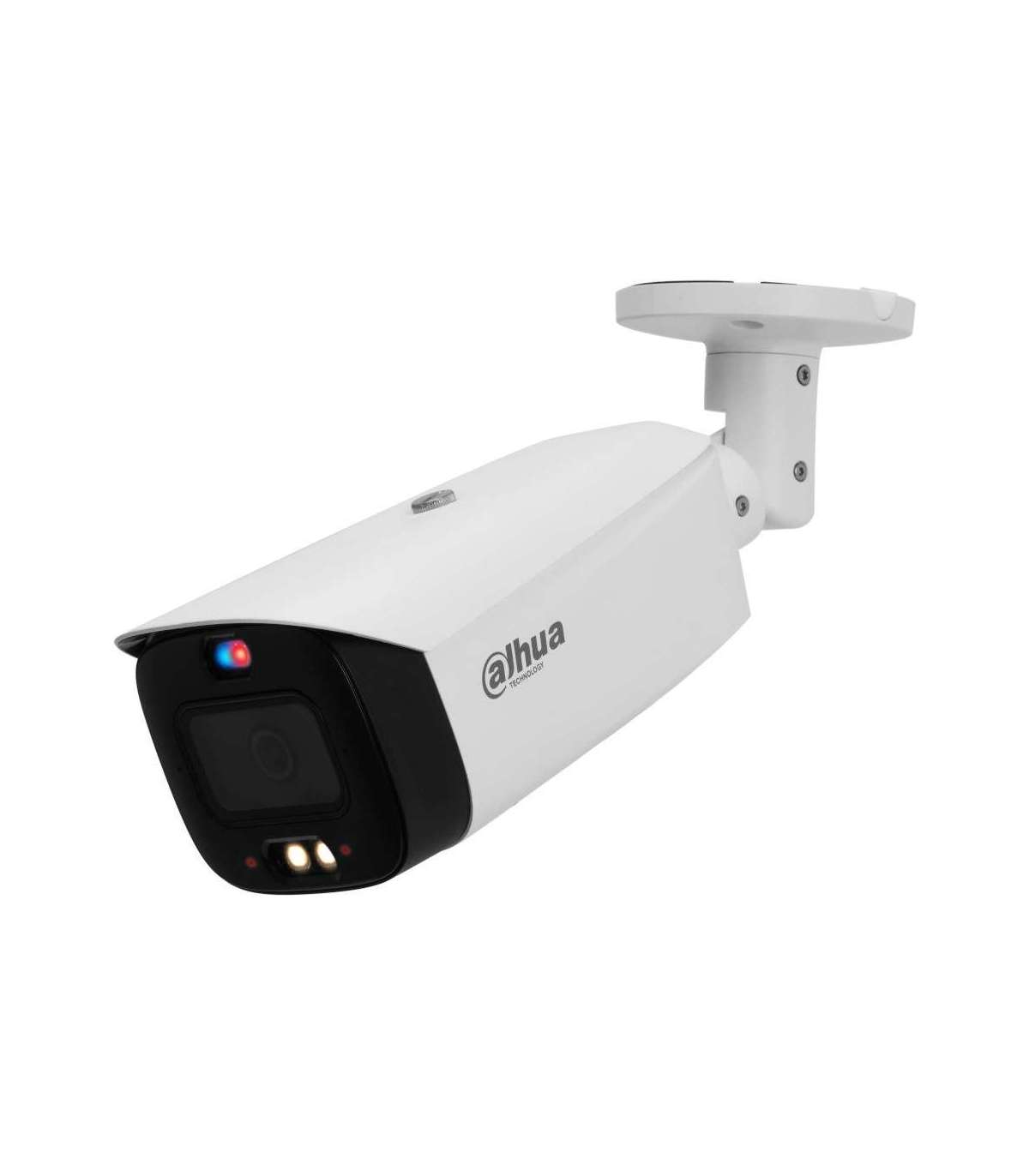

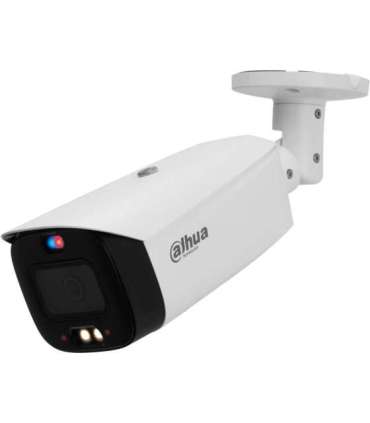

IP Camera DAHUA IPC-HFW3549T1-AS-PV-0280B-S4 White

Lisainfo

Depth

288 mm

Kaal

1 kg

Kõrgus

84.7 mm

Laius

94.4 mm

Product colour

Valge

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Web-based management

Yes

Networking standards

IEEE 802.3af

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal, Plastic

Power consumption (typical)

3.3 W

Power consumption (max)

6.8 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

10 Megabit Ethernet
100 Megabit Ethernet

Mobile operating systems supported

Android
iOS

RAM capacity

512 MB

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Form factor

Tube/dome

Bluetooth

No

Number of microphones

2

Built-in microphone

Yes

DC output voltage

12, 48

Built-in loudspeaker

Yes

Number of memory card slots

1

4G LTE

No

Maximum memory card size

256 GB

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

HD CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+
M-JPEG

Maximum resolution

2960 x 1668 pixels

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Placement supported

Outdoor

Mounting type

Wall/ceiling

Signal-to-Noise Ratio (SNR)

56 dB

Alarm input/output

Yes

Number of sensors

1

Frame rate

20 fps

Total megapixels

5 MP

Night vision distance

30 m

LED type

IR / White light LED

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

70°

Lens viewing angle, horizontal

97°

Progressive scan

Yes

Focal length range

2.8 mm

Maximum aperture number

1

Power consumption (Power over Ethernet (PoE))

8.2 W

Wide Dynamic Range (WDR)

120 dB

Camera shutter speed

1/3 - 1/100000 s

Web browser

Yes

Audio codecs

G.711a / G.711Mu / G.723 / G.726 / PCM

ROM capacity

128 MB

Number of illumination LEDs

2 / 2

Closest focusing distance

1.5 m

Minimum illumination

0.003 lx

Two-way talk

Yes

Viewing angle, diagonal

128°

Motion detection

Yes

Horizontal rotation angle

0 - 360°

People detection

Yes

Vertical rotation angle

0 - 90°

Lens type

Fixed focal length lens

Adjustment shutter speed

Auto/Manual

Audio RCA outputs

1

RCA input

1

Aperture type

Permanent
