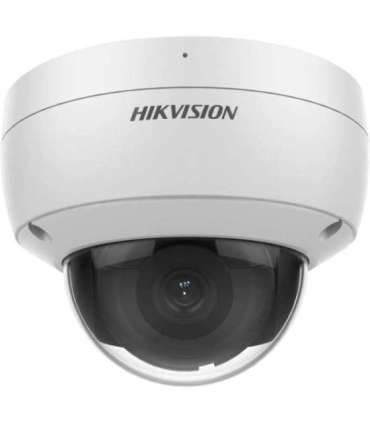

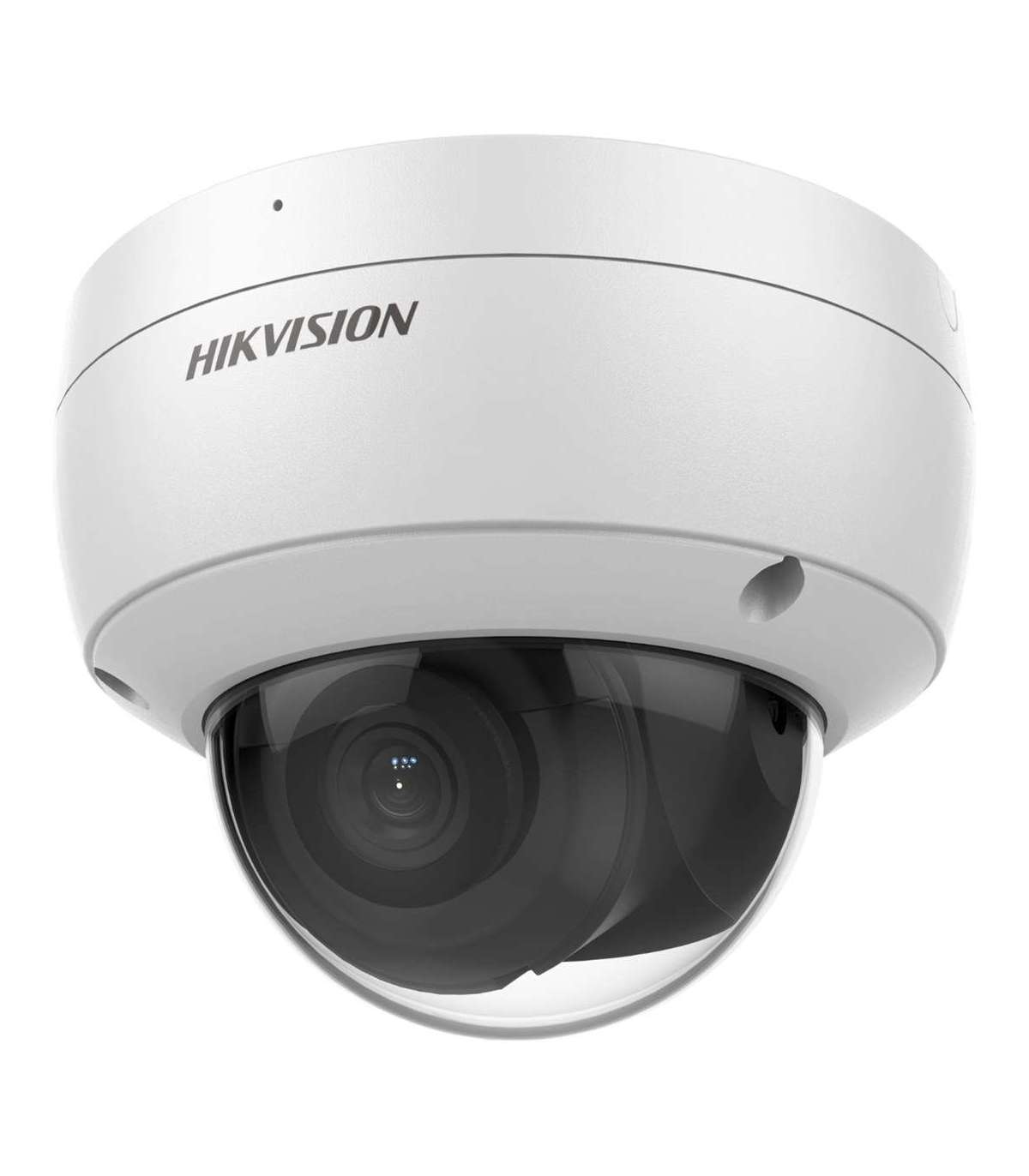

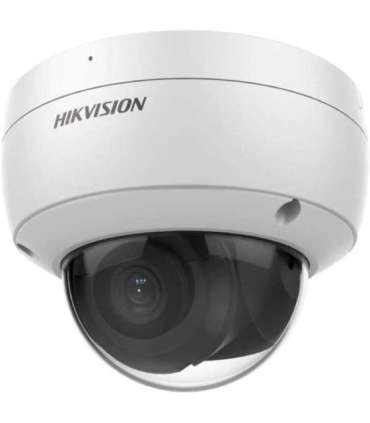

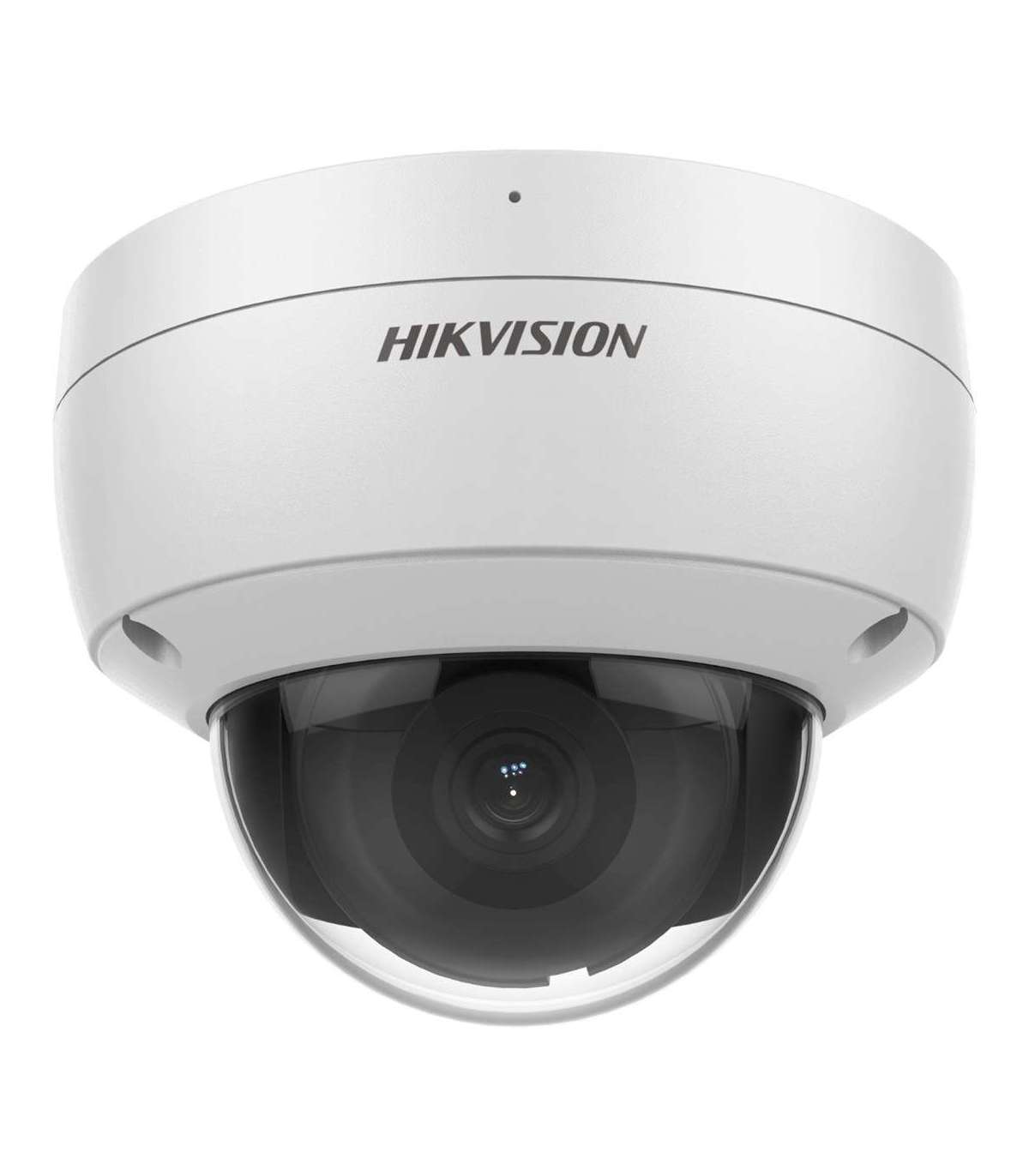

IP camera Hikvision DS-2CD2146G2-ISU (2.8mm) (C)

Lisainfo

Kaal

580 g

Kõrgus

92.4 mm

Package weight

820 g

Product colour

Valge

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

WPS push button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Networking standards

IEEE 802.1x
IEEE 802.3af

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Harmonized System (HS) code

85258900

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

CE
REACH

Housing material

Metal

Power consumption (max)

5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Multi

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Audio formats supported

MP3

Maximum memory card size

256 GB

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2688 x 1520 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12.1 cm

Number of cameras

1

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520

Placement supported

Outdoor

Mounting type

Ceiling/wall

Mirror

Yes

DC output current

0.4 A

Video motion detection

Yes

Alarm input/output

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Camera pan control

Yes

Camera tilt control

Yes

Intelligent Video Surveillance (IVS) system features

Scene change

Lens viewing angle, vertical

55°

Lens viewing angle, diagonal

123°

Lens viewing angle, horizontal

103°

Pan range

0 - 355°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.4

Angle of rotation

355°

Power consumption (Power over Ethernet (PoE))

6.5 W

Heartbeat

Yes

Anti-flicker

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 8 Mbps

IK code

IK10

Voice codecs

AAC
G.711alaw
G.711ulaw
G.726
MP2L2
PCM

Observe distance (wide)

23.8 m

Highlight Compensation (HLC)

Yes

Identify distance (wide)

6 m

Recognize distance (wide)

12 m

Detect distance (wide)

60 m

Sample rate

48 kHz

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
