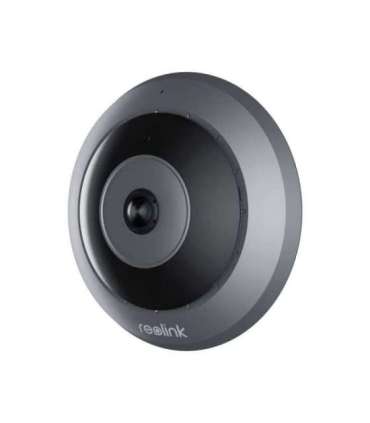

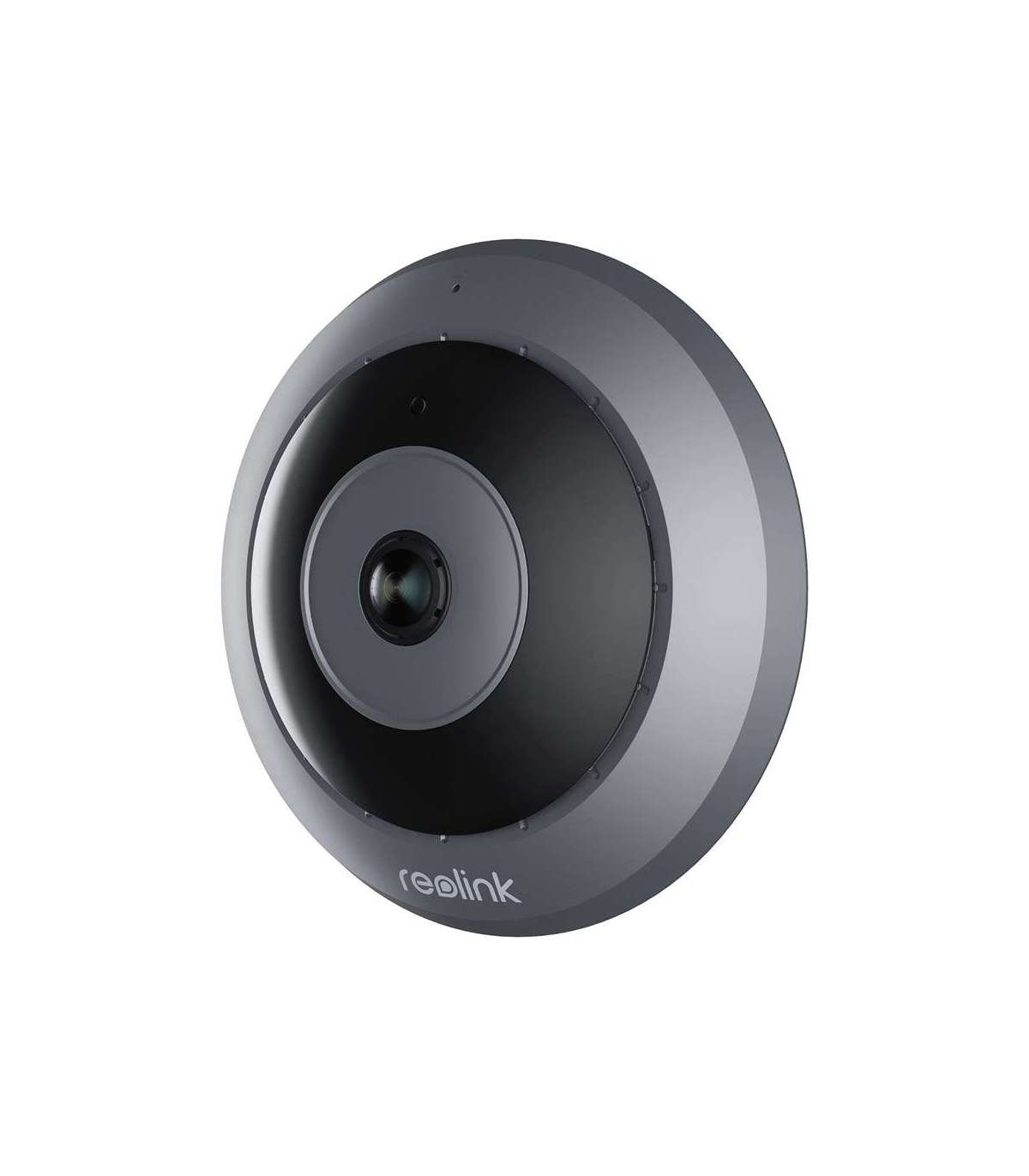

Reolink Fisheye Series W520 - 6MP Indoor Fisheye Wi-Fi Camera, 360° View, Multiple Display Modes, Person Detection

Lisainfo

Kaal

293 g

Kõrgus

49.2 mm

Product colour

Hall
Must

Power source type

DC

Security algorithms

WPA
WPA2

Operating temperature (T-T)

-10 - 55 °C

Operating relative humidity (H-H)

10 - 90%

Reset button

Yes

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)

Ethernet LAN (RJ-45) ports

1

Networking standards

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Supported network protocols

HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

DC-in jack

Yes

Manual

Yes

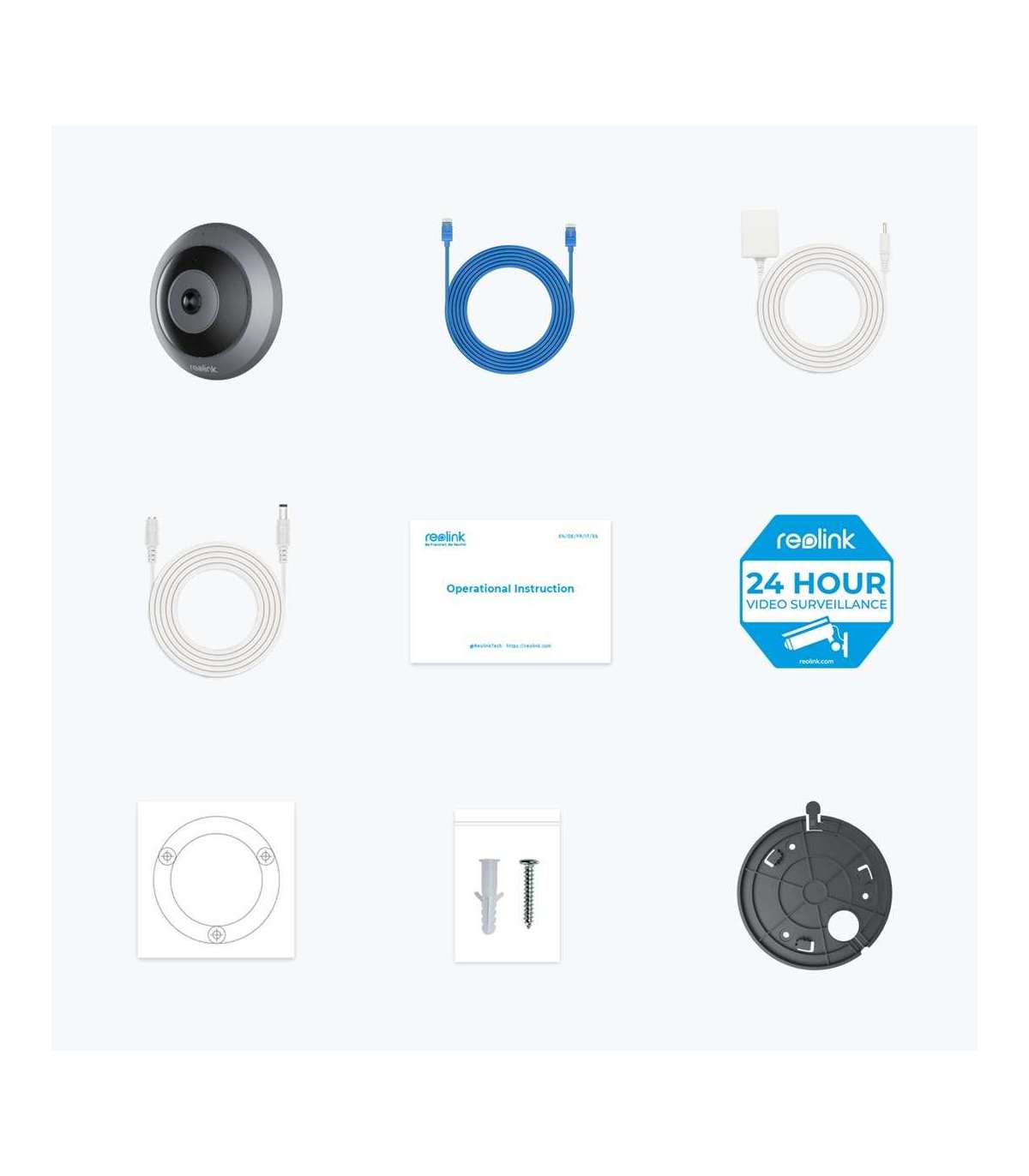

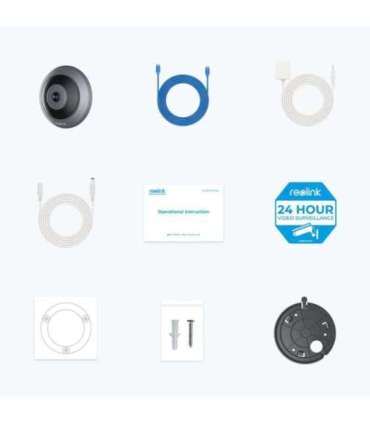

Packaging content

1* Fisheye Series W520
1* 1m Network Cable
1* Power Adapter
1* 4.5m Power Extension Cable
1* Mounting Template
1* Mount Base
1* Pack of Screws
1* Quick Start Guide
1* Surveillance Sticker

Power consumption (max)

12 W

Wi-Fi

Yes

Connectivity technology

Wired & Wireless

Mounting kit

Yes

Ethernet interface type

Fast Ethernet

Mobile operating systems supported

Android
iOS

Number of users

20 user(s)

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Bluetooth

No

Built-in speaker(s)

Yes

Built-in microphone

Yes

Audio system

2-way

DC output voltage

12

Video formats supported

H.265

Maximum memory card size

256 GB

Virtual assistant

Google Assistant

Optical sensor size

25.4 / 2.5 mm (1 / 2.5")

Sensor type

CMOS

Video compression formats

H.265

Maximum resolution

2560 x 2560 pixels

Screws included

Yes

Type

IP security camera

Diameter

12.6 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

1.98 mm

Supported graphics resolutions

2560 x 2560

Placement supported

Indoor

Mounting type

Ceiling/wall

Video recording

Yes

DC output current

1 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

25 fps

Total megapixels

6.5 MP

Infra-red wavelength

850 nm

Night vision distance

8 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

180°

Lens viewing angle, diagonal

180°

Lens viewing angle, horizontal

180°

Maximum aperture number

2

Infrared (IR) cut-off filter

Yes

Bit rate

64 Kbps - 8192 Kbps

Number of illumination LEDs

3

User access level

Administrator, User

Human and vehicle targets classification

Yes
