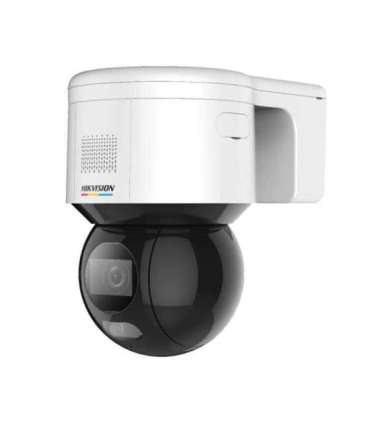

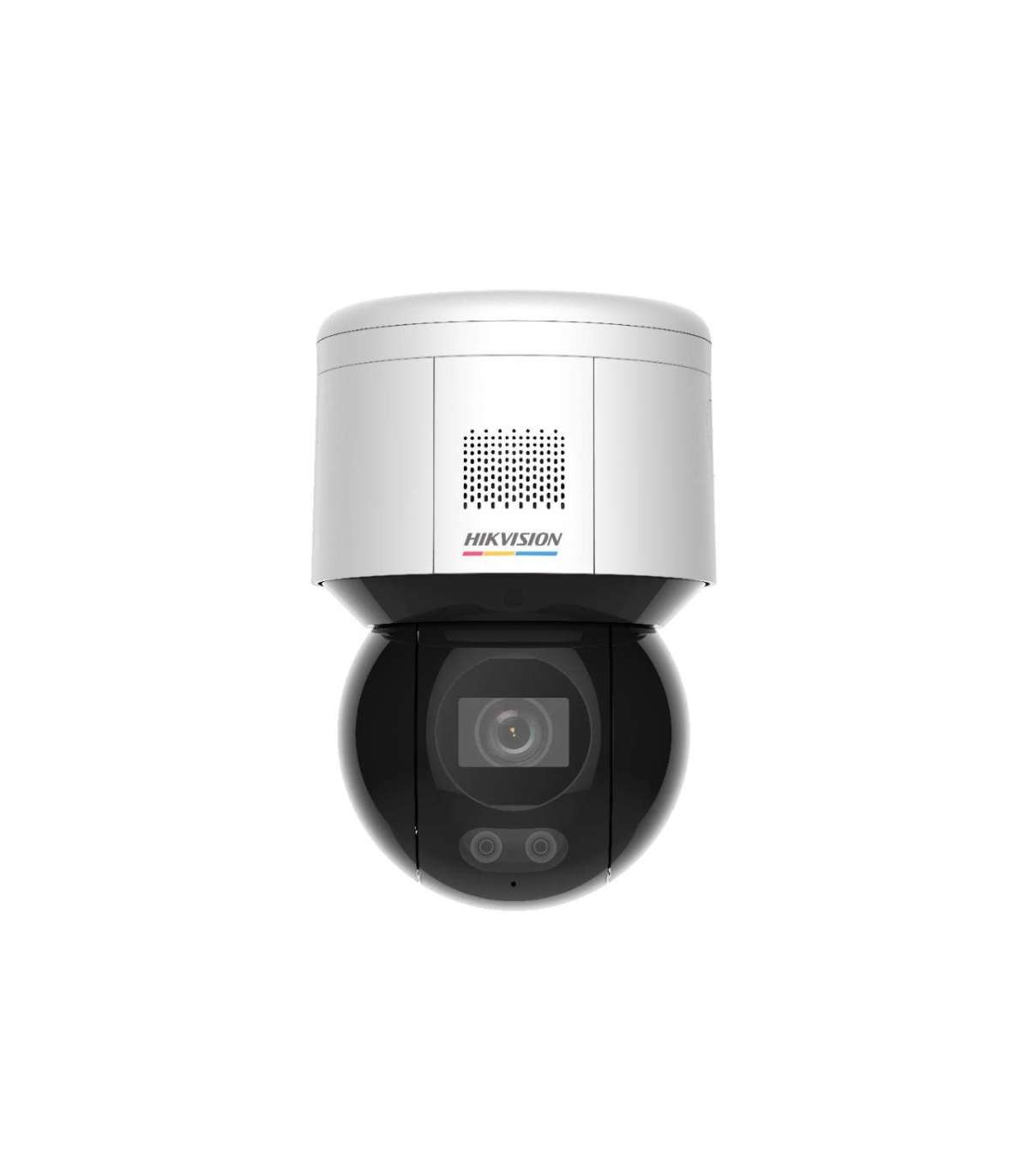

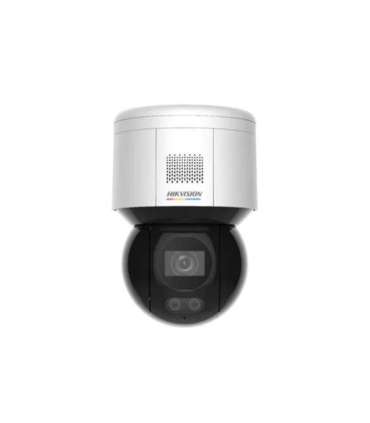

Hikvision Digital Technology DS-2DE3A400BW-DE(T5)

Lisainfo

Depth

179.3 mm

Kaal

1.12 kg

Kõrgus

182 mm

Laius

120 mm

Product colour

Must
Valge

Security algorithms

HTTPS

Operating temperature (T-T)

-30 - 65 °C

Operating relative humidity (H-H)

0 - 90%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Power consumption (max)

16 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP66

Number of users

32 user(s)

Languages support

Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
LAT
Lithuanian
Norwegian
Polish
Portuguese
Romanian
Russian
SER
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

DC output voltage

12

Audio formats supported

AAC
G.711 A-law
G.711 μ-law
G.722.1
G.726
MP2L2
PCM

Maximum memory card size

512 GB

Digital zoom

16x

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12 cm

Number of cameras

1

Live view

Yes

Tilt angle range

0 - 90°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)
2560 x 1440

Placement supported

Indoor & outdoor

Mounting type

Ceiling

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Built-in light

Yes

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Total megapixels

4 MP

Intelligent Video Surveillance (IVS) system features

Face detection

Lens viewing angle, vertical

46.5°

Lens viewing angle, diagonal

105°

Pan range

0 - 350°

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Focal length range

4 mm

Maximum aperture number

1

Power consumption

60 mA

Digital watermark

Yes

HTTPS encryption

Yes

Number of languages

32

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Camera shutter speed

1/1 - 1/30000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Active tampering alarm

Yes

Web browser

Yes

Minimum illumination

0.0005 lx

Pan speed

60 °/sec

Tilt preset speed

50 °/sec

Tilt speed

50 °/sec

Pan preset speed

60 °/sec

Highlight Compensation (HLC)

Yes

Behavior analysis

Line crossing detection, Region entrance detection, Region exiting detection

User access level

Administrator, Operator, User

Number of simultaneous live view channels

20 channels

Dynamic range

120 dB

RS-485 ports

1
