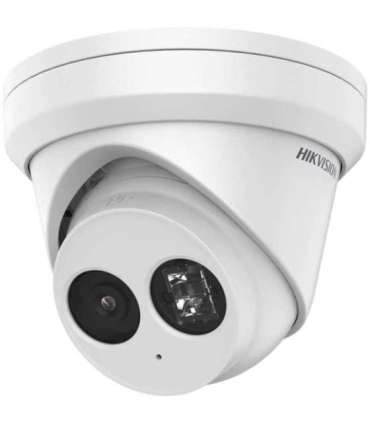

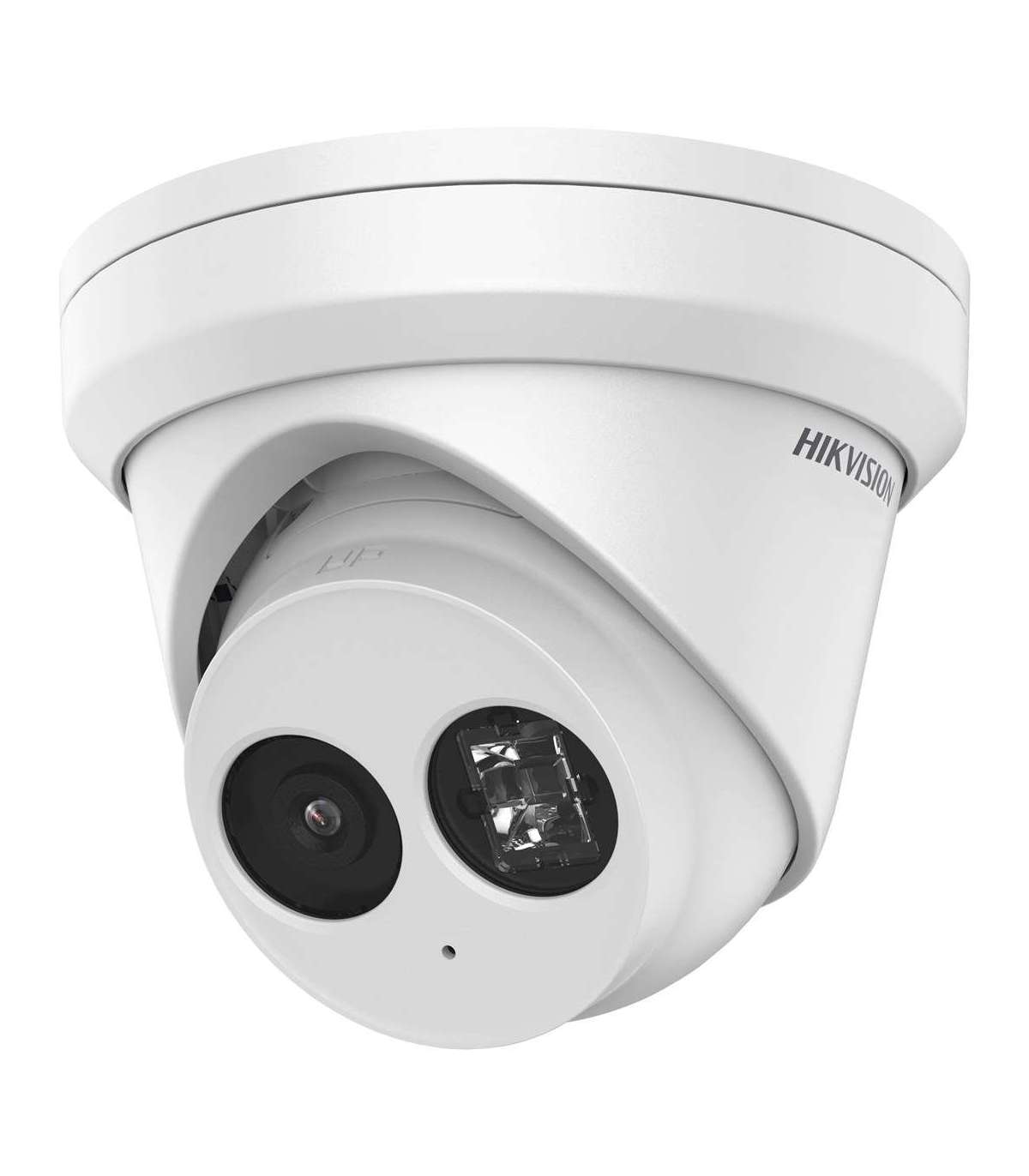

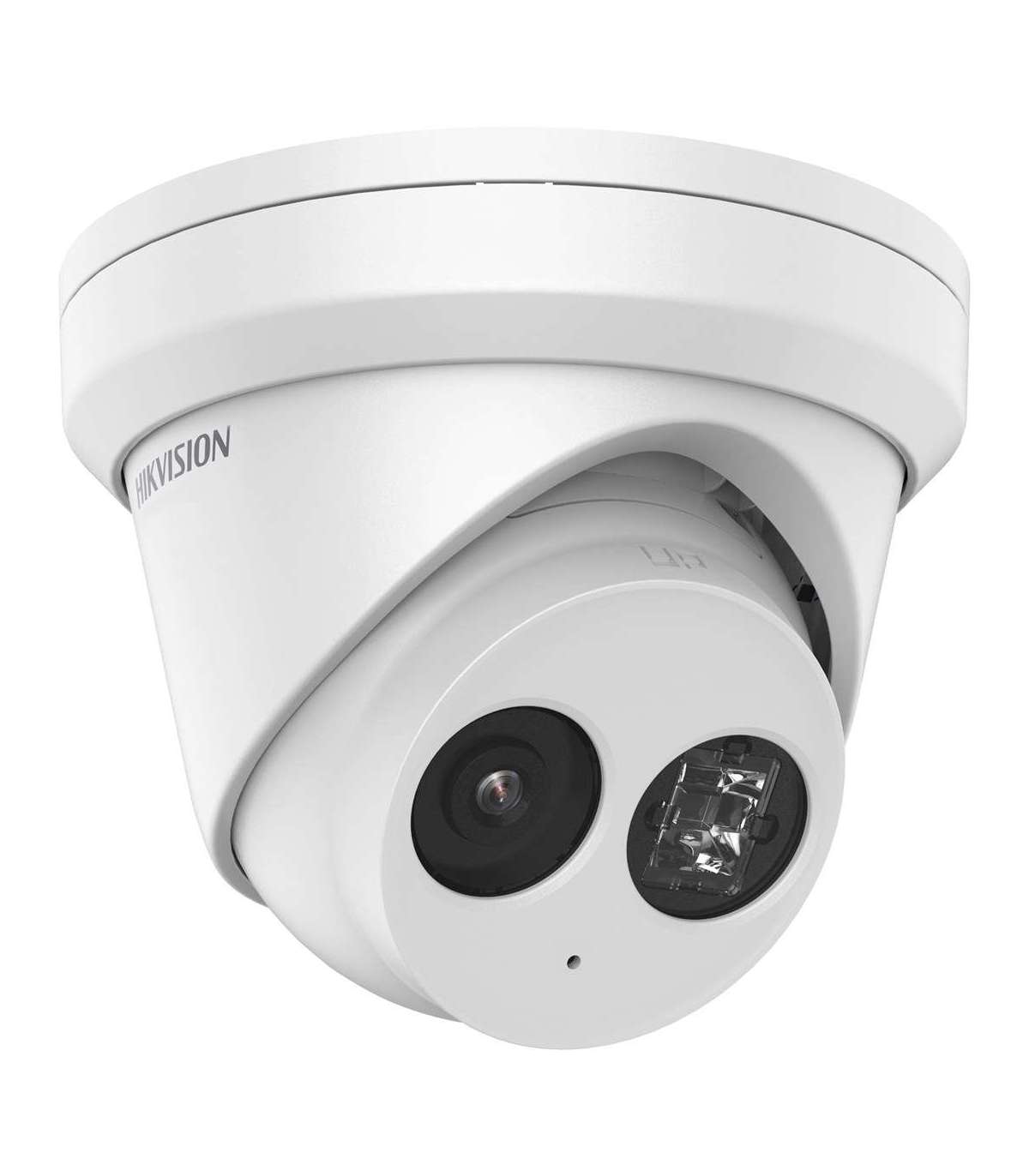

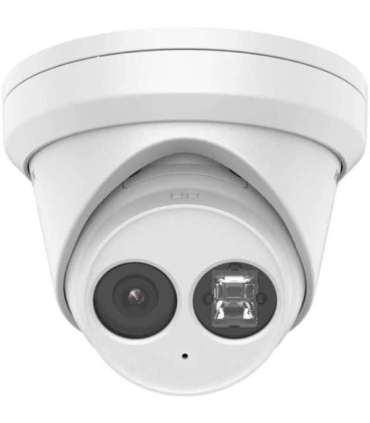

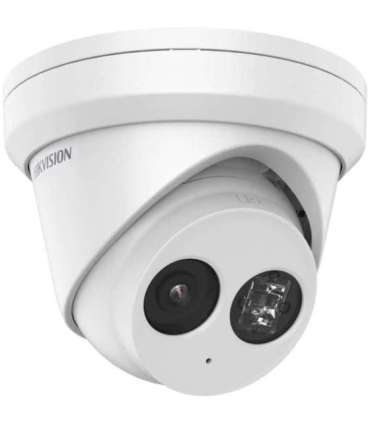

Hikvision DS-2CD2363G2-I

Lisainfo

Kaal

600 g

Kõrgus

95.9 mm

Package weight

909 g

Product colour

Valge

Power source type

DC, PoE

Security algorithms

EAP-LEAP
EAP-MD5
EAP-TLS

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Web-based management

Yes

Networking standards

IEEE 802.3af

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Compliance certificates

CB
CE
Low Voltage Directive (LVD)
RoHS
UL

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal

Browser supported

IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Power consumption (max)

6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Multi

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

Yes

Form factor

Dome

Password protection

Yes

Bluetooth

No

Built-in microphone

No

Privacy protection

Yes

DC output voltage

12

Maximum memory card size

512 GB

Protection features

Water resistant

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3200 x 1800 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

12.7 cm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520
3200 x 1800

Placement supported

Outdoor

Mounting type

Ceiling/wall

Video recording

Yes

DC output current

0.5 A

Video motion detection

Yes

Built-in HDD

No

Frame rate

30 fps

Total megapixels

6 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Lens viewing angle, vertical

57°

Lens viewing angle, diagonal

128°

Lens viewing angle, horizontal

107°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

7.5 W

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Noise reduction technology

3D noise reduction

Bit rate

32 Kbps - 16 Mbps

Active tampering alarm

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Minimum illumination

0 lx

Highlight Compensation (HLC)

Yes

Lens mount interface

M12

Behavior analysis

Intrusion detection, Line crossing detection

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Human and vehicle targets classification

Yes
