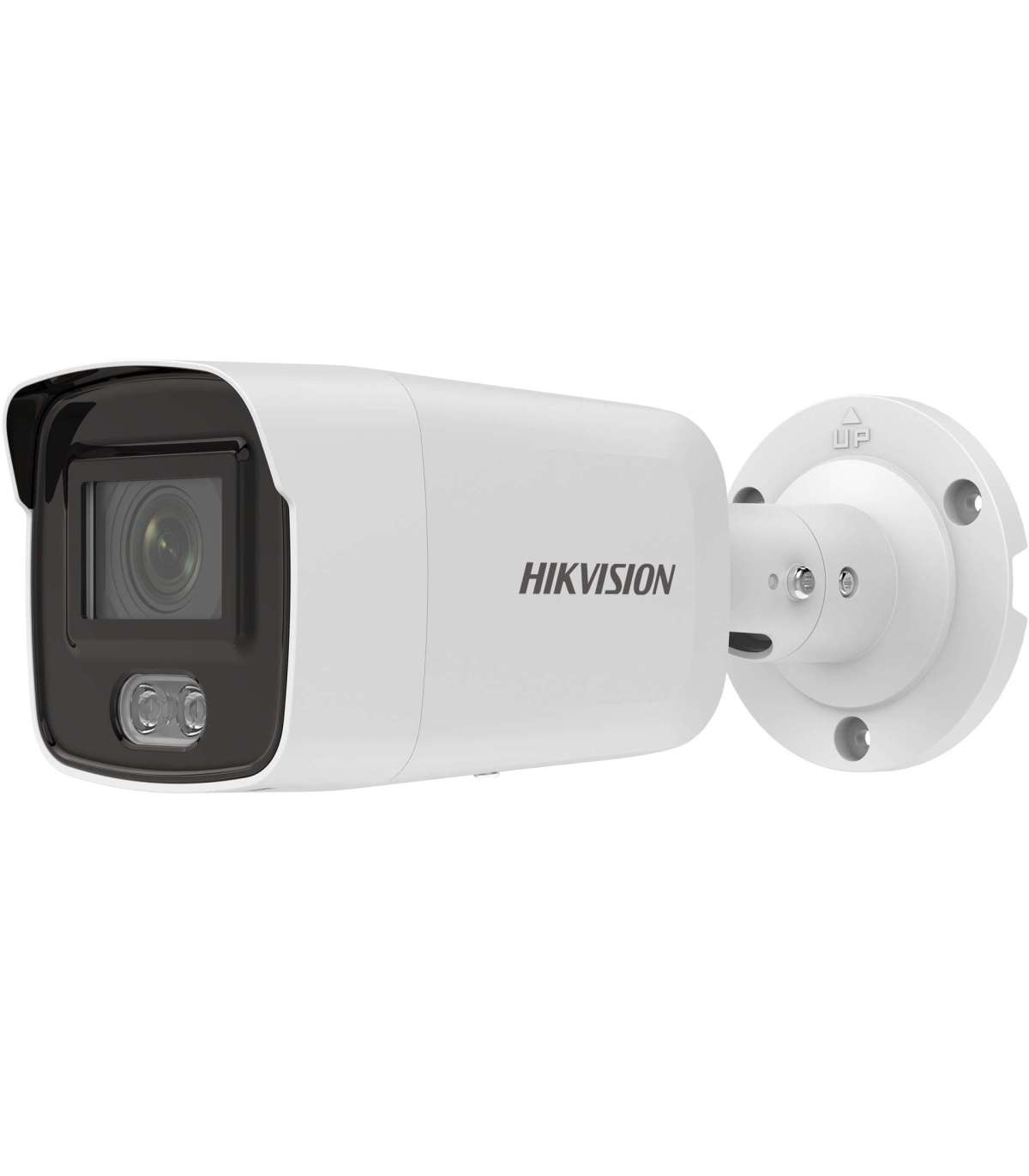

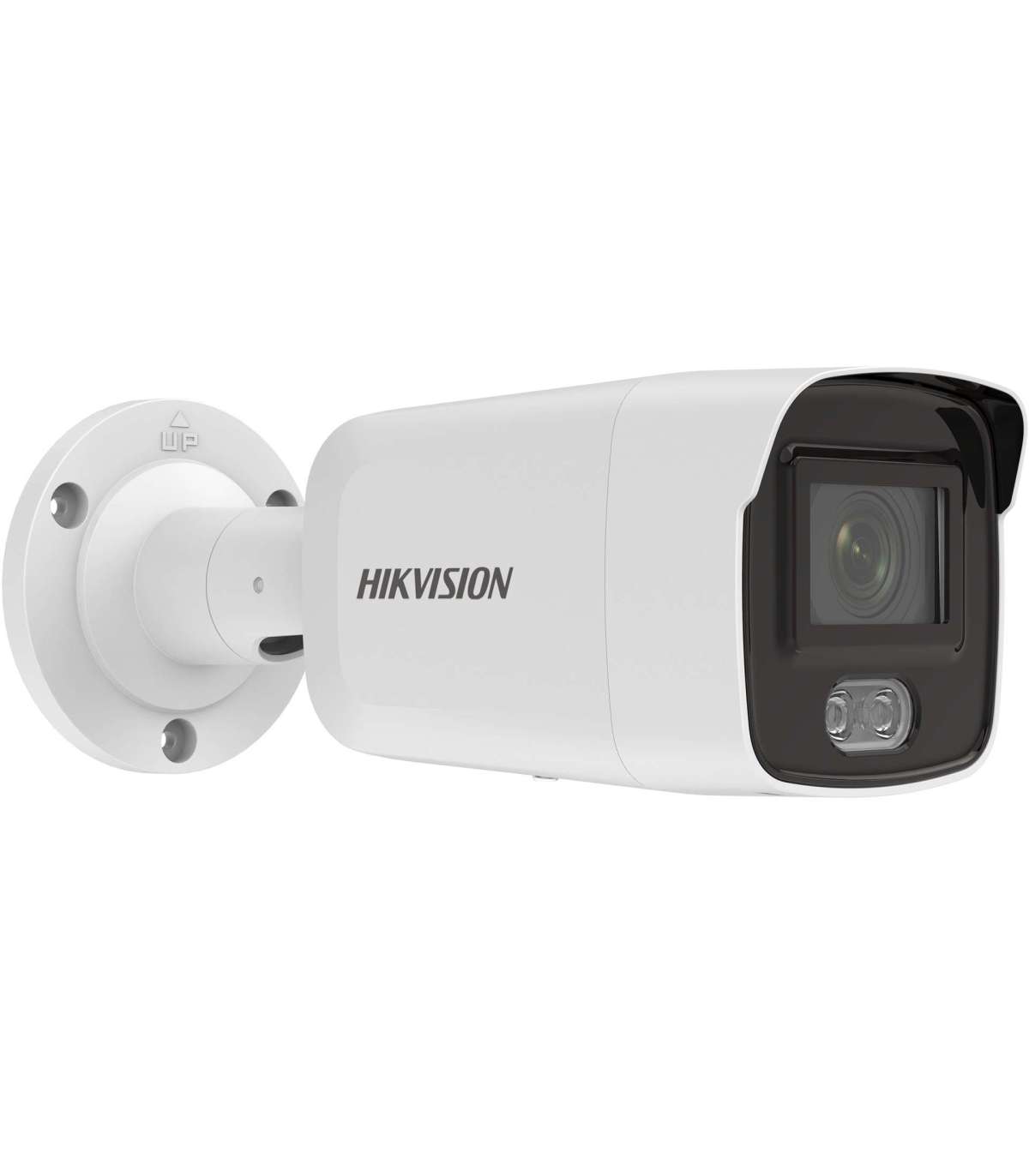

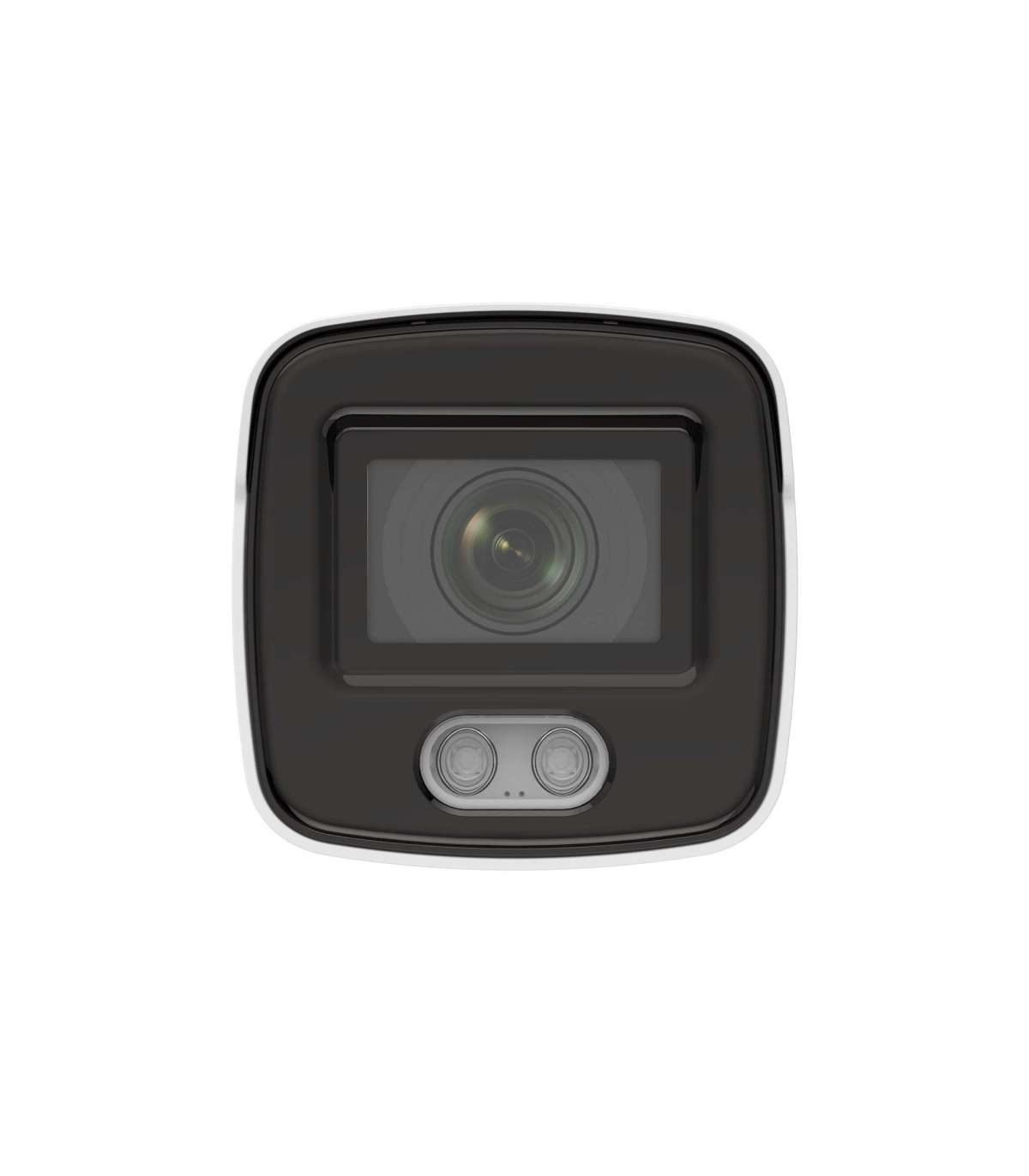

HIKVISION IP Camera DS-2CD2027G2-L (2.8mm)

Lisainfo

Depth

78.6 mm

Kaal

680 g

Kõrgus

78.8 mm

Laius

215.2 mm

Package weight

1 kg

Product colour

Valge

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10,100 Mbit/s

Package width

315 mm

Package depth

141 mm

Package height

137 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

REACH
WEEE

Power over Ethernet (PoE)

Yes

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

32 user(s)

Languages support

Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Romanian
Russian
SER
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Password protection

Yes

Maximum memory card size

512 GB

Maximum frame rate

30 fps

Face detection

Yes

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

1920 x 1080 pixels

Type

IP security camera

Number of cameras

1

Tilt angle range

0 - 90°

Power management

DC 12 V

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

DC output current

0.5 A

Video motion detection

Yes

Total megapixels

2 MP

Infra-red wavelength

850 nm

Night vision distance

40 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

56°

Lens viewing angle, diagonal

127°

Lens viewing angle, horizontal

107°

Pan range

0 - 360°

Progressive scan

Yes

Maximum aperture number

1

Angle of rotation

360°

Heartbeat

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Bit rate

32 Kbps - 8 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Minimum illumination

0.0005 lx

Observe distance (wide)

18 m

PoE standard

IEEE 802.3af

Highlight Compensation (HLC)

Yes

Identify distance (wide)

4 m

Recognize distance (wide)

9 m

Detect distance (wide)

46 m

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
