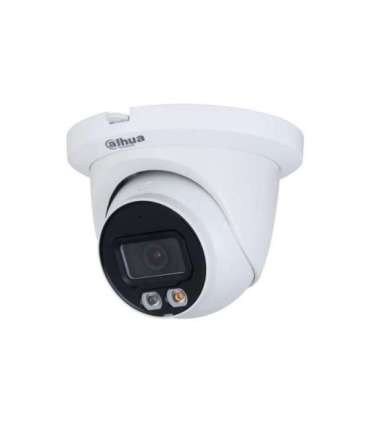

IP Camera DAHUA IPC-HDW2249TM-S-IL-0280B White

Lisainfo

Depth

121.9 mm

Kaal

460 g

Kõrgus

99.1 mm

Laius

121.9 mm

Product colour

Valge

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Web-based management

Yes

Networking standards

IEEE 802.3af

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal, Plastic

Power consumption (typical)

1.6 W

Power consumption (max)

3.8 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

10 Megabit Ethernet
100 Megabit Ethernet

Mobile operating systems supported

Android
iOS

RAM capacity

128 MB

Form factor

Tube/dome

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12

Built-in loudspeaker

No

4G LTE

No

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Sensor type

HD CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+
M-JPEG

Maximum resolution

1920 x 1080 pixels

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Placement supported

Outdoor

Mounting type

Wall/ceiling

Signal-to-Noise Ratio (SNR)

56 dB

Number of sensors

1

Frame rate

25 / 30 fps

Total megapixels

2 MP

Night vision distance

30 m

LED type

IR / White light LED

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

56°

Lens viewing angle, horizontal

107°

Progressive scan

Yes

Focal length range

2.8 mm

Maximum aperture number

1.6

Power consumption (Power over Ethernet (PoE))

4.4 W

Wide Dynamic Range (WDR)

120 dB

Camera shutter speed

1/3 - 1/100000 s

Web browser

Yes

Audio codecs

PCM, G.711a G.711Mu, G.726

ROM capacity

128 MB

Number of illumination LEDs

1 / 1

Closest focusing distance

0.7 m

Minimum illumination

0.002 lx

Two-way talk

N

Viewing angle, diagonal

127°

Motion detection

Yes

Horizontal rotation angle

0 - 360°

People detection

Yes

Vertical rotation angle

0 - 78°

Lens type

Fixed focal length lens

Adjustment shutter speed

Auto/Manual
