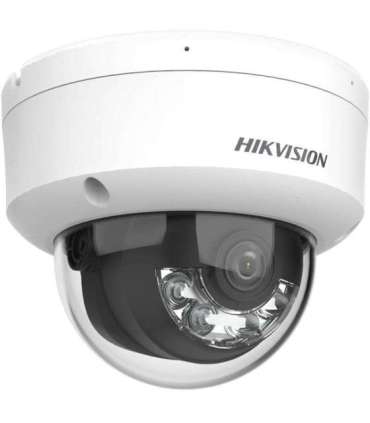

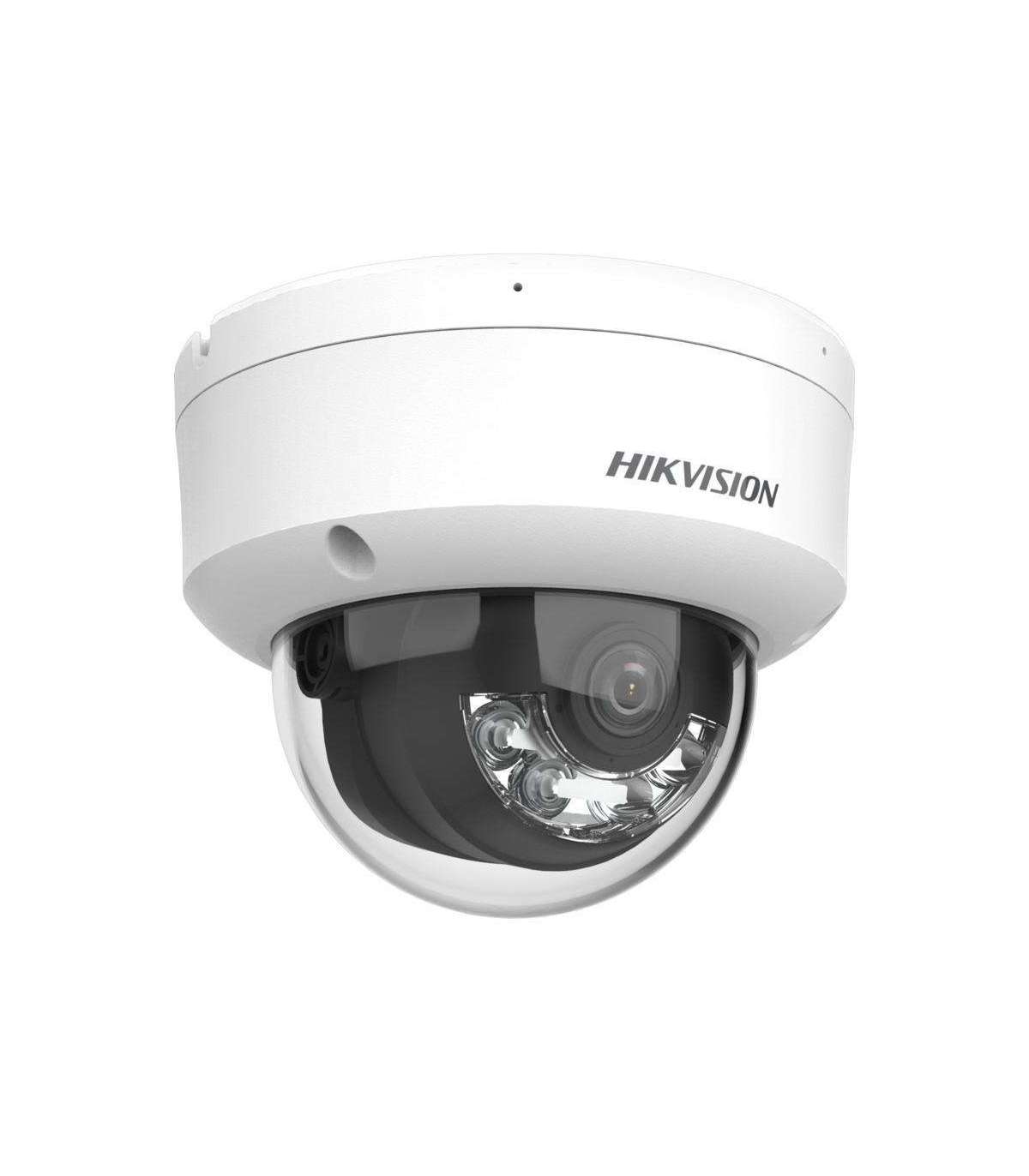

HIKVISION IP CAMERA DS-2CD2163G2-LIS2U (2.8mm)

Lisainfo

Kaal

600 g

Package weight

840 g

Product colour

Valge

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10,100 Mbit/s

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

REACH
WEEE

Housing material

Aluminium

Power over Ethernet (PoE)

Yes

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

32 user(s)

Languages support

Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Romanian
Russian
SER
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Form factor

Dome

Password protection

Yes

Built-in microphone

Yes

Maximum memory card size

512 GB

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Audio output

1

Type

IP security camera

Length

97.6 mm

Diameter

12.2 cm

Number of cameras

1

Tilt angle range

0 - 75°

Audio input

1

Power management

DC 12 V

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Video motion detection

Yes

Total megapixels

6 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR/White

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

55°

Lens viewing angle, diagonal

127°

Lens viewing angle, horizontal

105°

Pan range

0 - 355°

Progressive scan

Yes

Maximum aperture number

1.6

Angle of rotation

355°

Heartbeat

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Privacy masking

Yes

Bit rate

32 Kbps - 16 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Minimum illumination

0.005 lx

PoE standard

IEEE 802.3af

Highlight Compensation (HLC)

Yes

Identify distance (wide)

7 m

Detect distance (wide)

76 m

Client interoperability

ONVIF (Profile S / Profile G), ISAPI, SDK, ISUP

Sample rate

8 kHz /16 kHz /32 kHz / 48 kHz

Noise filter

Y

Behavior analysis

Intrusion detection, Line crossing detection

Protection class impact resistance

IK10

Memory card slot

Yes
