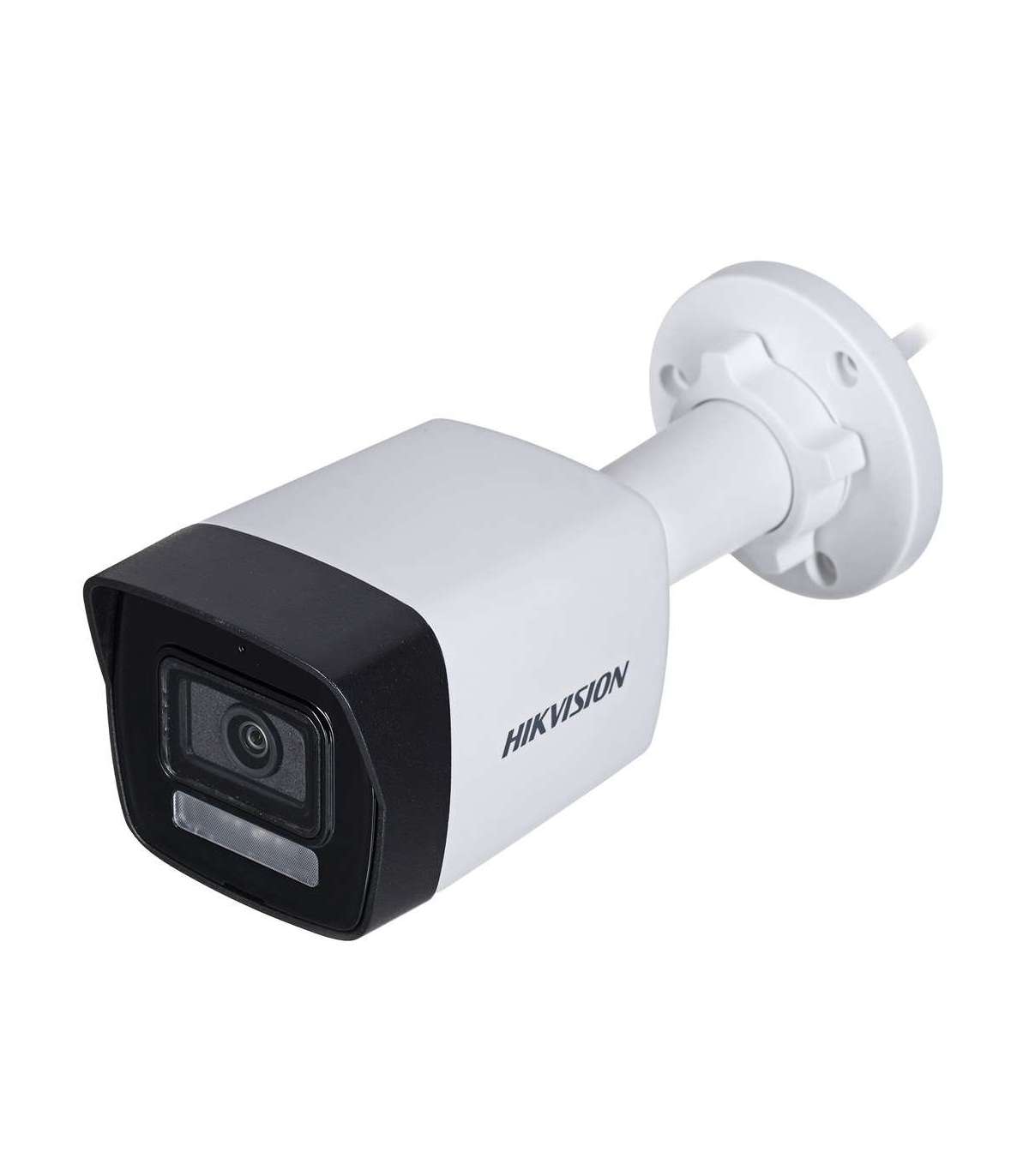

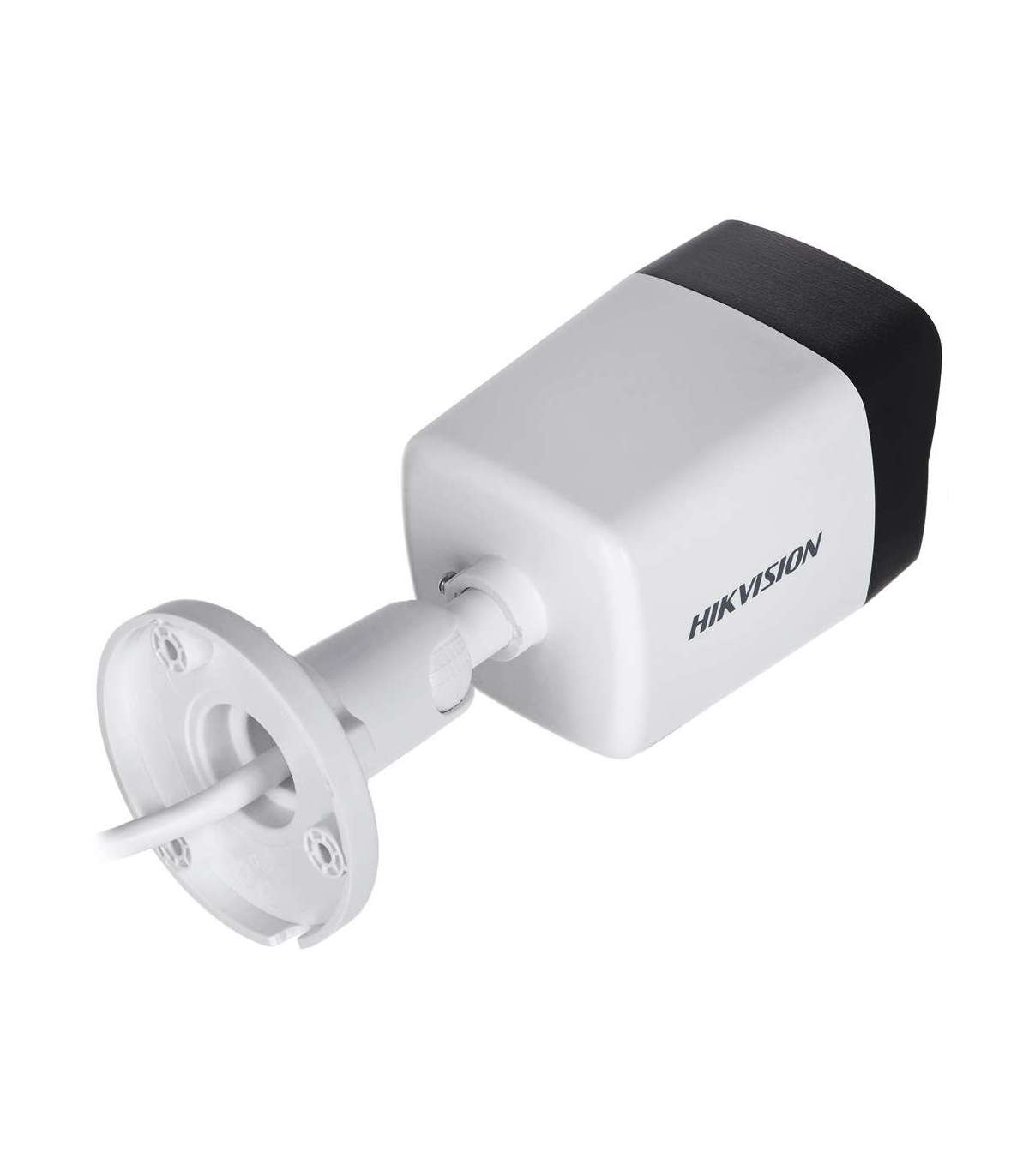

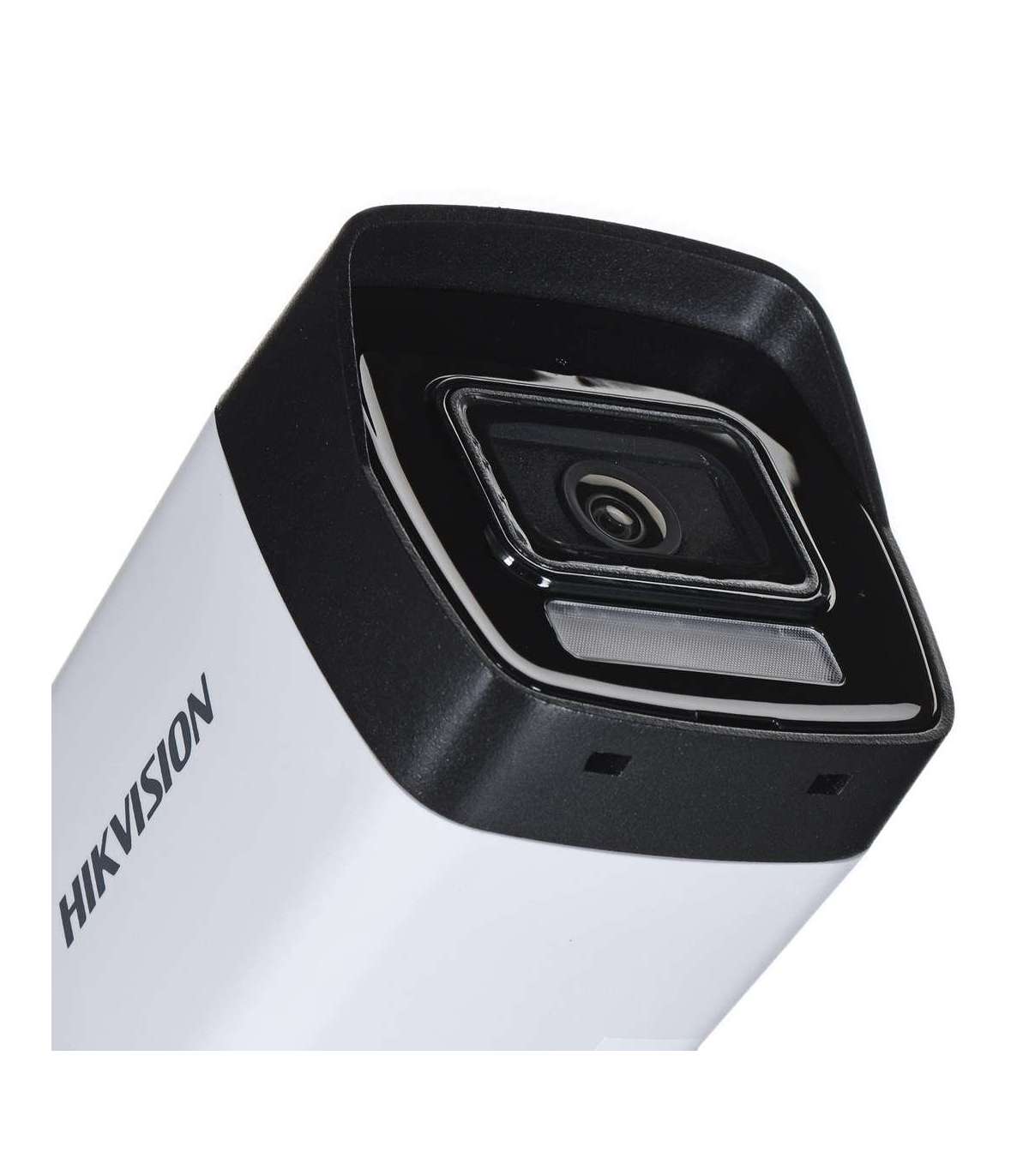

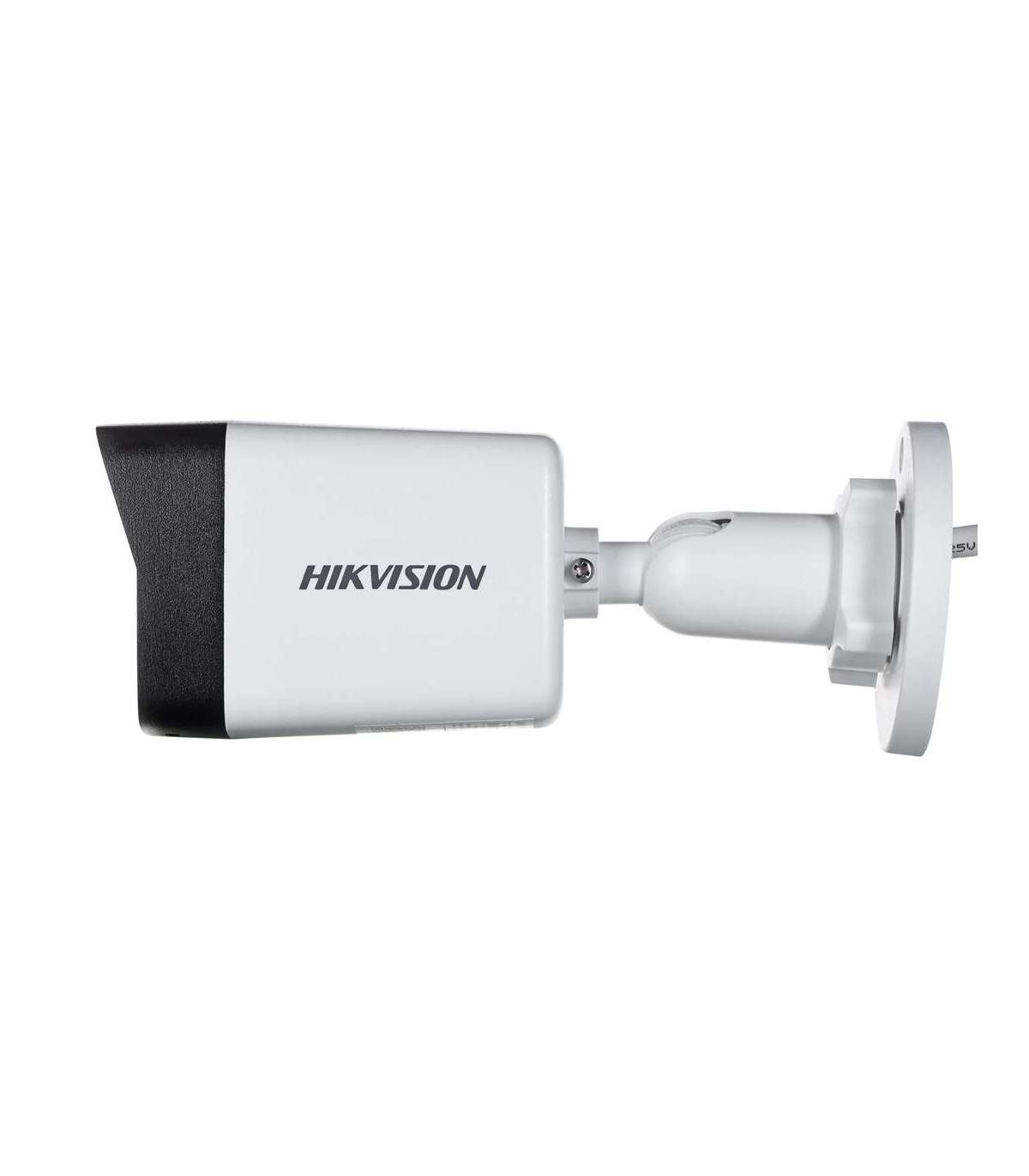

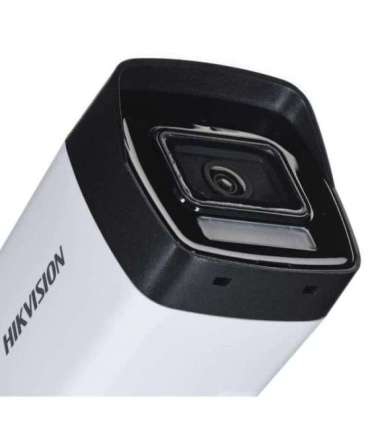

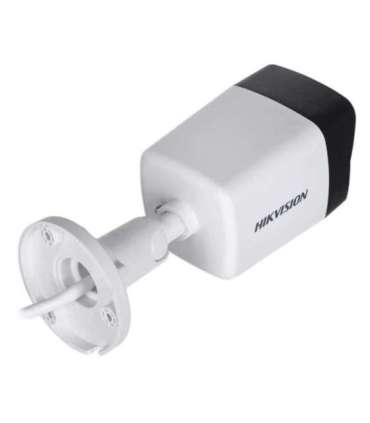

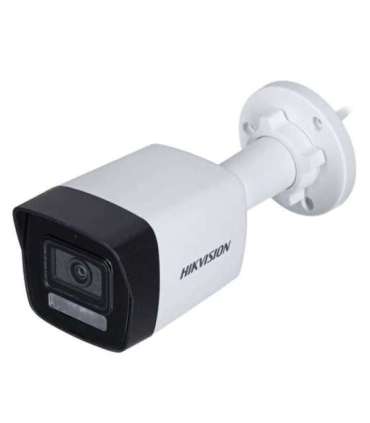

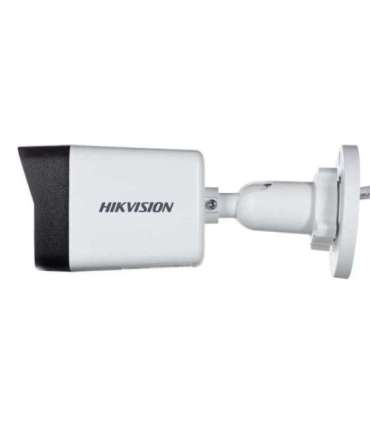

IP camera Hikvision DS-2CD1043G2-LIU(2.8mm)

Lisainfo

Kaal

270 g

Kõrgus

66 mm

Laius

69.1 mm

Package weight

481 g

Product colour

Valge

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Web-based management

Yes

Package width

216 mm

Package depth

121 mm

Package height

118 mm

Supported network protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

CE
Federal Communications Commission (FCC)
REACH
RoHS
WEEE

Housing material

Metal
Plastic

Power consumption (max)

5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

English
Ukrainian

Form factor

Bullet

Password protection

Yes

Bluetooth

No

Privacy protection

Yes

DC output voltage

12

Protection features

Dust resistant
Water resistant

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2560 x 1440 pixels

Type

IP security camera

Length

170.8 mm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 90°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2560 x 1440

Placement supported

Indoor & outdoor

Mounting type

Ceiling/wall

Mirror

Yes

DC output current

0.4 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Frame rate

25 fps

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

54°

Lens viewing angle, diagonal

114°

Lens viewing angle, horizontal

98°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.6

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

6.5 W

Digital watermark

Yes

Heartbeat

Yes

Number of languages

2

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Bit rate

32 Kbps - 8 Mbps

Active tampering alarm

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Observe distance

25 m

Recognize distance

12 m

Detect distance

63 m

Identify distance

6 m

Number of Privacy masking areas

4

Highlight Compensation (HLC)

Yes

Lens mount interface

M12

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB
