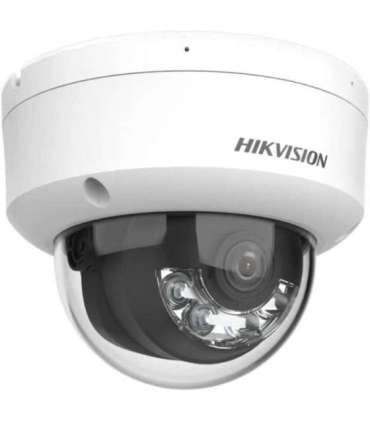

HIKVISION IP CAMERA DS-2CD2143G2-LI(2.8MM)

Lisainfo

Kaal

600 g

Package weight

830 g

Product colour

Valge

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10,100 Mbit/s

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

RoHS
WEEE

Housing material

Aluminium alloy

Power over Ethernet (PoE)

Yes

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

32 user(s)

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Form factor

Dome

Password protection

Yes

Built-in microphone

Yes

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2688 x 1520 pixels

Type

IP security camera

Length

97.6 mm

Diameter

12.2 cm

Number of cameras

1

Tilt angle range

0 - 75°

Power management

DC 12 V

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

DC output current

0.6 A

Video motion detection

Yes

Total megapixels

4 MP

Infra-red wavelength

850 nm

LED type

IR/White

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

57°

Lens viewing angle, diagonal

122°

Lens viewing angle, horizontal

104°

Pan range

0 - 355°

Progressive scan

Yes

Maximum aperture number

1.6

Angle of rotation

355°

Heartbeat

Yes

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Minimum illumination

0.005 lx

IK code

IK10

Observe distance (wide)

25 m

PoE standard

IEEE 802.3af

Highlight Compensation (HLC)

Yes

Identify distance (wide)

6 m

Recognize distance (wide)

12 m

Detect distance (wide)

63 m

Client interoperability

ONVIF (Profile S / Profile G), ISAPI, SDK, ISUP
