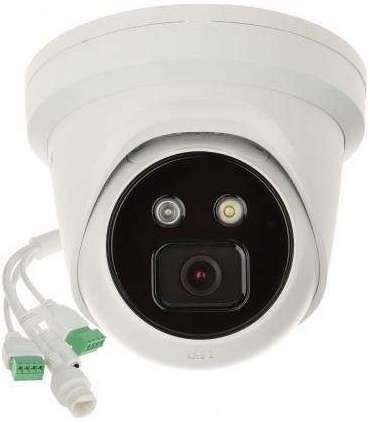

HIKVISION IP CAMERA DS-2CD2346G2-ISU/SL

Lisainfo

Kaal

730 g

Package weight

1.04 kg

Product colour

Valge

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

IP address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10,100 Mbit/s

Package width

170 mm

Package depth

170 mm

Package height

150 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

REACH
WEEE

Power over Ethernet (PoE)

Yes

International Protection (IP) code

IP67

Number of users

32 user(s)

Languages support

Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Romanian
Russian
SER
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Ukrainian
Vietnamese

Compatible memory cards

MicroSD (TransFlash)

Form factor

Dome

Password protection

Yes

Built-in microphone

Yes

Built-in loudspeaker

Yes

Maximum memory card size

512 GB

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2688 x 1520 pixels

Type

IP security camera

Diameter

13.8 cm

Strobe

Yes

Number of cameras

1

Tilt angle range

0 - 75°

Power management

DC 12 V

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Mono sound

Yes

DC output current

0.65 A

Video motion detection

Yes

Total megapixels

4 MP

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

55°

Lens viewing angle, diagonal

123°

Lens viewing angle, horizontal

103°

Pan range

0 - 360°

Progressive scan

Yes

Maximum aperture number

1.4

Angle of rotation

360°

Heartbeat

Yes

HTTPS encryption

Yes

Number of languages

33

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Bit rate

32 Kbps - 8 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Minimum illumination

0.003 lx

Observe distance (wide)

23.8 m

PoE standard

IEEE 802.3af

Highlight Compensation (HLC)

Yes

Identify distance (wide)

6 m

Recognize distance (wide)

12 m

Detect distance (wide)

60 m

Client interoperability

ONVIF (Profile S / (Profile T / (Profile G), ISAPI, SDK

Sample rate

8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

Noise filter

Y

Behavior analysis

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Audible alarm

Yes

Alarm input channels

1

Alarm output channels

1
