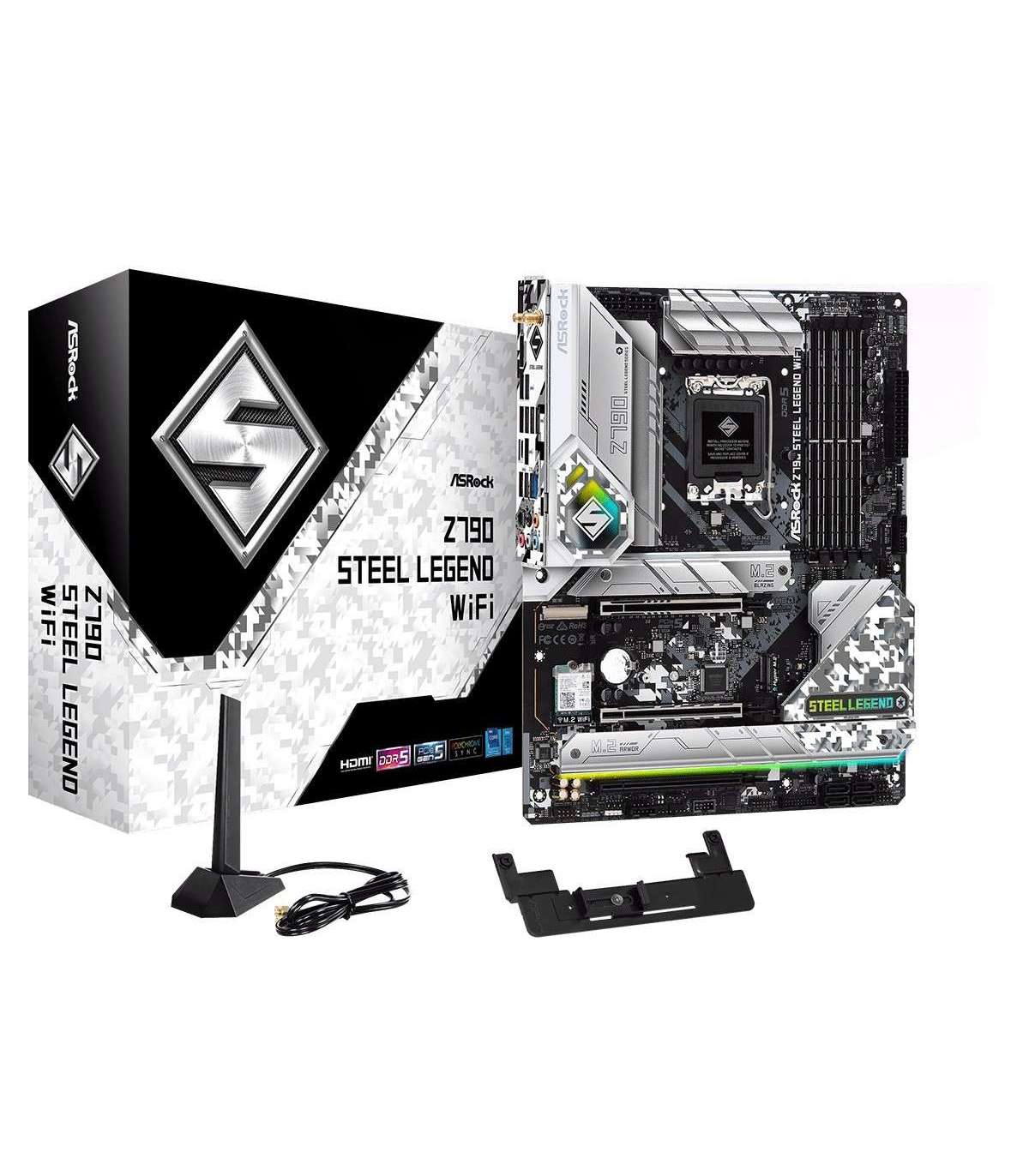

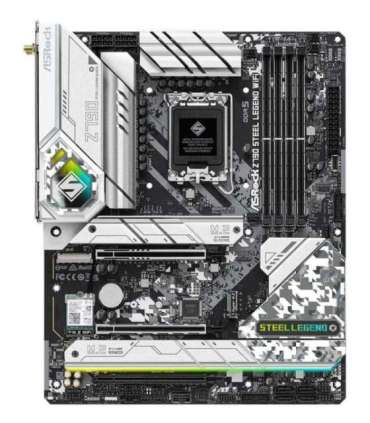

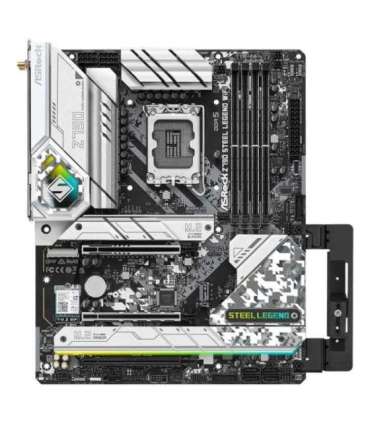

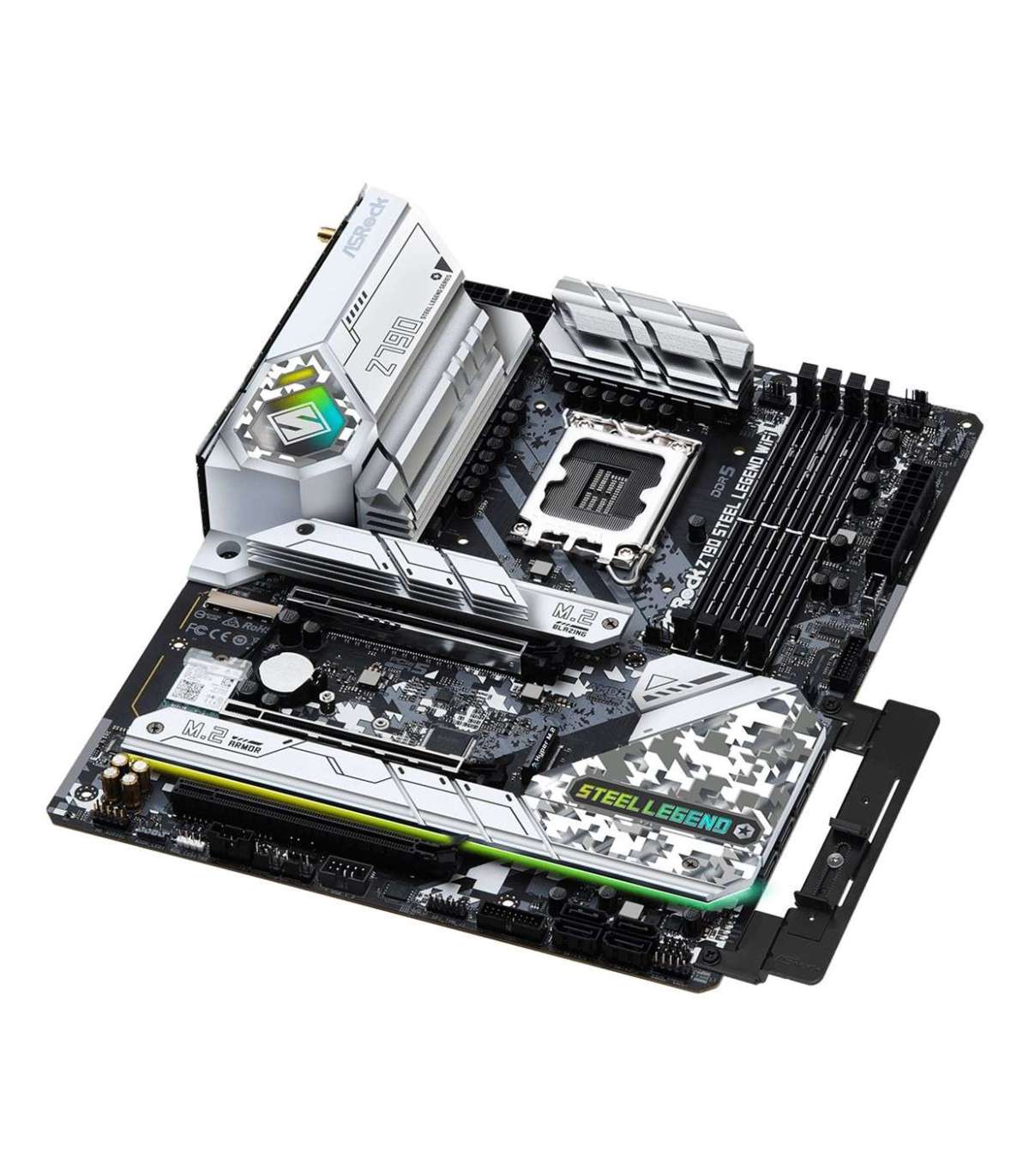

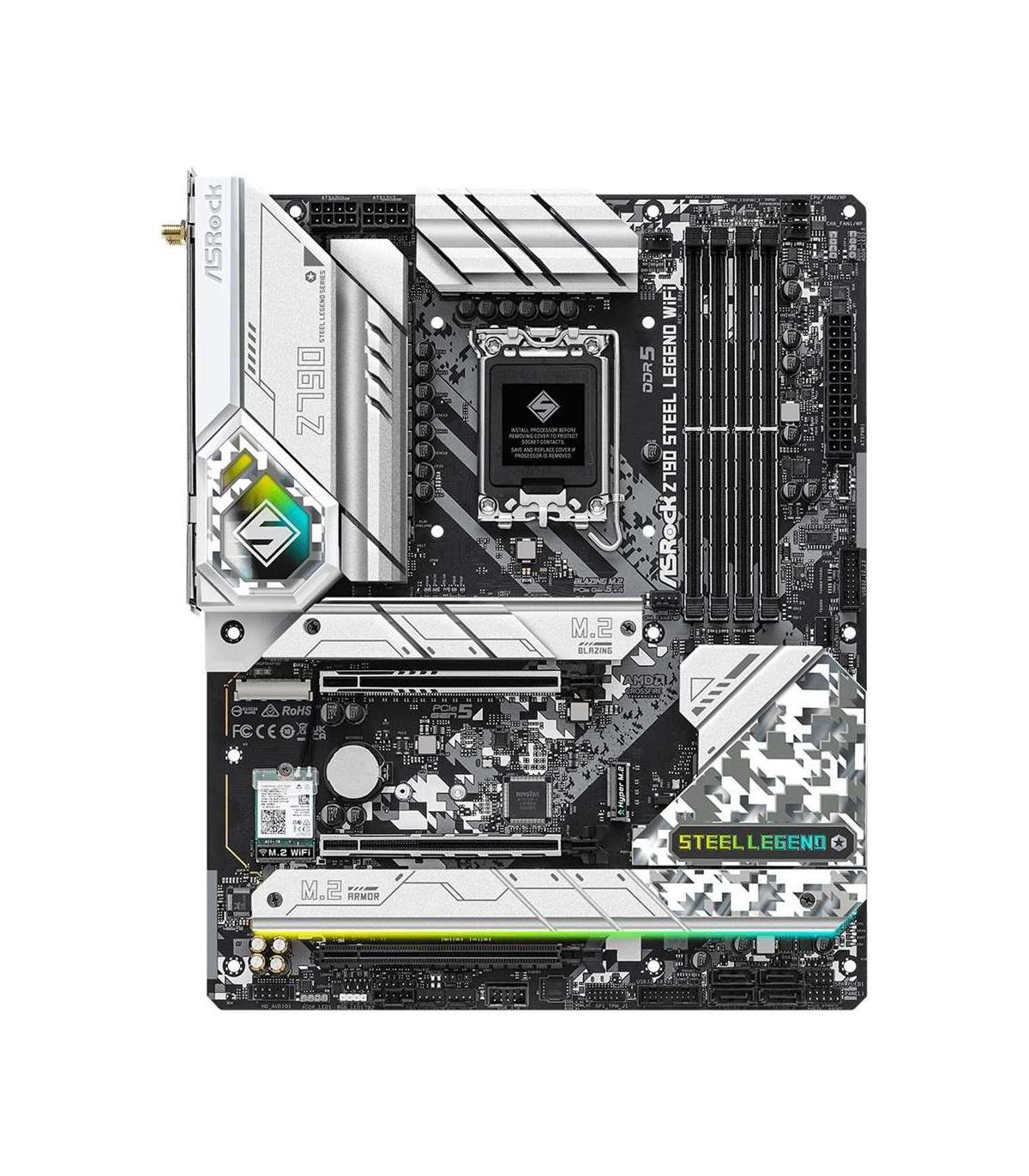

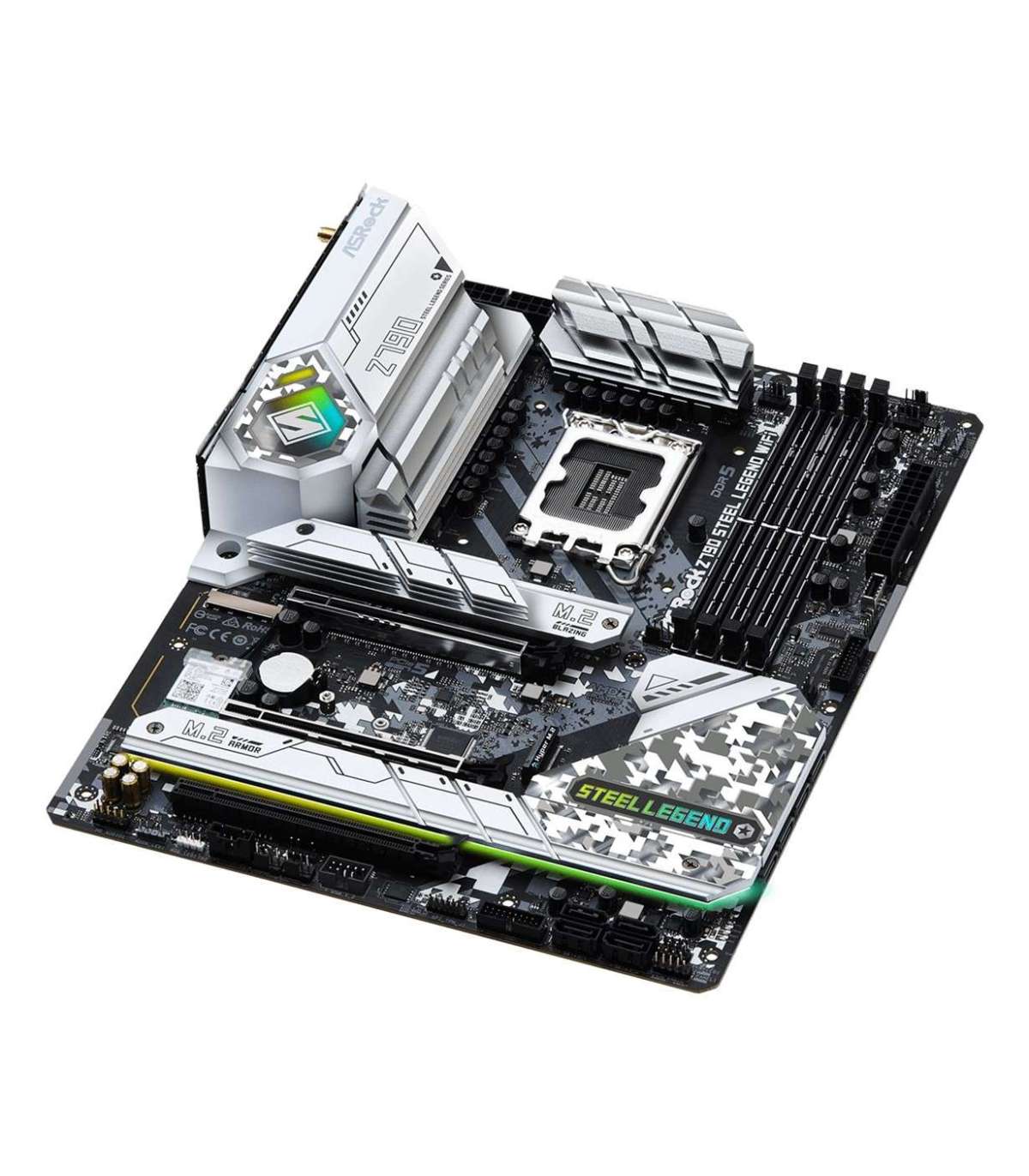

Asrock Z790 Steel Legend WiFi Intel Z790 LGA 1700 ATX

Lisainfo

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

8

Bluetooth

Jah

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

USB 2.0 connectors

2

Motherboard chipset family

Intel

Unbuffered memory

Yes

Memory slots type

DIMM

Front panel audio connector

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

RGB LED pin header

Yes

TPM connector

Yes

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Thunderbolt headers

1

Traadita võrk

Jah

Wi-Fi standardid

802.11a
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6E (802.11ax)

Etherneti kohalik võrk

Jah

Laius

305 mm

Sügavus

244 mm

Ethernet-liidese tüüp

2.5 Gigabit Ethernet

Etherneti LAN (RJ-45) pordid

1

Kõrvaklappide väljundid

1

Mikrofoni sisend

Jah

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

RAID-tugi

Jah

Protsessori pesa

LGA 1700

Ühilduvad protsessorisarjad

Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Emaplaadi vormitegur

ATX

Toetatud mälutüübid

DDR5-SDRAM

Maksimaalne sisemine mälu

128 GB

ATX toitepistik (24-kontaktiline)

Yes

Heli väljundkanalid

7.1 channels

Toetatud salvestusketaste liidesed

M.2, SATA III

RAID-tasemed

0
1
5
10

Toetatud salvestusketaste tüübid

HDD & SSD

Mälupesade arv

4

Hoiatused

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

DisplayPorti versioon

1.4

Parim Wi-Fi standard

Wi-Fi 6E (802.11ax)

Mälu kanalid

Dual-channel

Protsessori tootja

Intel

LAN kontroller

Dragon RTL8125BG

Helikiip

Realtek ALC897

Emaplaadi kiibistik

Intel Z790

SATA III ühenduste arv

8

PCI Express x16 (Gen 5.x) pesad

1

S/PDIF väljundport

Yes
