Mainboard|ASROCK|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|Z890STEELLEGENDWIFI

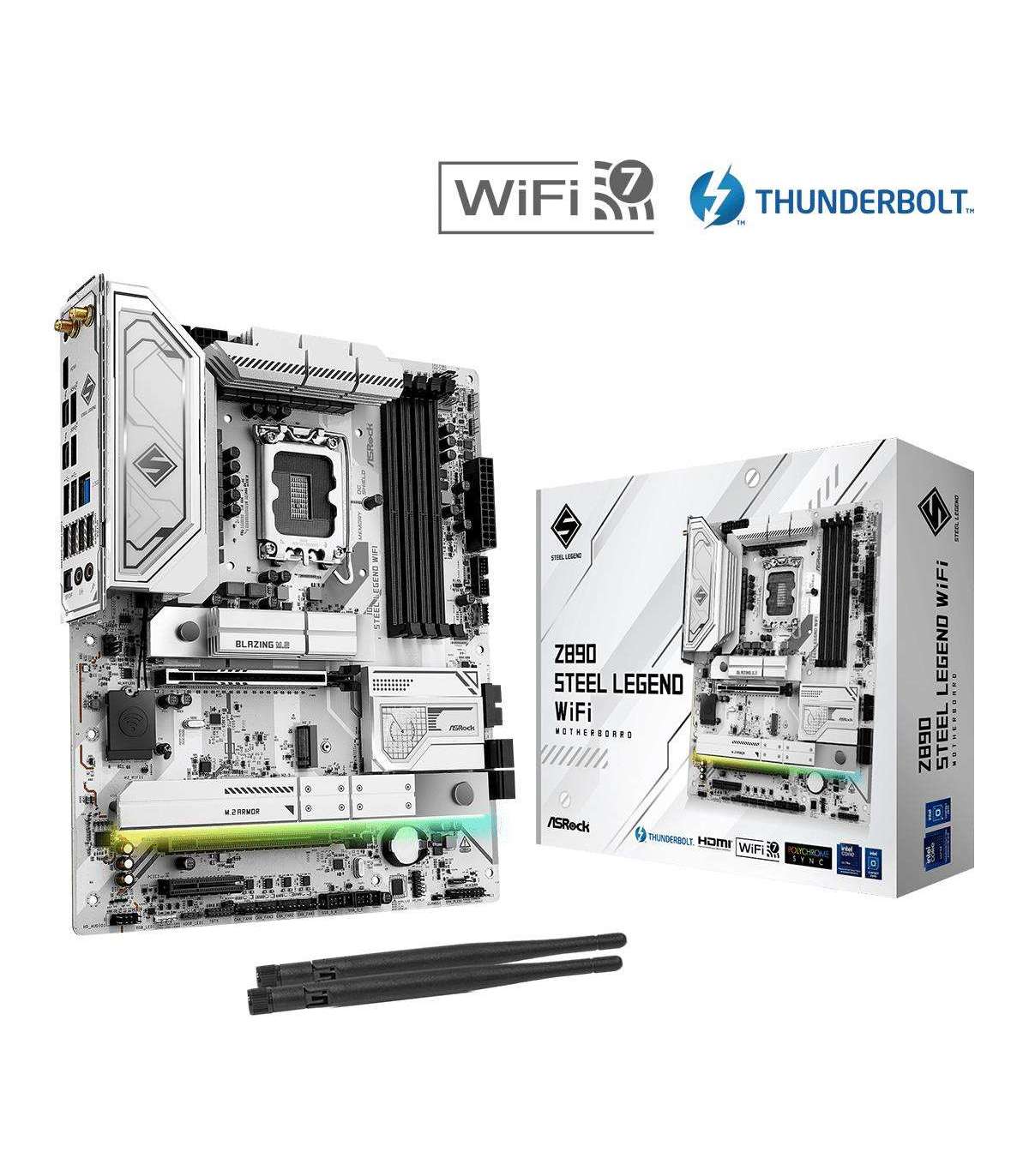

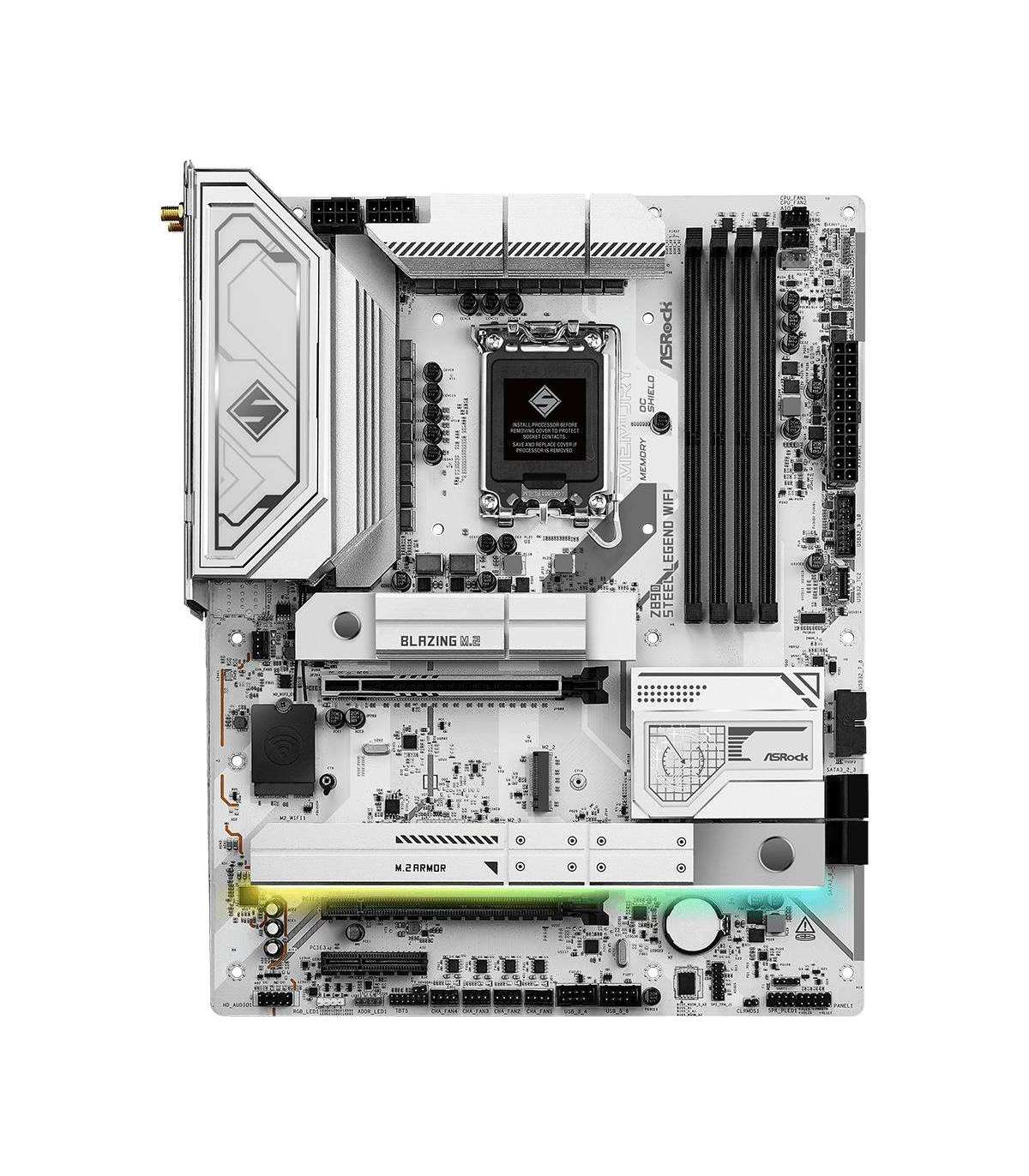

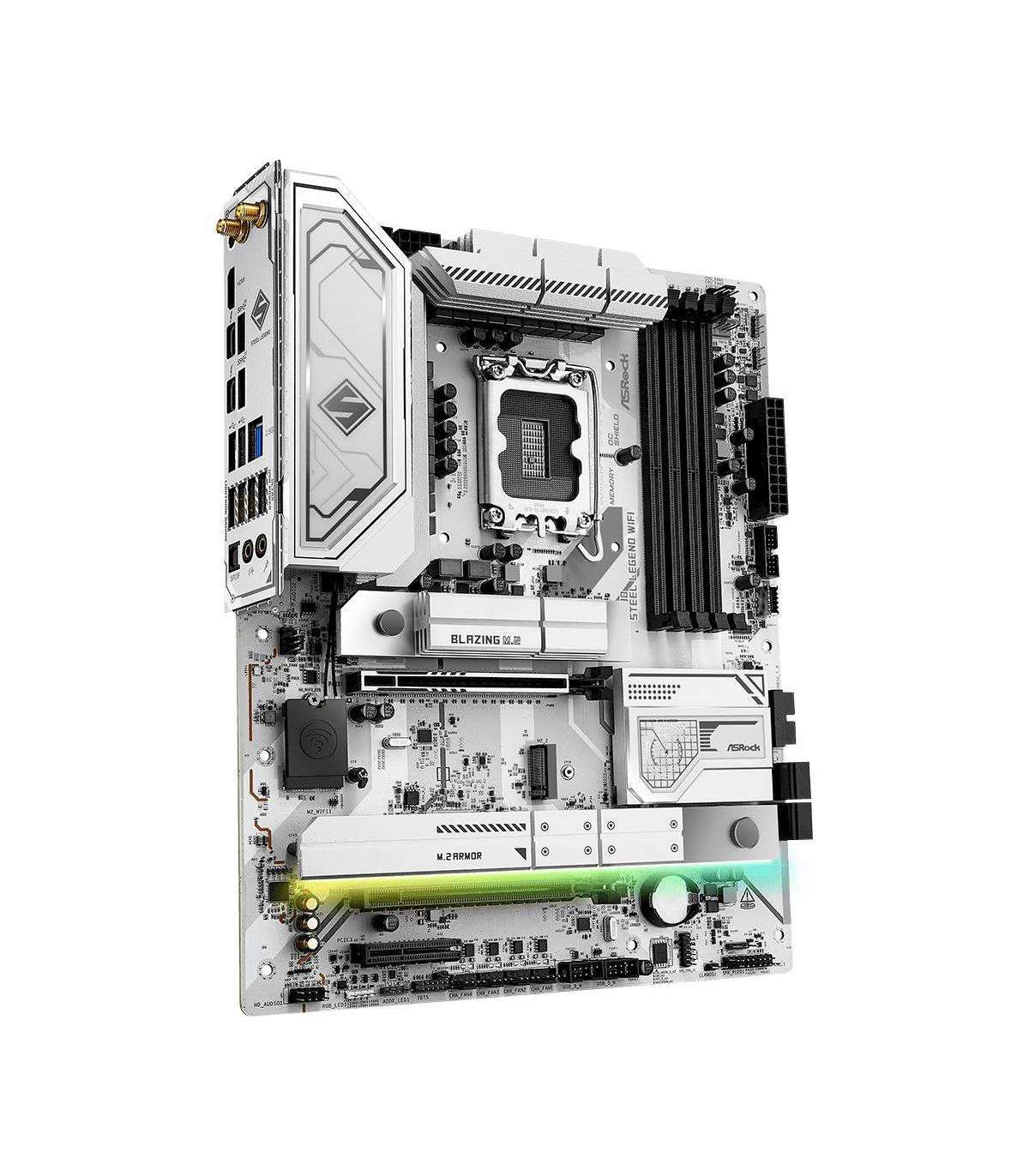

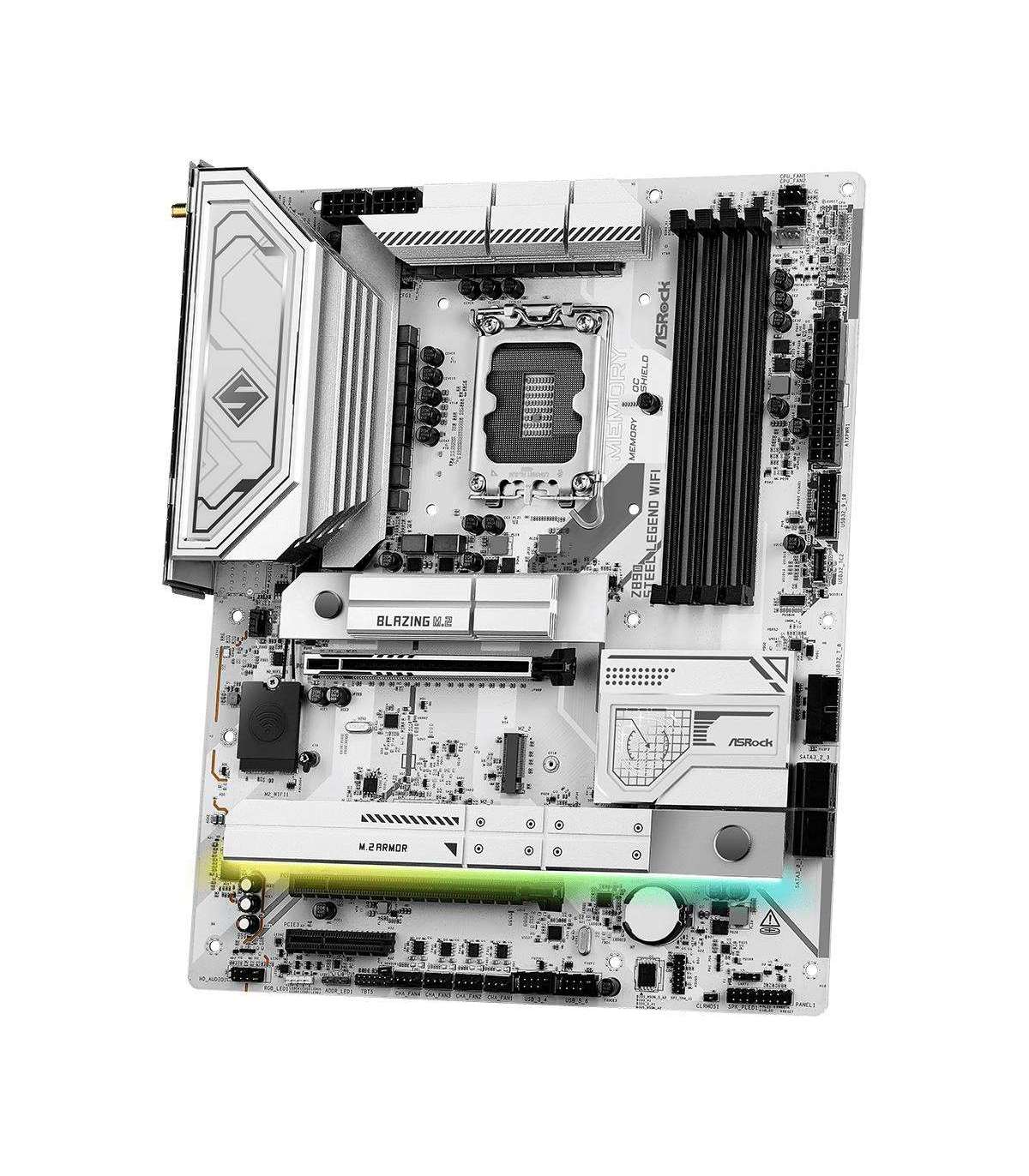

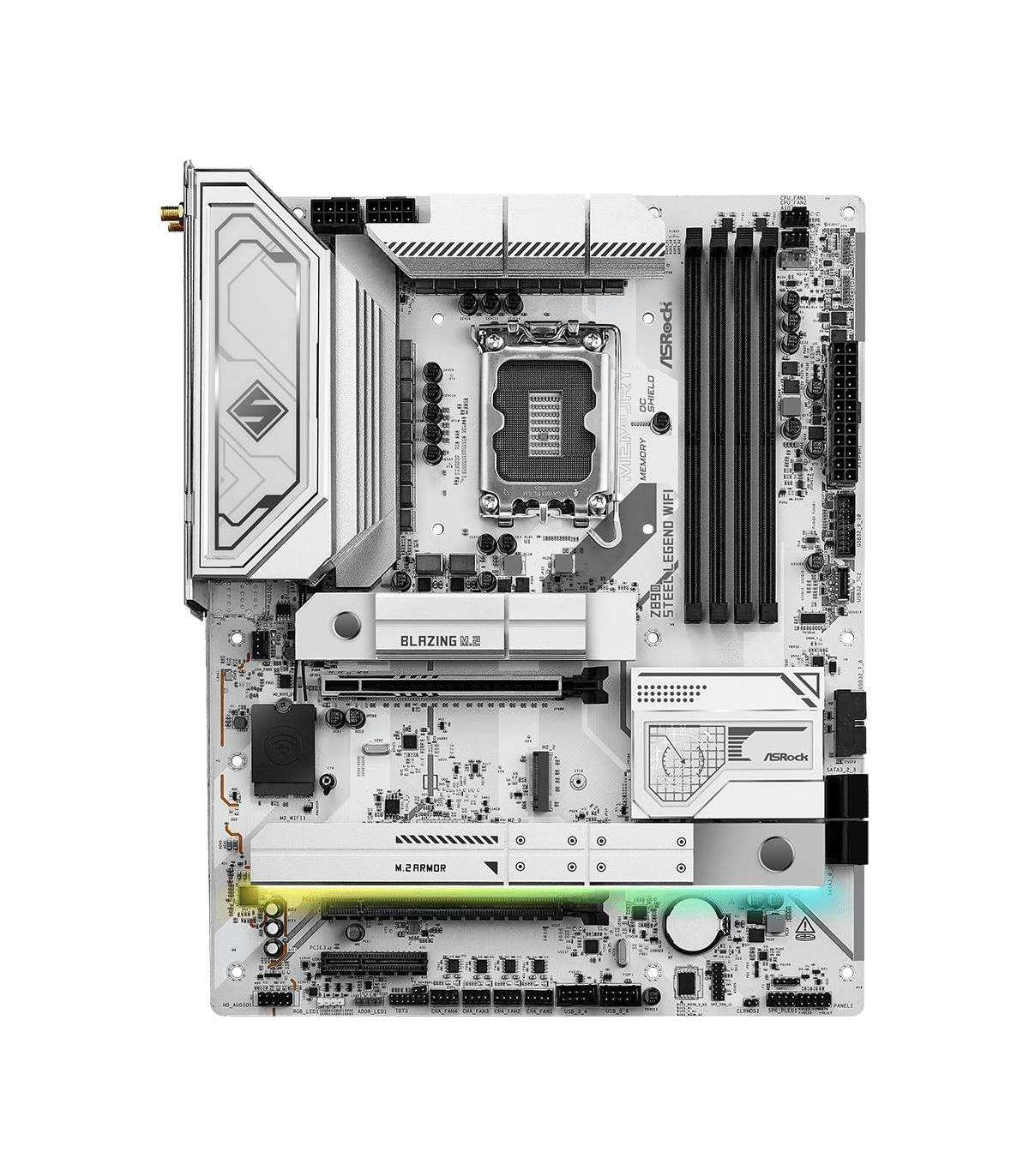

Z890 Steel Legend WiFi
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
4 x DDR5 DIMMs
Supports Dual Channel, up to 9466+ (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x4
Graphics Output Options: 1 HDMI
2 Thunderbolt™ 4/USB4 Type-C
Realtek ALC1220 7.1 CH HD Audio Codec
Nahimic Audio
4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3)

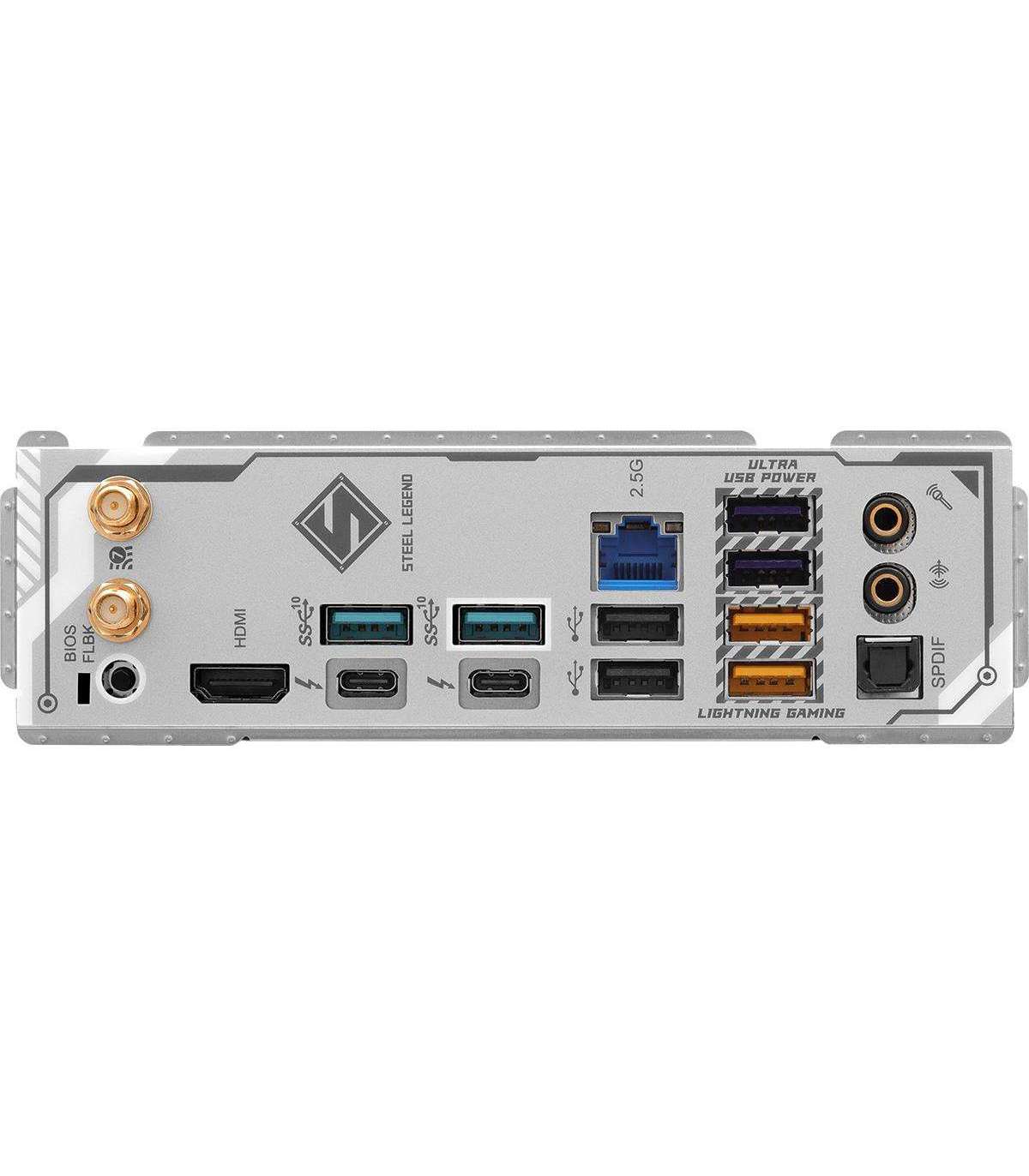

2 Thunderbolt™ 4/USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek 2.5G LAN
Intel® 802.11be Wi-Fi 7 + Bluetooth
Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
Lisainfo
- HDMI
- 1
- WiFi
- Yes
- Bluetooth
- Jah
- Socket
- LGA1851
- Frequency speed
- 9466 MHz
- Mälupesad
- 4
- USB-C
- Jah
- Vormitegur
- ATX
- Mälutüüp
- DDR5
- Kiibistik
- Intel Z890
- Ühikuid saatmiskarbis
- 5
- Ühiku arvutatud maht
- 0.009072 cubm
- Toote netokaal
- 0.7 kg
- Mudel
- Z890 Steel Legend WiFi
- Ühikuid ühe aluse kohta
- 0
- USB 3.2
- 6
Yes
- Audio-Out
- 1
- Optical S/PDIF
- 1
- RJ45
- 1
- Integrated LAN
- 2.5 Gigabit
- USB 2.0
- 2
Yes
- M.2
- 1
- PCI-Express 4.0 16x
- 1
- PCI-Express 5.0 16x
- 1
- Audio-In
- 1
- SATA
- Yes
- Integrated audio
- Realtek ALC1200-VD1
- PCI-Express 4.0 4x
- 1
- Thunderbolt
- 2
Yes
