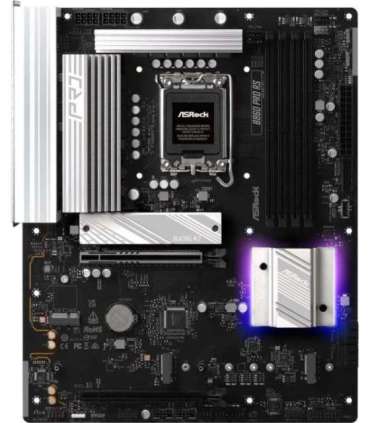

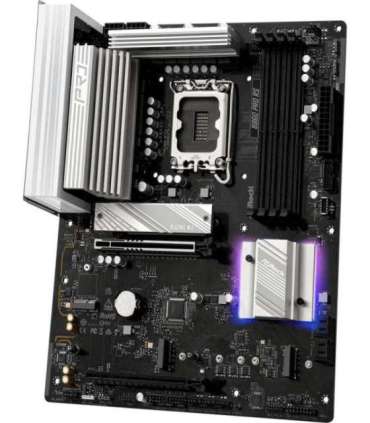

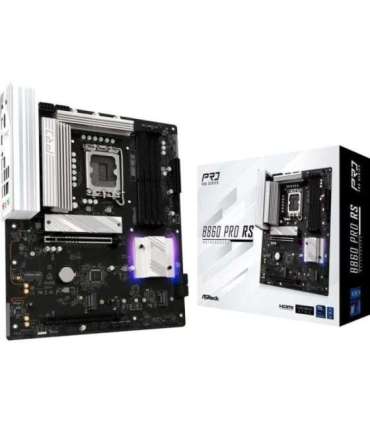

Motherboard - ASRock B860 Pro RS

Lisainfo

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

256 GB

Bluetooth

No

Motherboard chipset

Intel B860

HDMI ports quantity

1

Memory channels

Dual-channel

Operating system architecture

64-bit

Audio chip

Realtek ALC897

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

2

Processor socket

LGA1851

USB Type-C ports quantity

1

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Number of chassis fan connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Maximum number of SMP processors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Supported memory clock speed (max)

8666 MHz

Line-in

Yes

DisplayPort version

1.4

PCI Express x16 (Gen 5.x) slots

1

Number of Wi-Fi antenna ports

2

Number of USB 2.0 Type-A ports

2

MIC input

1

RAID rebuild

Yes

Supported RAID configuration

0,1,5,10
