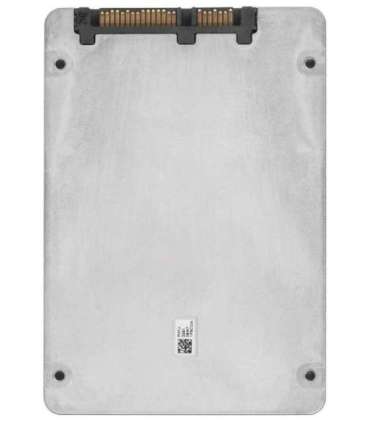

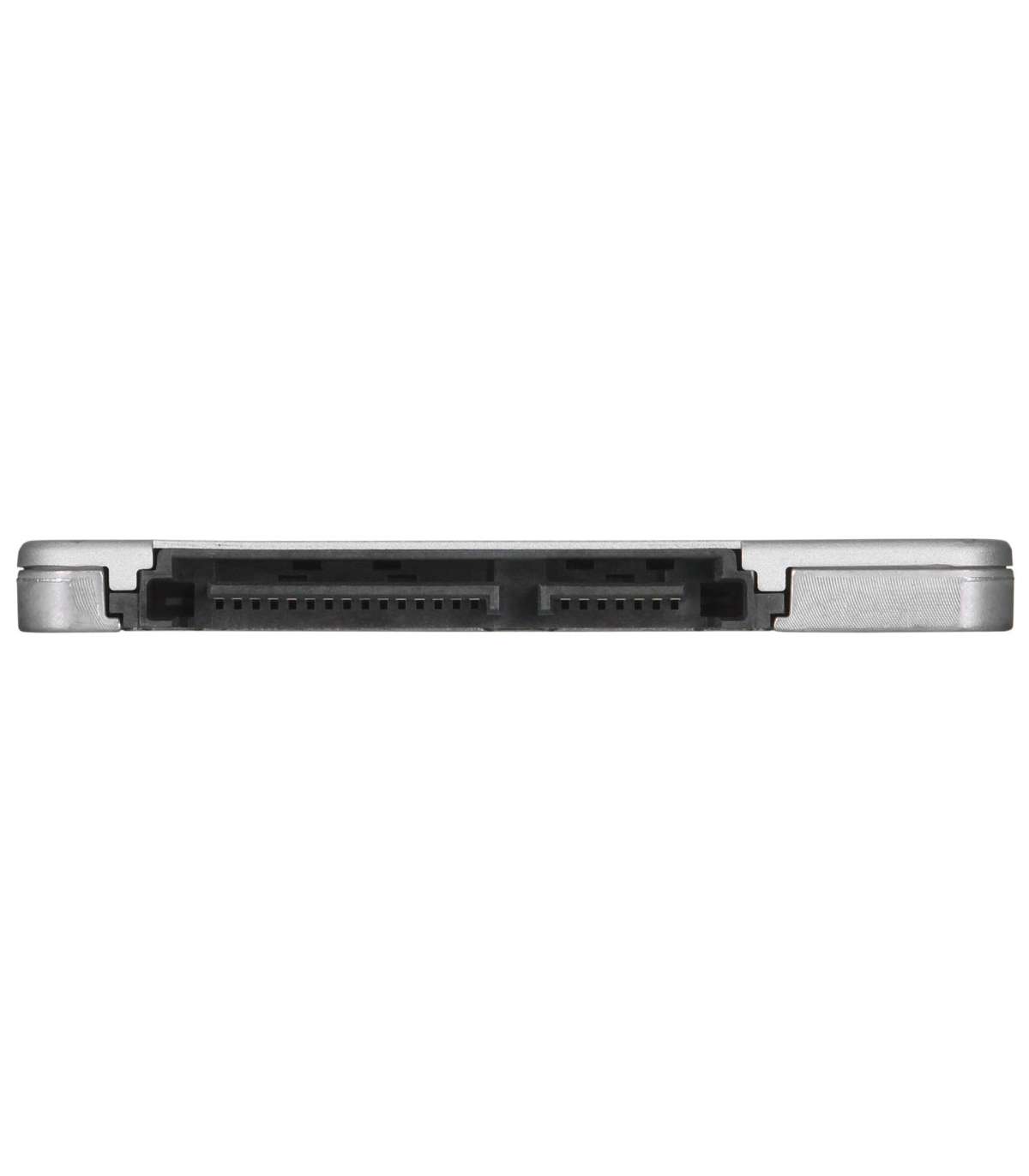

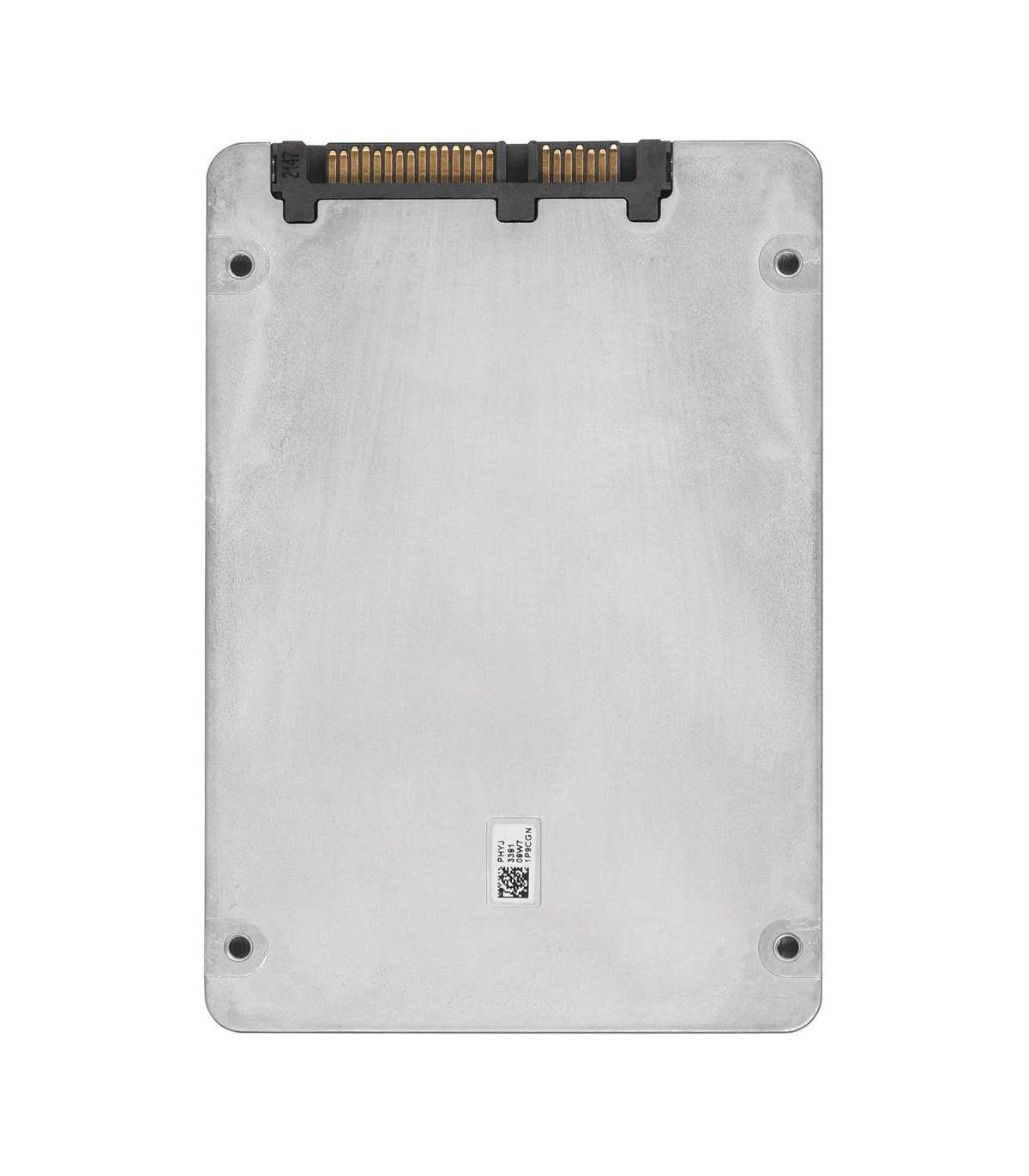

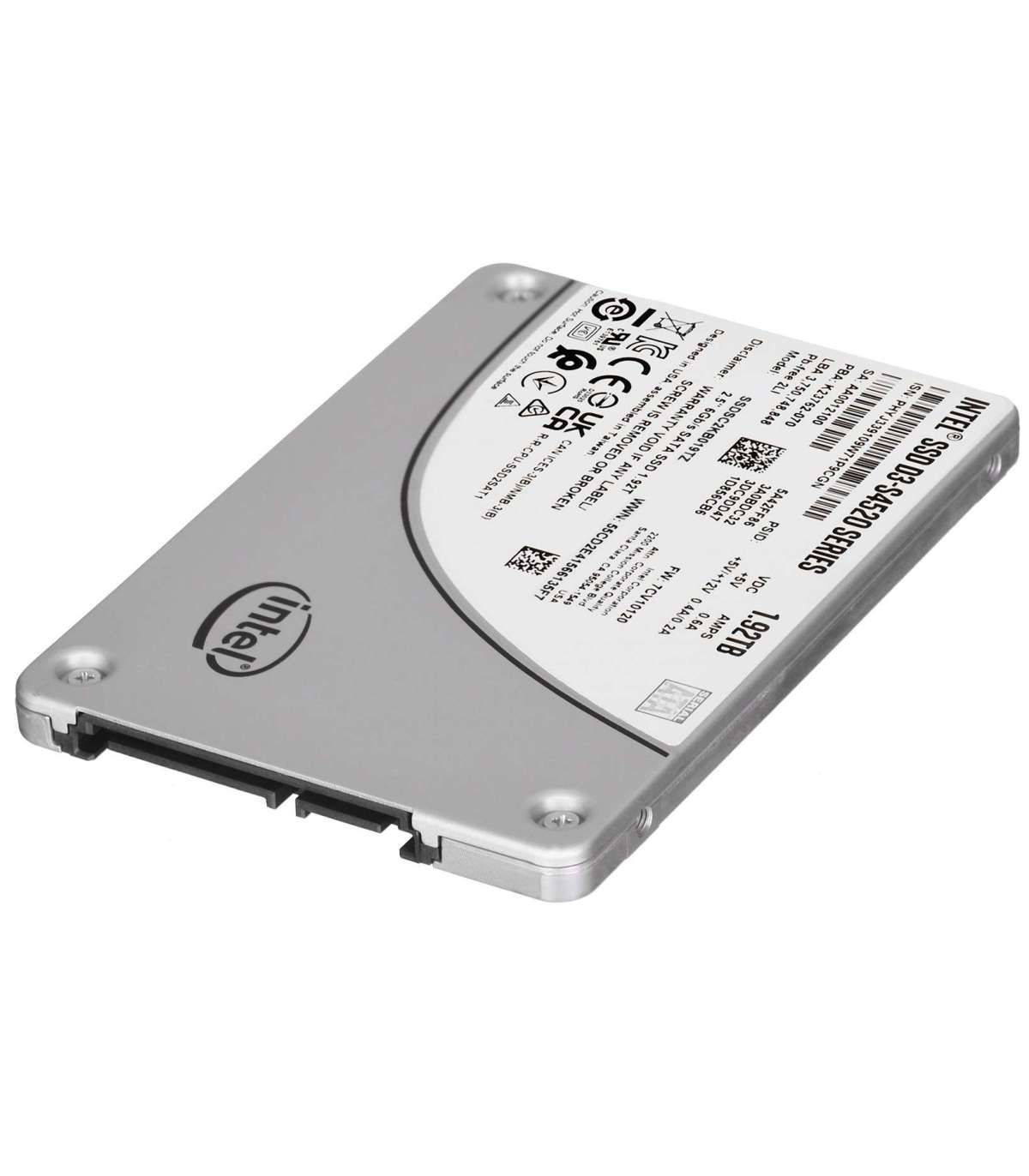

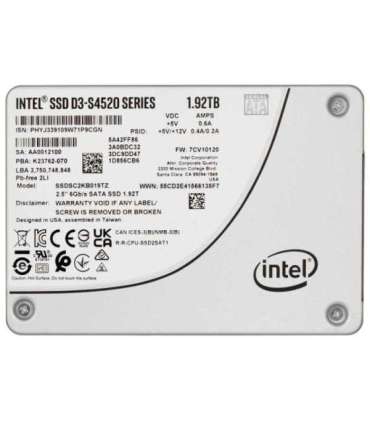

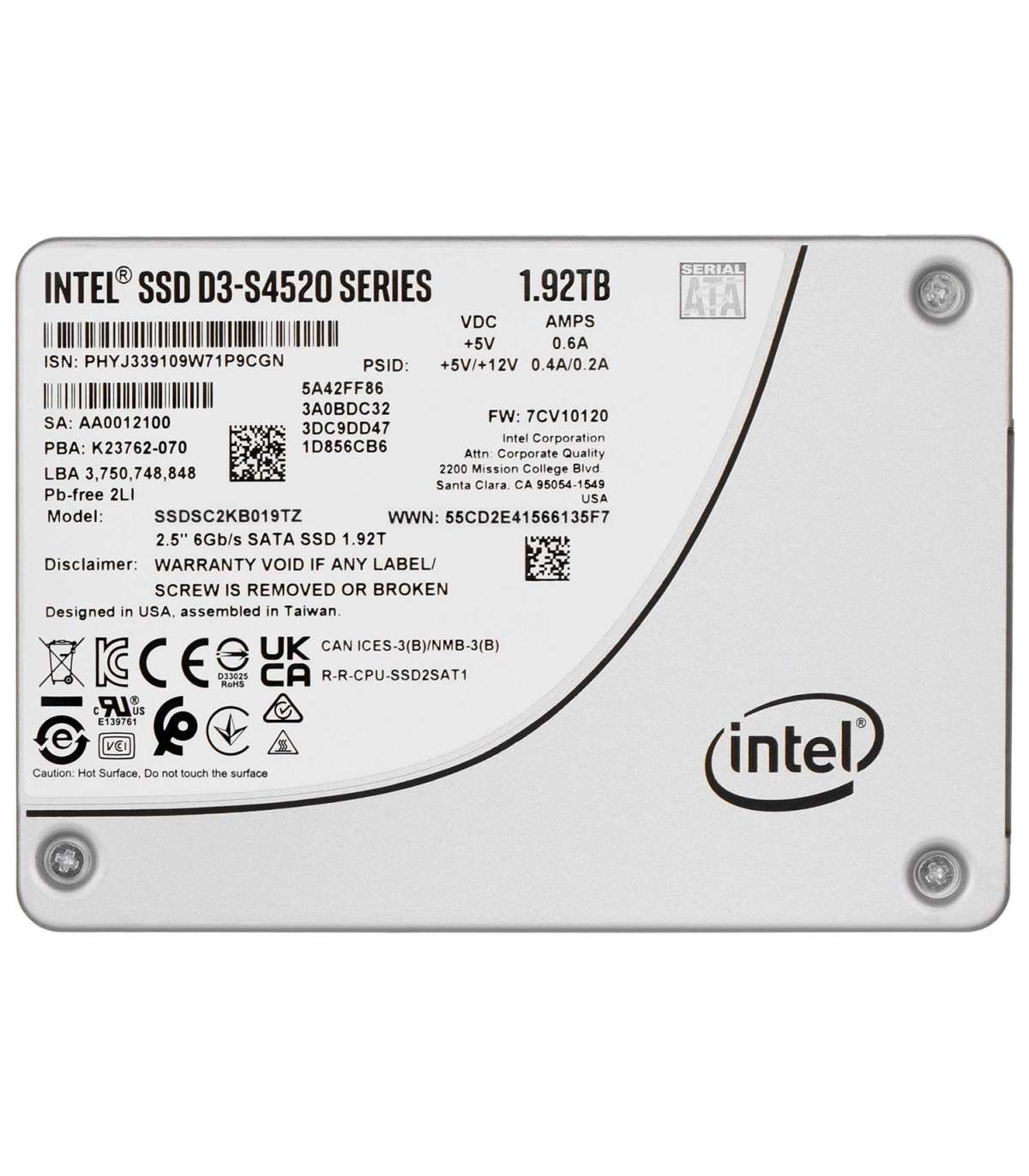

SSD Solidigm (Intel) S4520 1.92TB SATA 2.5" SSDSC2KB019TZ01 (DWPD up to 3)

Lisainfo

Security algorithms

256-bit AES

Operating temperature (T-T)

0 - 70 °C

Harmonized System (HS) code

84717070

Warnings

Do not open the appliance casing, risk of damage.
In the event of damage, do not dispose of in the normal rubbish bin, contact the relevant electronics disposal unit.
Protect from moisture and extreme temperatures.

Data transfer rate

6 Gbit/s

Component for

Server/workstation

Interface

Serial ATA

Internal memory type

SATA 3.0 6Gb/S

Mean time between failures (MTBF)

2000000 h

Memory type

TLC 3D NAND

Processor family

Intel SSD D3

SSD capacity

1.92 TB

NVMe

No

HP segment

Enterprise

SSD form factor

2.5"

Non-operating vibration

3.13 G

Non-operating shock

1000 G

Operating vibration

2.17 G

Operating shock

1000 G

Commodity Classification Automated Tracking System (CCATS)

G162706

Status

Launched

Launch date

Q3'21

Export Control Classification Number (ECCN)

5A992C

Maximum operating temperature

70 °C

Write speed

510 MB/s

Hardware encryption

Yes

Read speed

550 MB/s

Random read (4KB)

91000 IOPS

Random write (4KB)

38000 IOPS

Power consumption (idle)

1.1 W

Power consumption (write)

3.1 W

Power consumption (read)

3.1 W

End-to-End Data Protection

Yes

SSD shock

1000G,0.5ms

SSD temperature monitoring

Yes

Product series

S4520

DWPD

3

Random read (100% span)

91000 IOPS

Random write (100% span)

38000 IOPS

Enhanced Power Loss Data Protection technology

Yes

SSD endurance rating

8.8 PBW

Sequential reading

550 MB/s

Sequential writing speed

510 MB/s

Power consumption (active)

3.1 W
