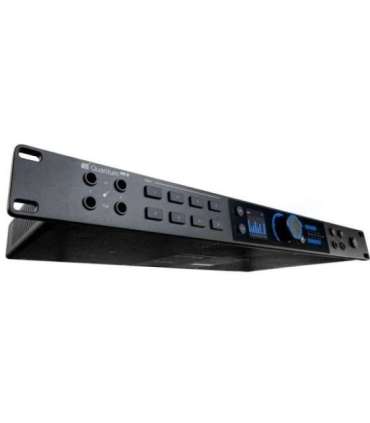

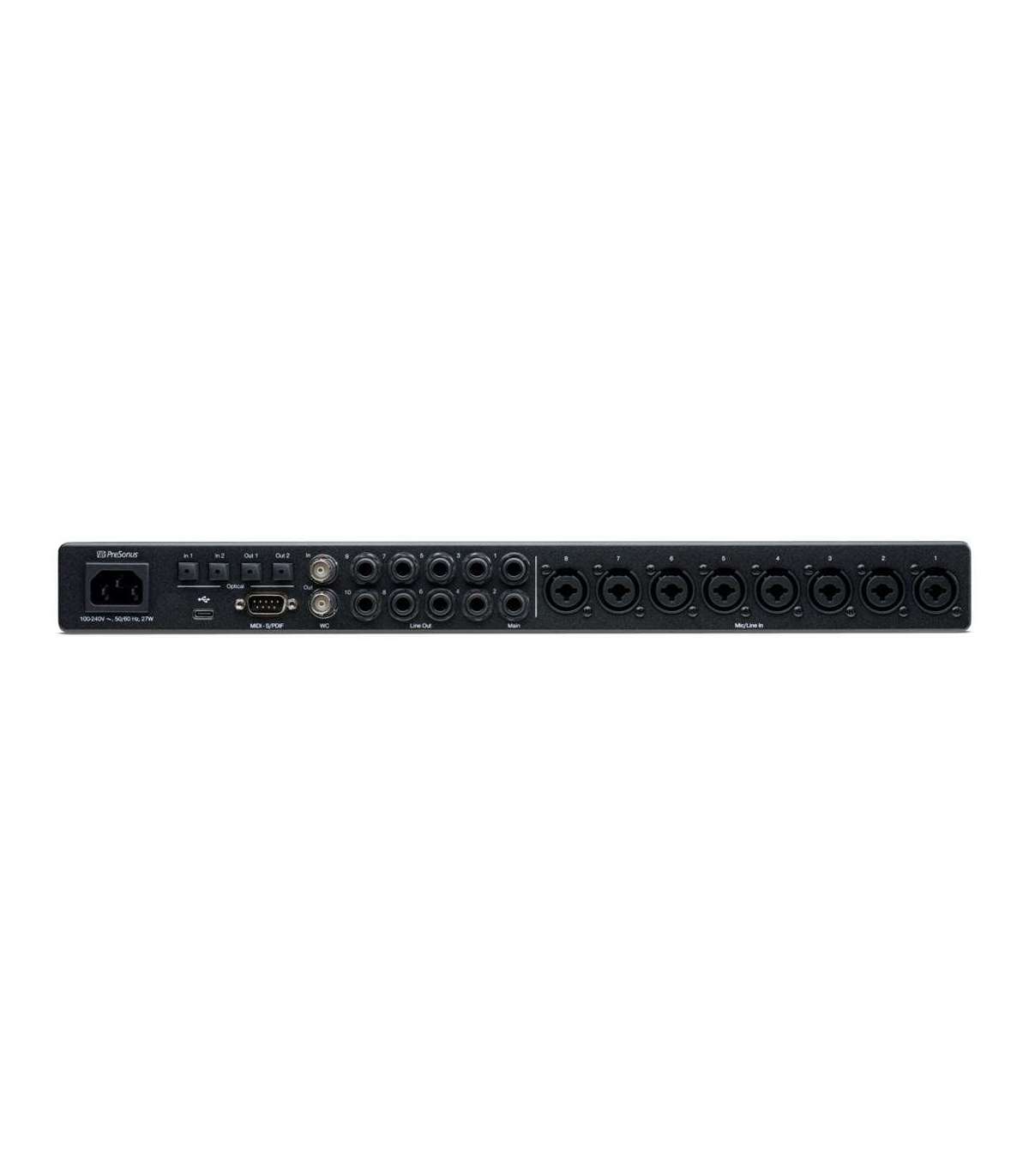

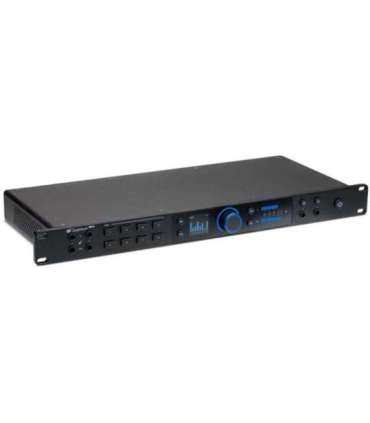

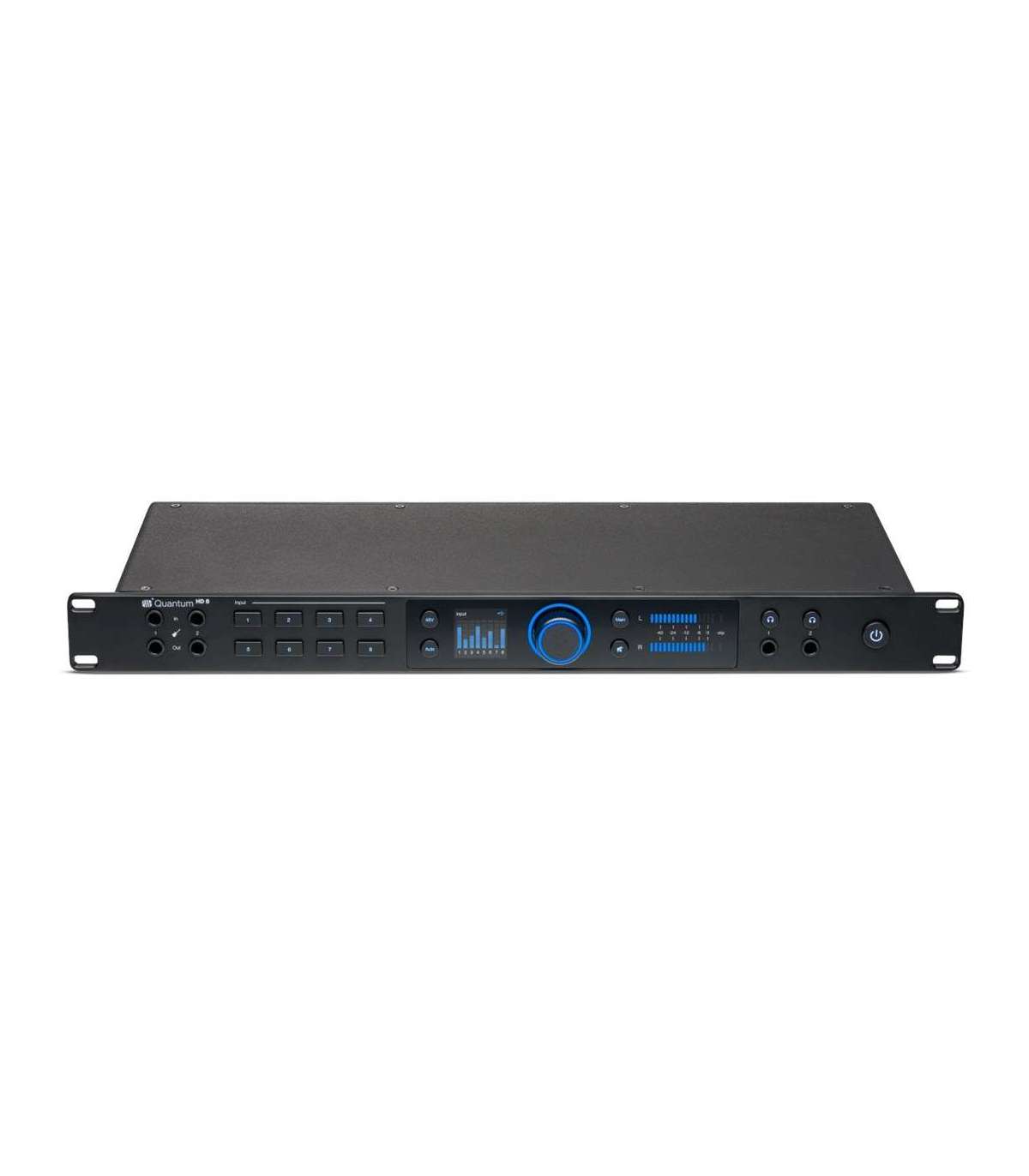

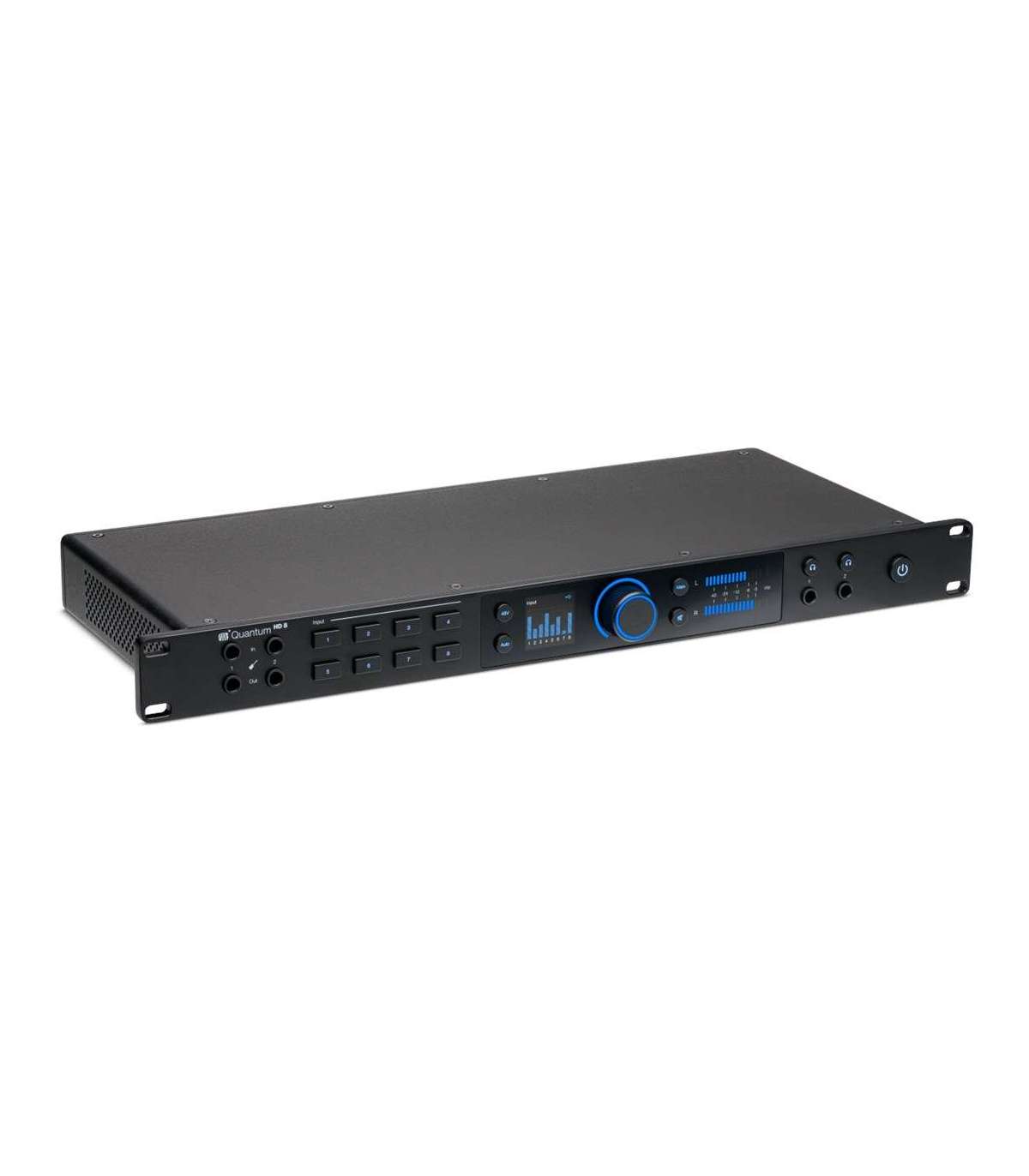

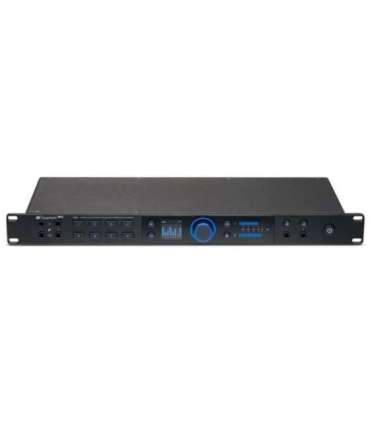

PreSonus Quantum HD 8 - USB-C audio interface

Lisainfo

Product type

Audio interface

Depth

219 mm

Kaal

2.86 kg

Kõrgus

44 mm

Laius

483 mm

Product colour

Must

Windows operating systems supported

Windows 10 or higher

Mac operating systems supported

Mac OS 10.14 or later

Housing material

Metal

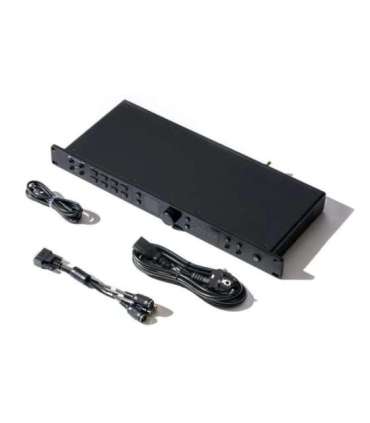

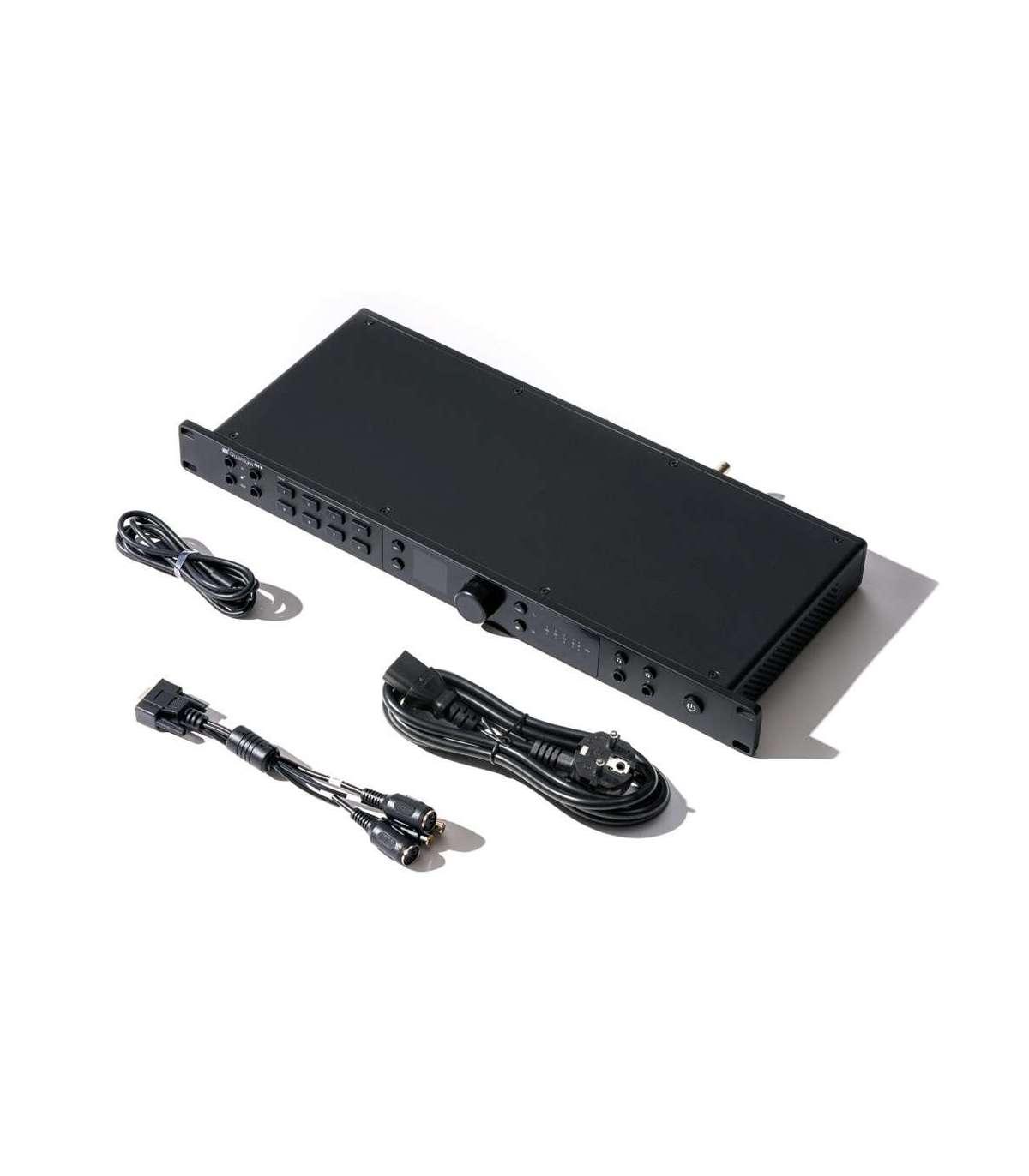

Package contents

DB-9 cable
Intrerface x 1
Power cable
USB-C to C cable

AC input voltage

100 - 240 V

USB ports quantity

1

Power source

AC

Input frequency

50 - 60 Hz

Headphone frequency

20 - 20000 Hz

Sample rate

44.1 / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz

Dynamic range

116 dB

Headphone outputs 1/4" (6.35 mm)

2

Instrumental input TS 1/4" (6.35 mm)

2

XLR combo inputs

8

Line outputs TRS 1/4" (6.35 mm)

8

Balanced line outputs TRS 1/4" (6.35 mm)

2

Microphone preamp gain

75 dB

Line-in Total Harmonic Distortion (THD)

0,002%

Microphone preamp input level (max)

18 dBu

Microphone preamp input impedance

1600 Ω

48V phantom power

Yes

A/D dynamic range

124 dB

Audio A/D Converter (ADC)

32-bit/192kHz

ADAT input

2

ADAT out

2

Output TS 1/4" (6.35 mm)

2

S/PDIF input

1

Word Clock output

Yes

Word Clock input

Yes
