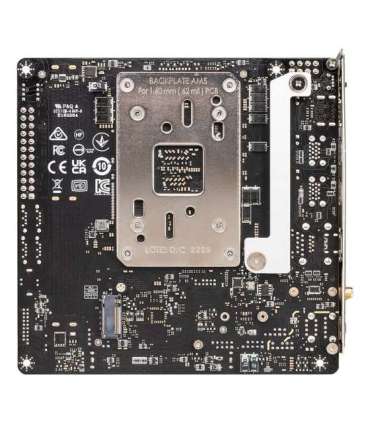

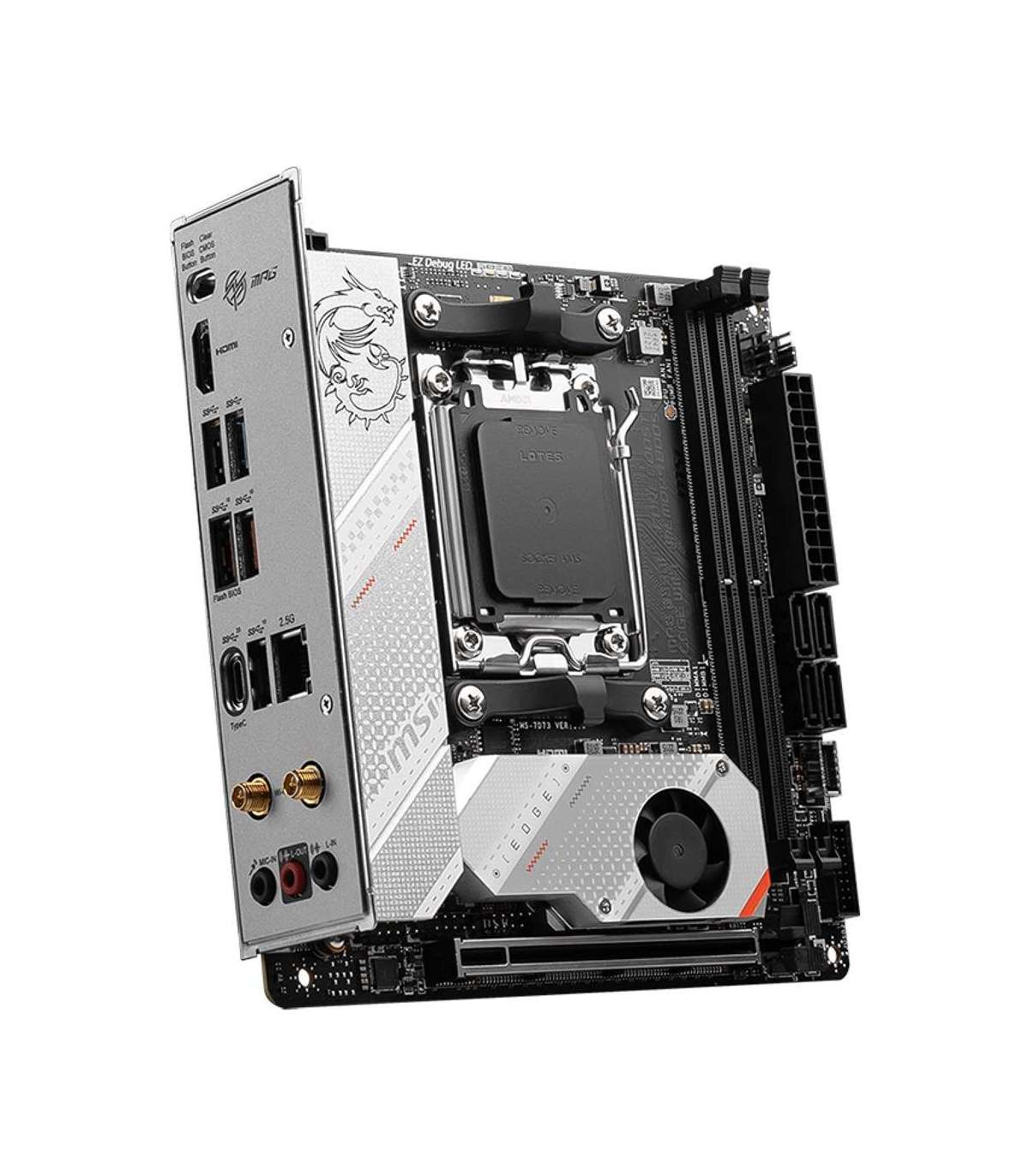

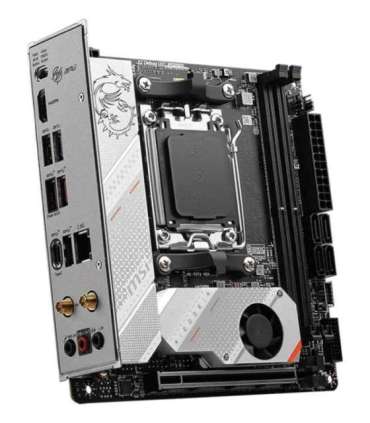

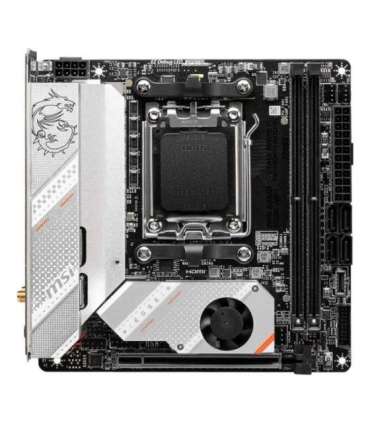

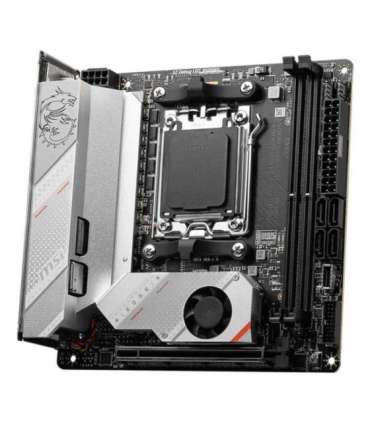

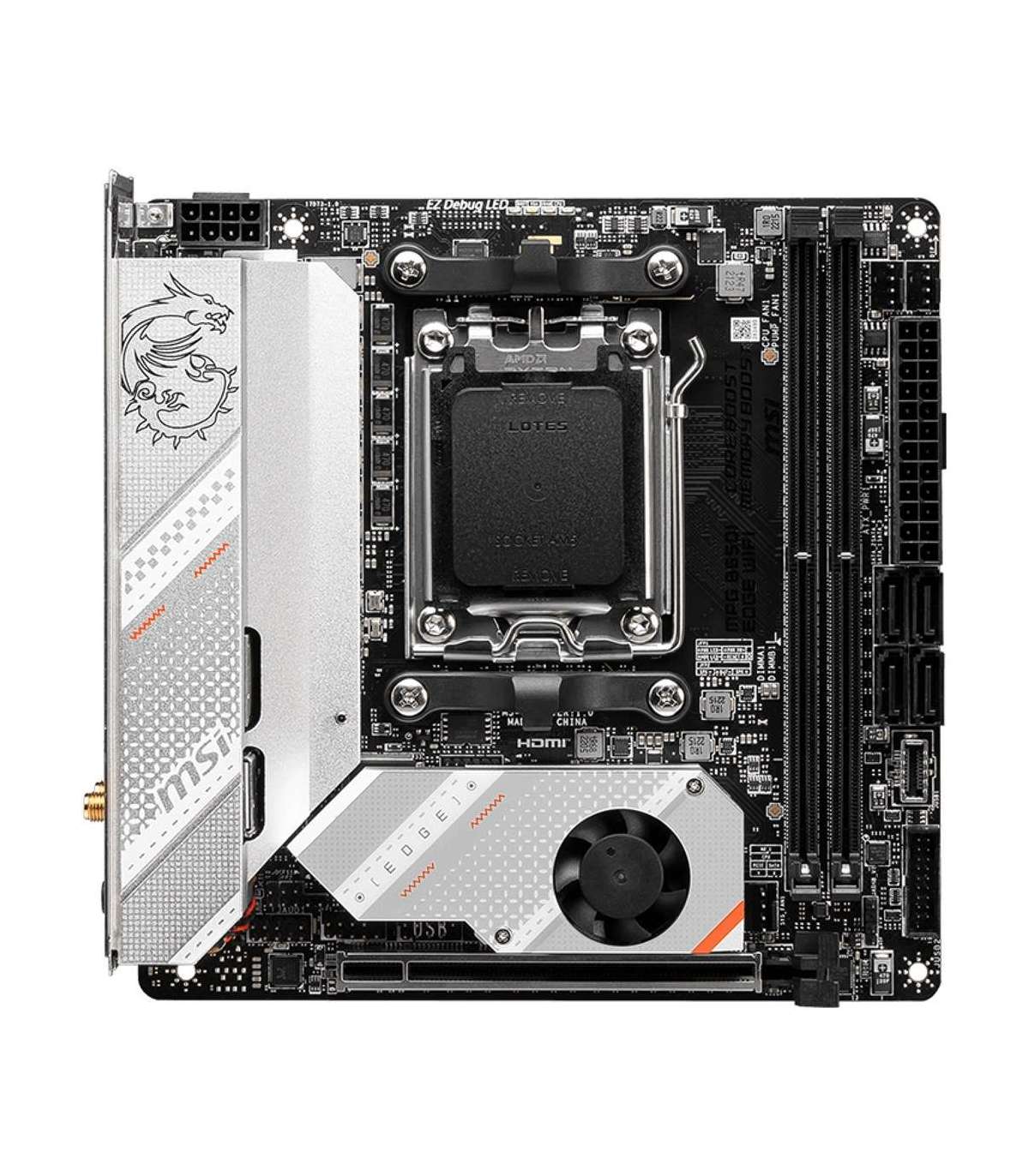

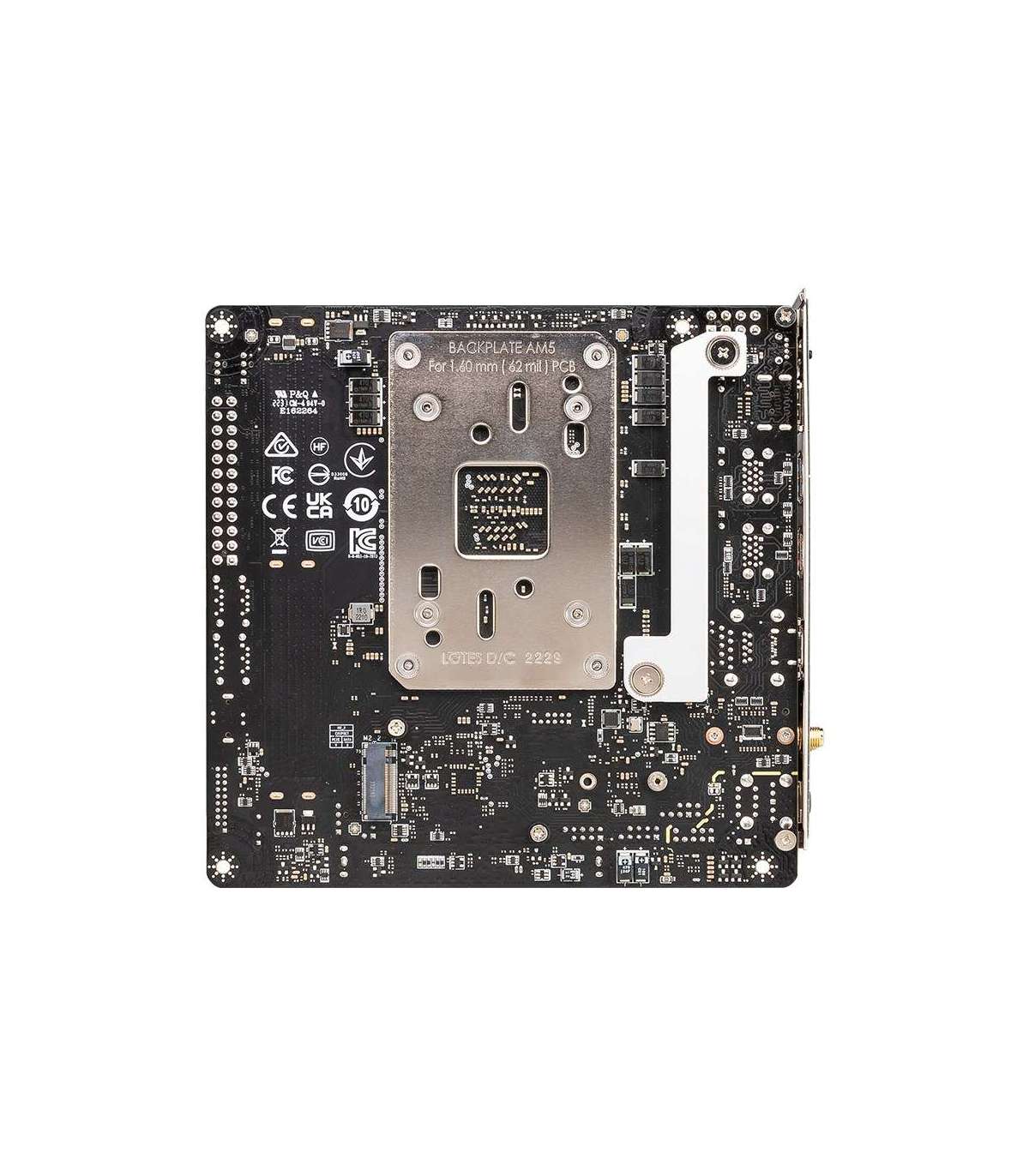

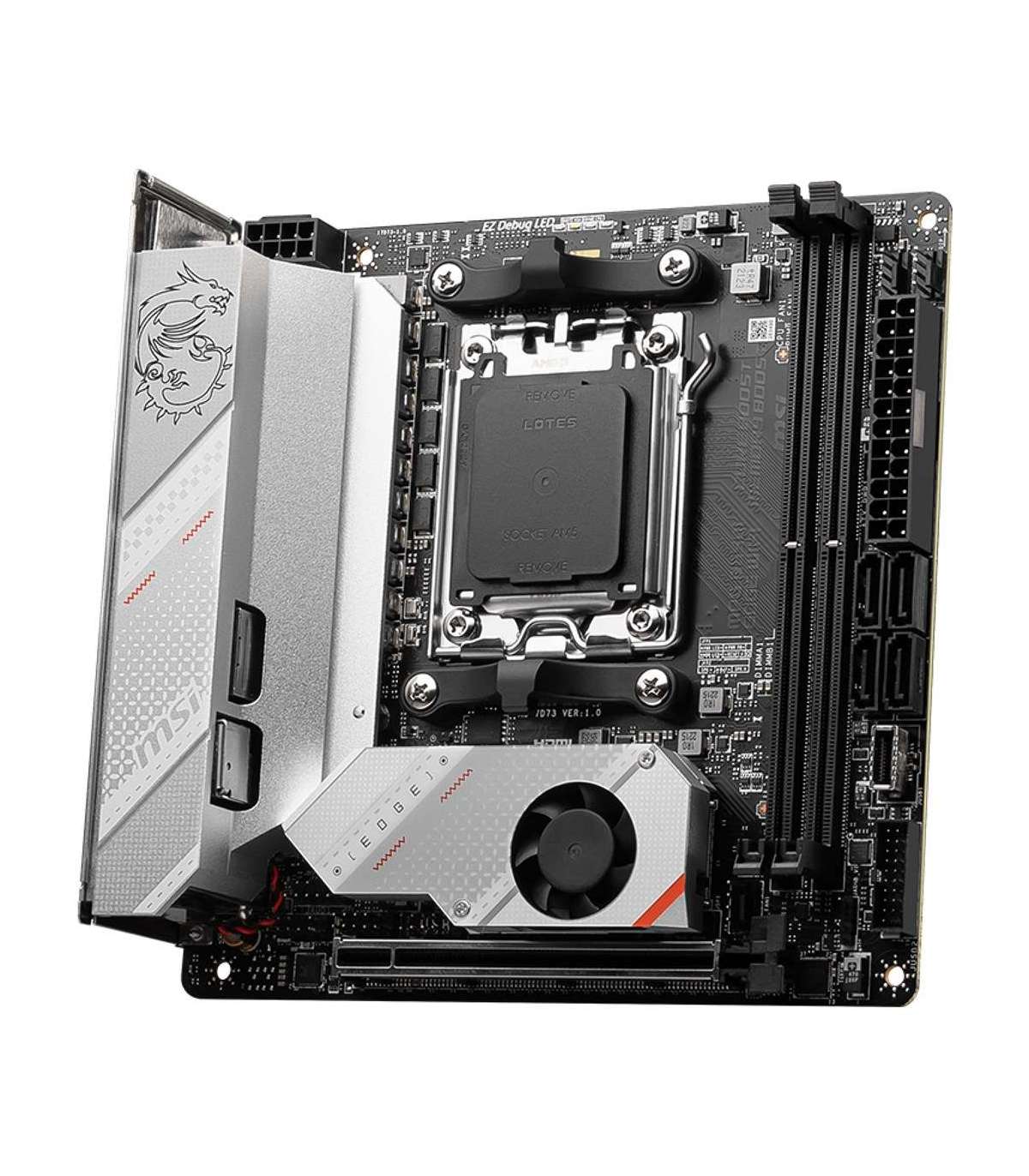

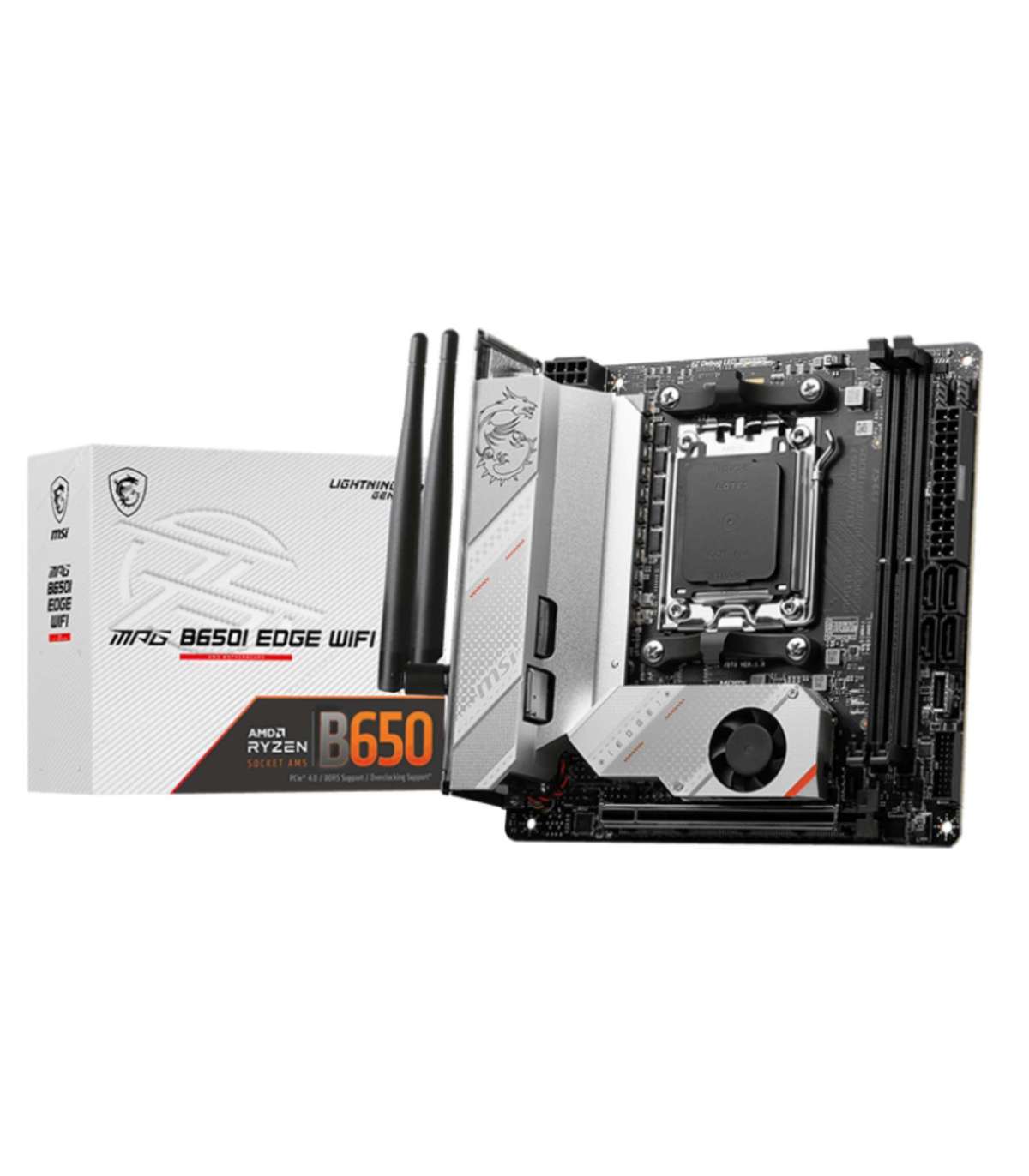

MSI MPG B650I EDGE WIFI motherboard AMD B650 Socket AM5 mini ATX

Lisainfo

Depth

170 mm

Laius

170 mm

Product colour

Aluminium
Must

Ethernet LAN

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

64 GB

Bluetooth version

5.2

Bluetooth

Yes

Motherboard chipset

AMD B650

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Audio chip

Realtek ALC4080

USB 3.2 Gen 2x2 Type-C ports quantity

1

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series

Motherboard form factor

mini ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000
6200
6400

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125B

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported storage drive interfaces

M.2, SATA

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

PC health monitoring

Fan

Number of SATA III connectors

4

Chassis intrusion connector

Yes

RAID levels

0
1
10

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

Front panel connector

Yes

RAID support

Yes

Line-in

Yes
