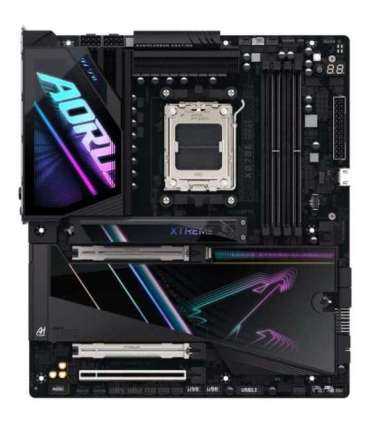

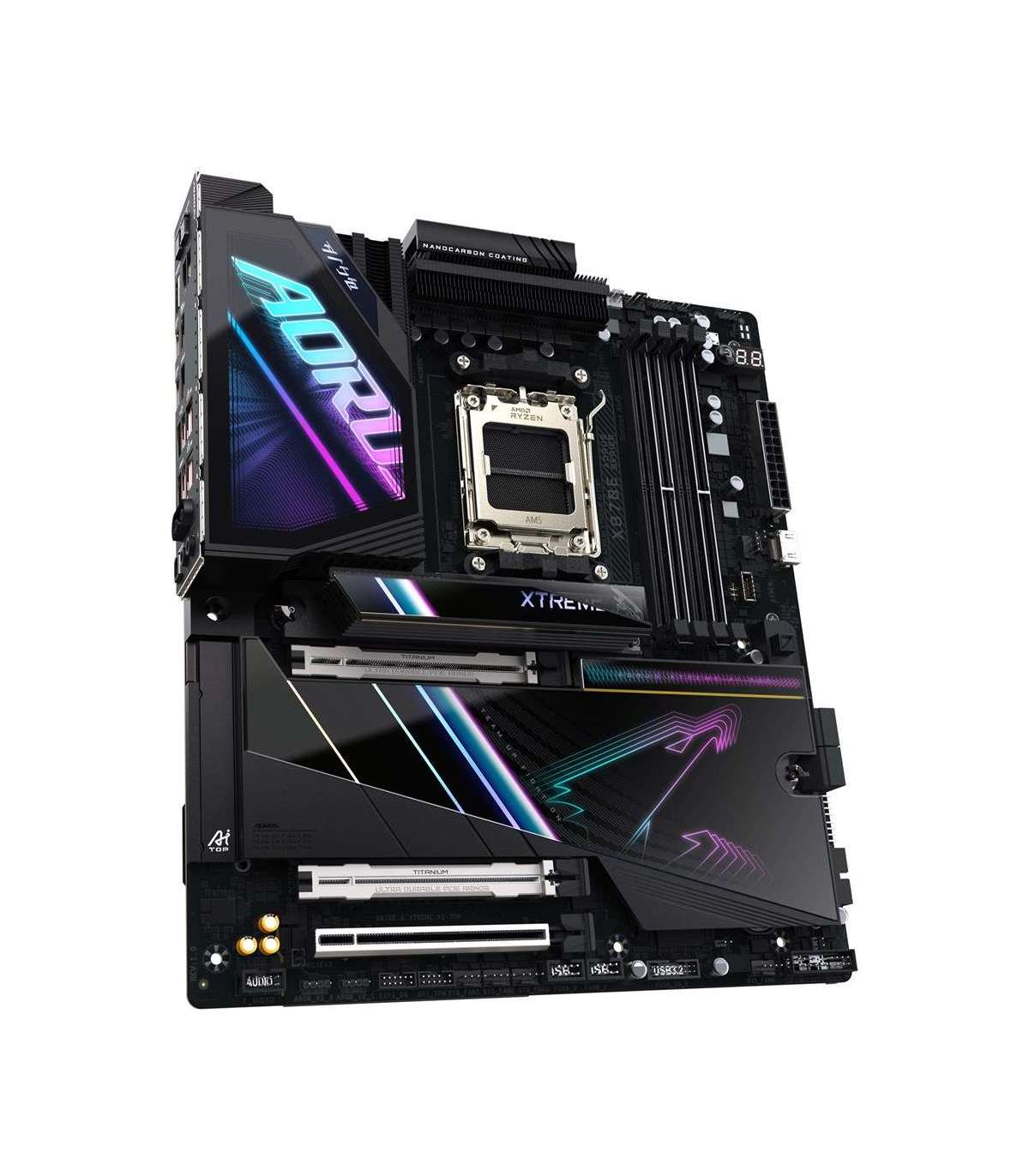

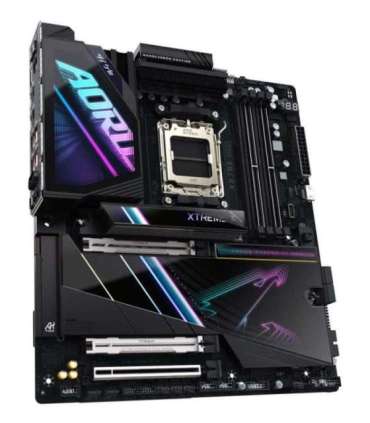

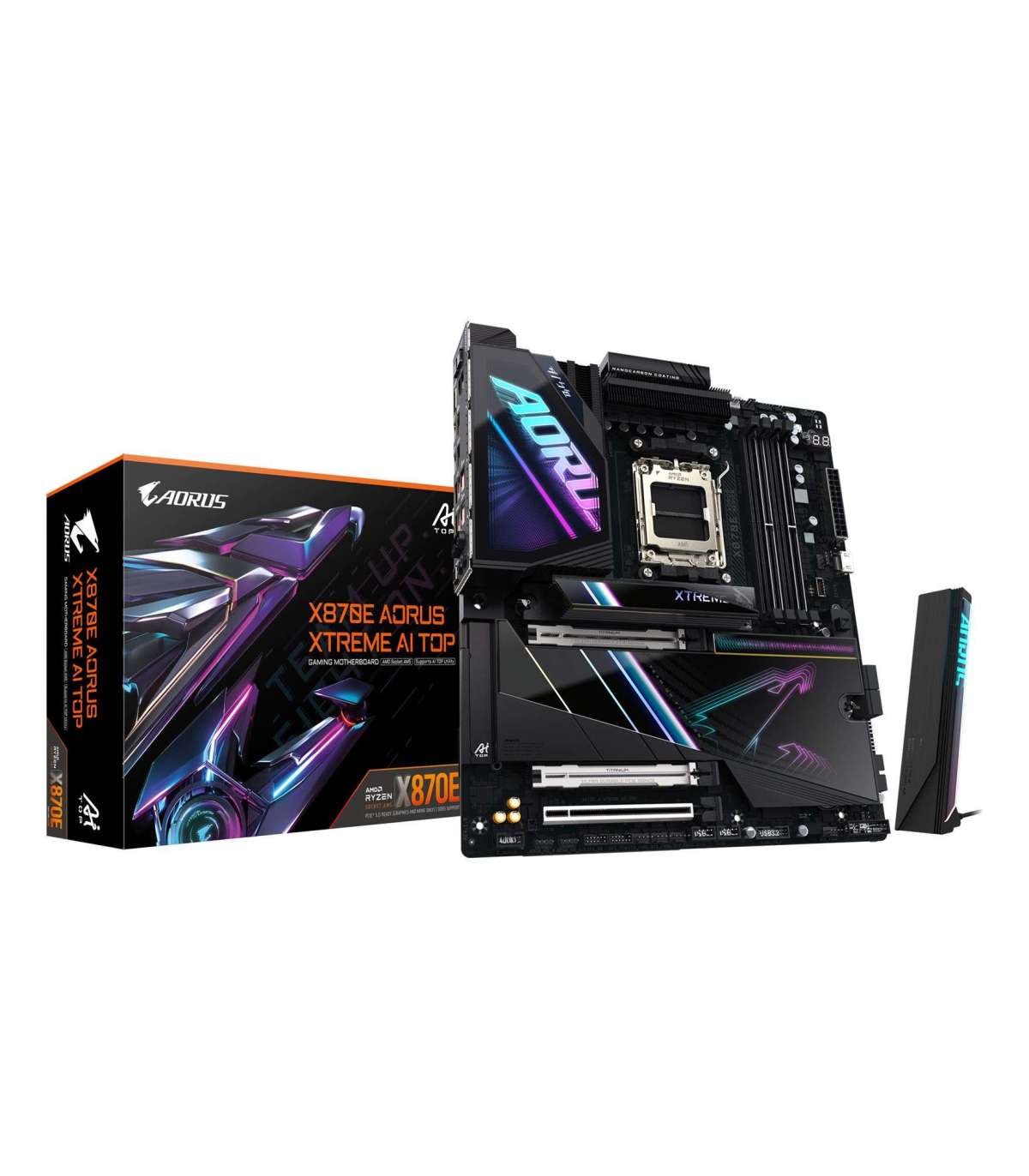

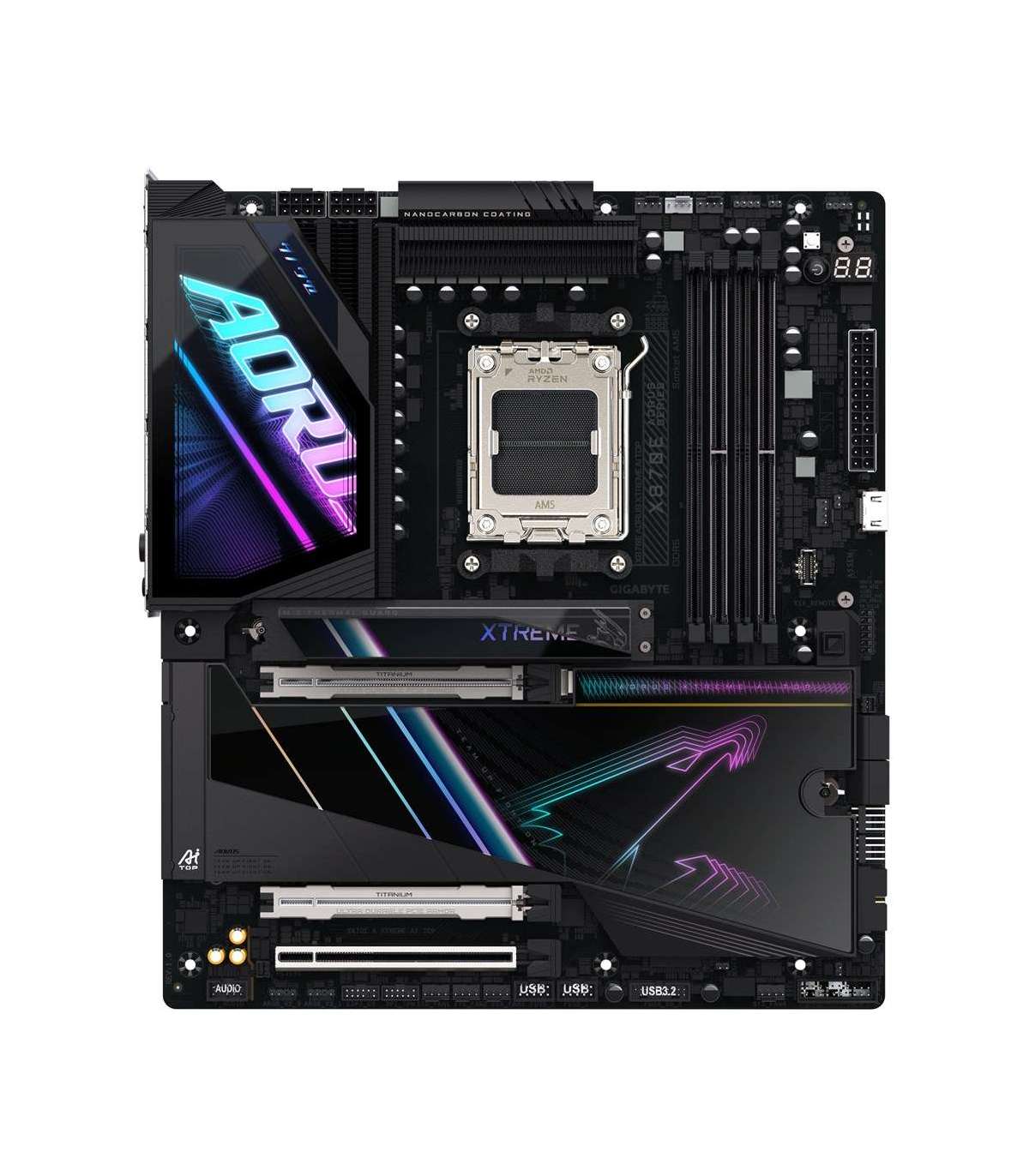

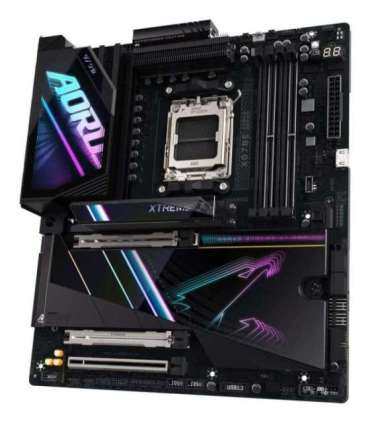

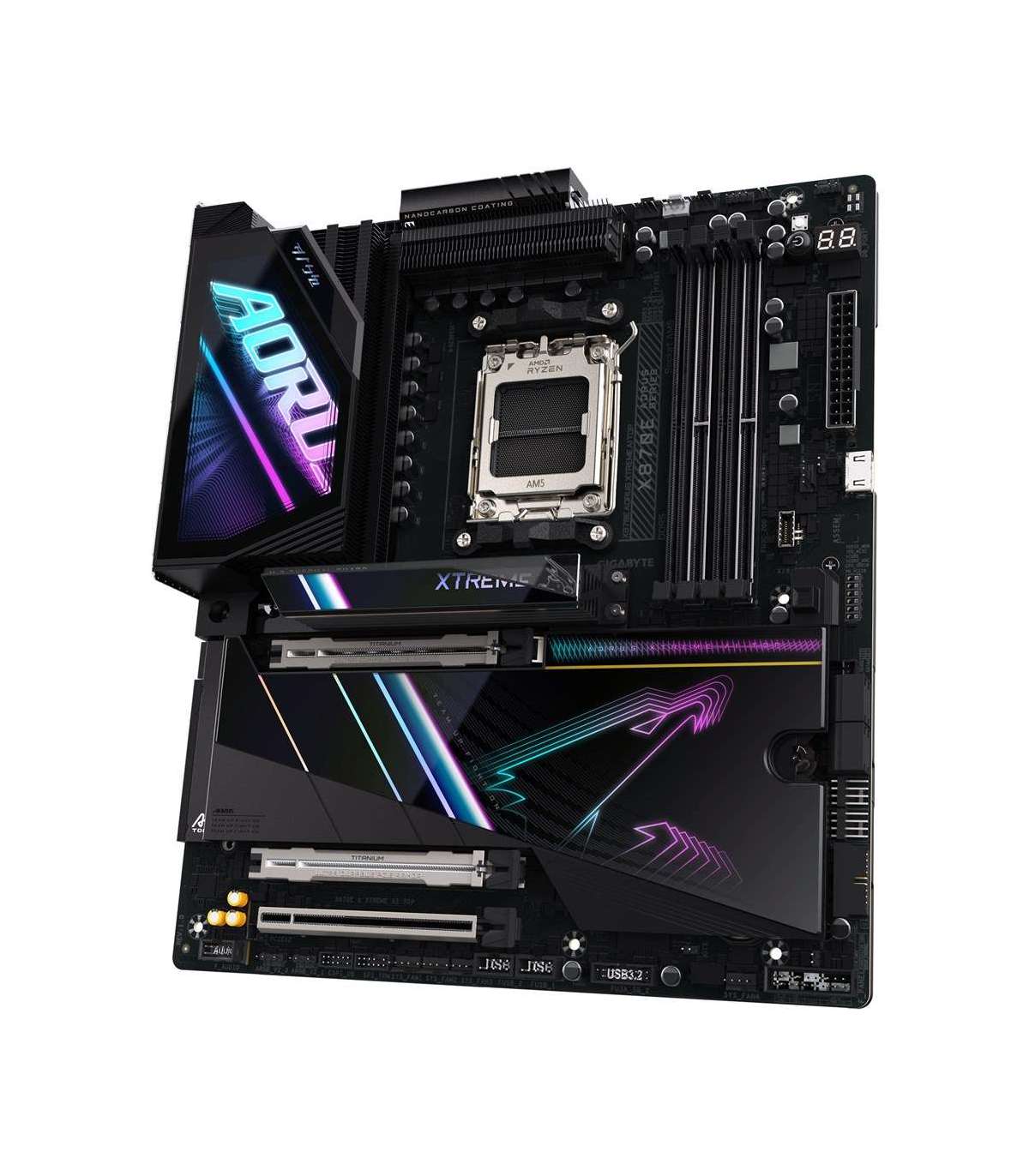

GIGABYTE X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz

Lisainfo

Depth

269 mm

Laius

305 mm

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 11 x64

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

10 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870E

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

HDMI ports quantity

1

Memory channels

Dual-channel

WLAN controller model

Qualcomm QCNCM865

Audio chip

Realtek ALC1220

Warranty period

3 year(s)

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

Extended ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5200
5600
5800
6000
6200
6400
6600
6800
7000
7200
7400
7600
7800
7900
7950
8000
8200
8266
8400
8600
8800

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Marvell AQtion AQC113C

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

ECC сompatibility

ECC & Non-ECC

Maximum resolution

4096 x 2160 pixels

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

HDCP

Yes

Supported memory clock speed (max)

8800 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Desktop Management Interface (DMI) version

2.7

Number of storage drives supported

8

RAID support

Yes

Maximum internal memory per slot

64 GB

Number of EPS power connectors (8-pin)

2

Number of RGB LED pin headers

4

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0

Clear CMOS button

Yes

USB 3.2 Gen 2x2 connectors

1

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

4th M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

Number of audio jack connectors

2

USB4 ports quantity

2
