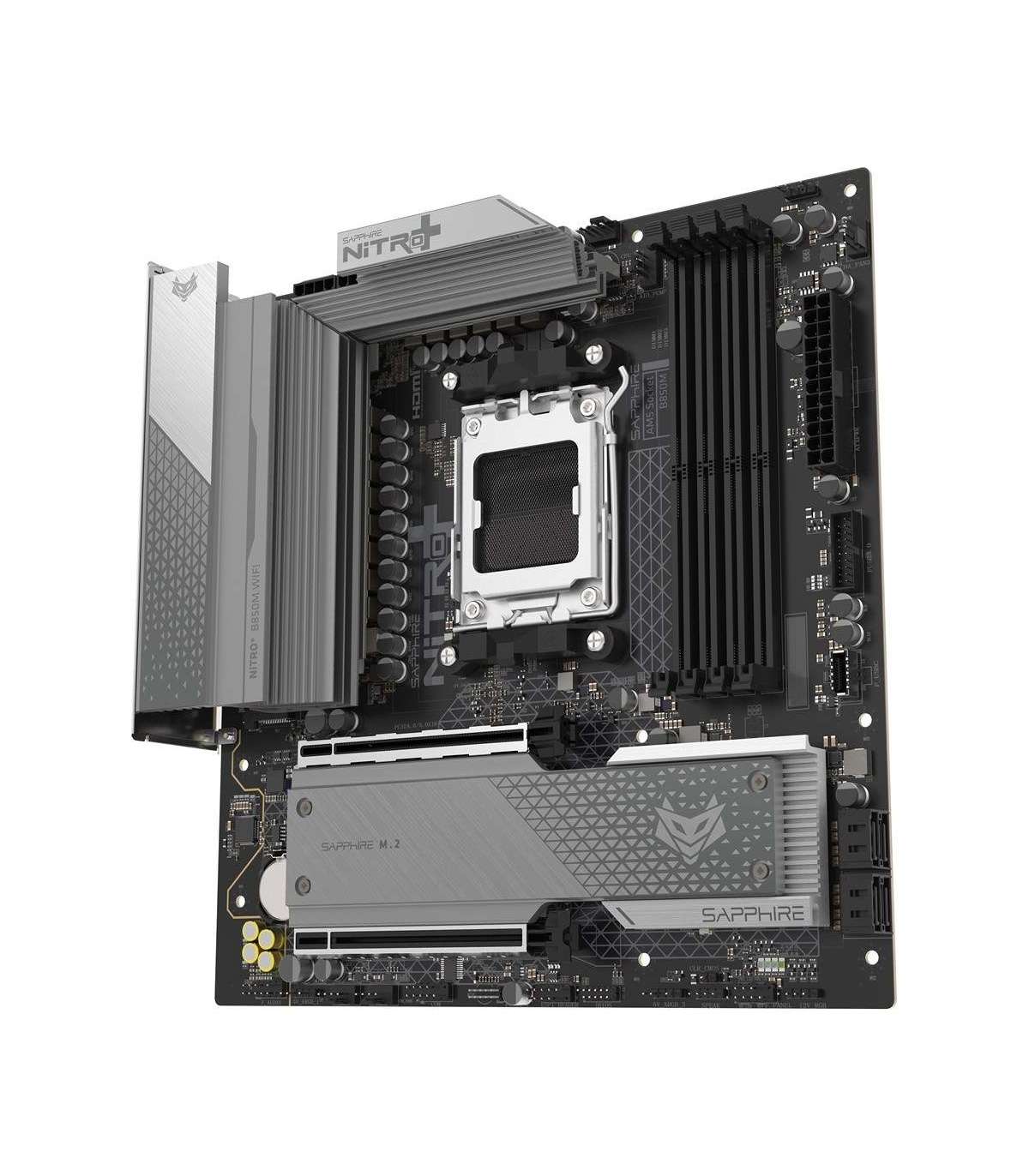

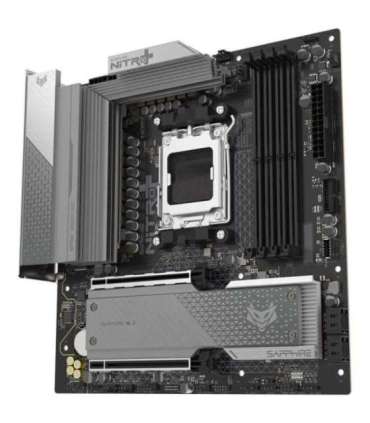

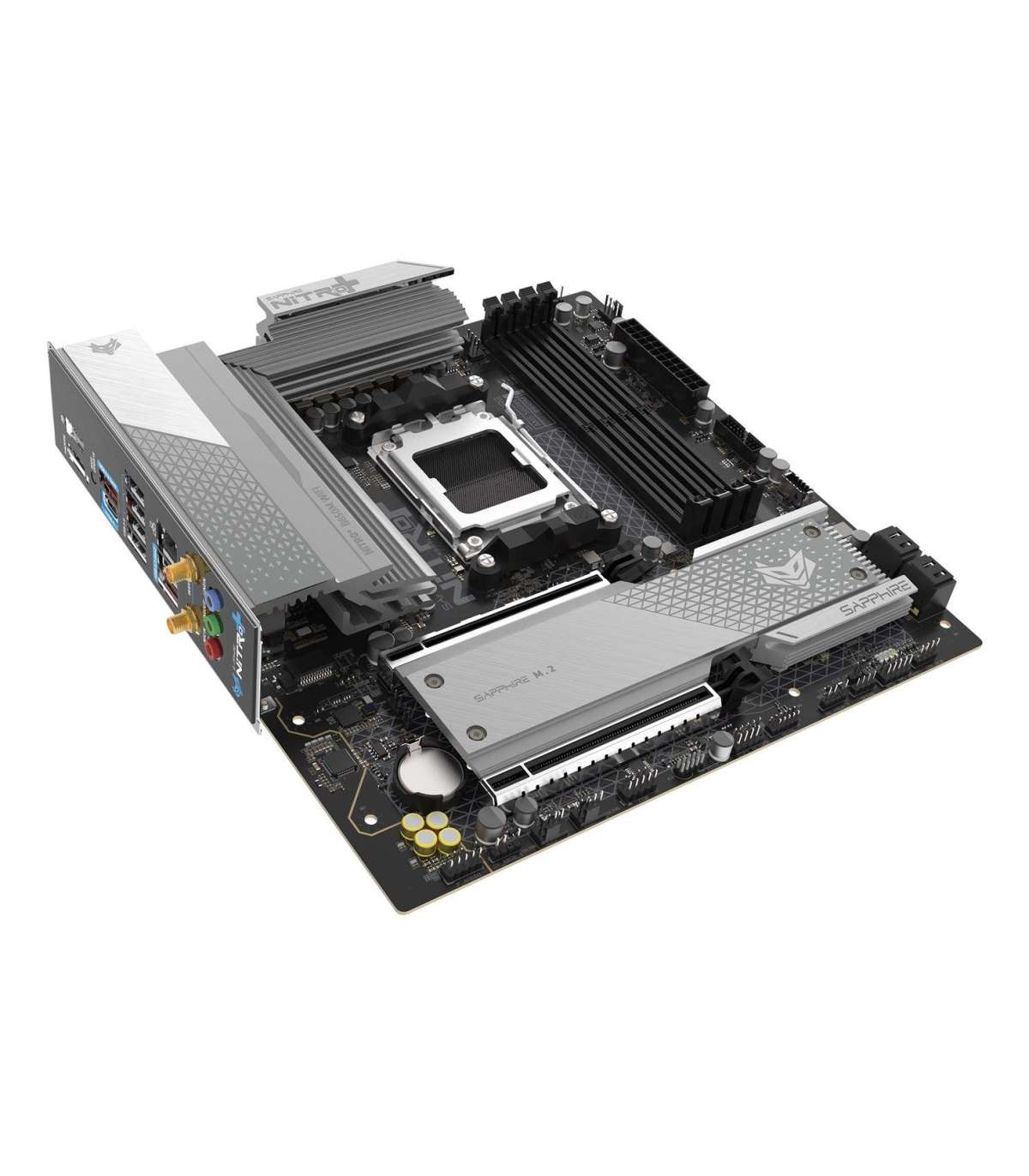

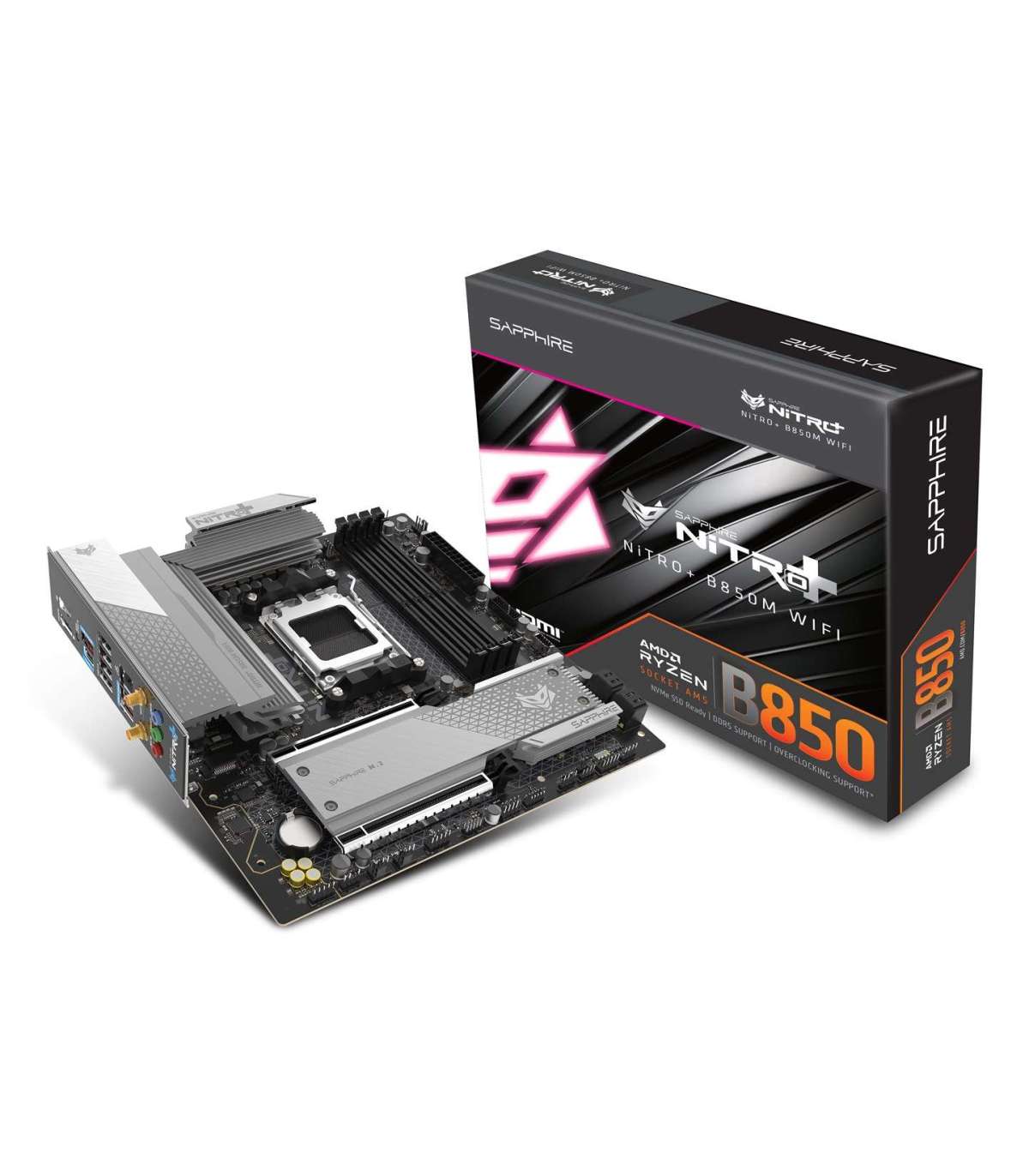

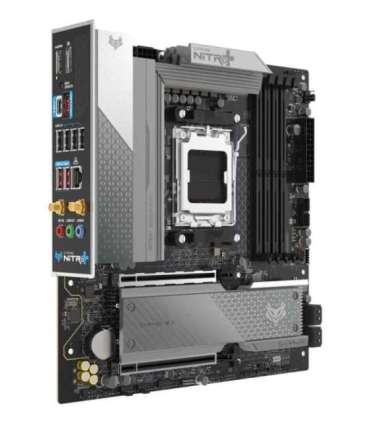

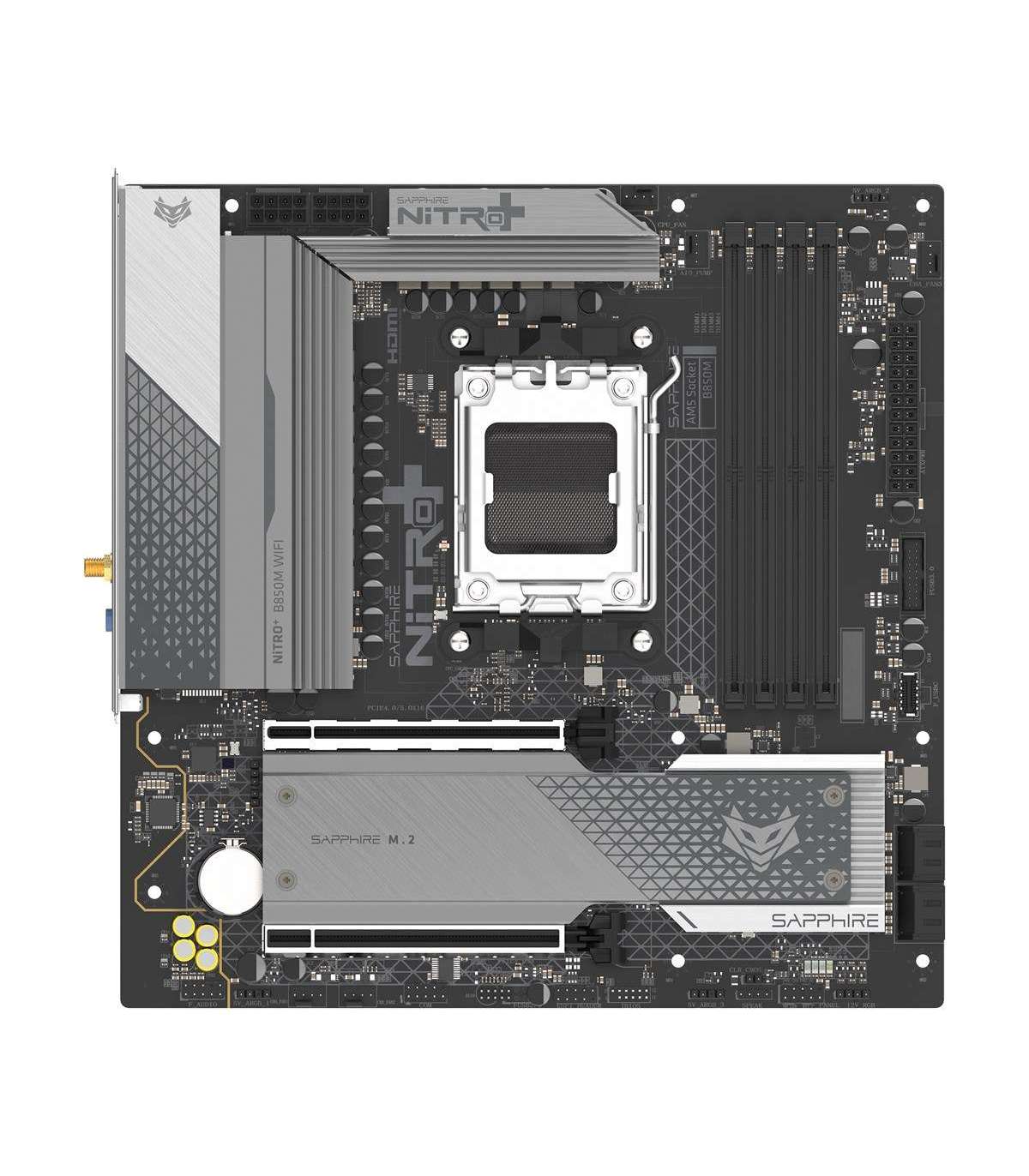

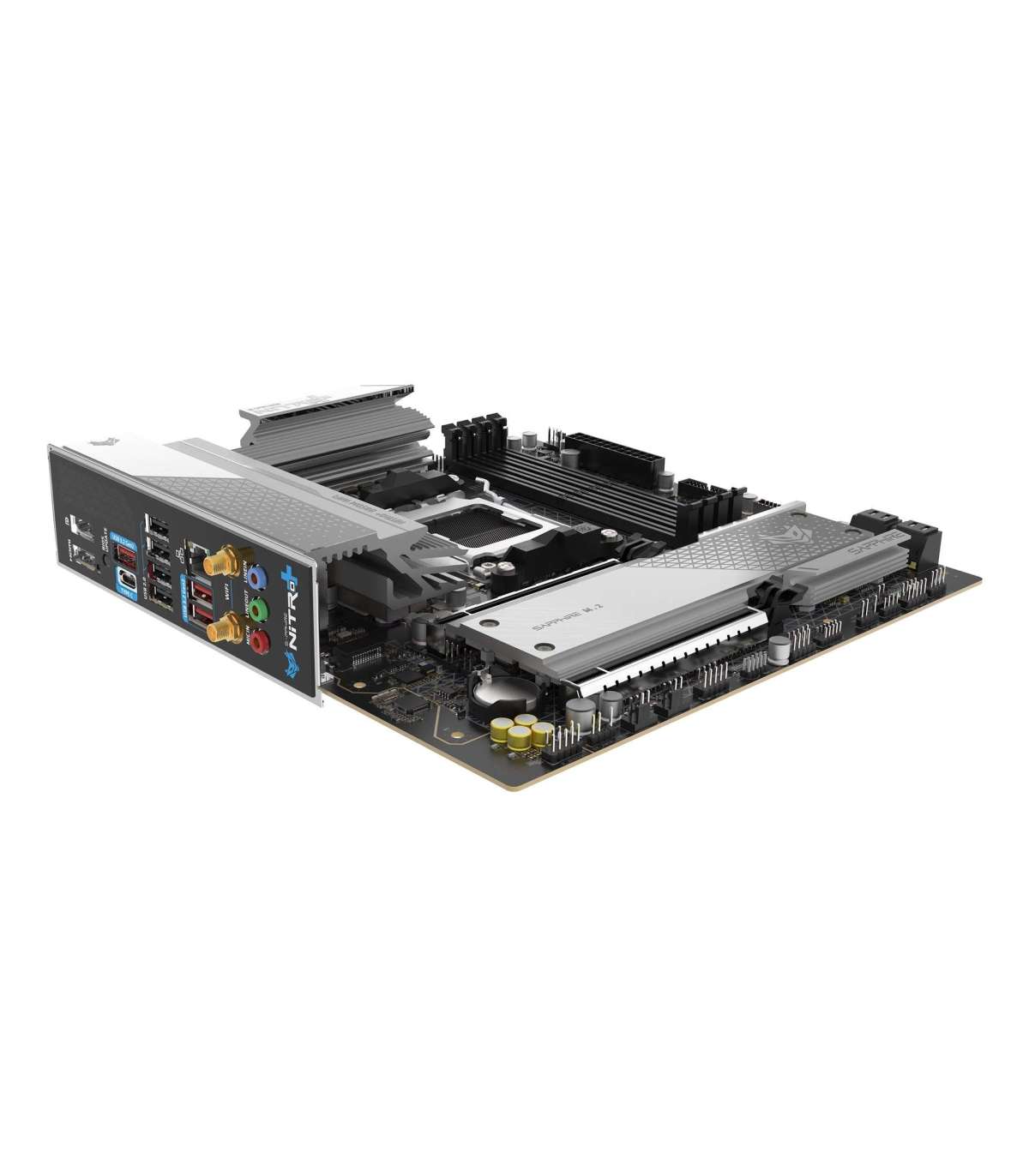

Sapphire NITRO+ B850M WIFI AMD B850 Socket AM5 micro ATX

Lisainfo

Depth

235 mm

Laius

244 mm

Product colour

Must

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

USB connector type

USB Type-A
USB Type-C

Maximum internal memory

192 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD B850

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Headphone outputs

3

USB 2.0 connectors

1

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

5.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Number of chassis fan connectors

3

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Microphone in

Yes

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8000 MHz

Front panel connector

Yes

Number of storage drives supported

6

Line-in

Yes

Maximum internal memory per slot

48 GB

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Number of water pump connectors

1

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

WiFi-AP antenna jack

2

Serial port headers

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

1
