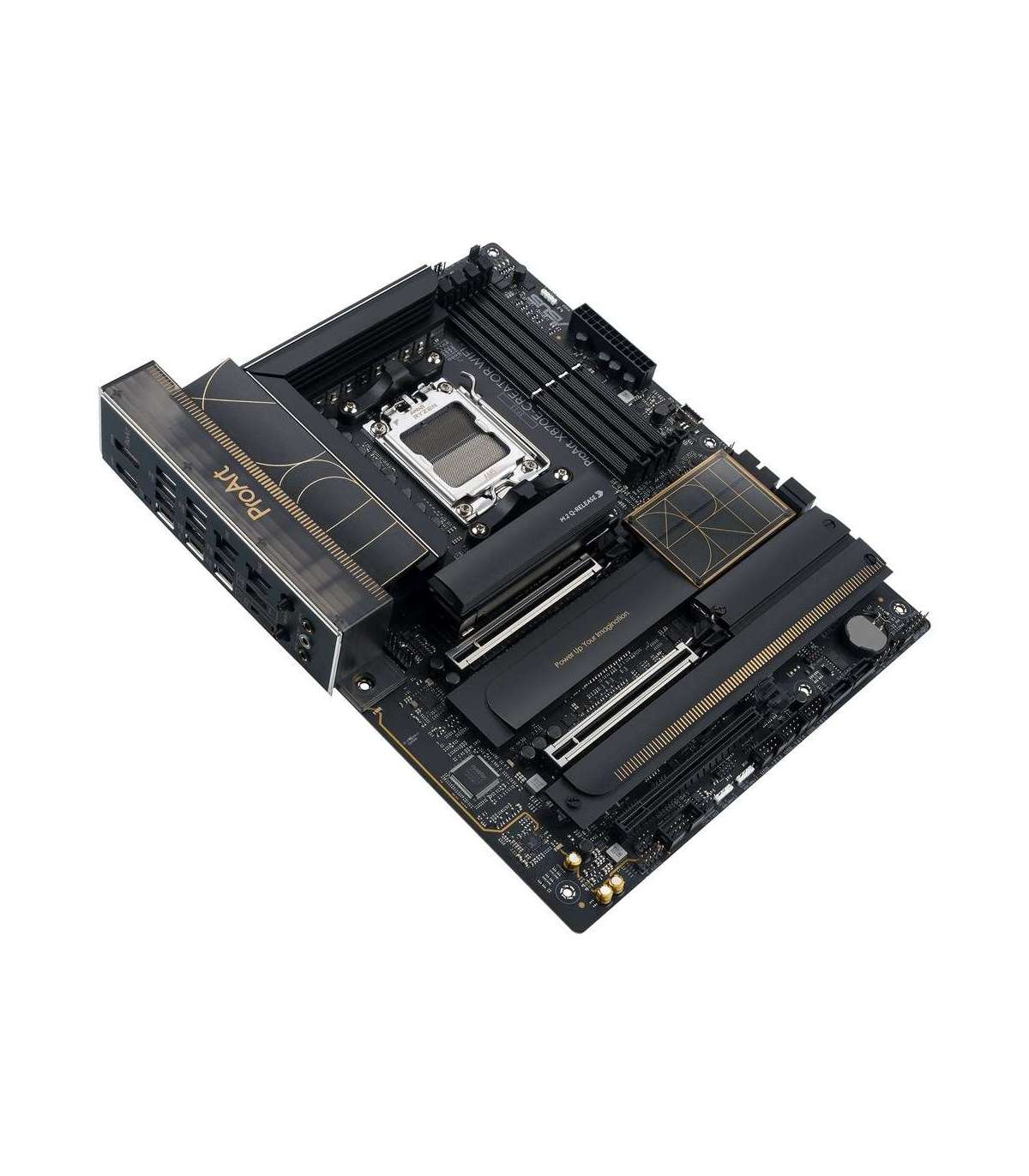

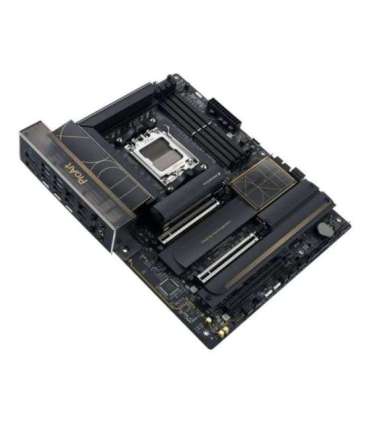

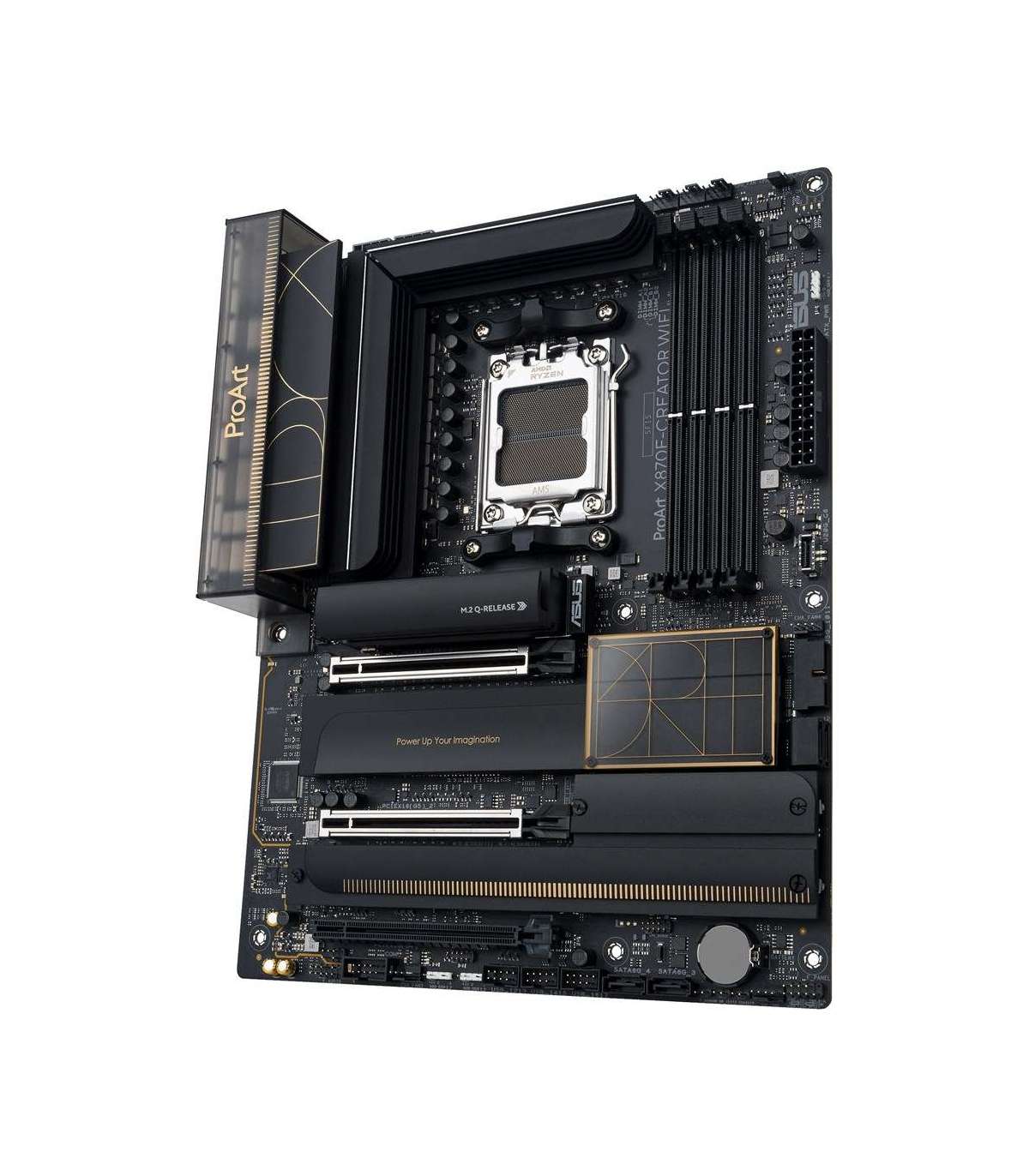

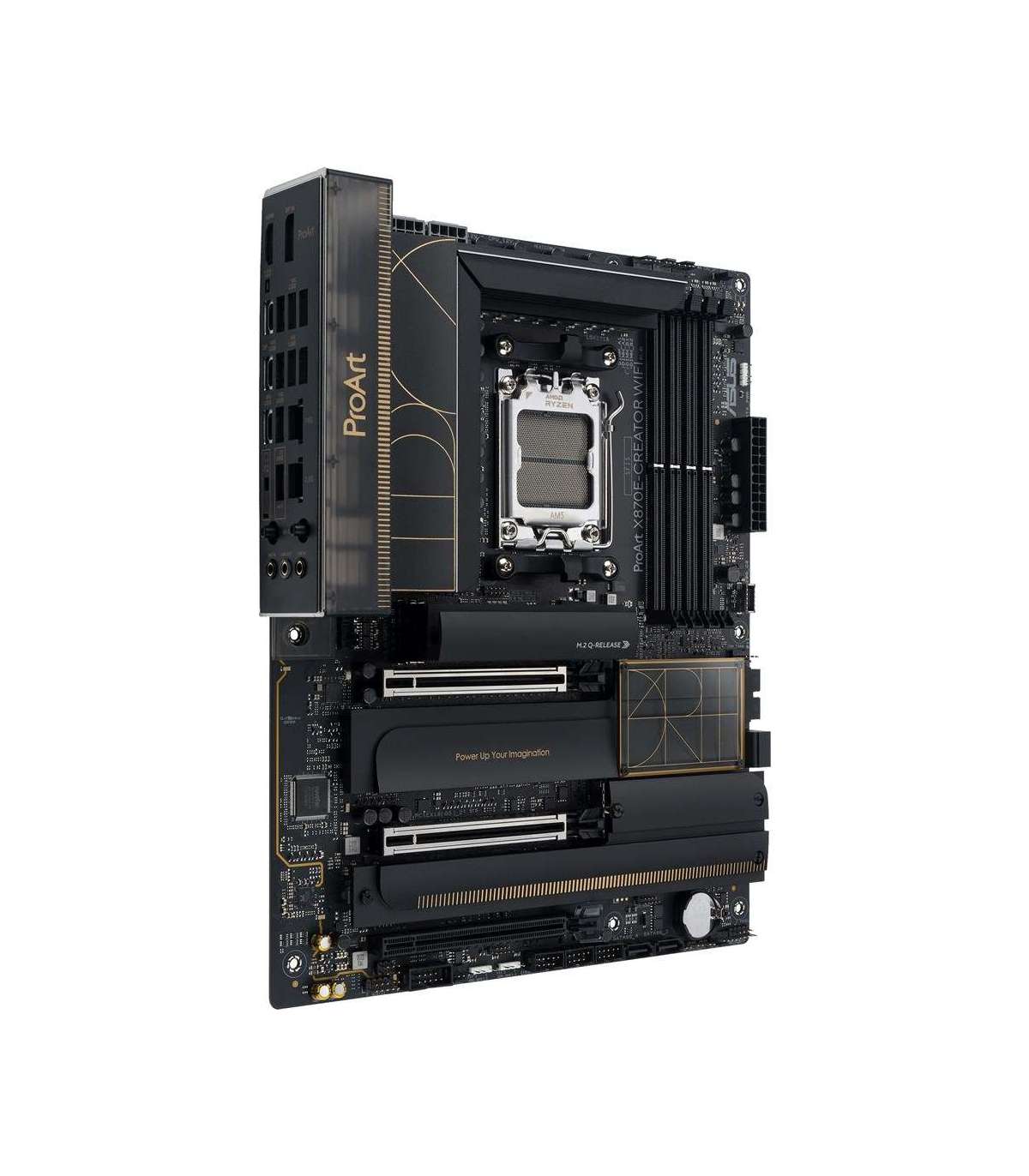

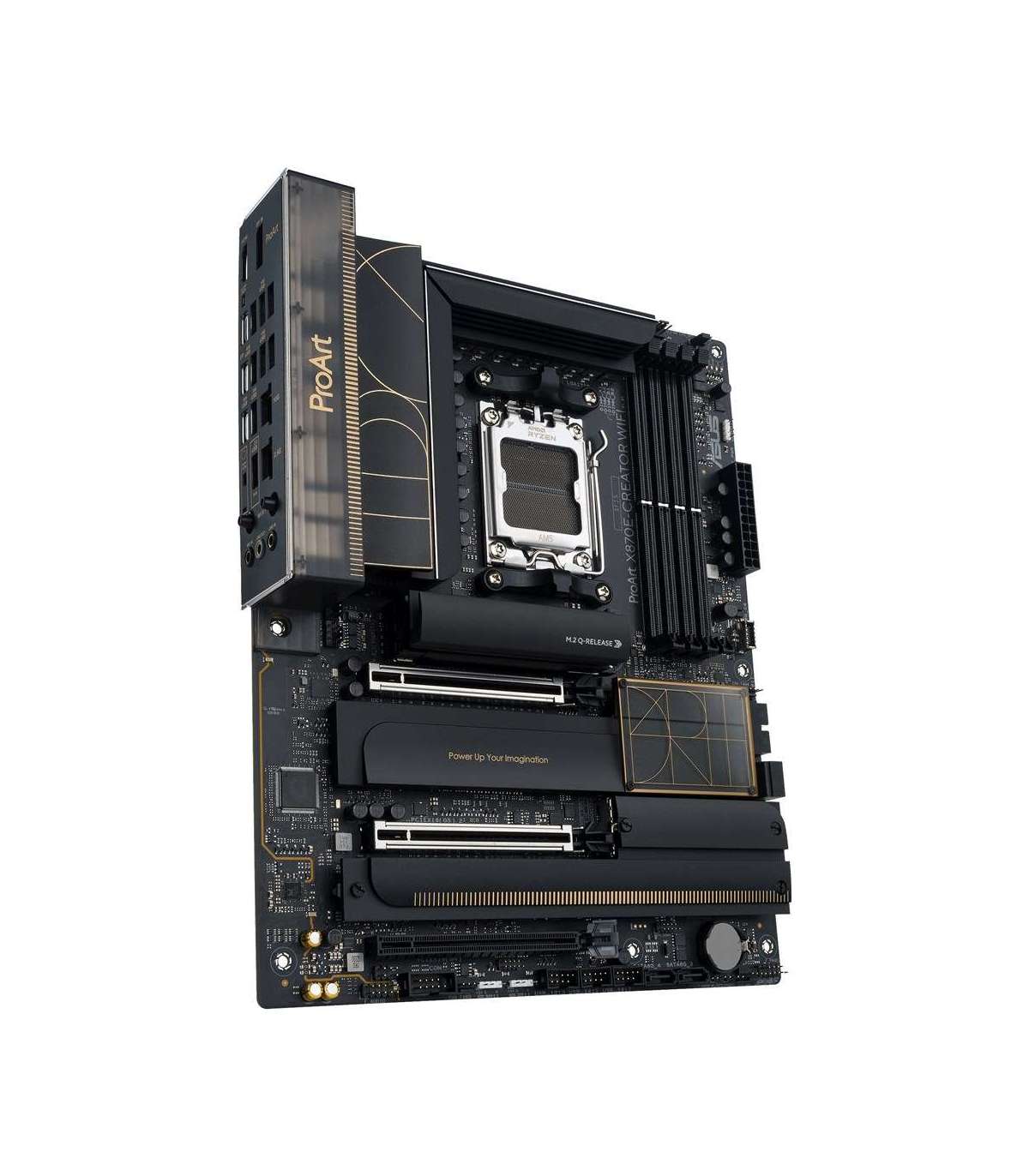

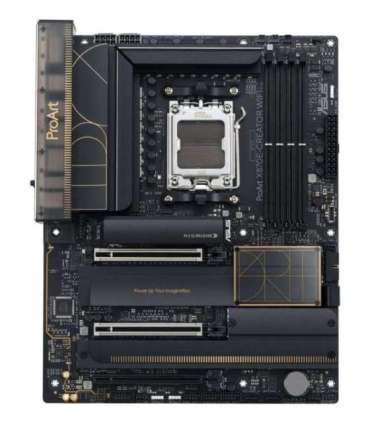

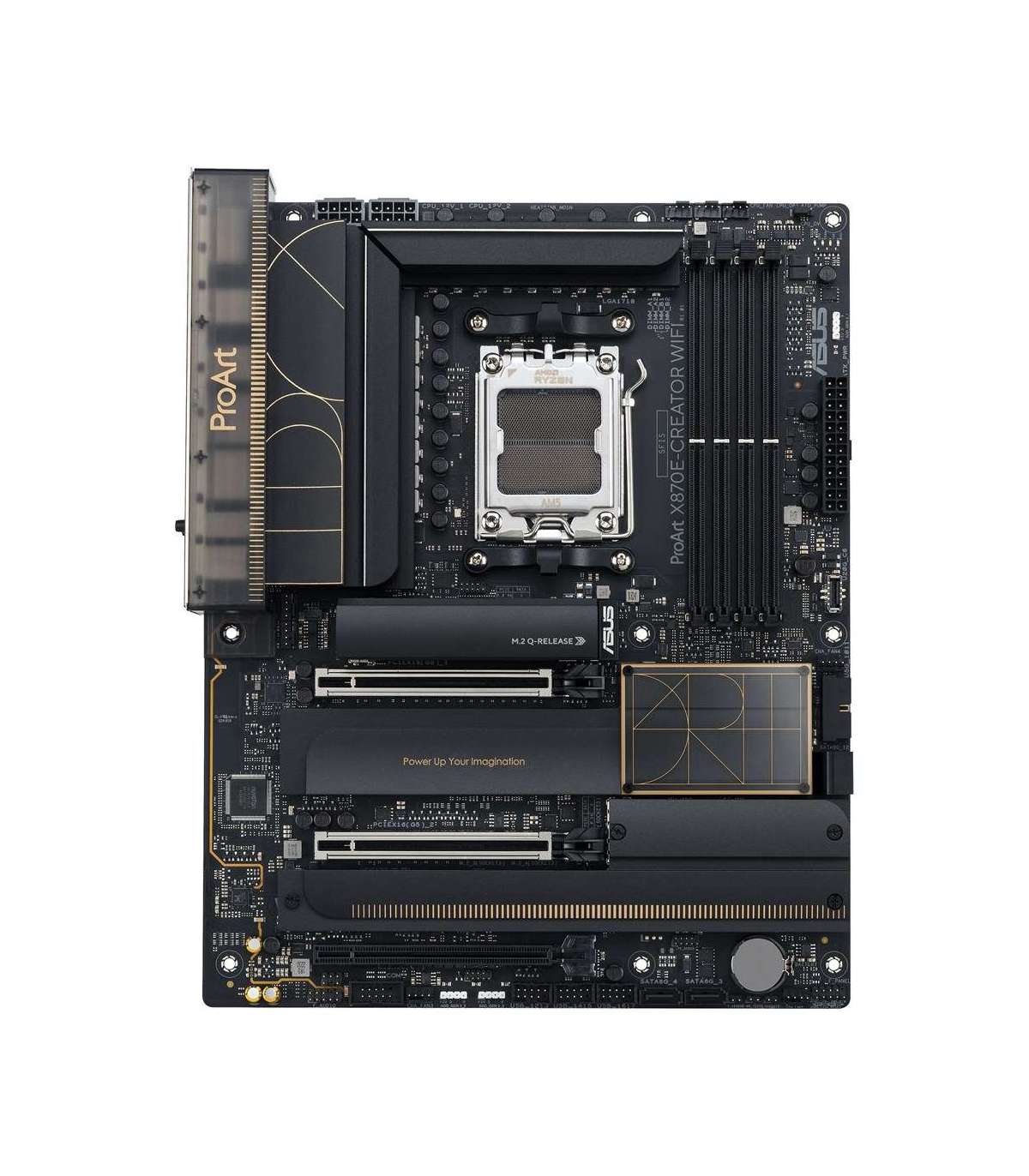

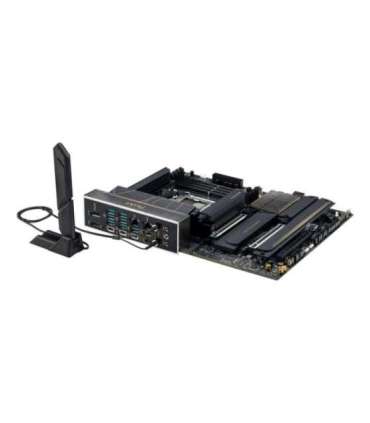

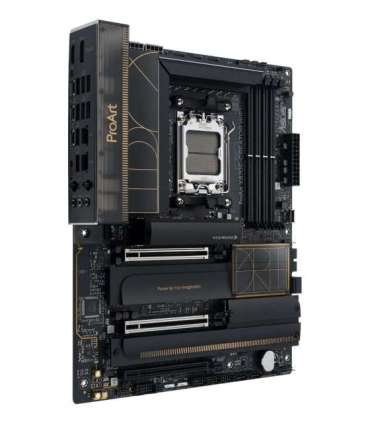

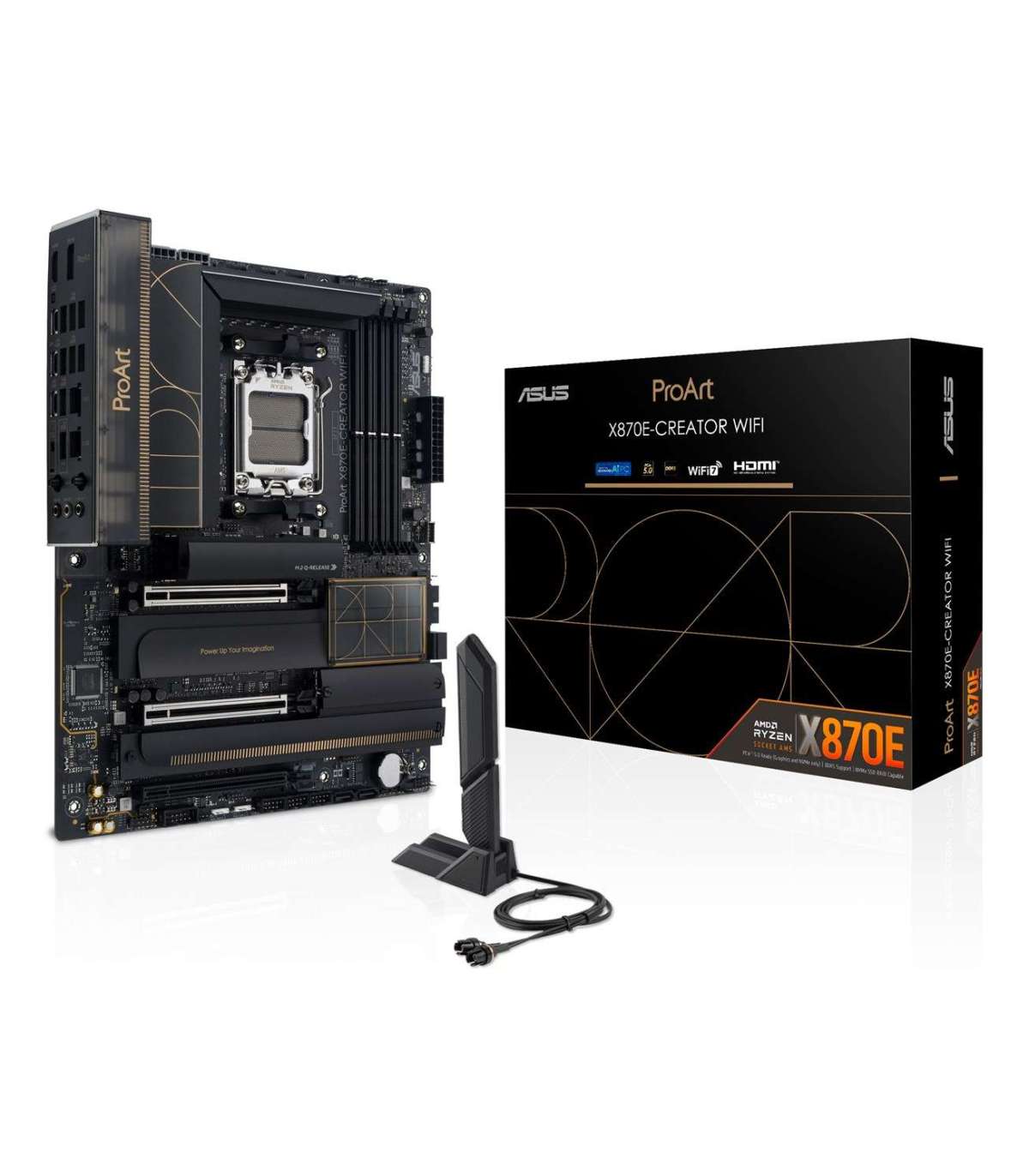

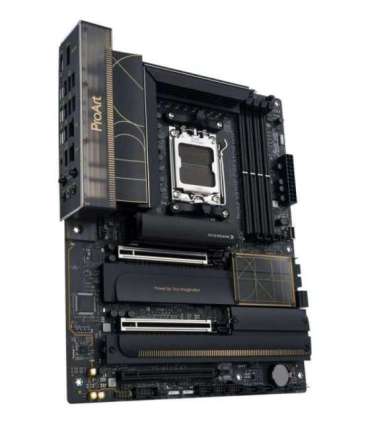

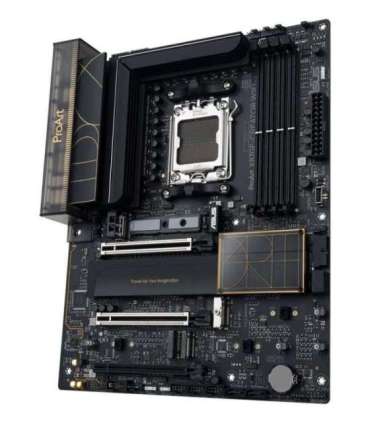

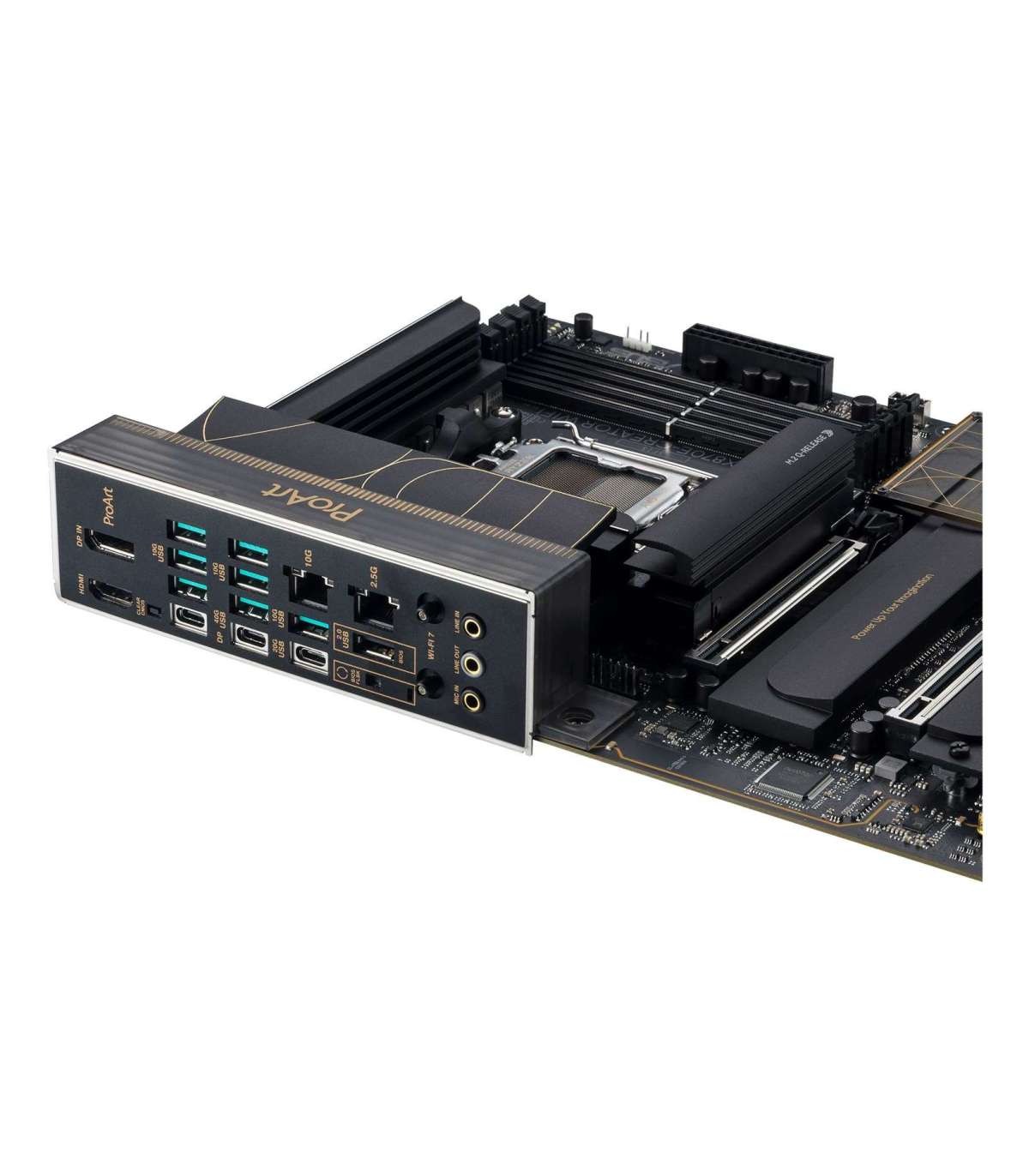

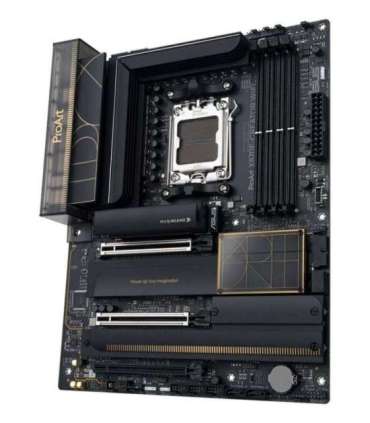

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Cables included

DisplayPort, SATA

Wi-Fi standards

Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 11

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

USB 2.0 ports quantity

1

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet
10 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

192 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870E

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

7

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek S1220A

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

3

Processor socket

Socket AM5

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

5

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

Number of storage drives supported

8

RAID support

Yes

Clear CMOS button

Yes

WiFi-AP antenna jack

1

USB 3.2 Gen 2x2 connectors

1

PCI Express x16 (Gen 5.x) slots

2

USB4 Gen 2x2 ports quantity

2
