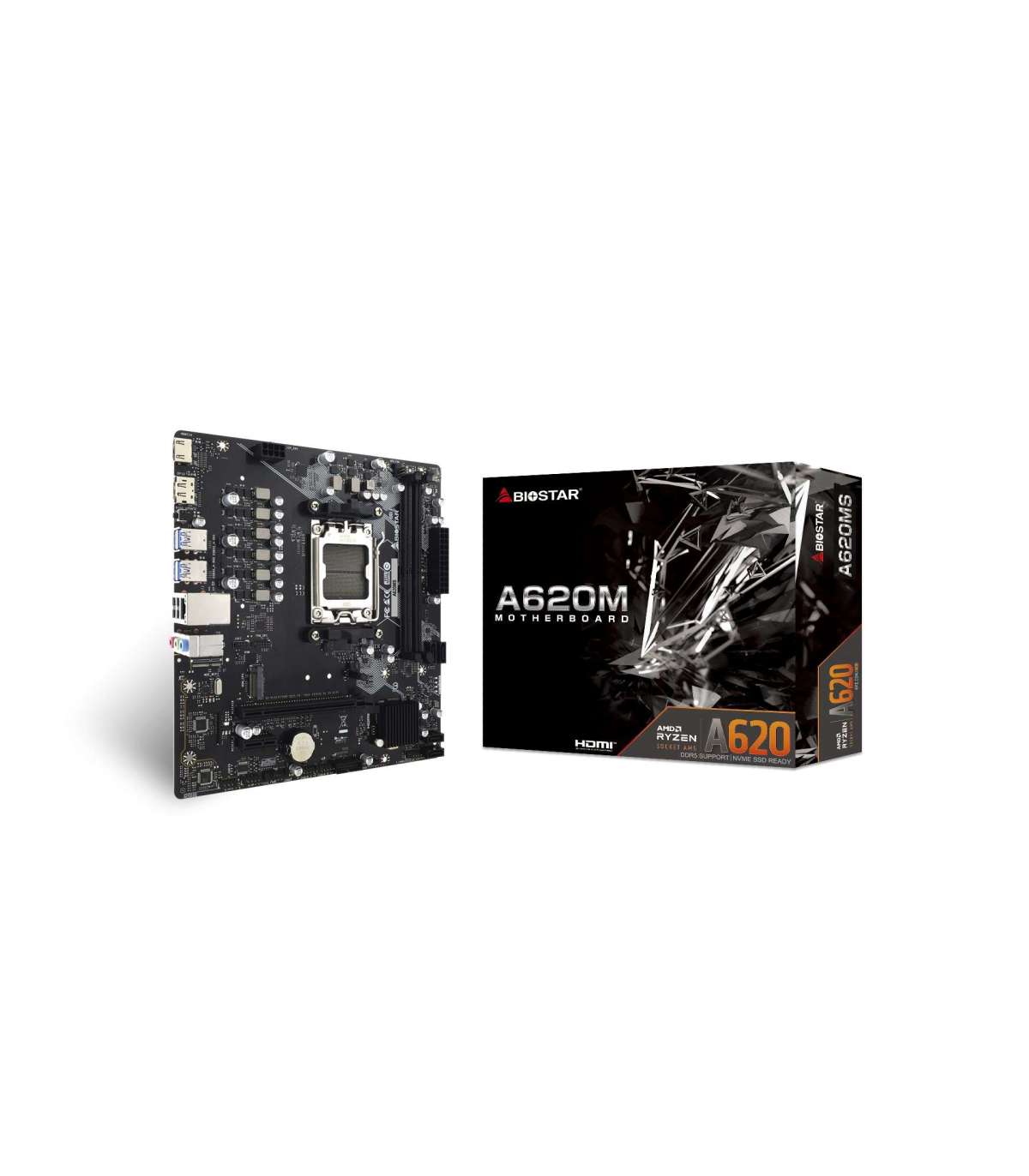

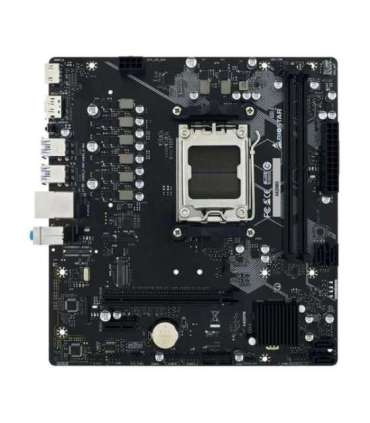

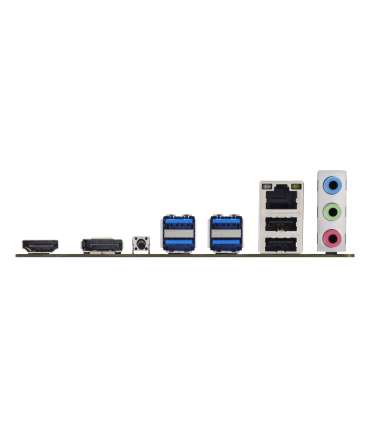

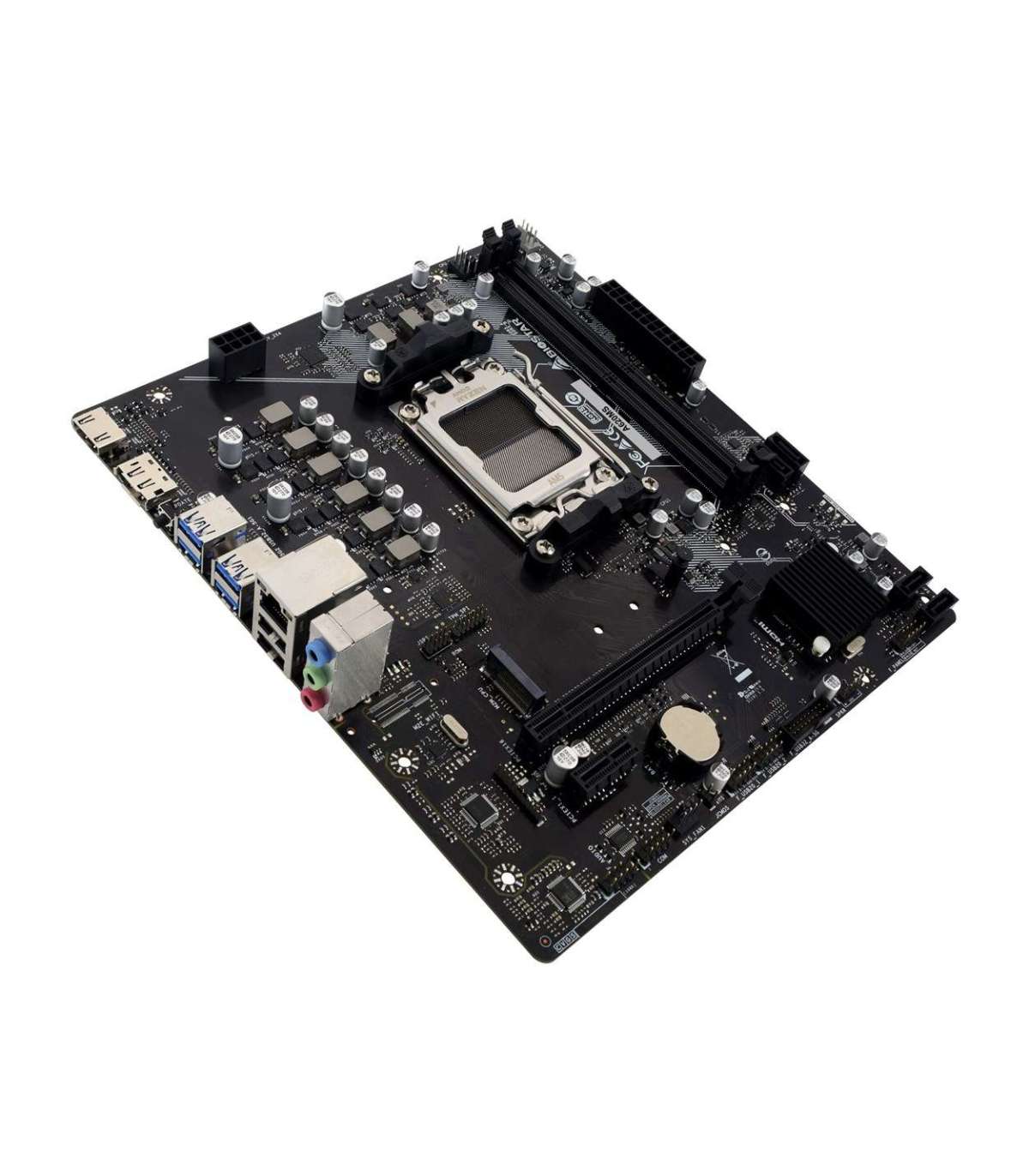

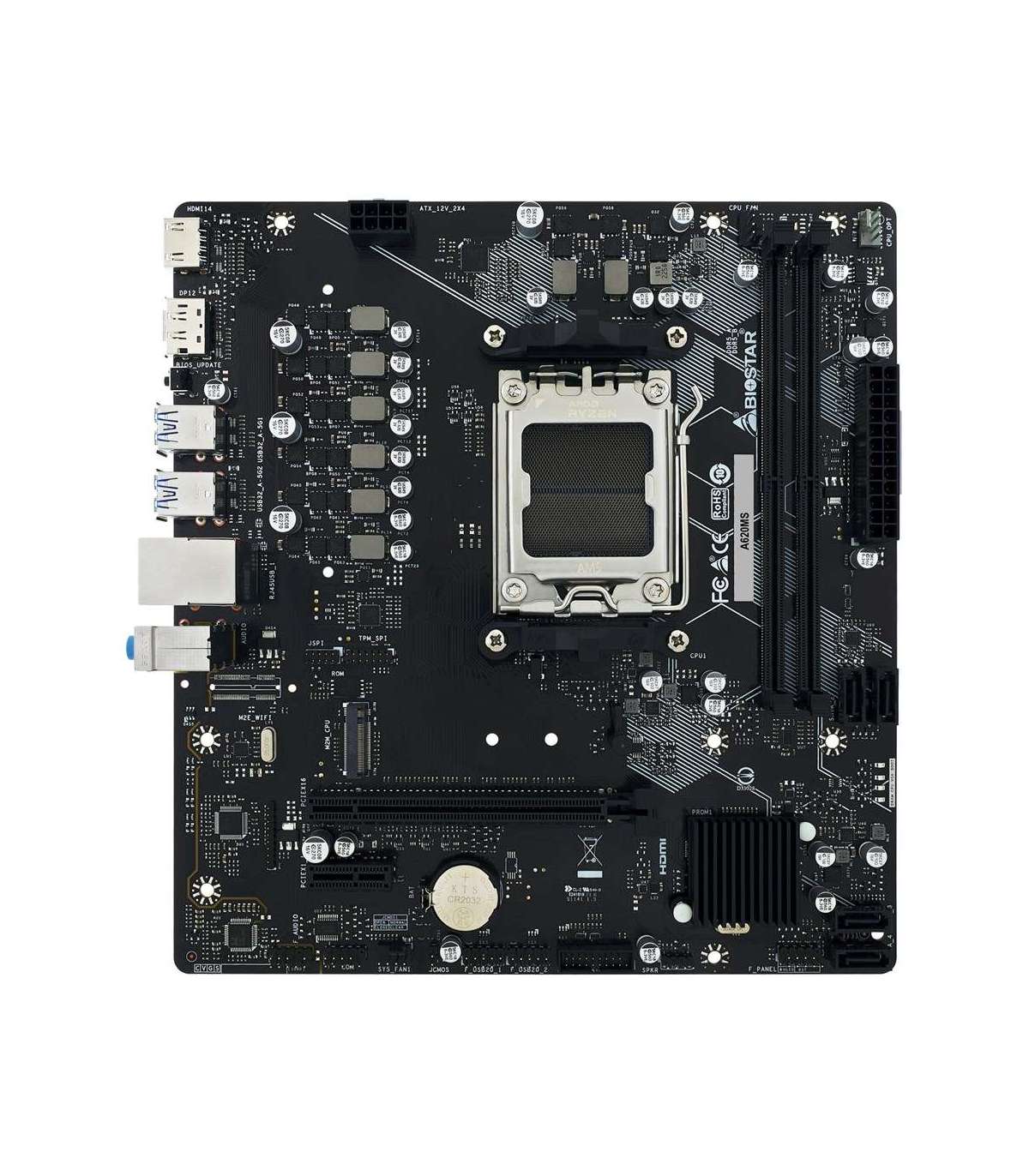

Biostar A620MS motherboard AMD A620 Socket AM5 micro ATX

Lisainfo

Depth

235 mm

Laius

221 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Motherboard chipset

AMD A620

HDMI version

1.4

HDMI ports quantity

1

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8111H

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Supported storage drive interfaces

SATA III

PCI Express x1 (Gen 3.x) slots

1

Drivers included

Yes

Number of SATA III connectors

4

TPM connector

Yes

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

HDCP

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Audio connector

Yes

Number of EPS power connectors (8-pin)

1

DisplayPort version

1.2
