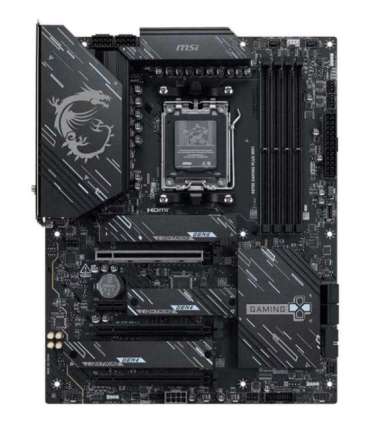

MSI X870E GAMING PLUS WIFI motherboard AMD X870E Socket AM5 ATX

Lisainfo

Depth

243.8 mm

Laius

304.8 mm

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2
4

USB 2.0 ports quantity

4

Wi-Fi

Yes

Processor manufacturer

AMD

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870E

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

USB4 Gen 3x2 ports quantity

1

USB 2.0 connectors

6

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

6

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Supported storage drive interfaces

M.2, SATA III

PCI Express x16 (Gen 3.x) slots

3

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

RAID levels

0
1
5
10

Supported processor sockets

Socket AM5

RAID support

Yes

PCI Express x1 slots

1

Number of CPU fan connectors

1

Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports

1
