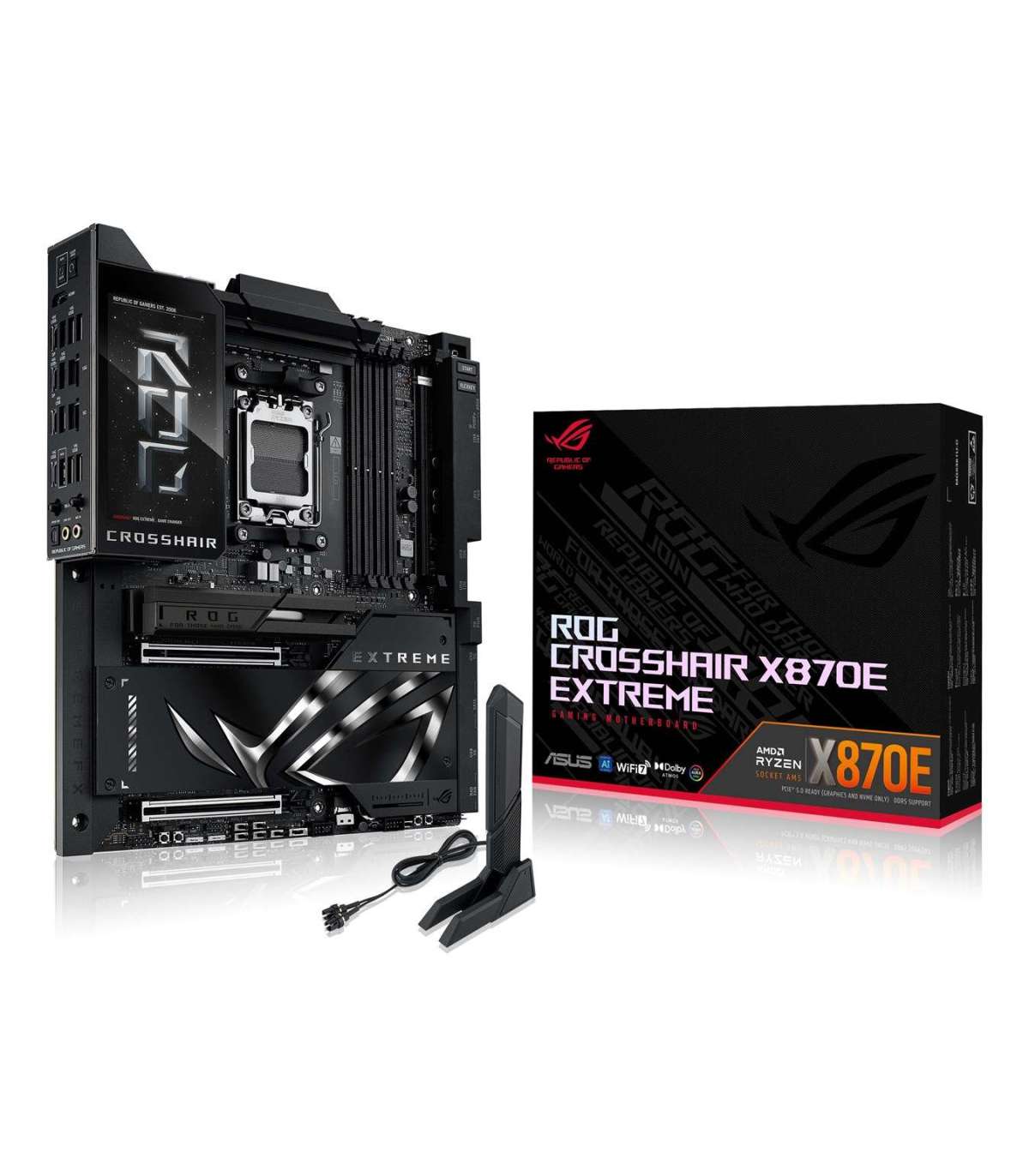

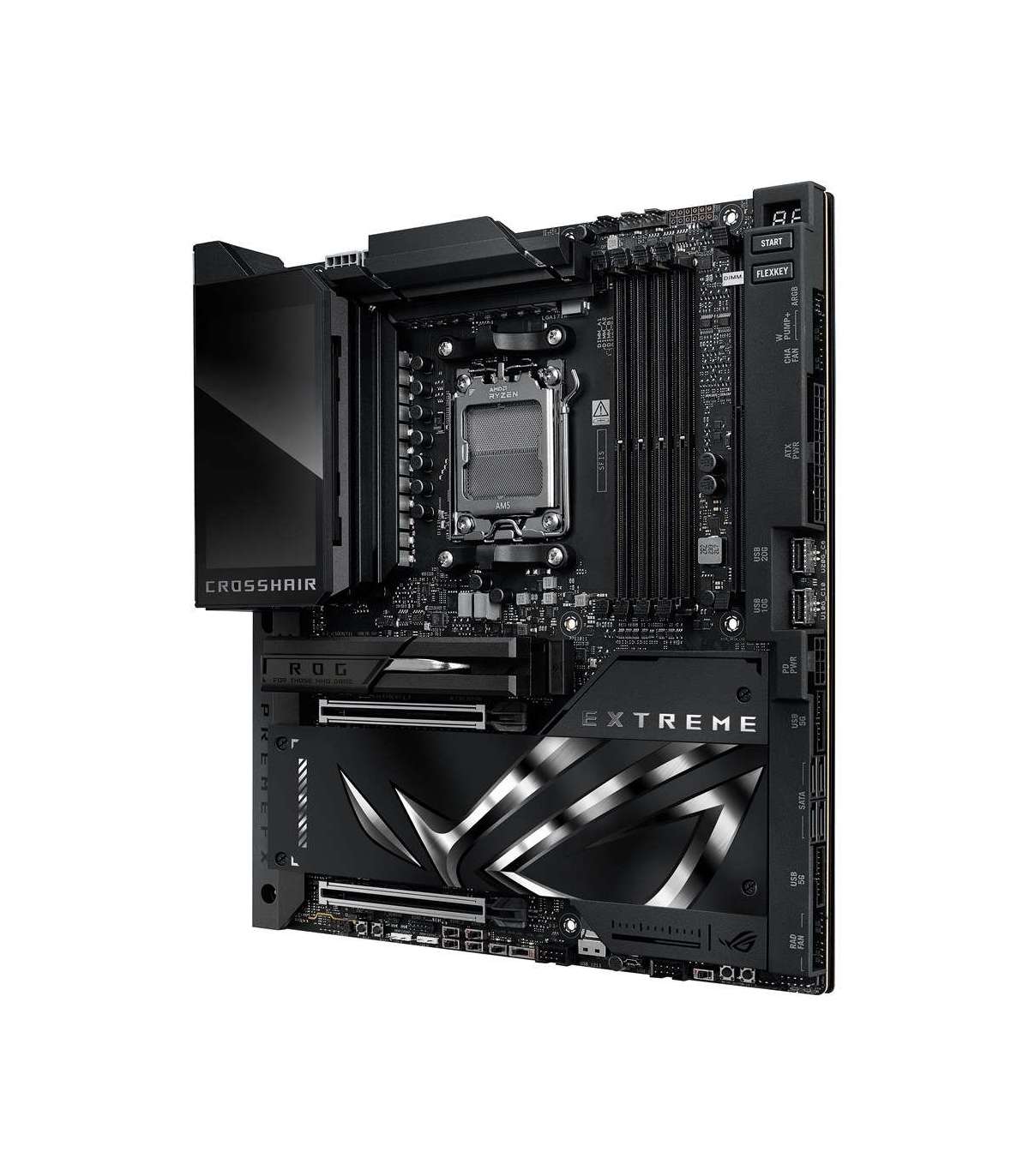

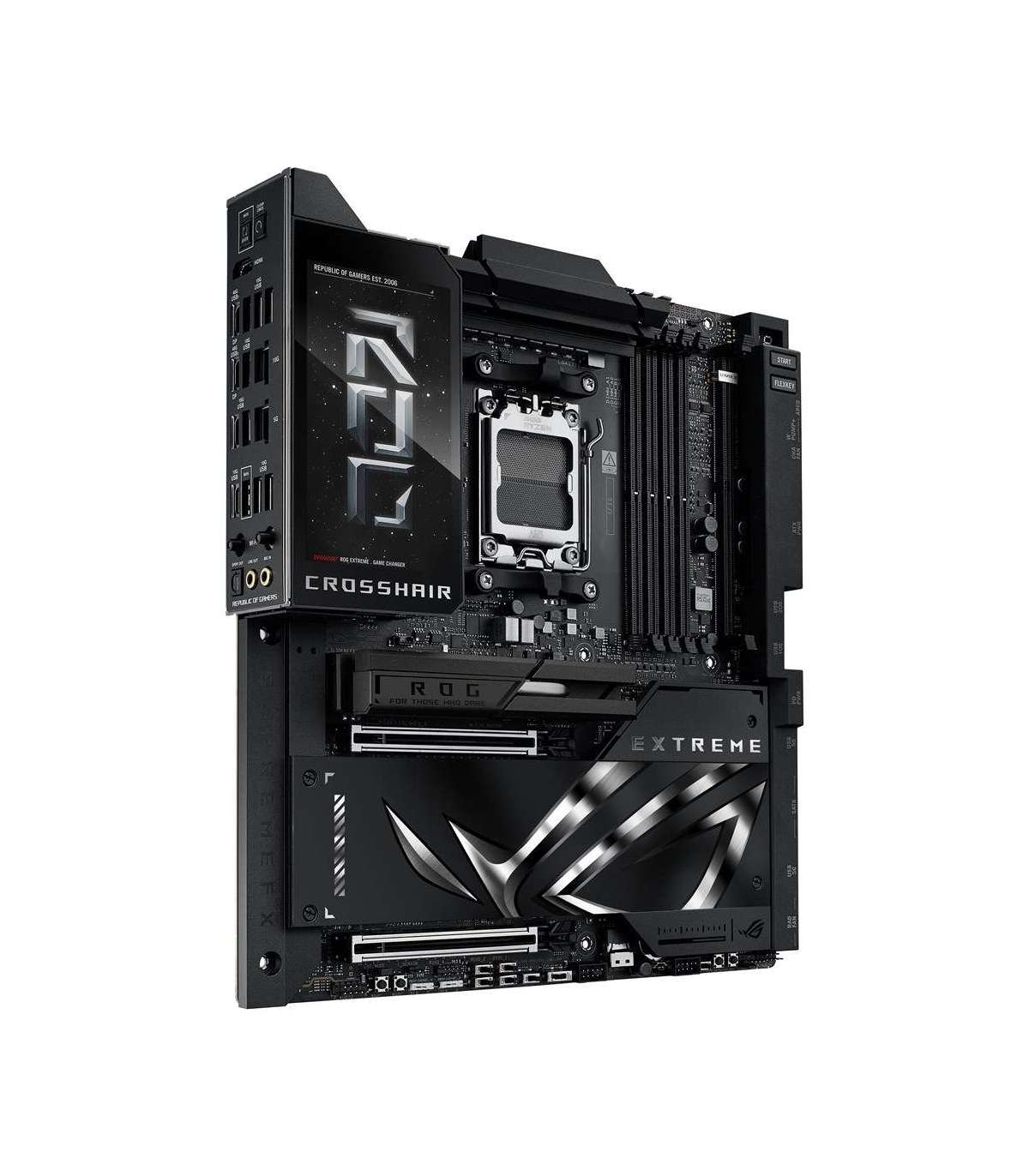

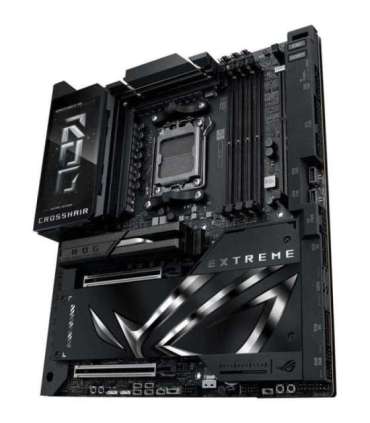

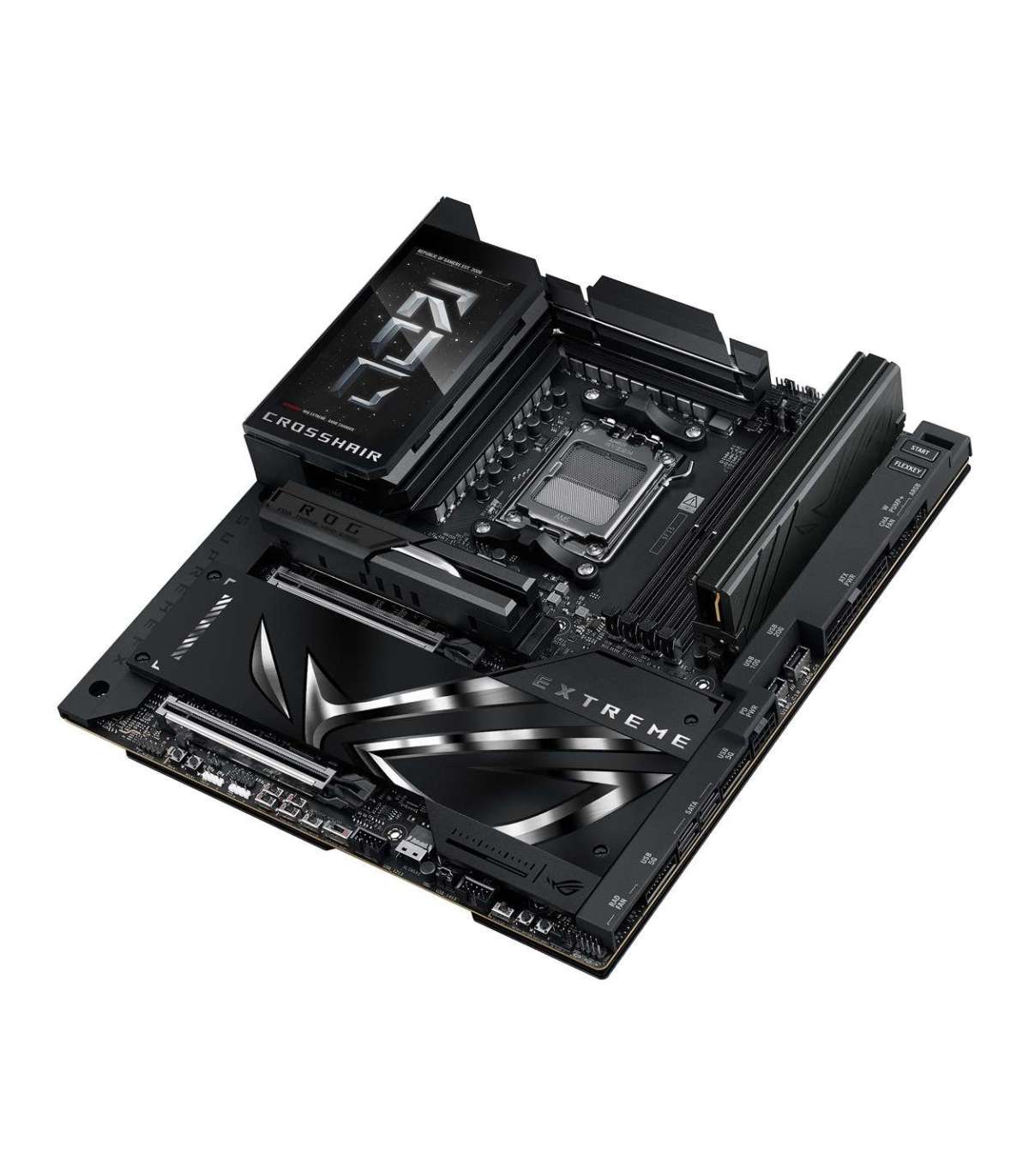

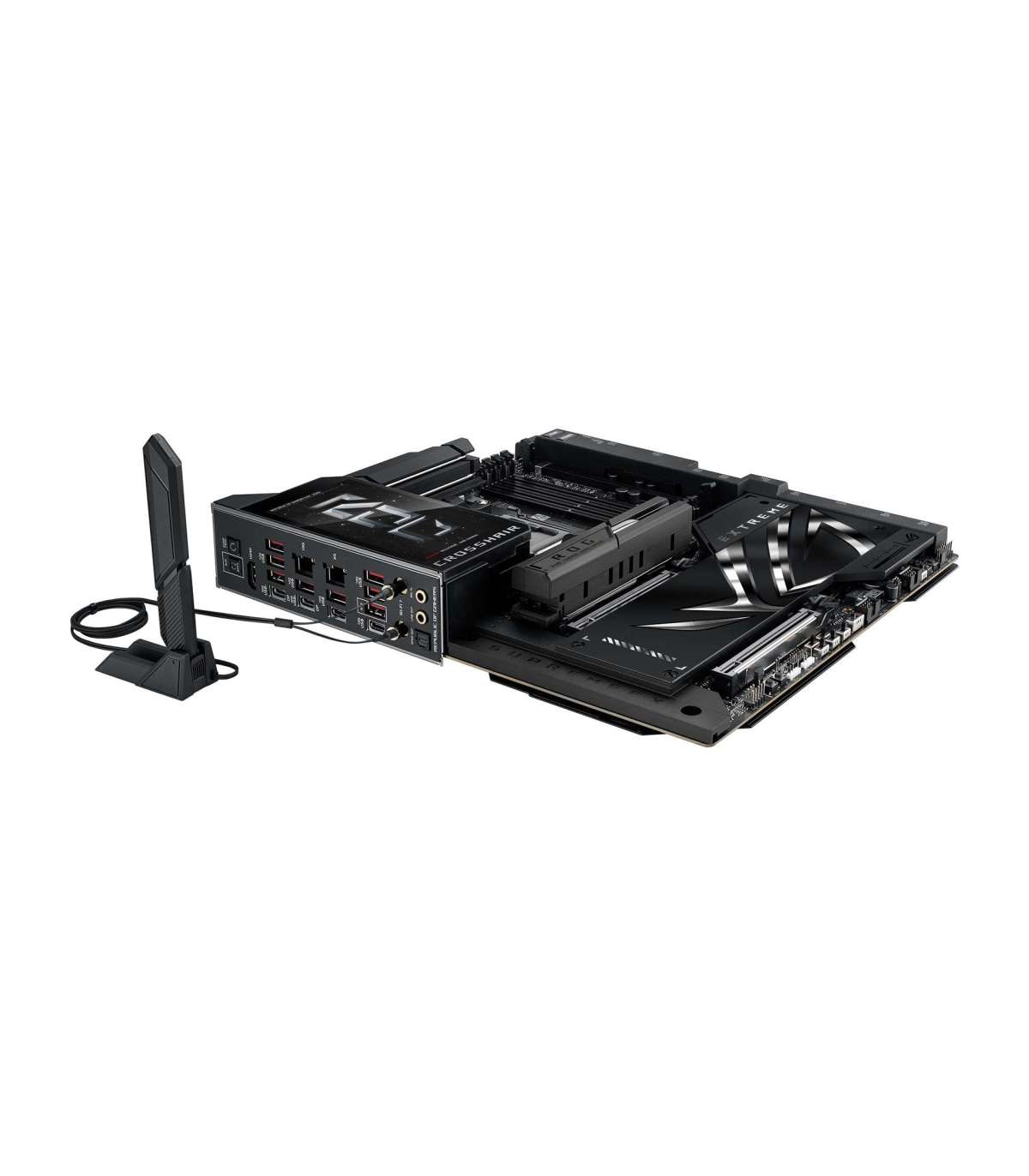

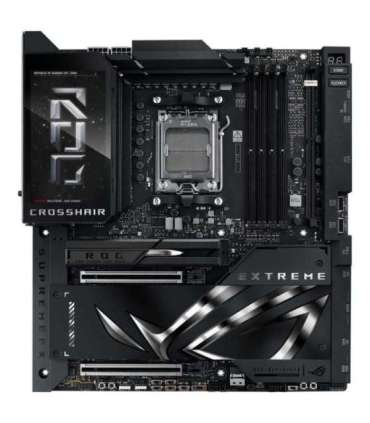

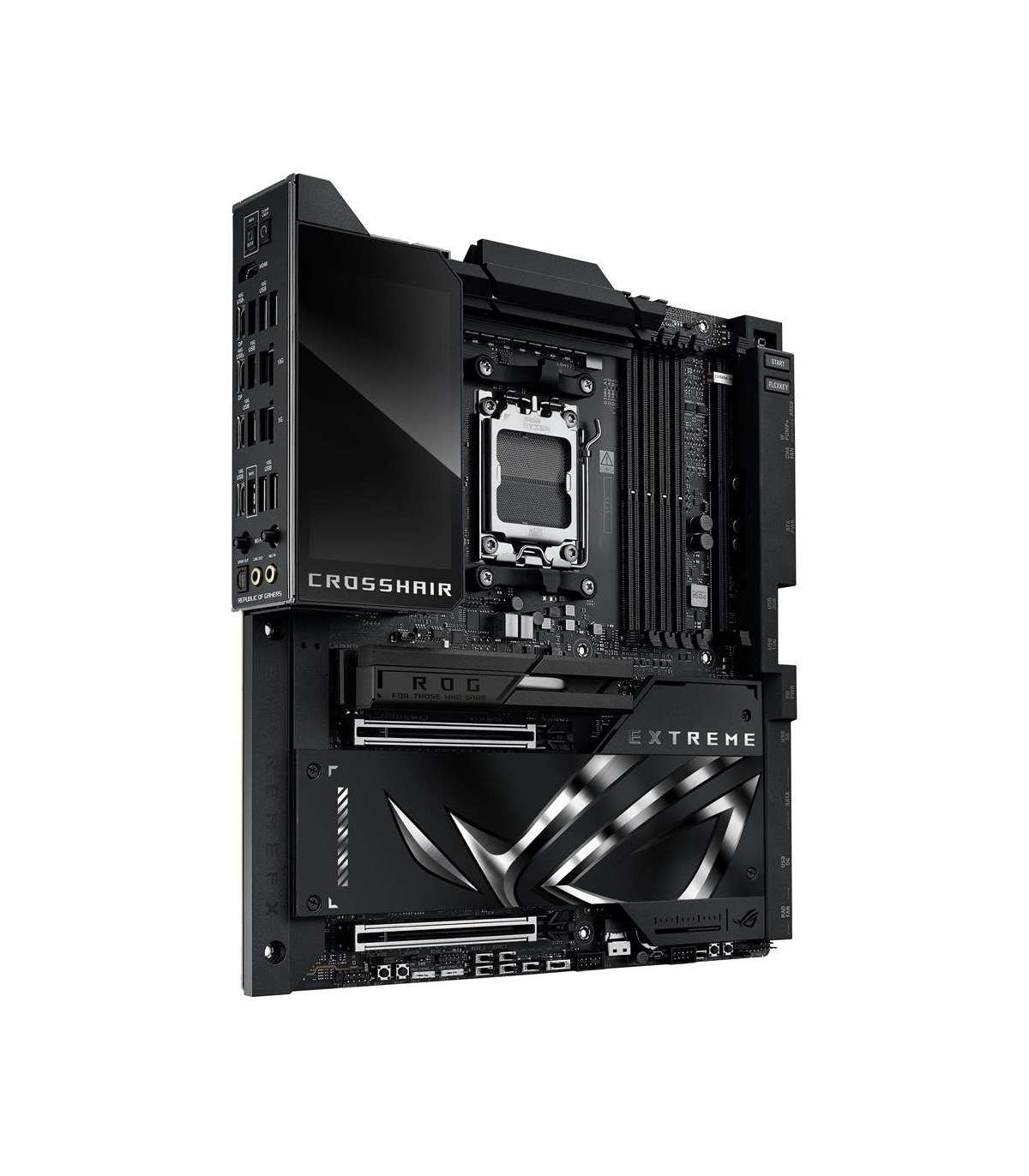

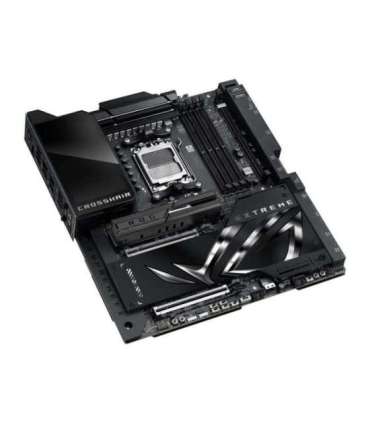

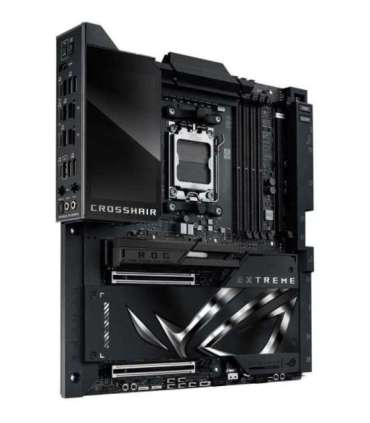

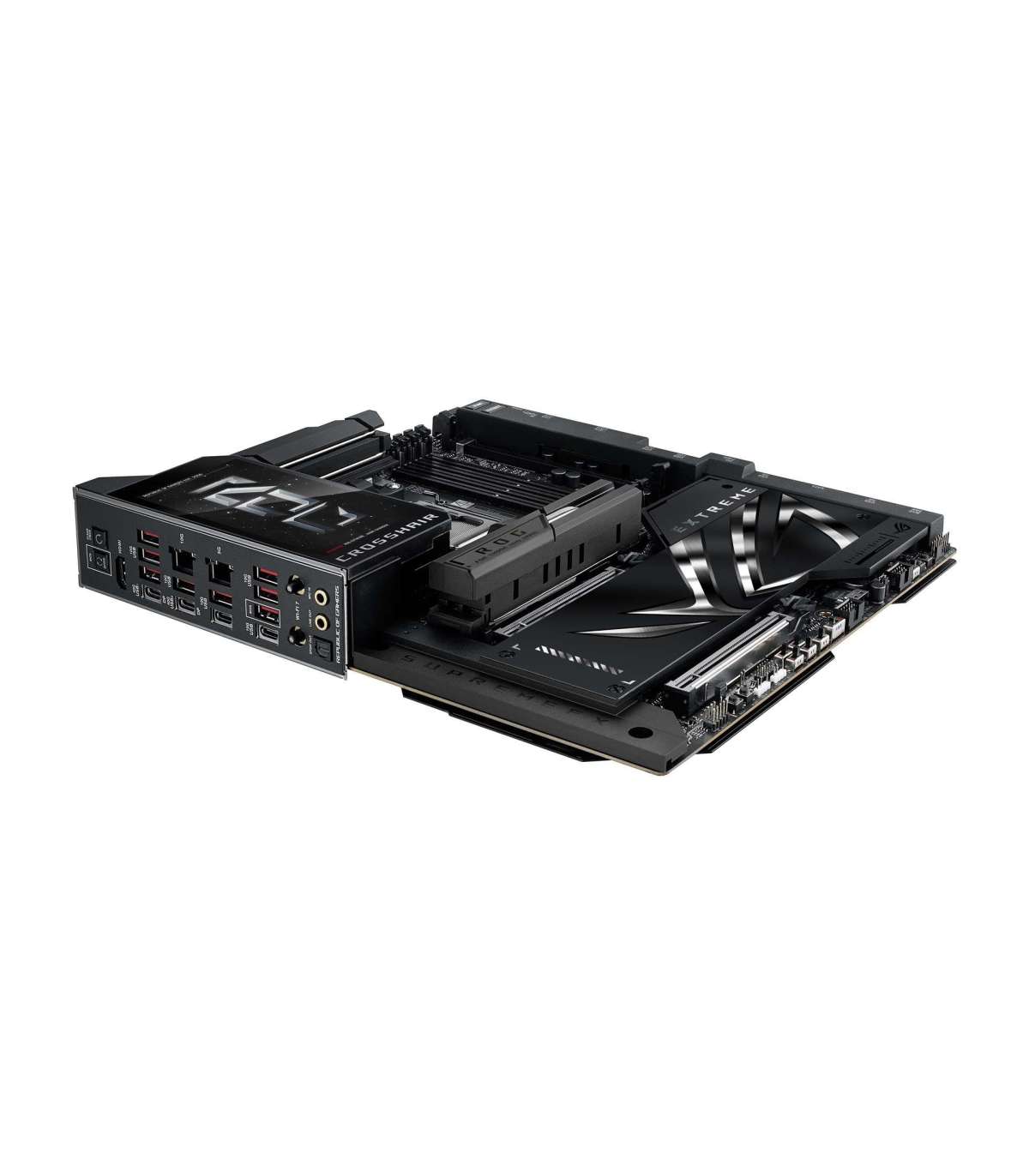

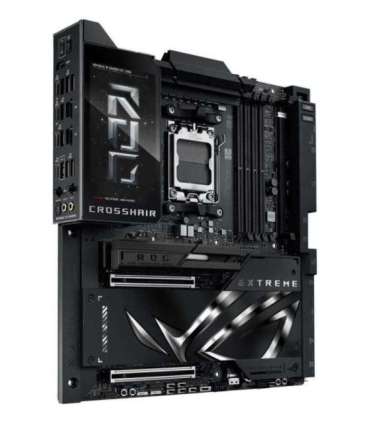

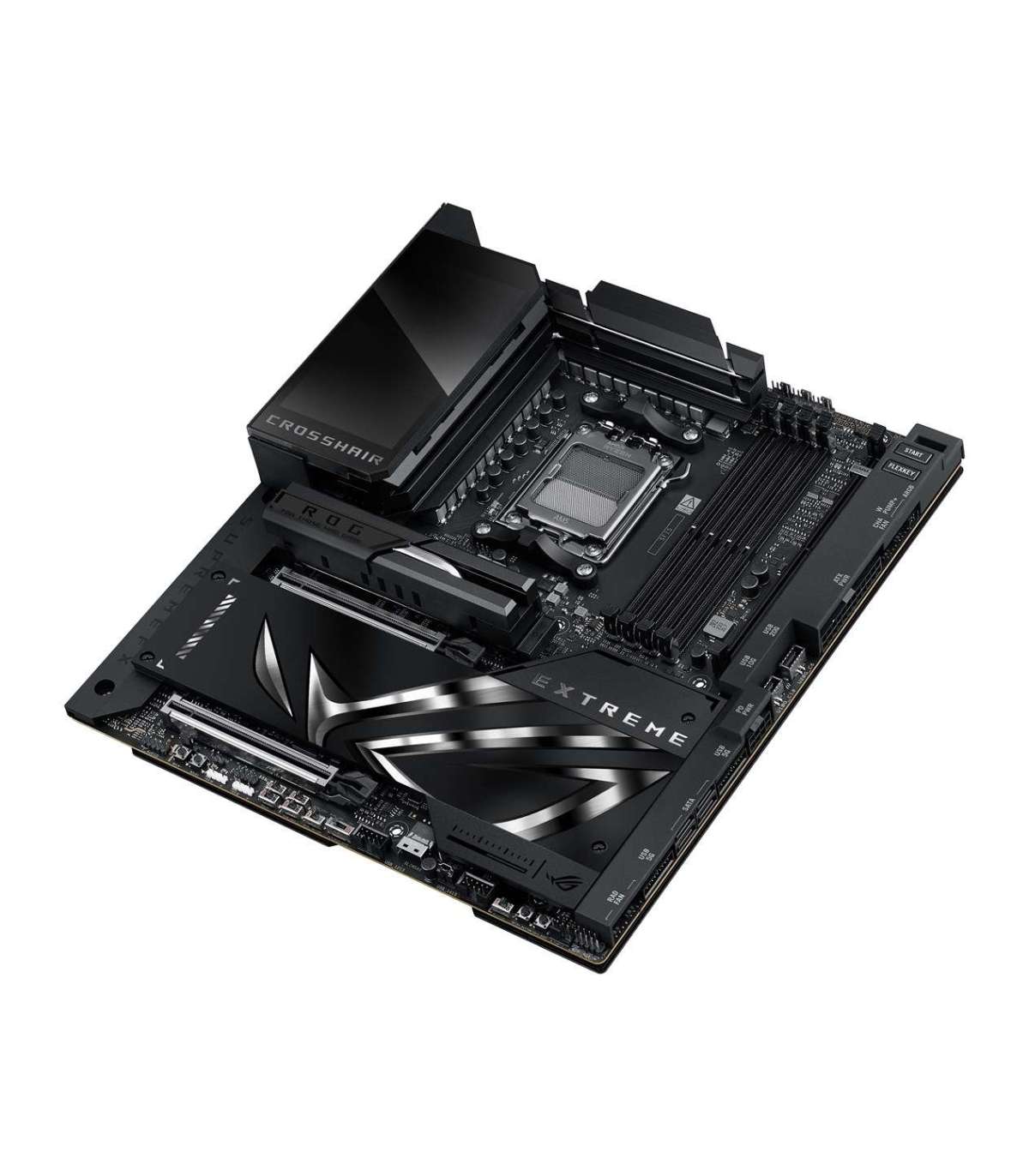

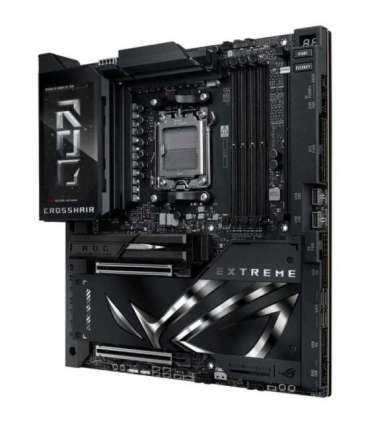

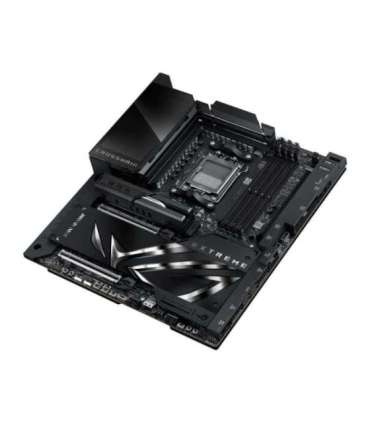

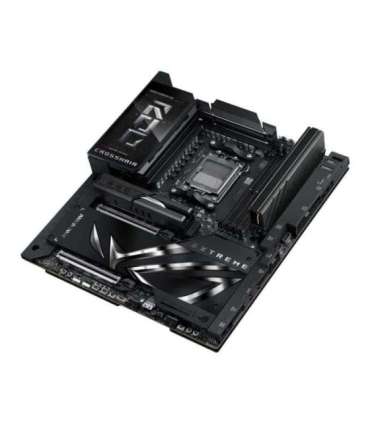

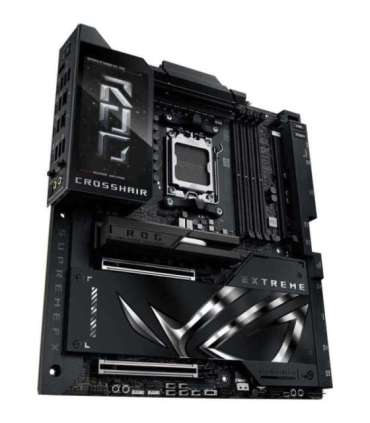

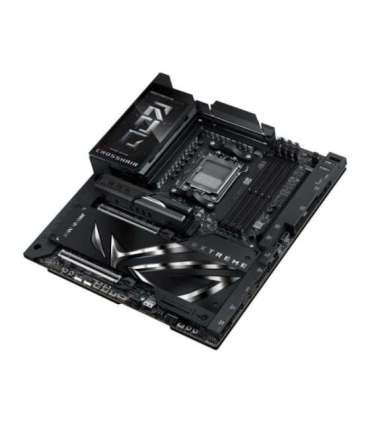

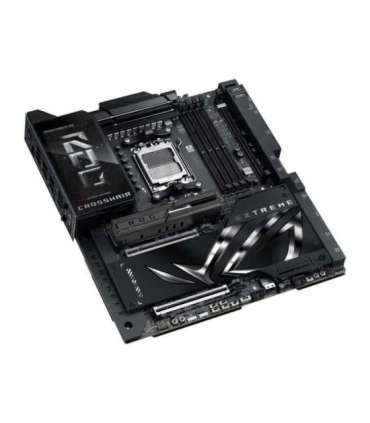

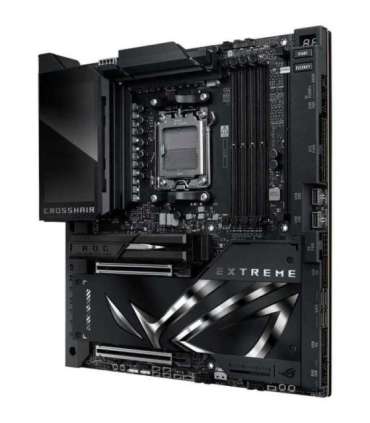

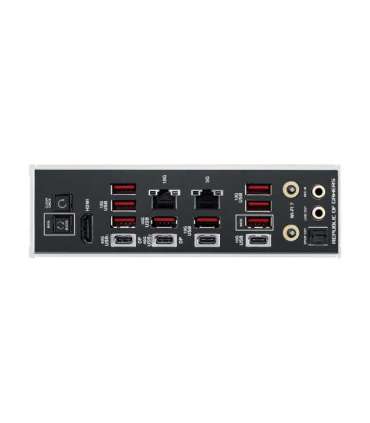

ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX

Lisainfo

Depth

277 mm

Laius

305 mm

Package weight

5.66 kg

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 11

Package width

380 mm

Package depth

320 mm

Package height

125 mm

Antenna included

Yes

Wi-Fi

Yes

Ethernet interface type

5 Gigabit Ethernet
10 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870E

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

8

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4082

USB4 Gen 3x2 ports quantity

2

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

Extended ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III, SlimSAS

PS/2 ports quantity

1

ECC сompatibility

ECC & Non-ECC

Drivers included

Yes

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

5

Supported processor sockets

Socket AM5

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

10

RAID support

Yes

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

WiFi-AP antenna jack

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 3.2 Gen 2x2 connectors

1

PCI Express x16 (Gen 5.x) slots

2

3rd M.2 highest PCI Express generation

5.0

3rd M.2 largest key size

22110

4th M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

5th M.2 largest key size

22110

5th M.2 highest PCI Express generation

4.0
