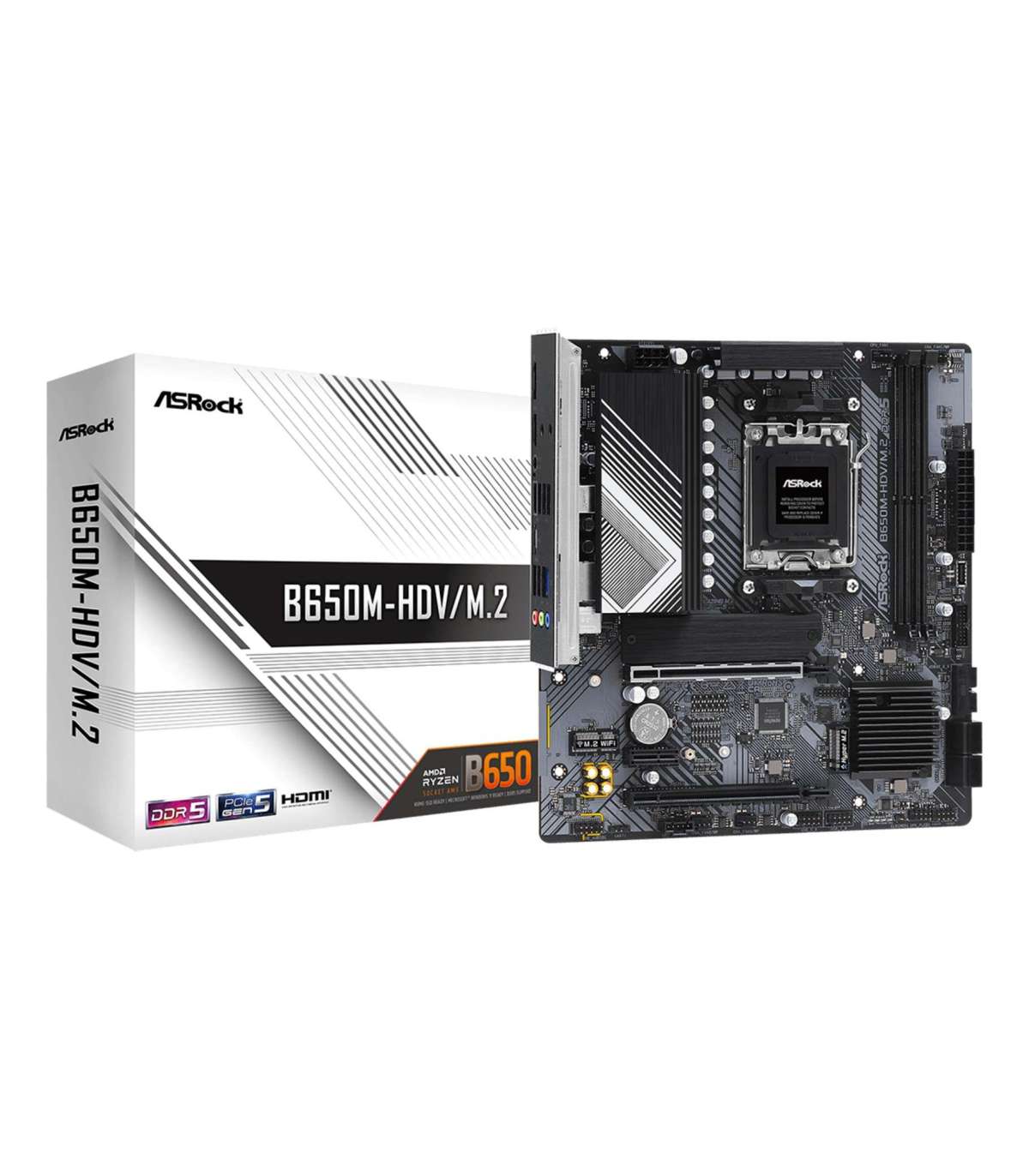

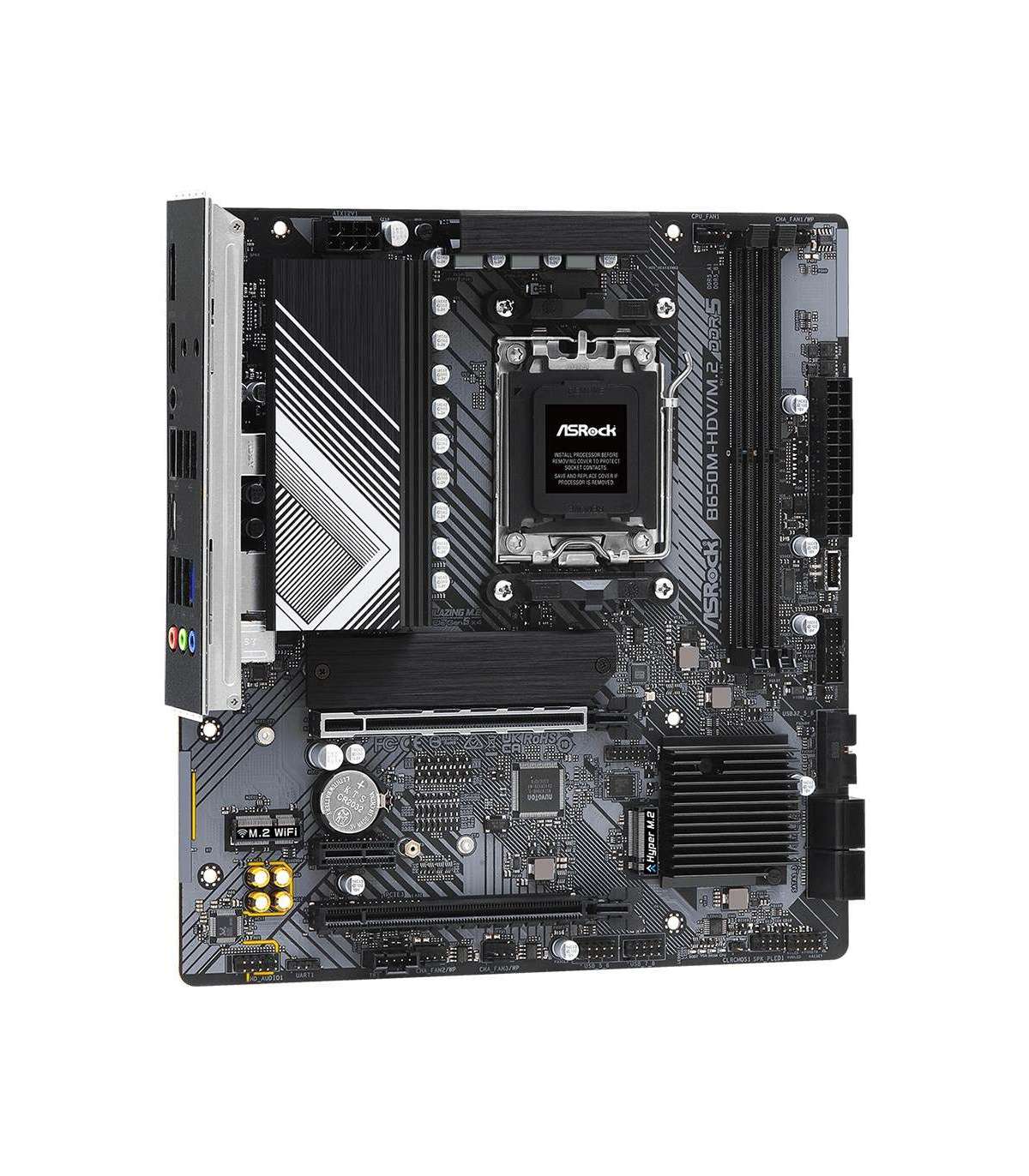

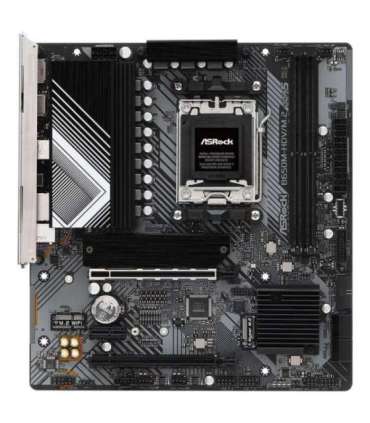

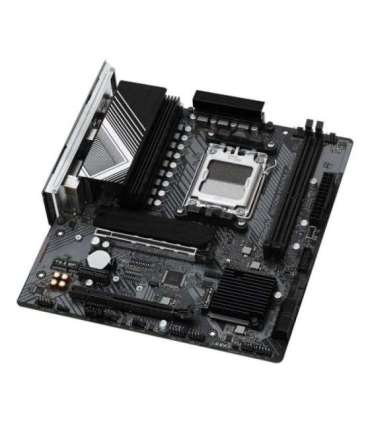

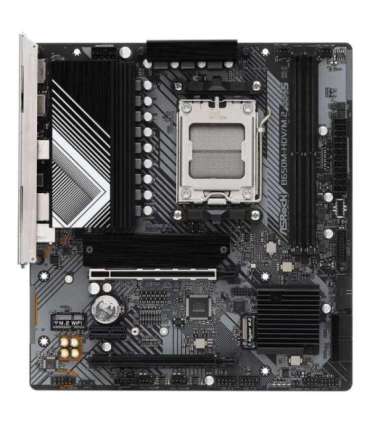

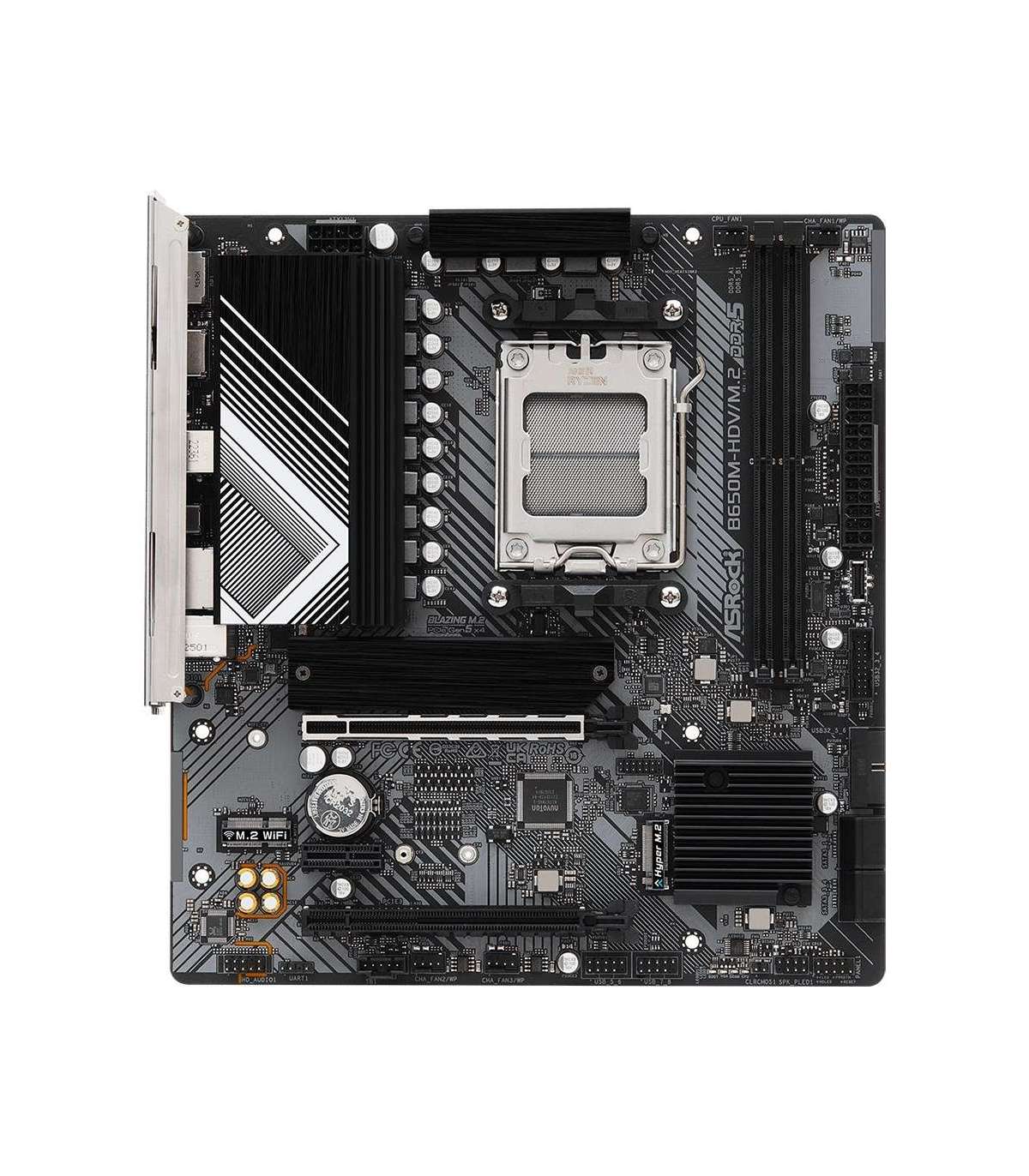

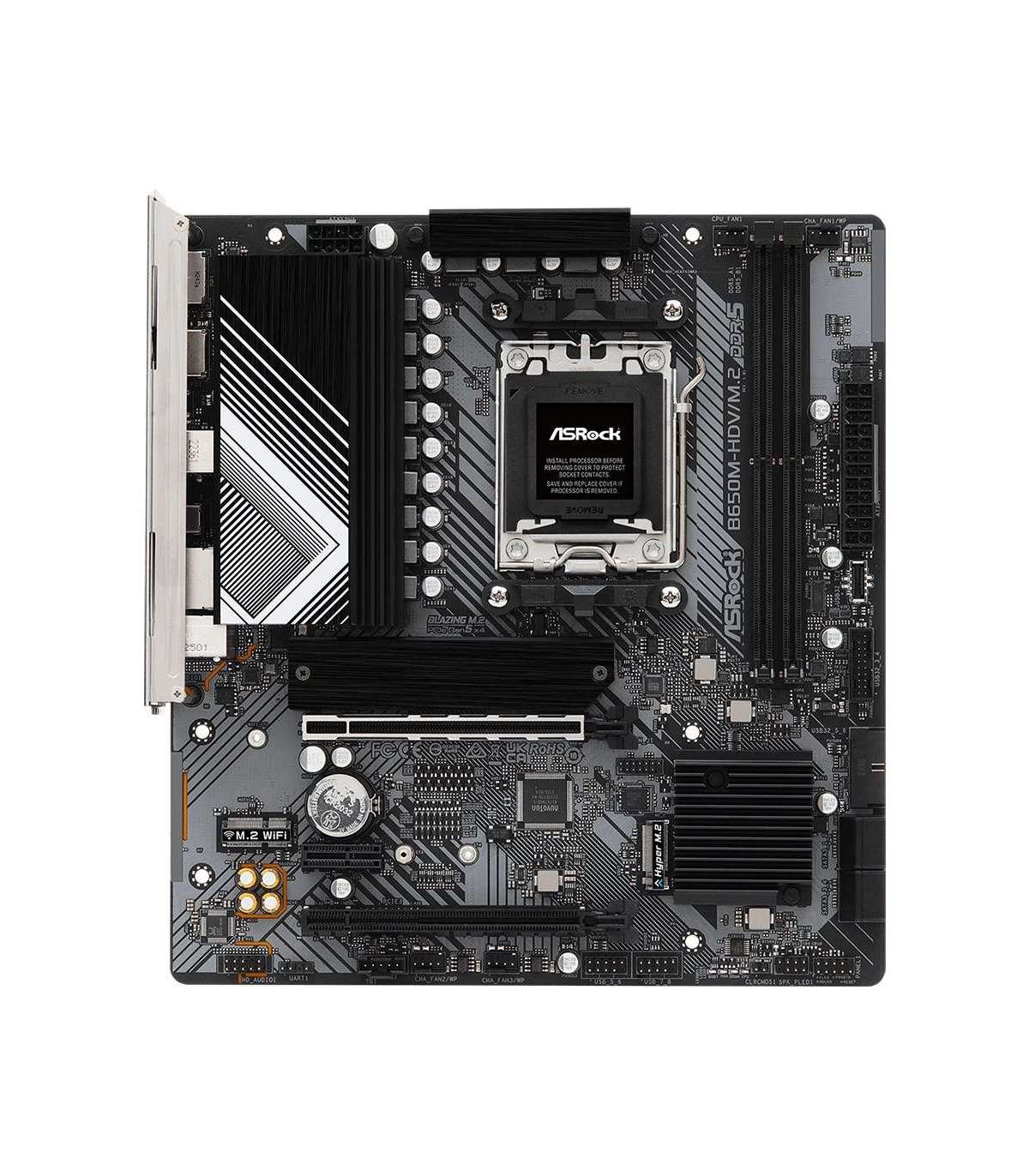

Asrock B650M-HDV/M.2 AMD B650 Socket AM5 micro ATX

Lisainfo

Depth

226 mm

Laius

244 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

64 GB

Motherboard chipset

AMD B650

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen™ 7

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125-BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

EFI AMI

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

EPS power connector (8-pin)

Yes

RAID support

Yes

Line-in

Yes

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

1

Thunderbolt headers

1
