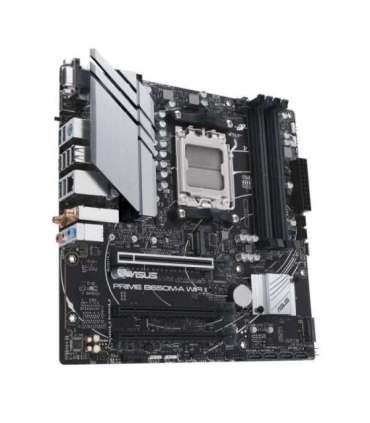

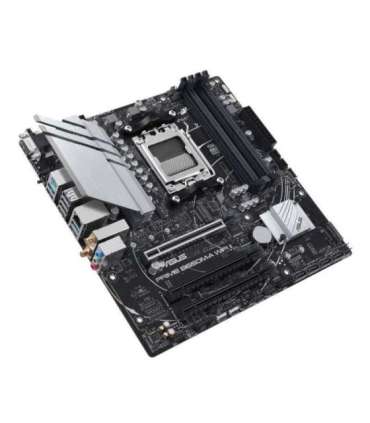

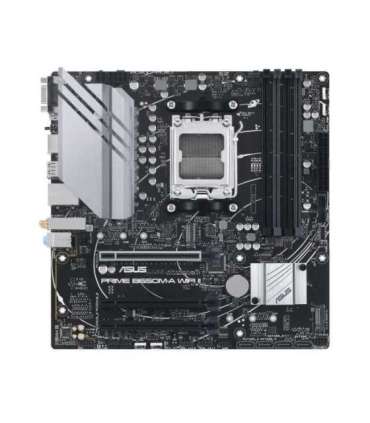

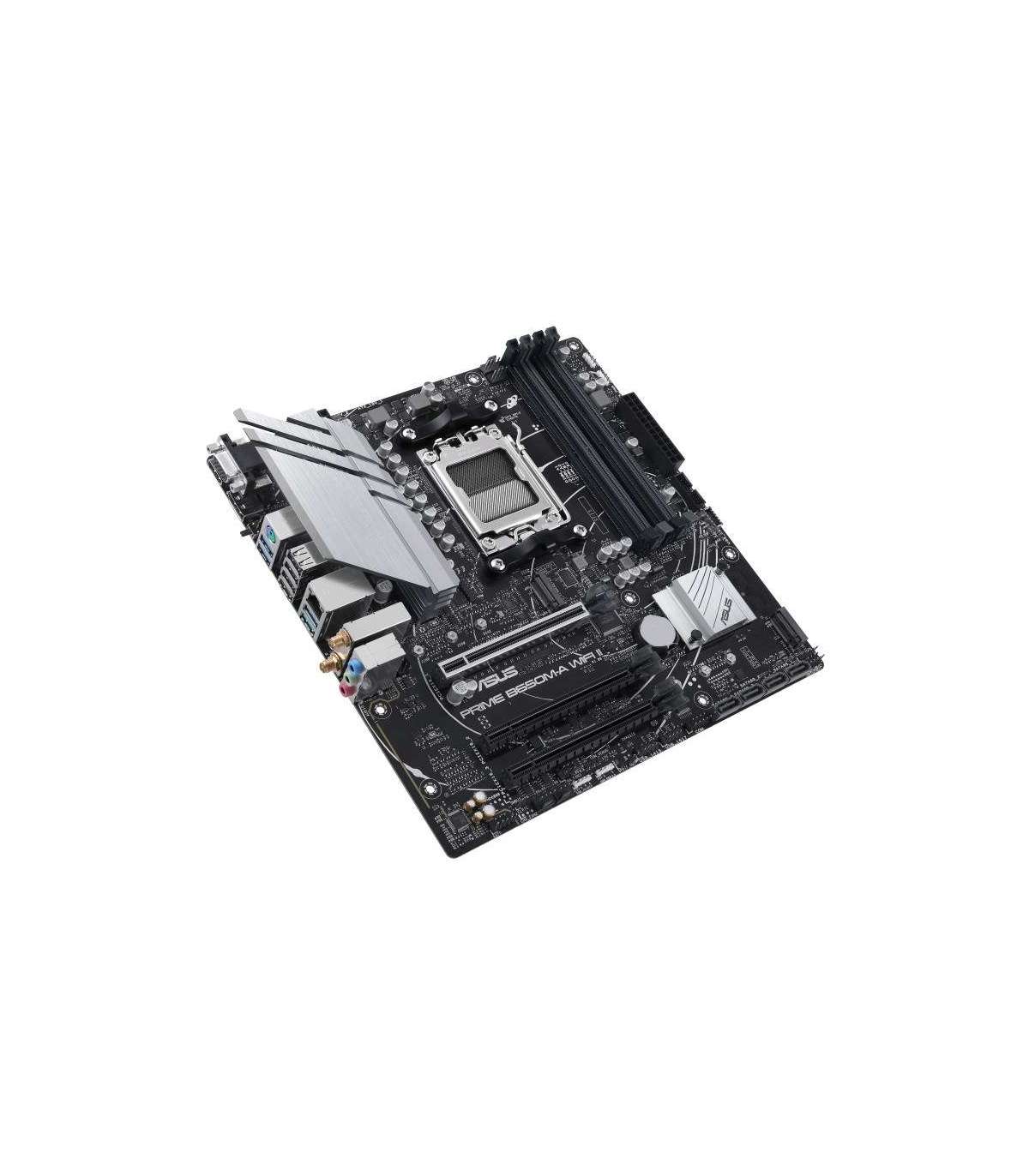

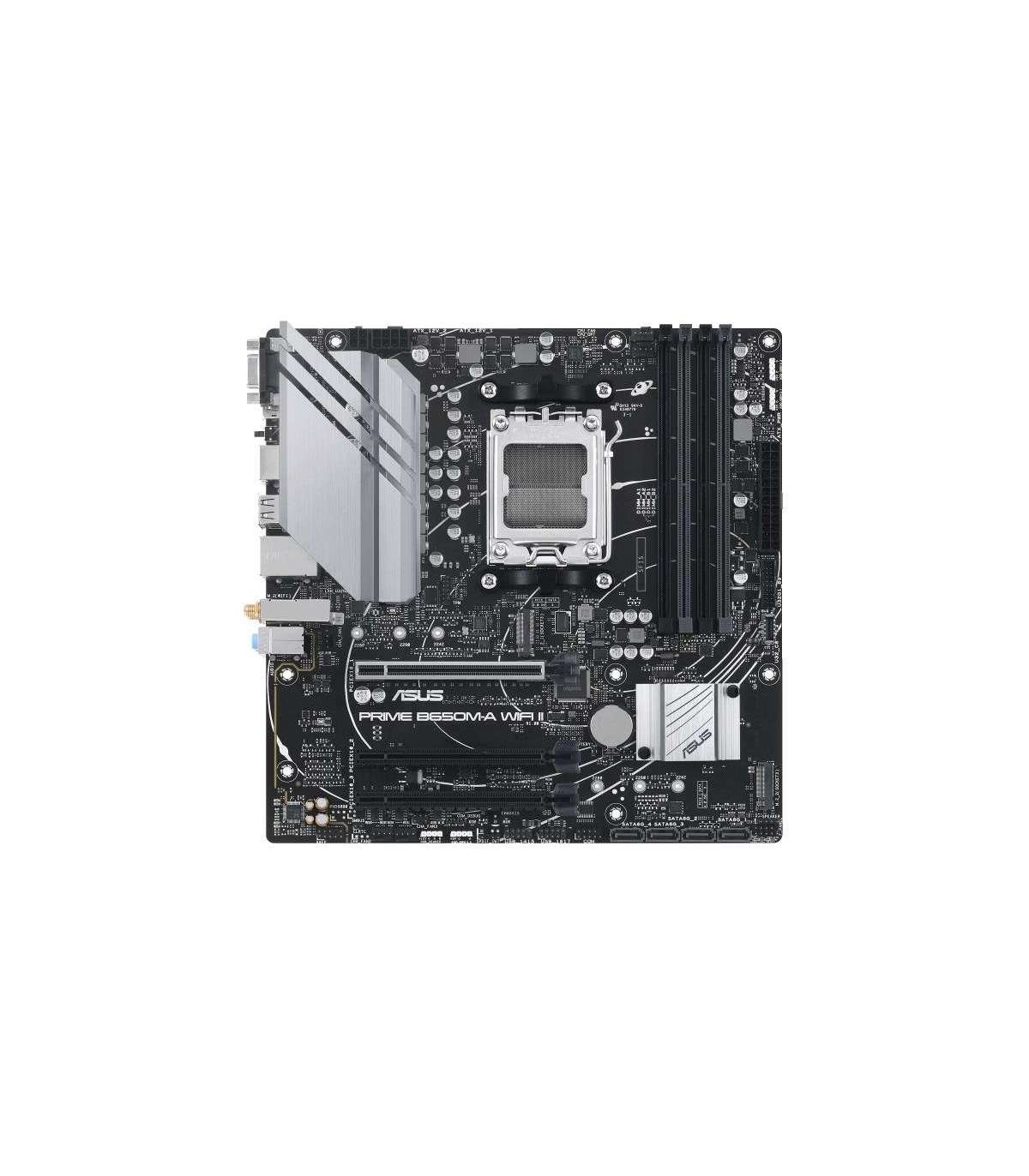

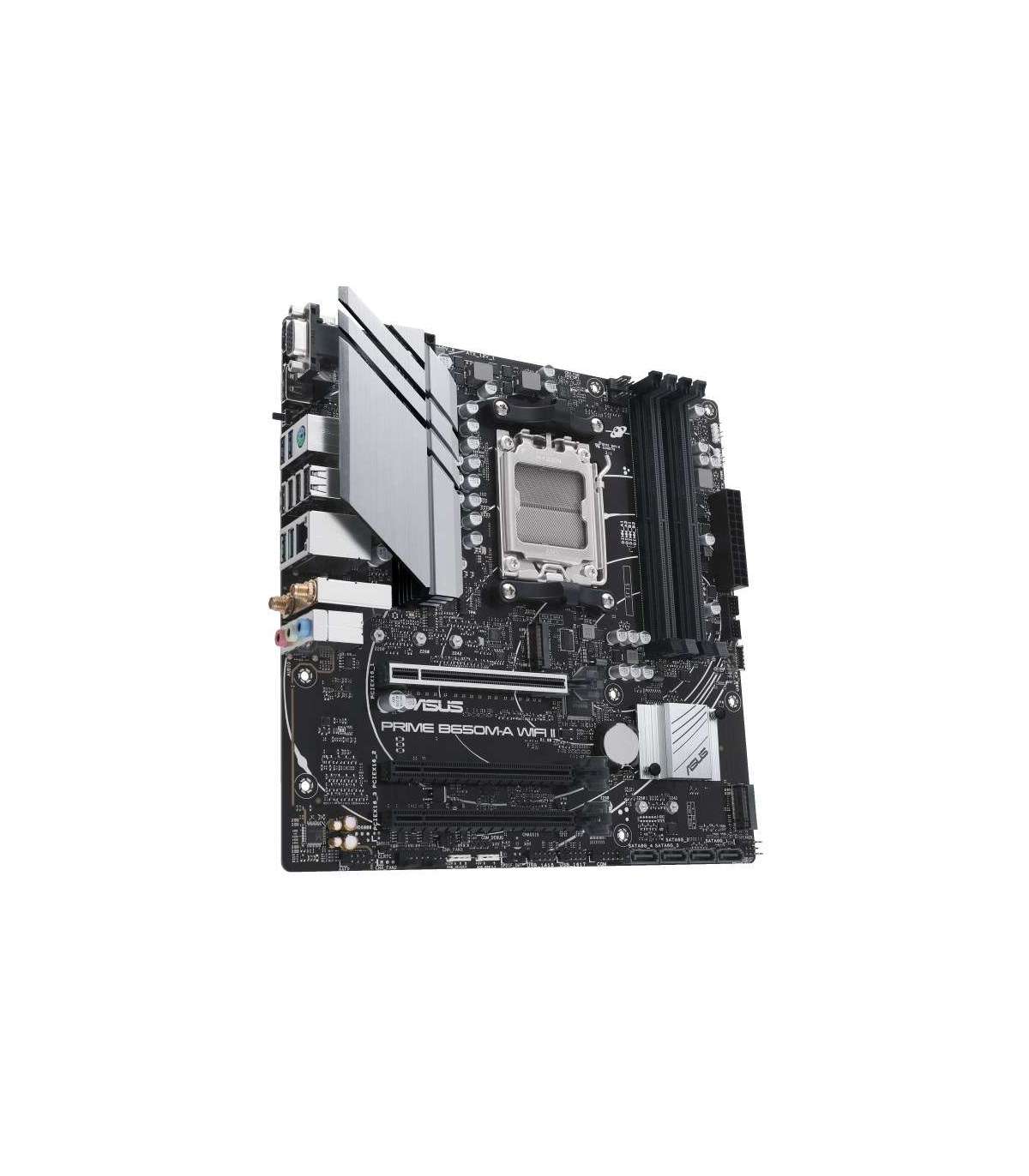

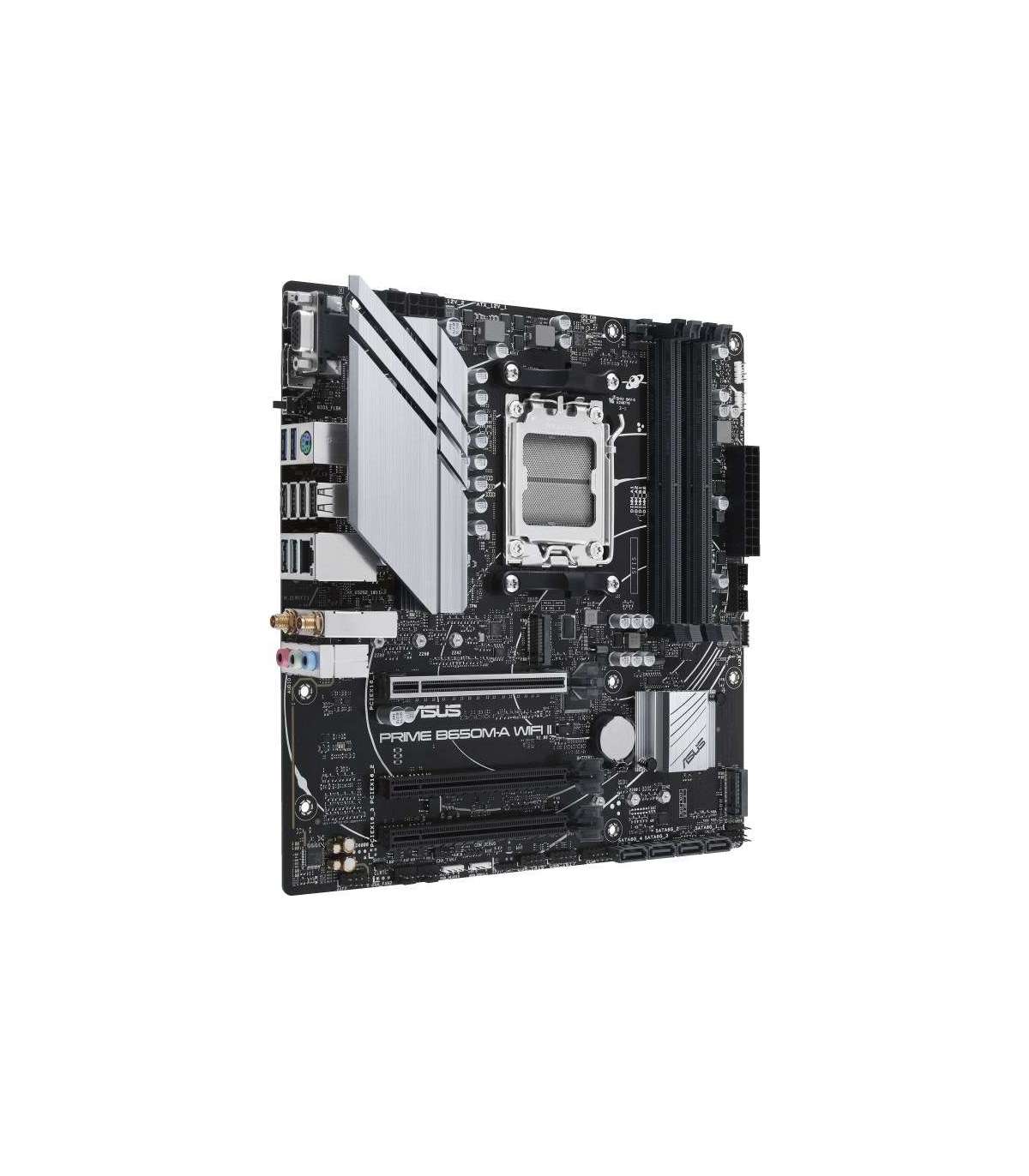

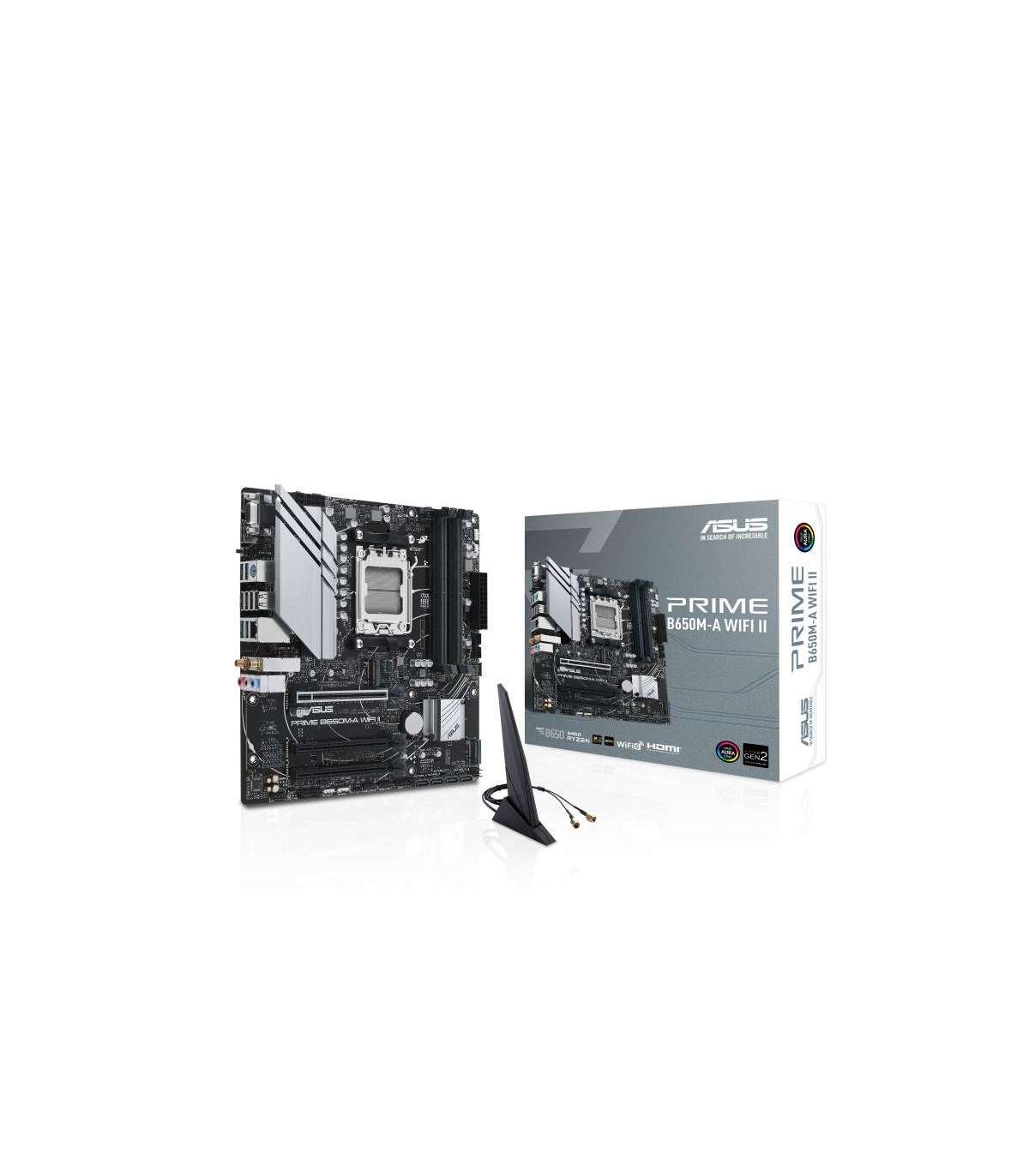

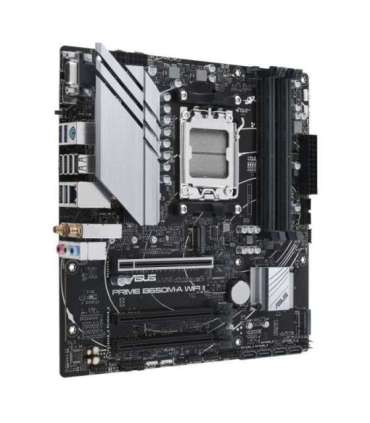

ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX

Lisainfo

Depth

244 mm

Laius

244 mm

Power source type

ATX

Ethernet LAN

Yes

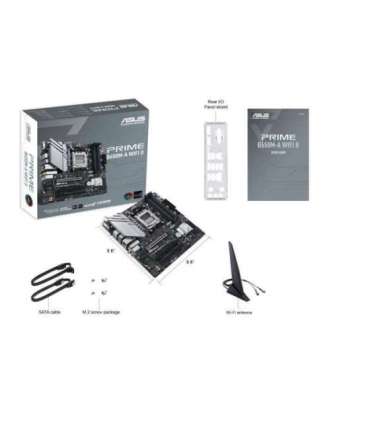

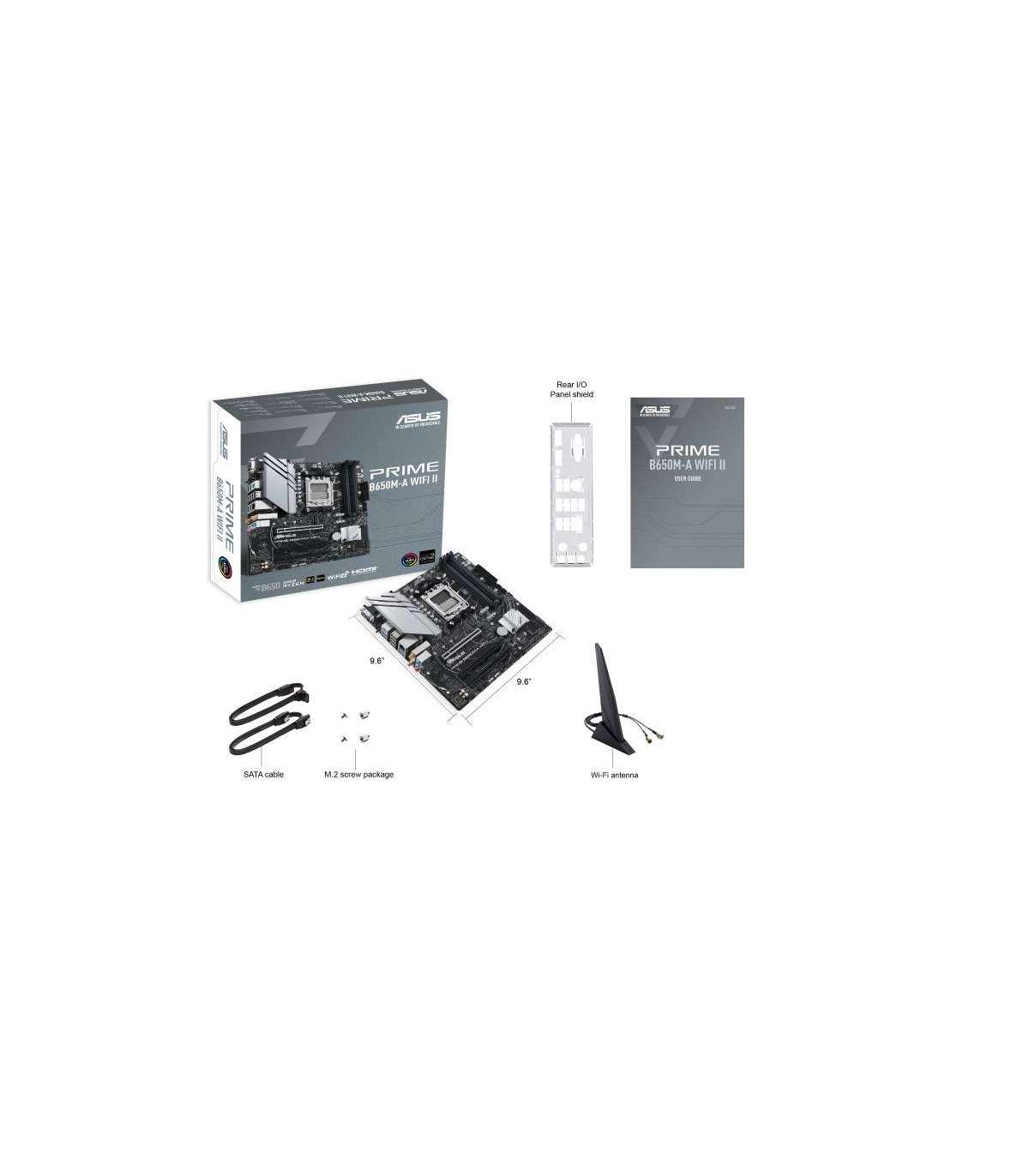

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

USB connector type

USB Type-A

Maximum internal memory

128 GB

Bluetooth version

5.2

Bluetooth

Yes

Motherboard chipset

AMD B650

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen™ 7

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000
6200
6400 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

3

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA

VGA (D-Sub) ports quantity

1

Microphone in

Yes

ECC сompatibility

ECC & Non-ECC

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

3

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

2

RAID support

Yes

Power fan connector

Yes

Audio connector

Yes

Line-in

Yes

Number of SATA connectors

4

S/PDIF out connector

Yes

Total number of SATA connectors

4

Clear CMOS button

Yes

Peripheral (Molex) power connectors (4-pin)

4
