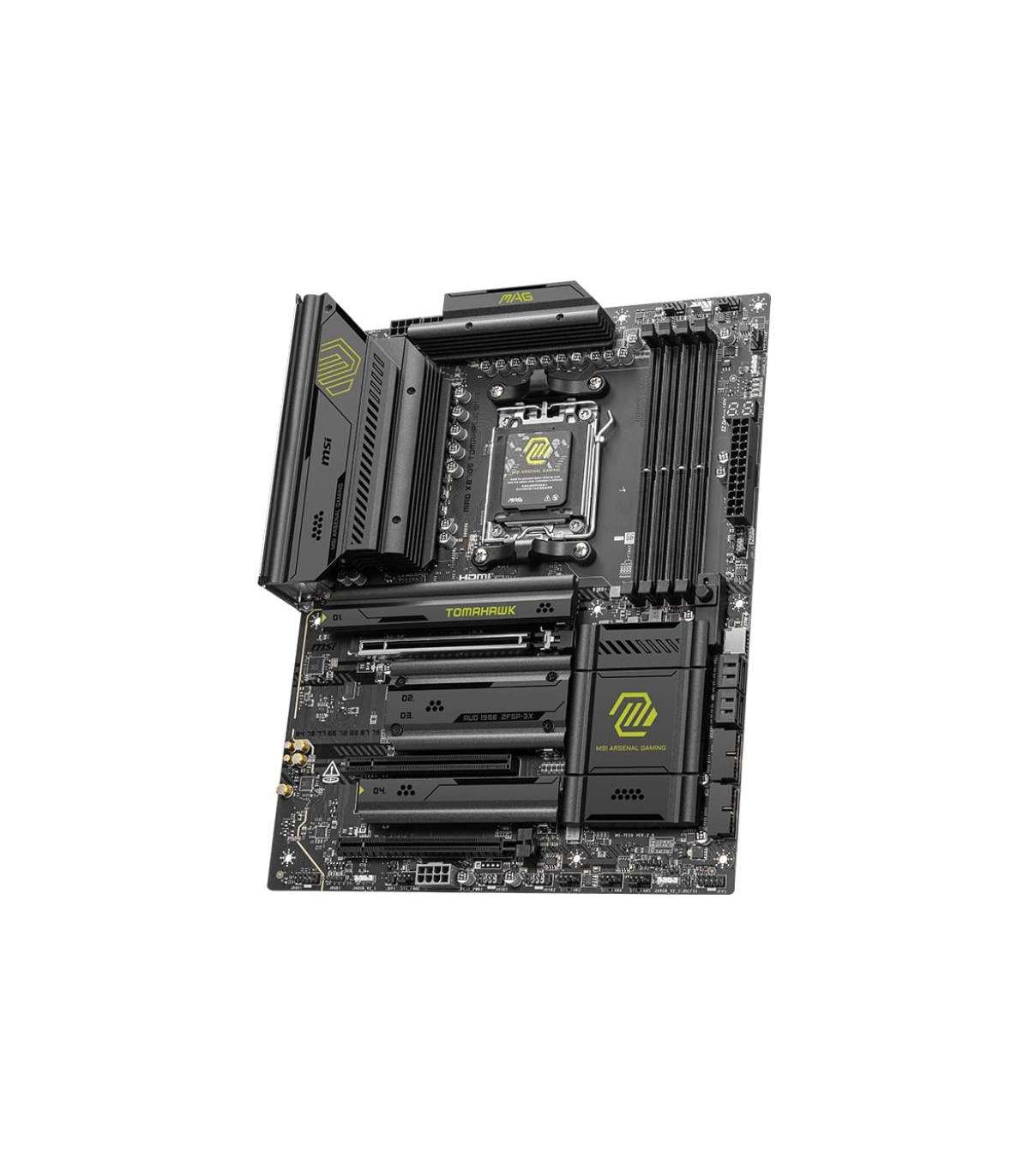

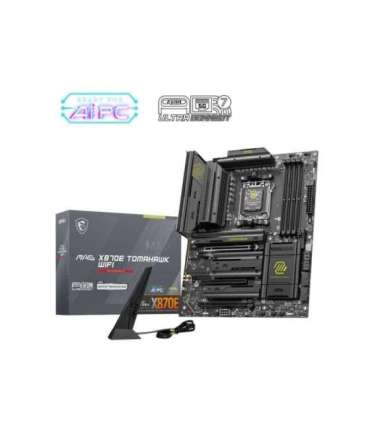

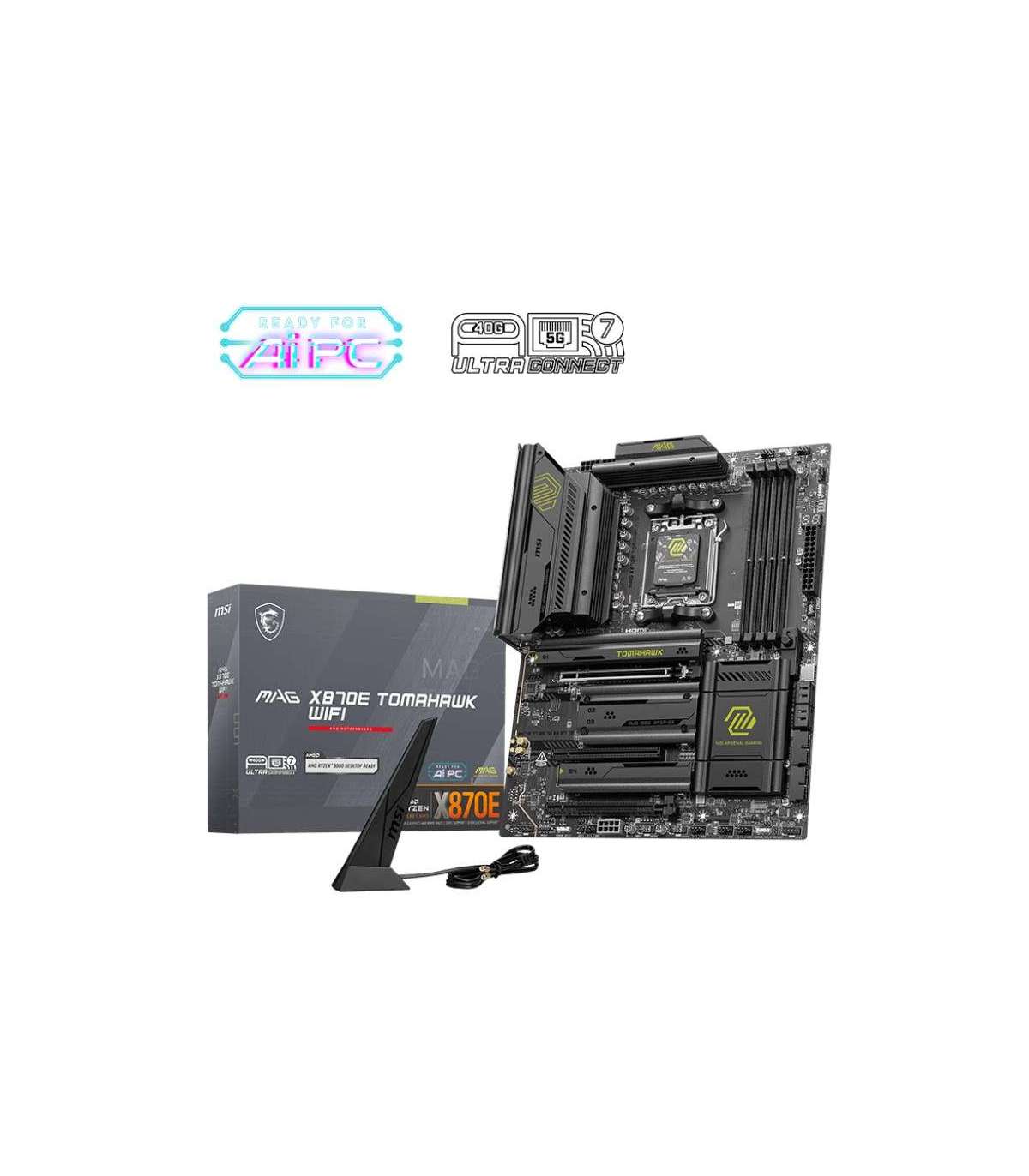

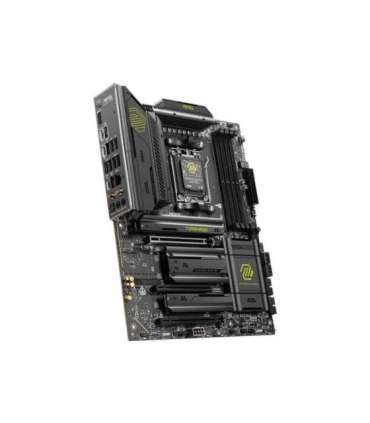

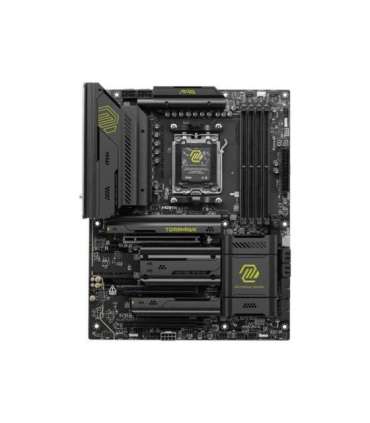

MSI MAG X870E TOMAHAWK WIFI motherboard AMD X870E Socket AM5 ATX

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Product colour

Must

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Warnings

Do not disassemble to avoid damage to internal components and loss of warranty.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870E

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

USB 2.0 connectors

4

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5600
8400

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8126

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

PC health monitoring

CPU
Fan
Temperature
Voltage

Number of SATA III connectors

4

Supported storage drive types

HDD & SSD

DisplayPorts quantity

2

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8400 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

8

DisplayPort version

1.4

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

Total number of SATA connectors

4

Maximum internal memory supported by processor

256 GB

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

1

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

USB4 Gen 2x2 ports quantity

1

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0
