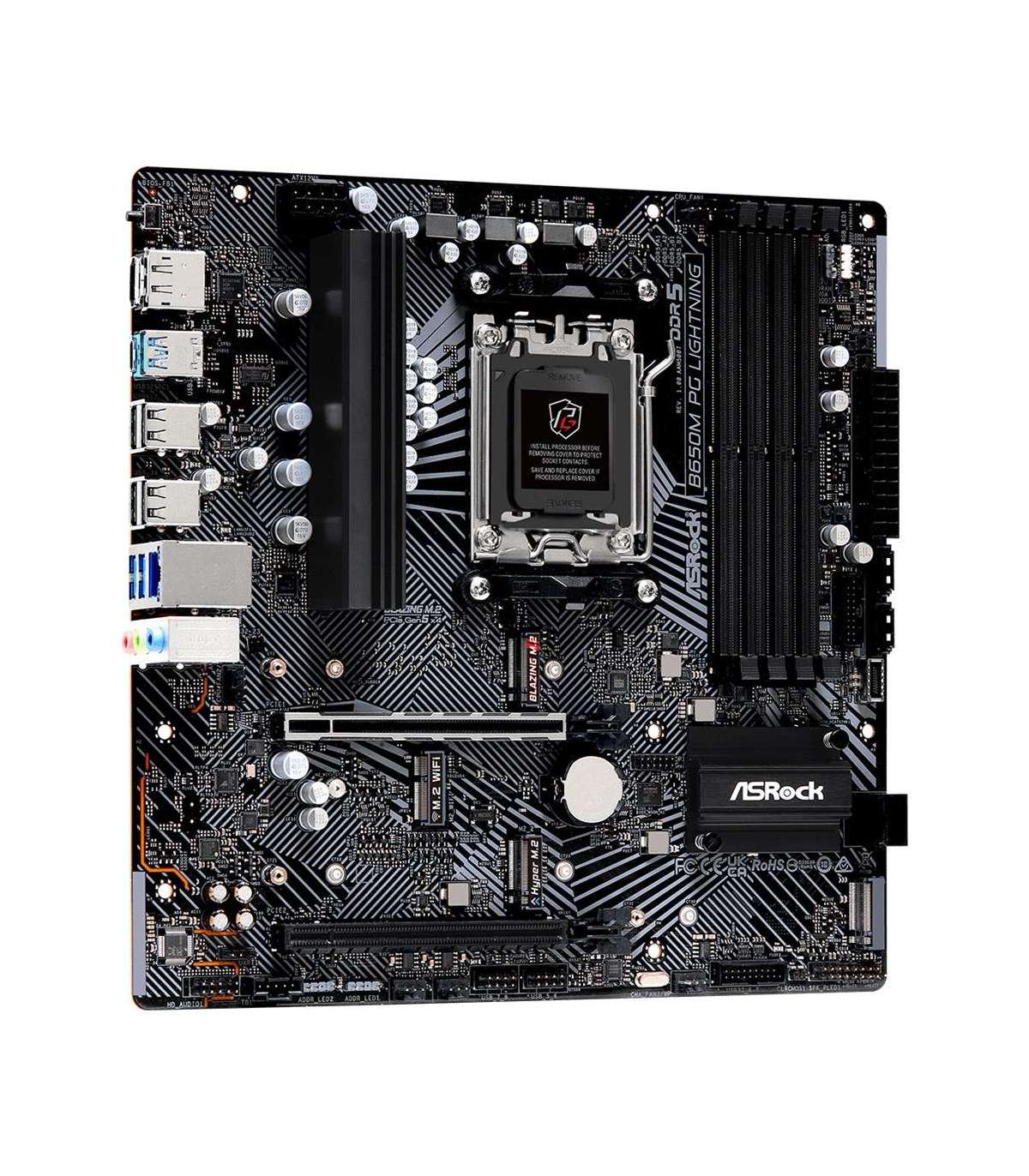

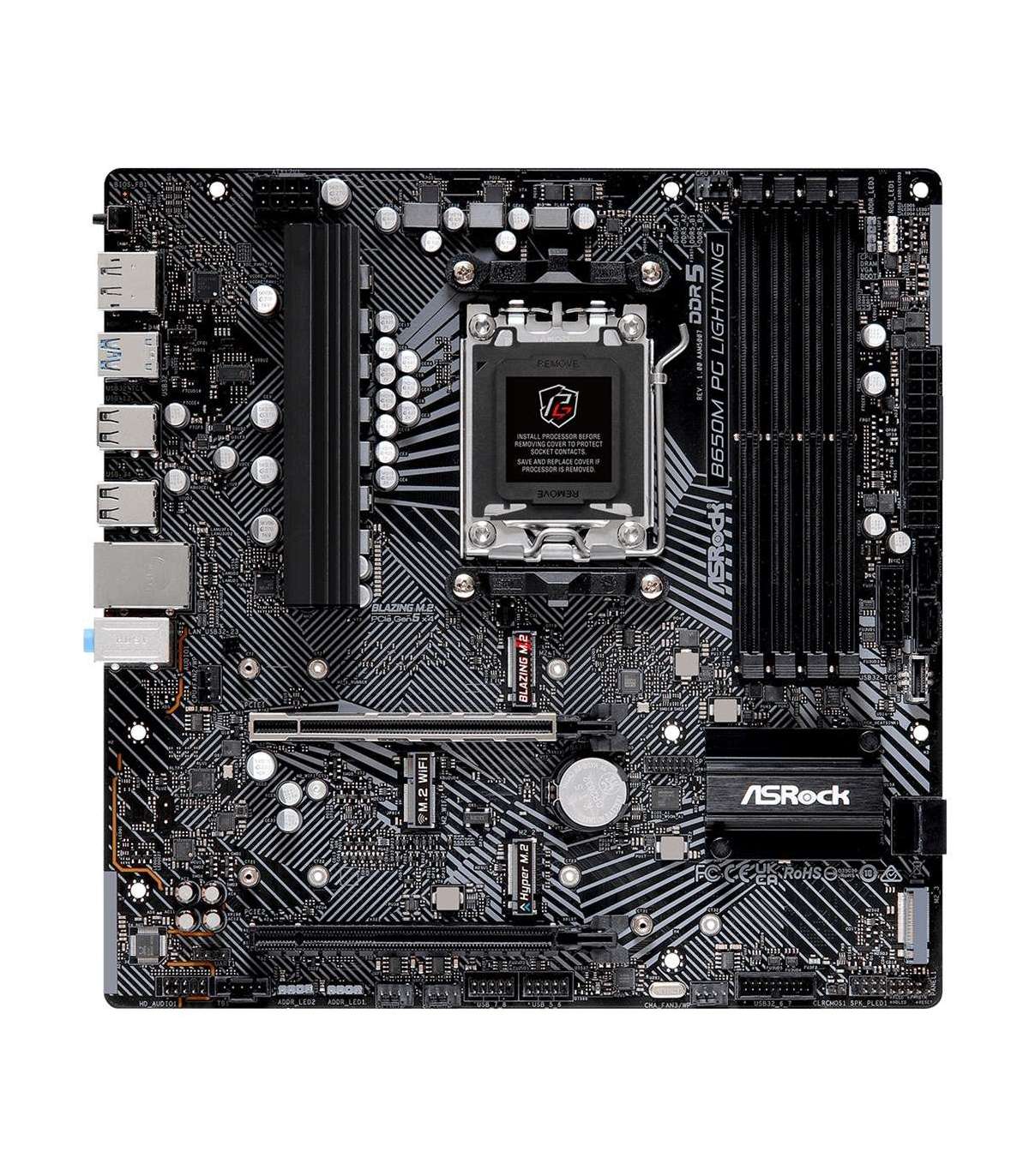

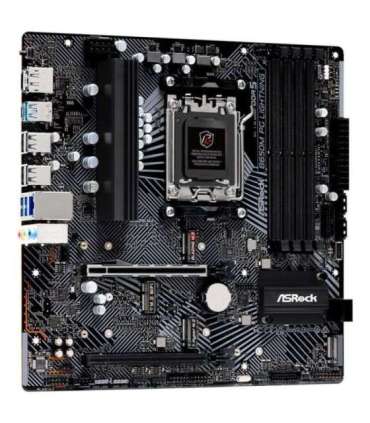

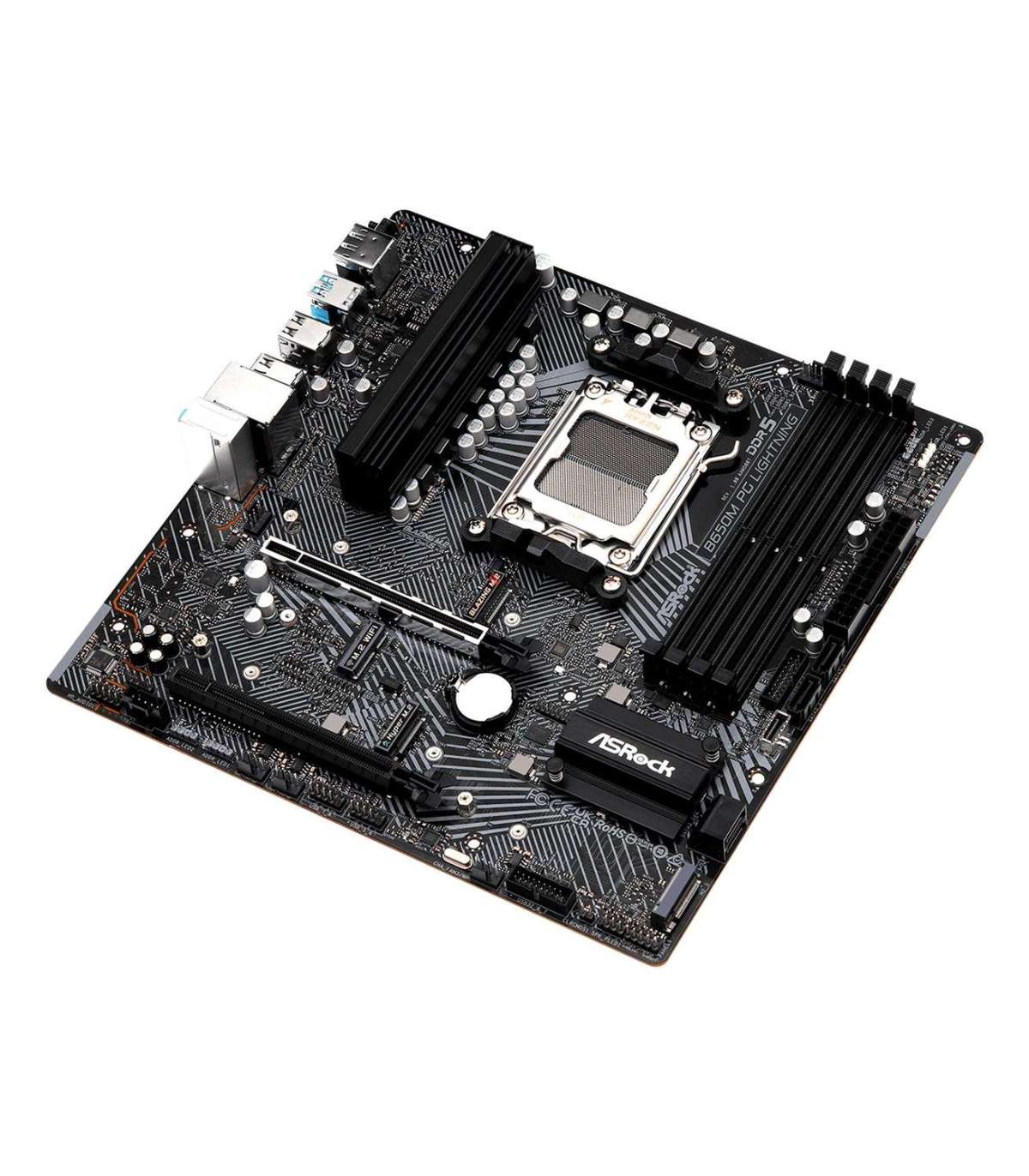

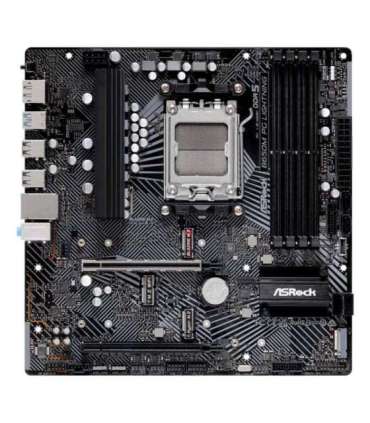

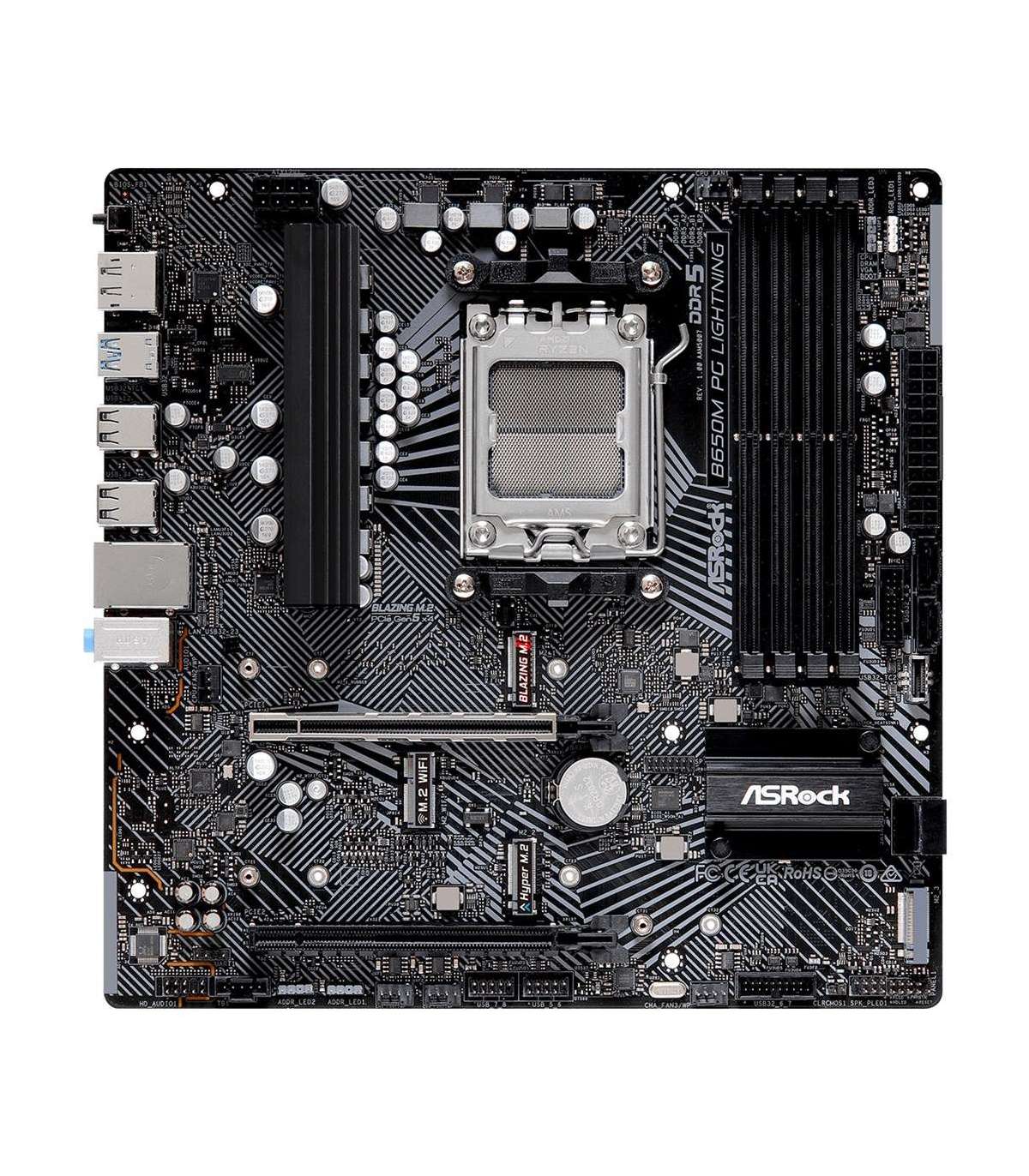

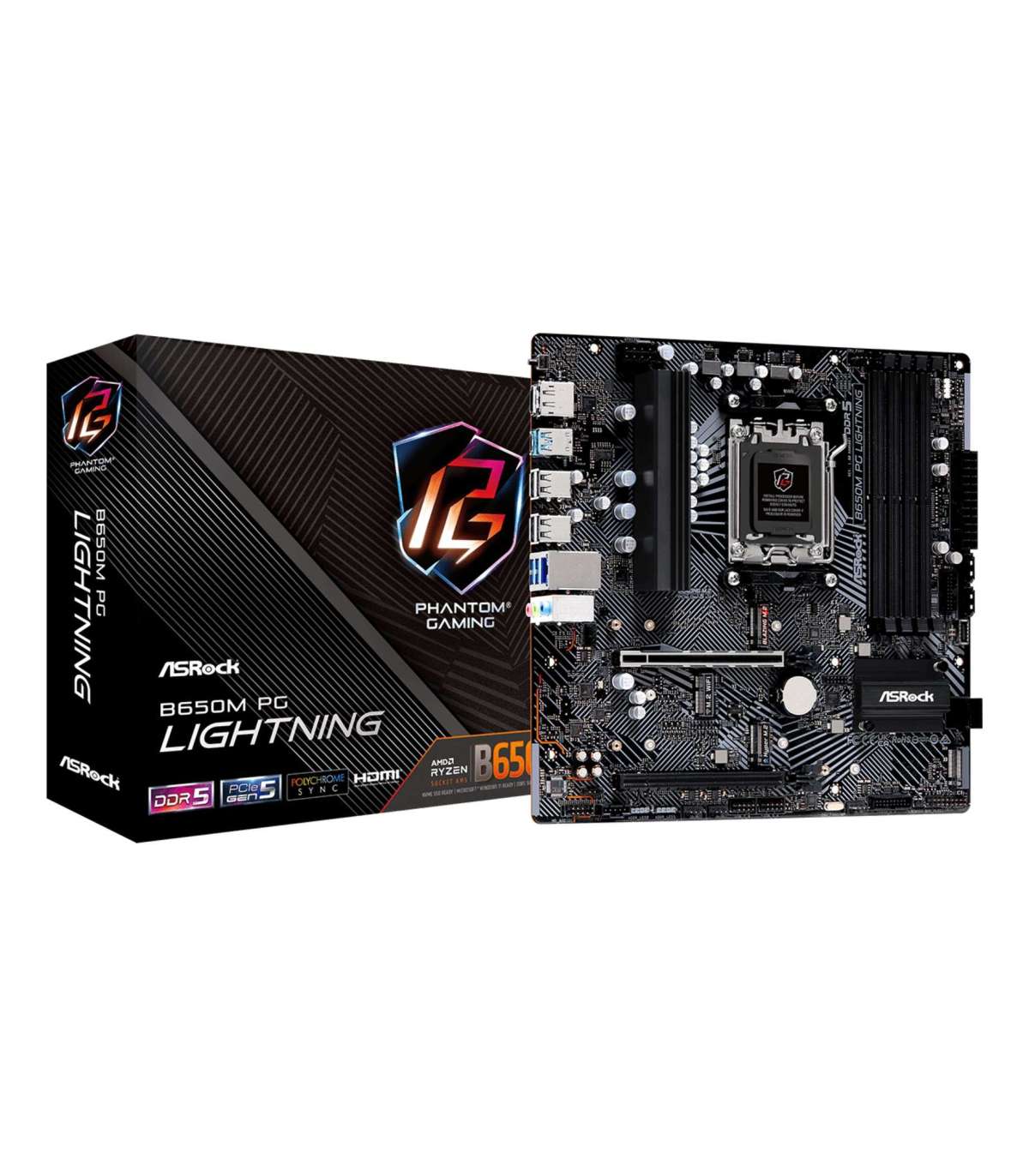

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX

Lisainfo

Depth

244 mm

Laius

244 mm

Product colour

Must

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Warnings

Avoid contact with liquids to prevent electronic damage.
Dispose of in accordance with local regulations for electronic waste.
Do not disassemble to avoid damage to internal components and loss of warranty.

Certification

FCC, CE, ErP/EuP

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

USB connector type

USB Type-A
USB Type-C

Maximum internal memory

192 GB

Motherboard chipset

AMD B650

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Audio chip

Realtek ALC897

Headphone outputs

3

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4400
4800
5200
5600
6000
6200
6400 MHz
6600
6800
7000
7200 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Number of chassis fan connectors

3

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

CrossFire

Maximum resolution

3840 x 2160 pixels

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

HDCP

Yes

Supported memory clock speed (max)

7200 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

7

RAID support

Yes

Screws included

Yes

DisplayPort version

1.4

Thunderbolt headers

1
