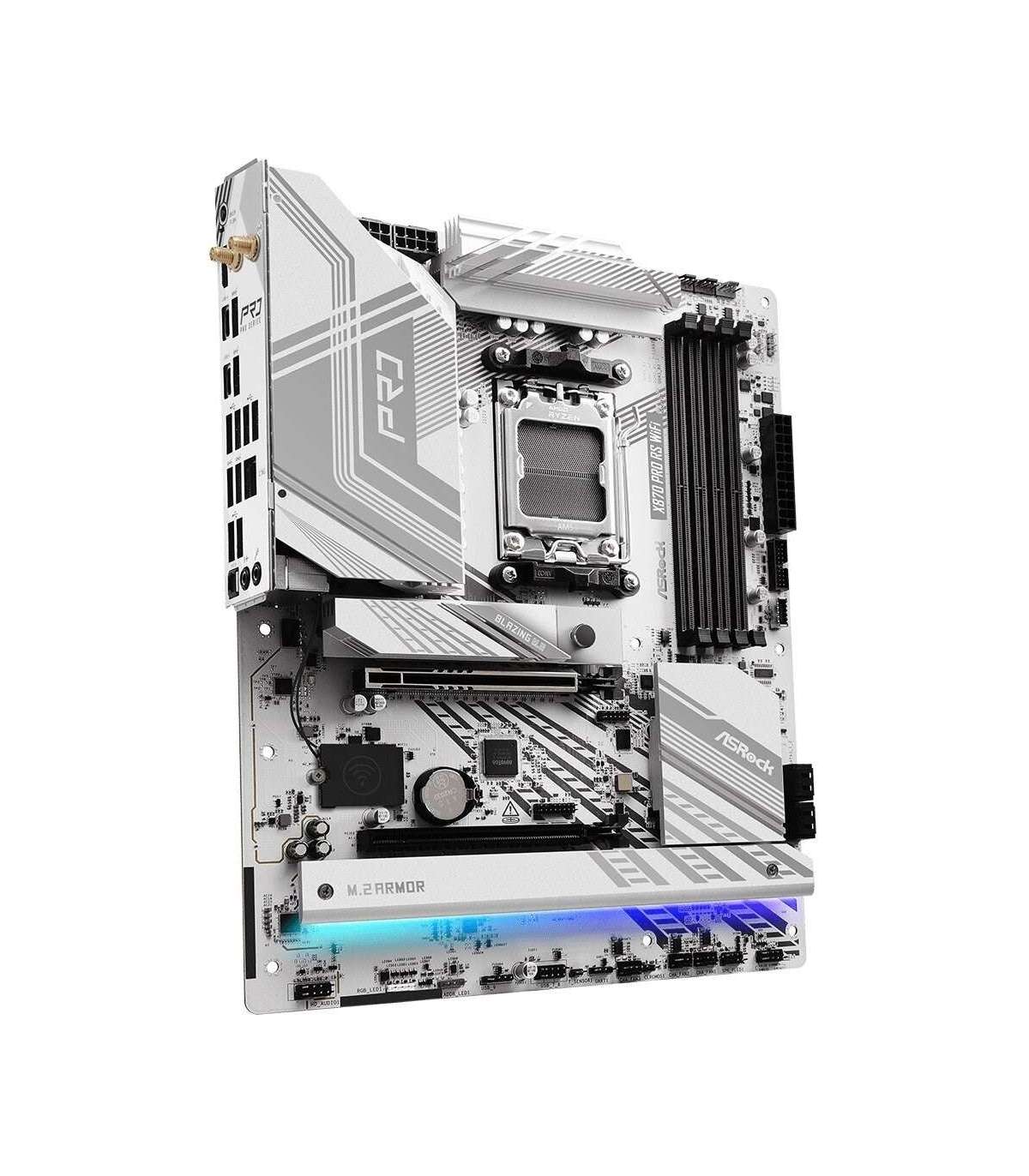

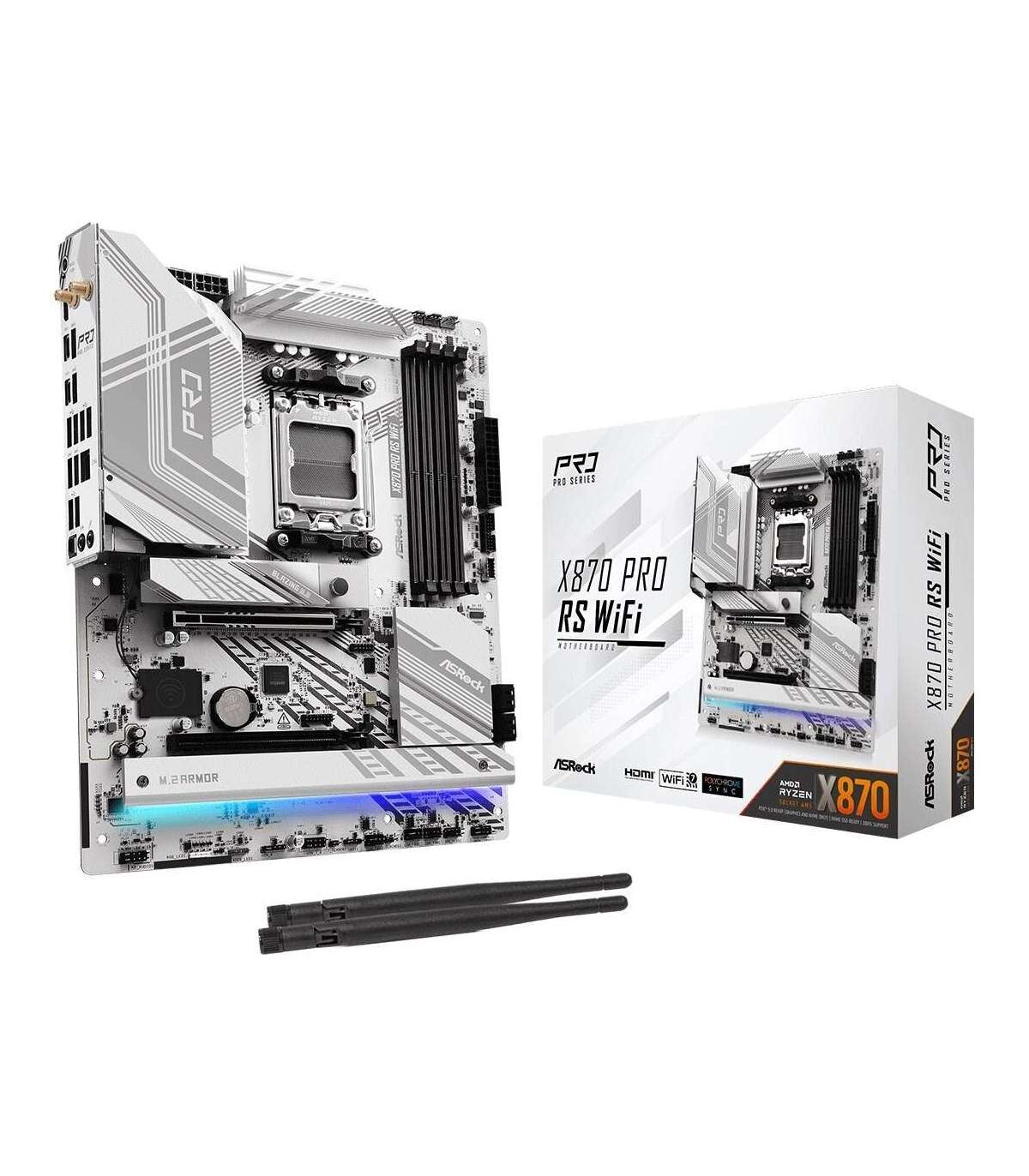

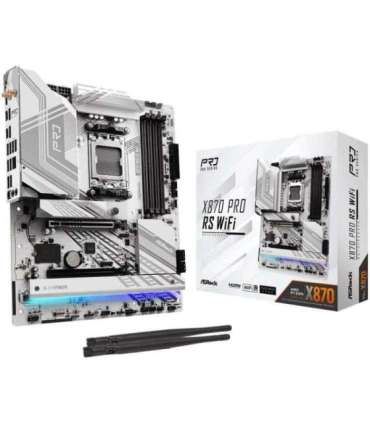

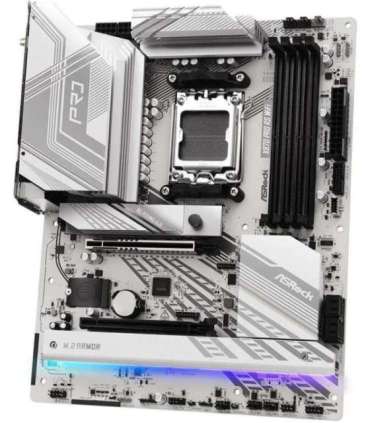

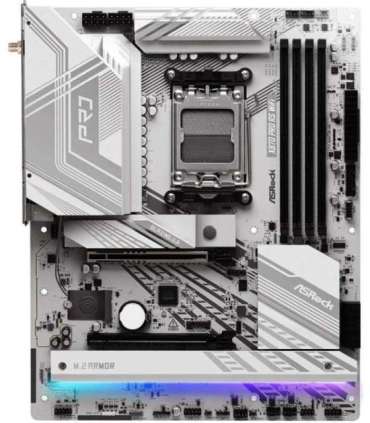

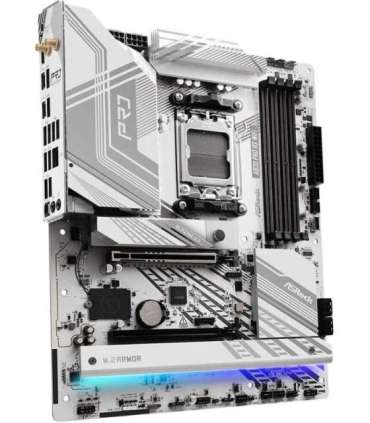

Motherboard - ASRock X870 Pro RS WiFi

Lisainfo

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

AMD X870

HDMI ports quantity

1

Memory channels

Dual-channel

Operating system architecture

64-bit

Audio chip

Realtek ALC1220

USB 3.2 Gen 2x2 Type-C ports quantity

2

USB 2.0 connectors

2
6

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen™ 7000 Series
AMD Ryzen™ 8000 Series
AMD Ryzen™ 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)

Microphone in

Yes

Maximum number of SMP processors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

S/PDIF out port

Yes

Supported memory clock speed (max)

8000+ MHz

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

1

Line-out

Yes

Wi-Fi antenna socket

Yes
