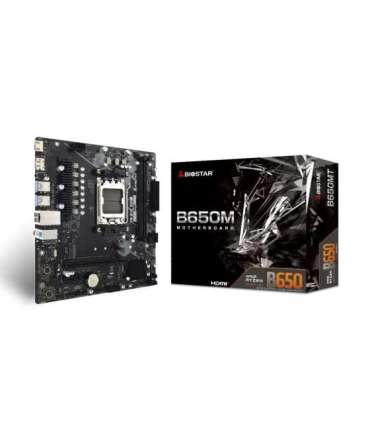

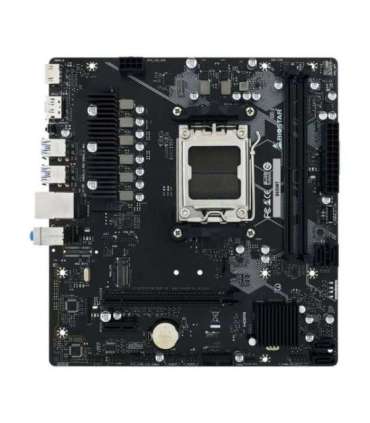

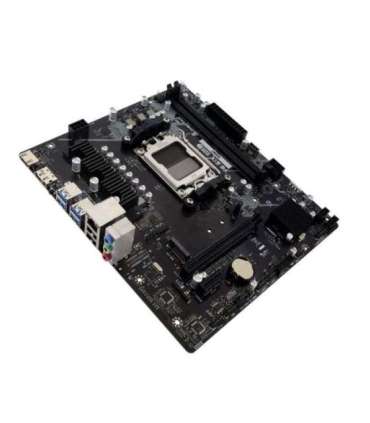

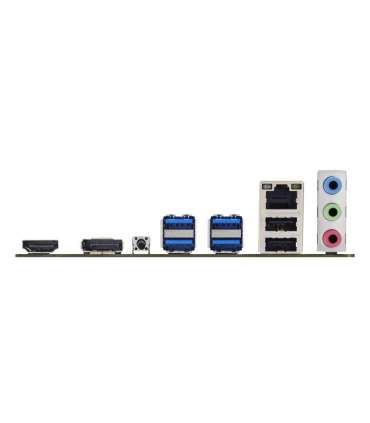

Biostar B650MT motherboard AMD B650 Socket AM5 micro ATX

Lisainfo

Depth

235 mm

Laius

221 mm

Product colour

Must
Silver

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

96 GB

Motherboard chipset

AMD B650

HDMI version

1.4

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Bundled software

BullGuard

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen™ 7

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5200
5400
5600
6000

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8111H

Number of chassis fan connectors

1

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Drivers included

Yes

Maximum resolution

4096 x 2160 pixels

PC health monitoring

CPU
Fan
Temperature
Voltage

Number of SATA III connectors

4

12V power connector

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

Supported processor sockets

Socket AM5

HDCP

Yes

Front panel connector

Yes

RAID support

Yes

DirectX version

12.0

Supported memory module capacities

8GB
16GB
32GB
48GB

Audio connector

Yes

DisplayPort version

1.2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
