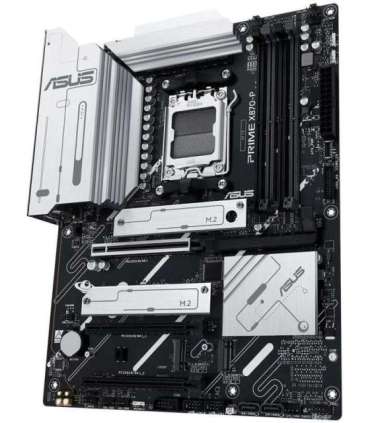

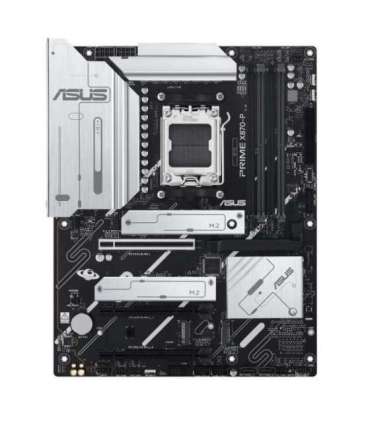

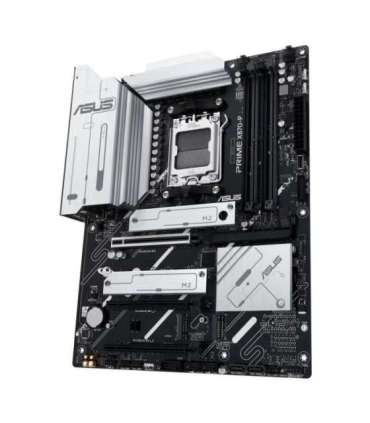

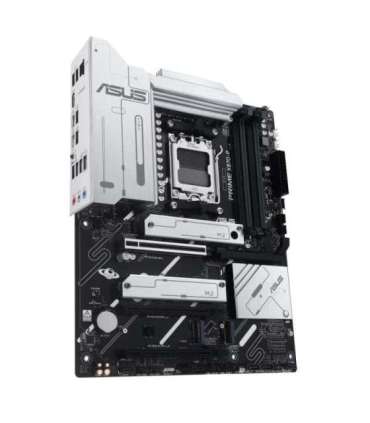

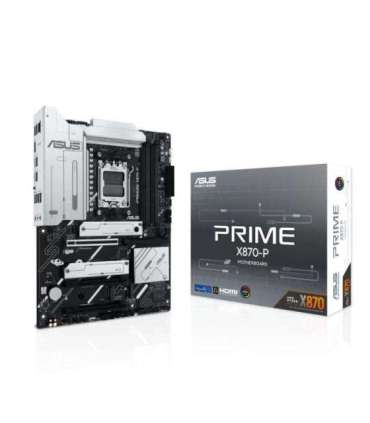

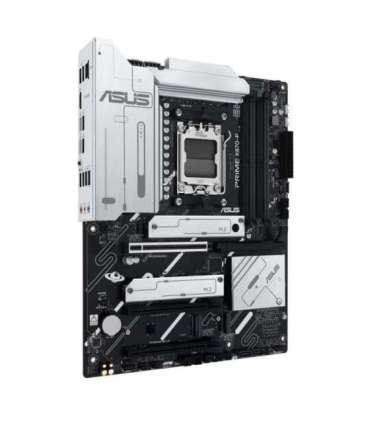

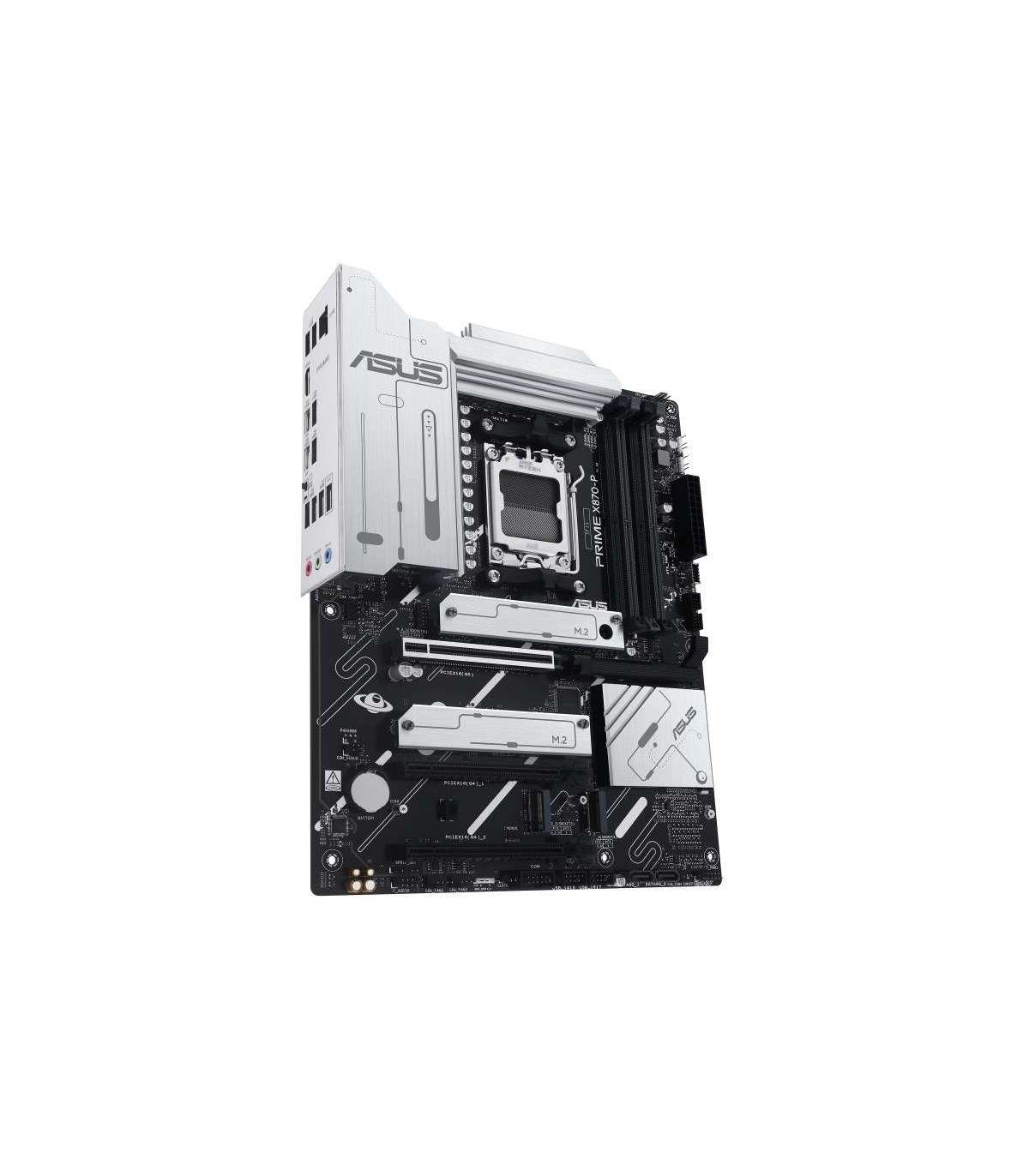

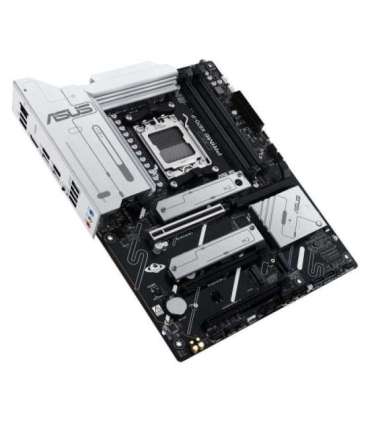

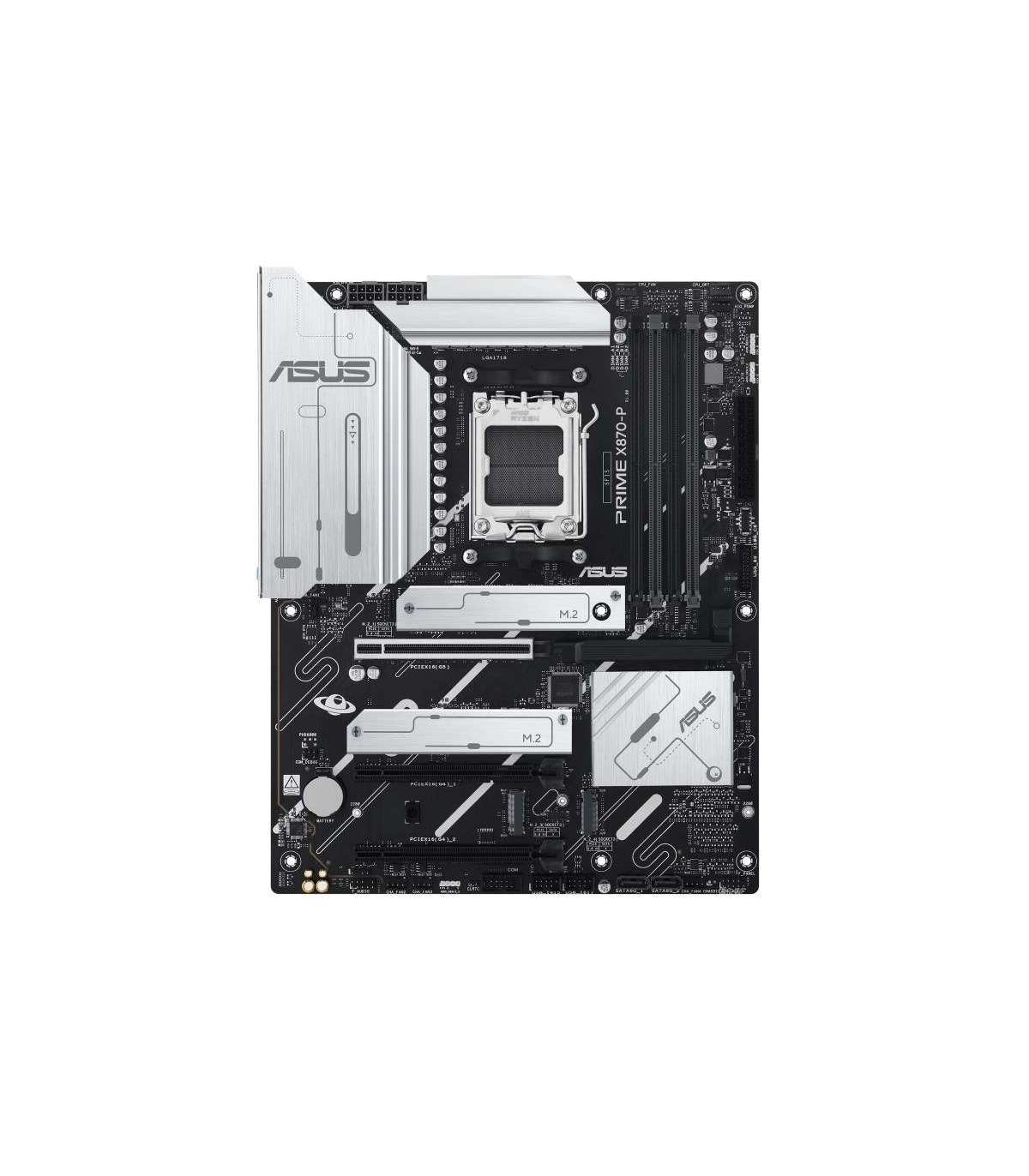

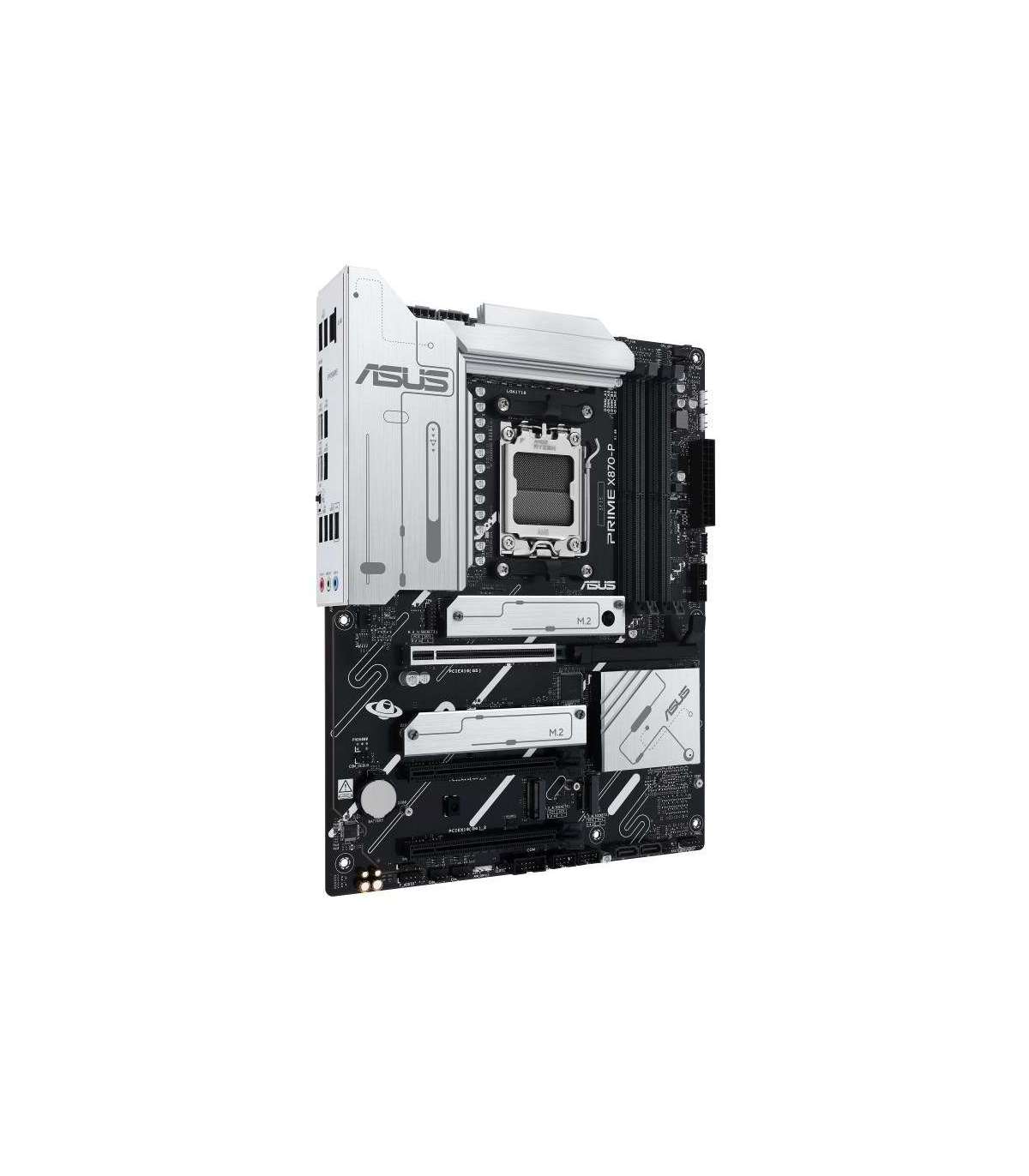

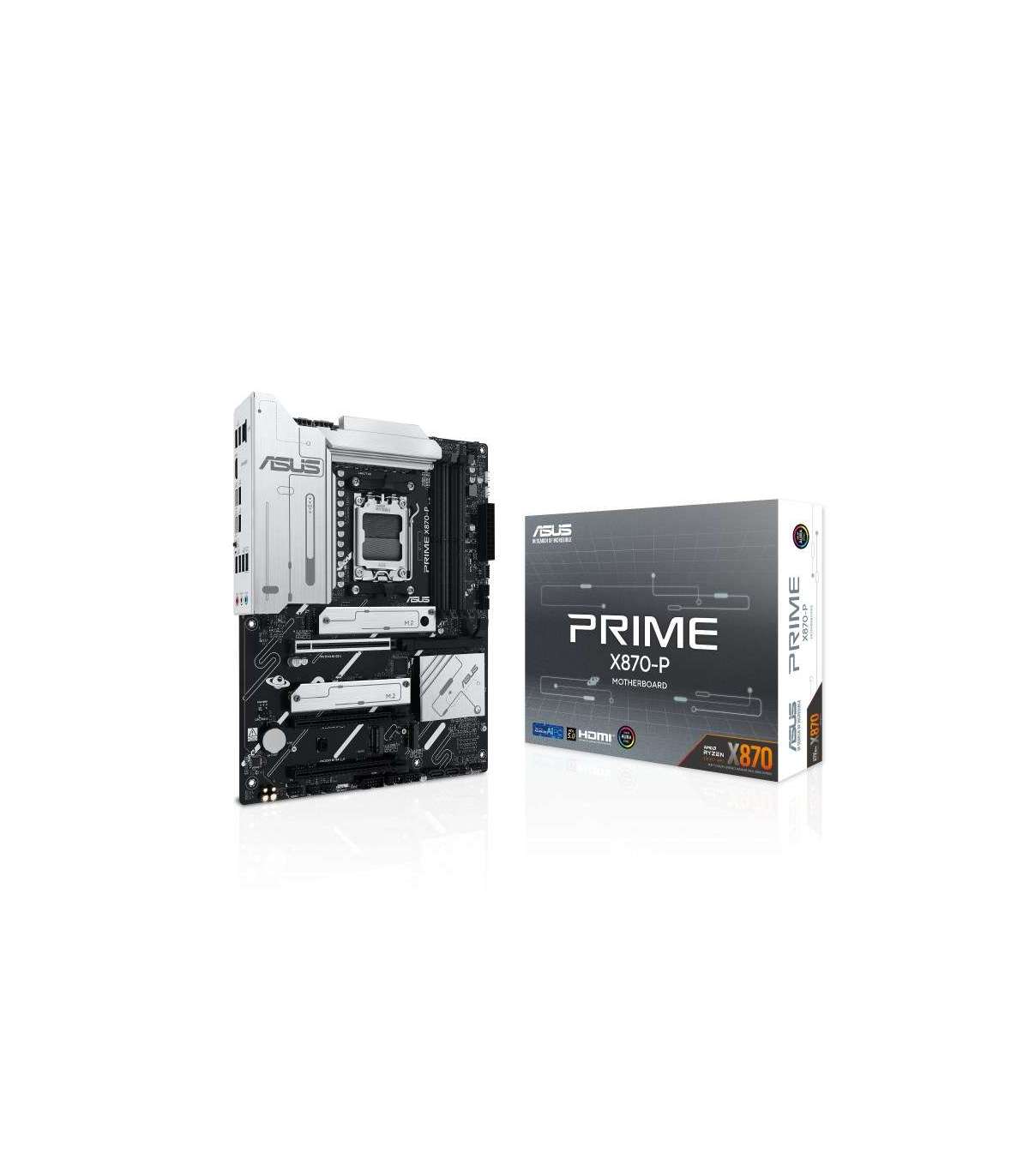

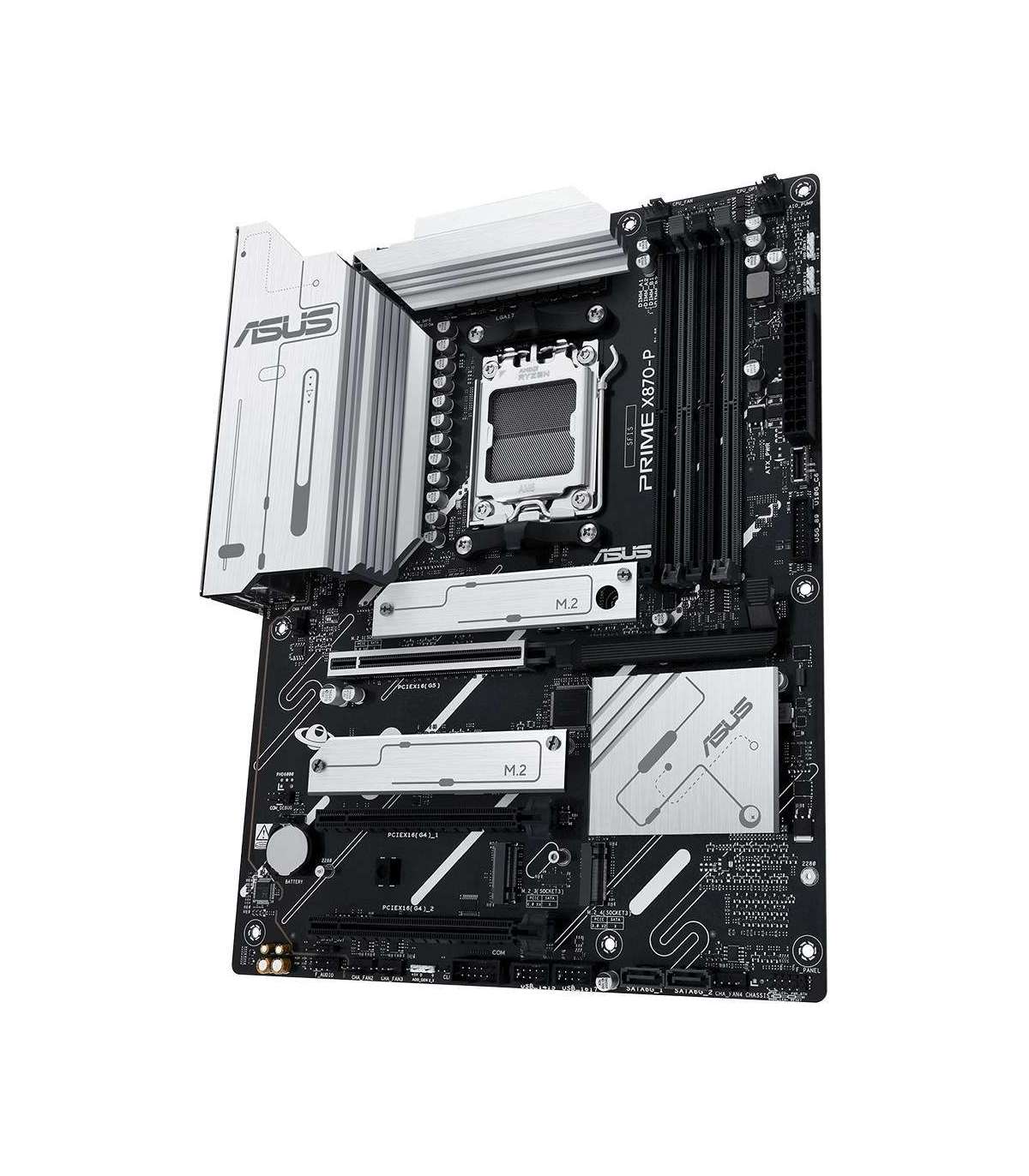

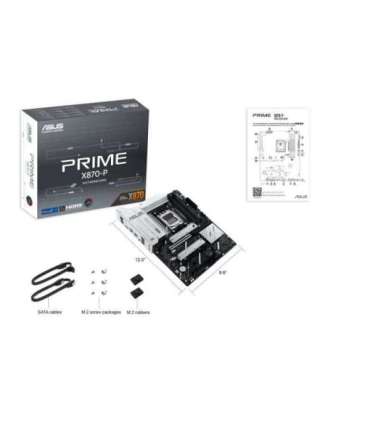

ASUS PRIME X870-P AMD X870 Socket AM5 ATX

Lisainfo

Depth

244 mm

Kaal

1.44 kg

Kõrgus

48 mm

Laius

305 mm

Package weight

1.5 kg

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

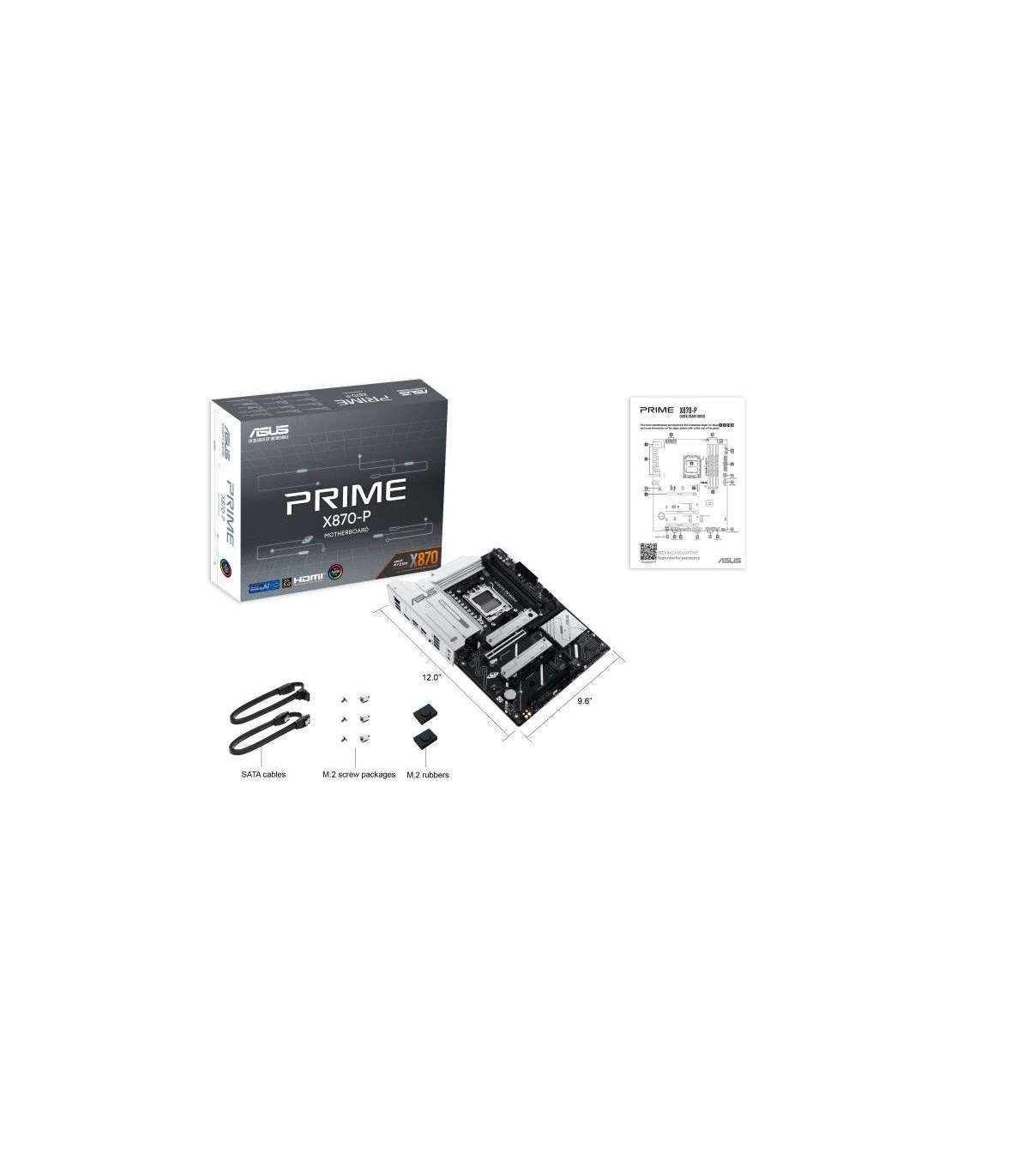

Cables included

SATA

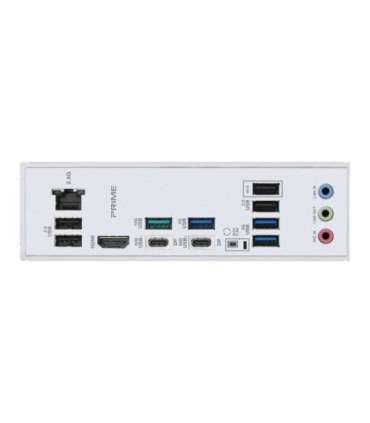

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Package width

353 mm

Package depth

273 mm

Package height

68 mm

Warnings

Do not disassemble to avoid damage to internal components and loss of warranty.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

192 GB

Motherboard chipset

AMD X870

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

2

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

2

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

4

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8000 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

6

RAID support

Yes

Line-in

Yes

Cooling type

Passive

DisplayPort version

1.4a

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

1

Back-to-BIOS button

Yes

USB4 Gen 2x2 ports quantity

2
