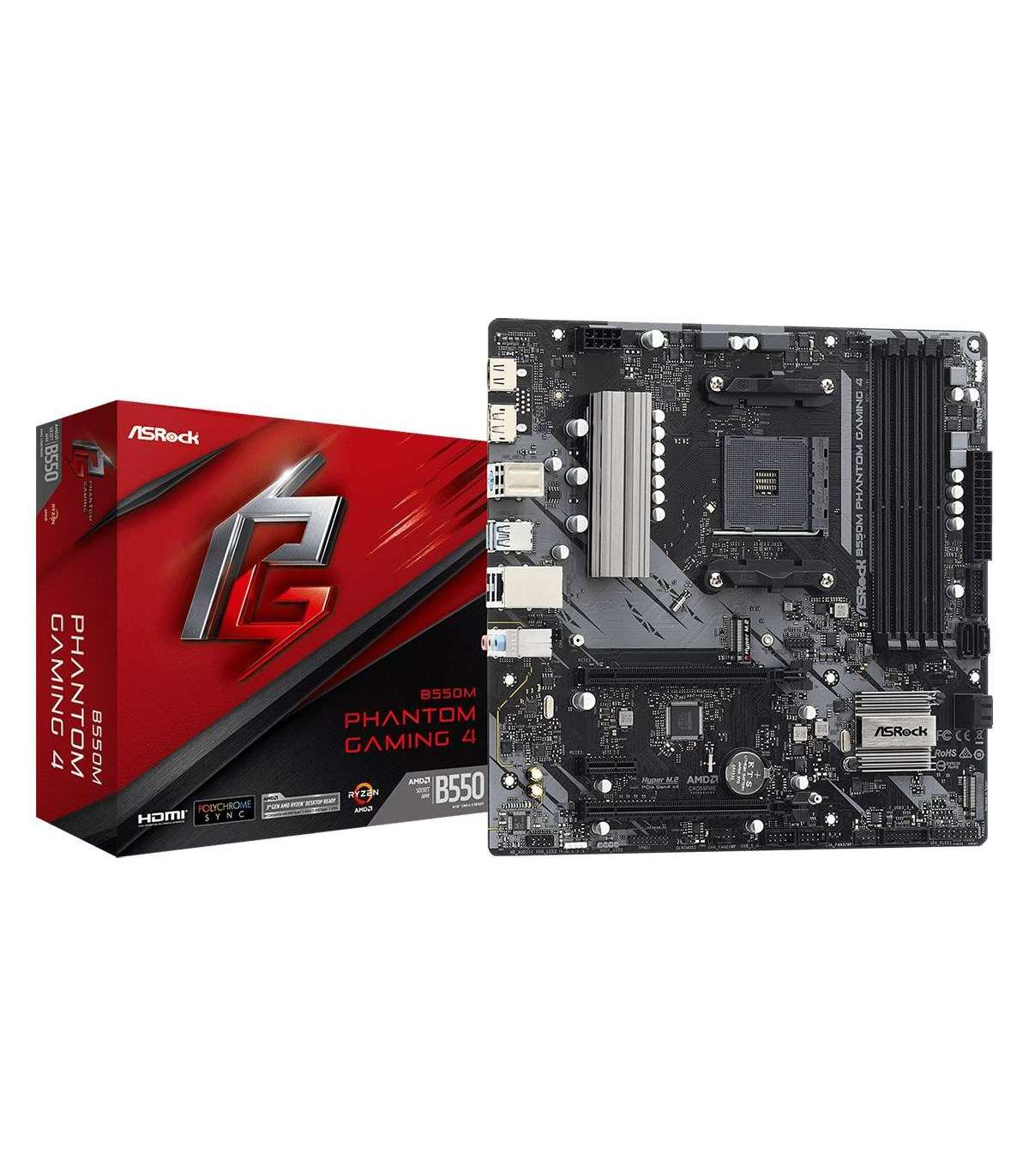

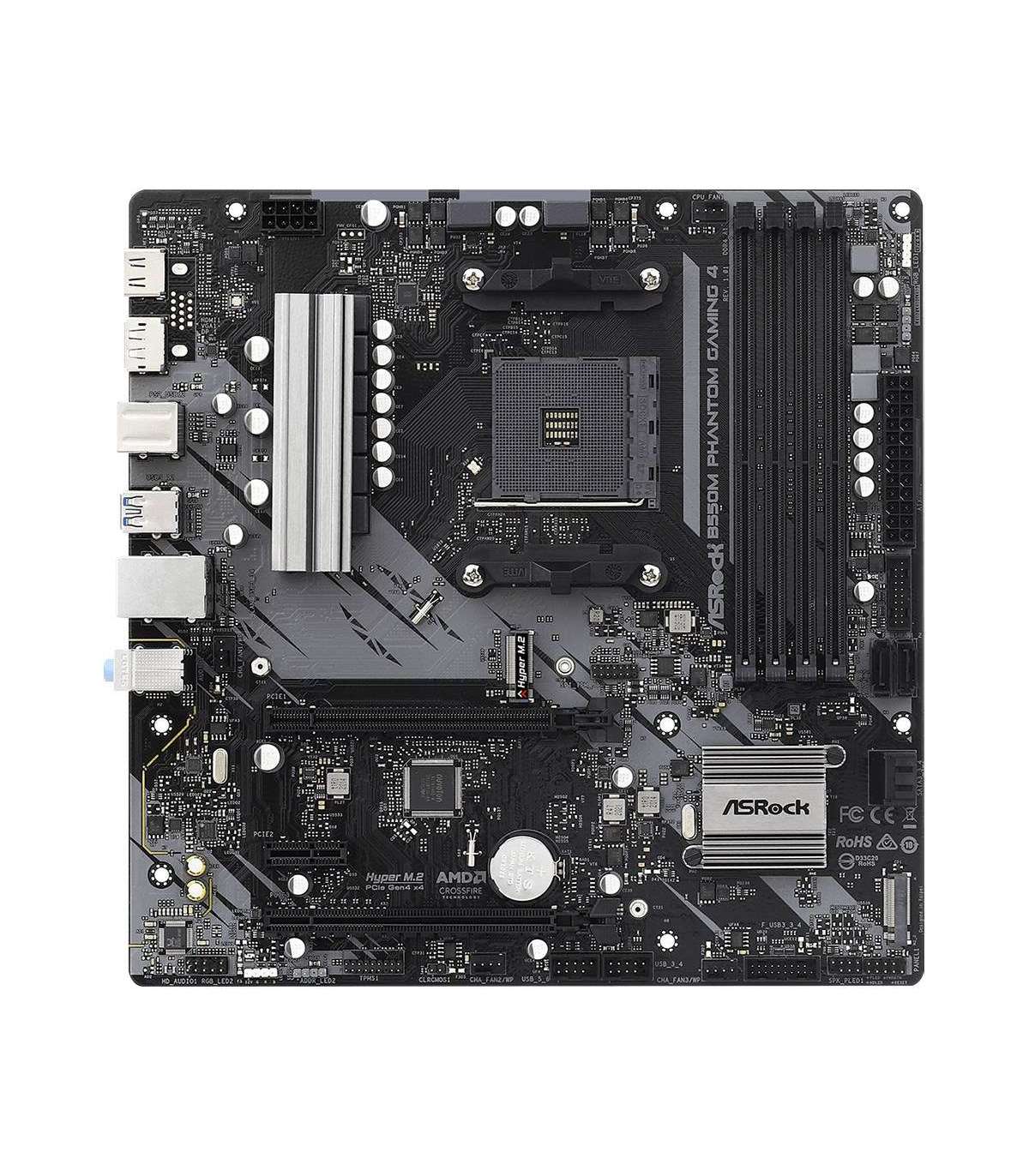

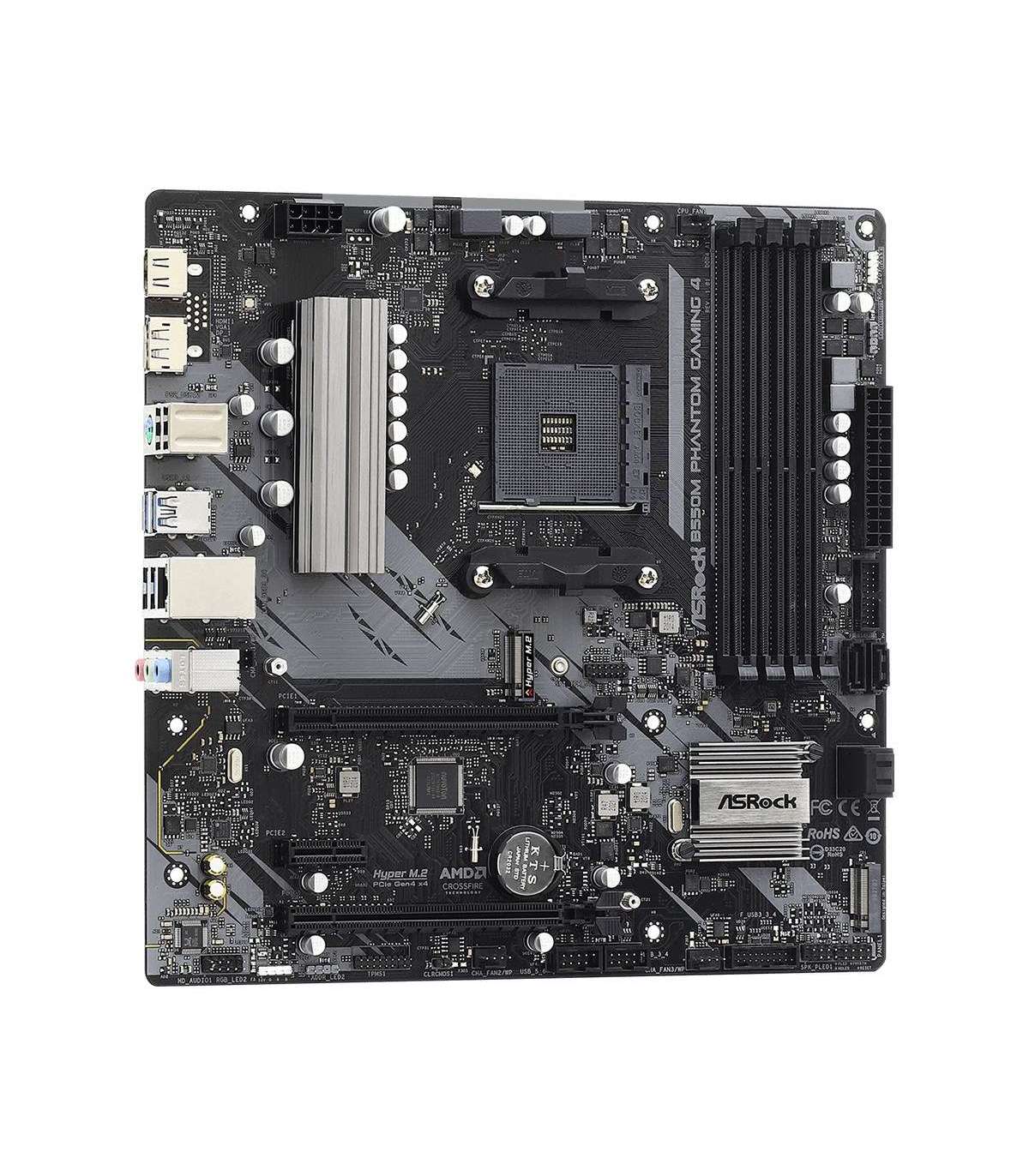

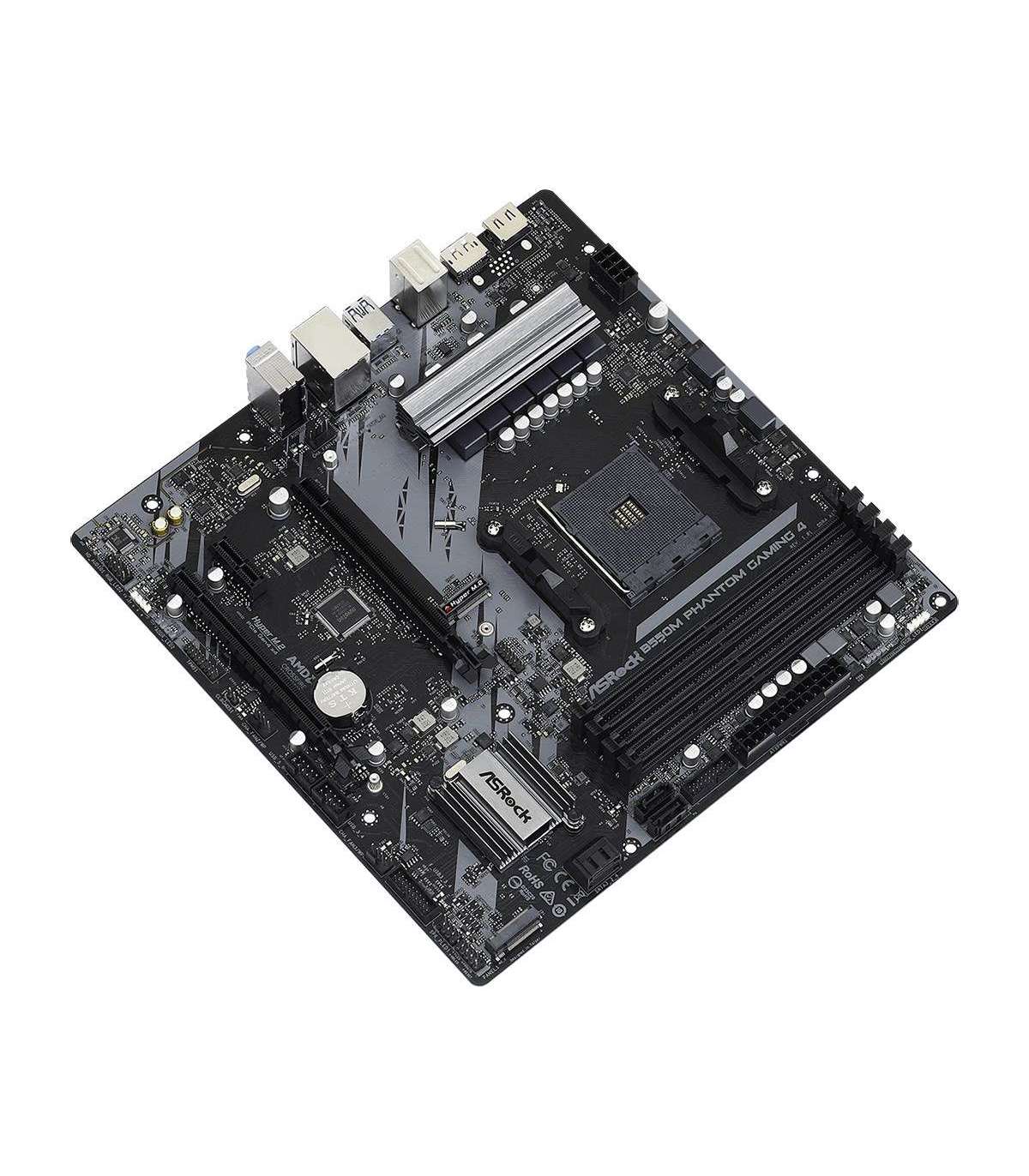

Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550

Lisainfo

Depth

244 mm

Laius

244 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64

Warnings

Avoid direct contact with sensitive electronic components.
Dispose of according to local electro-waste regulations.
Store away from water and sources of moisture.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wake-on-LAN ready

Yes

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Motherboard chipset

AMD B550

HDMI version

2.1

HDMI ports quantity

1

Memory channels

Dual-channel

USB 2.0 connectors

2

Processor socket

Socket AM4

Compatible processor series

3rd Generation AMD Ryzen™ 9
AMD Ryzen™ 3
AMD Ryzen™ 5
AMD Ryzen™ 7

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2667
2933
3200
3466
3600
3733
3800
3866
4000
4133
4200
4266
4333
4400
4466
4533 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Number of chassis fan connectors

3

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

Serial ATA III

PS/2 ports quantity

1

PCI Express x16 (Gen 3.x) slots

3

PCI Express x1 (Gen 3.x) slots

1

Drivers included

Yes

Maximum number of SMP processors

1

Maximum resolution

5120 x 2880 pixels

PC health monitoring

Fan
Temperature
Voltage

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

Number of M.2 (M) slots

1

HDCP

Yes

DirectX version

12.0

DisplayPort version

1.4

Overclocking features

FCC, CE
ErP/EuP
