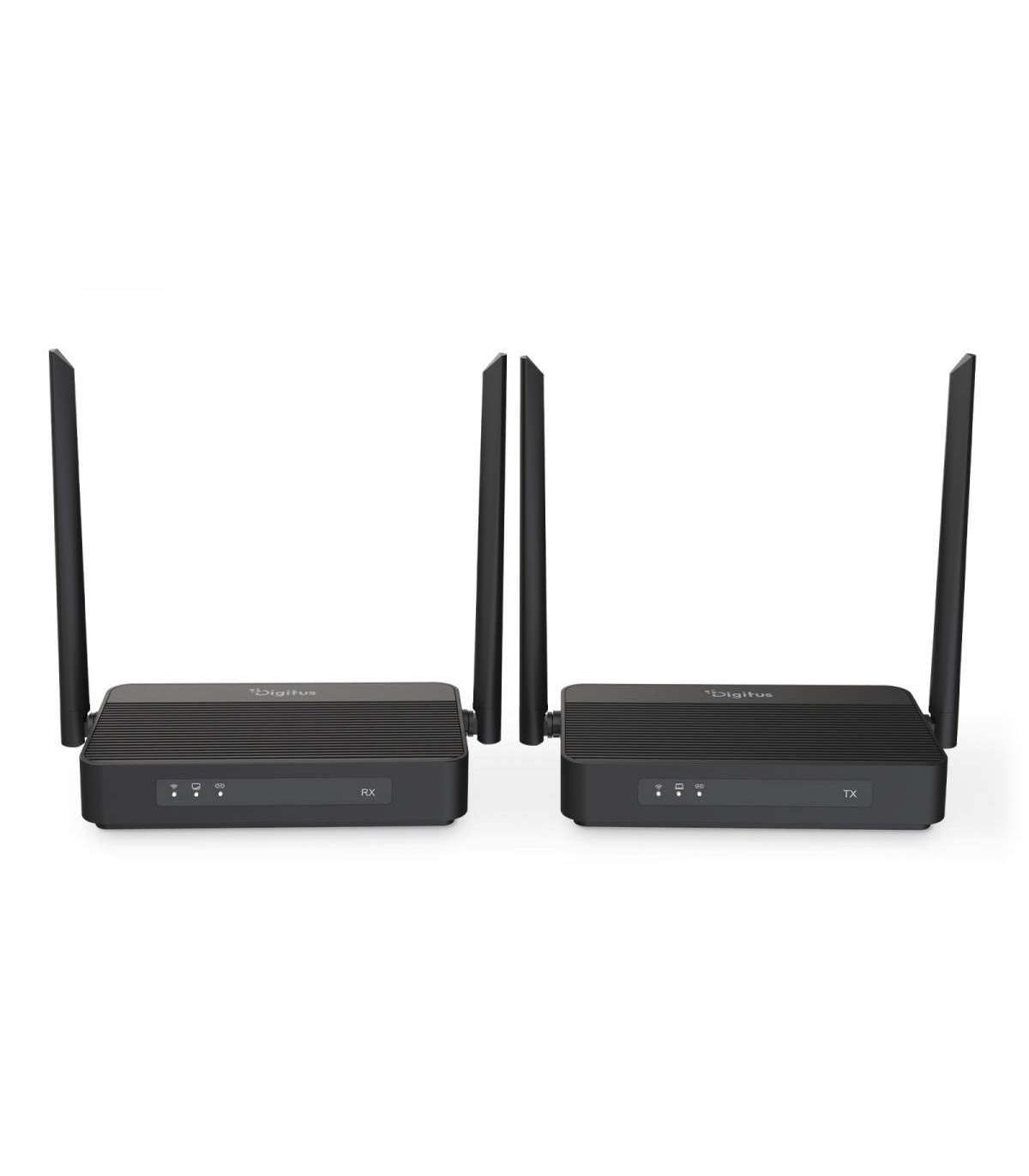

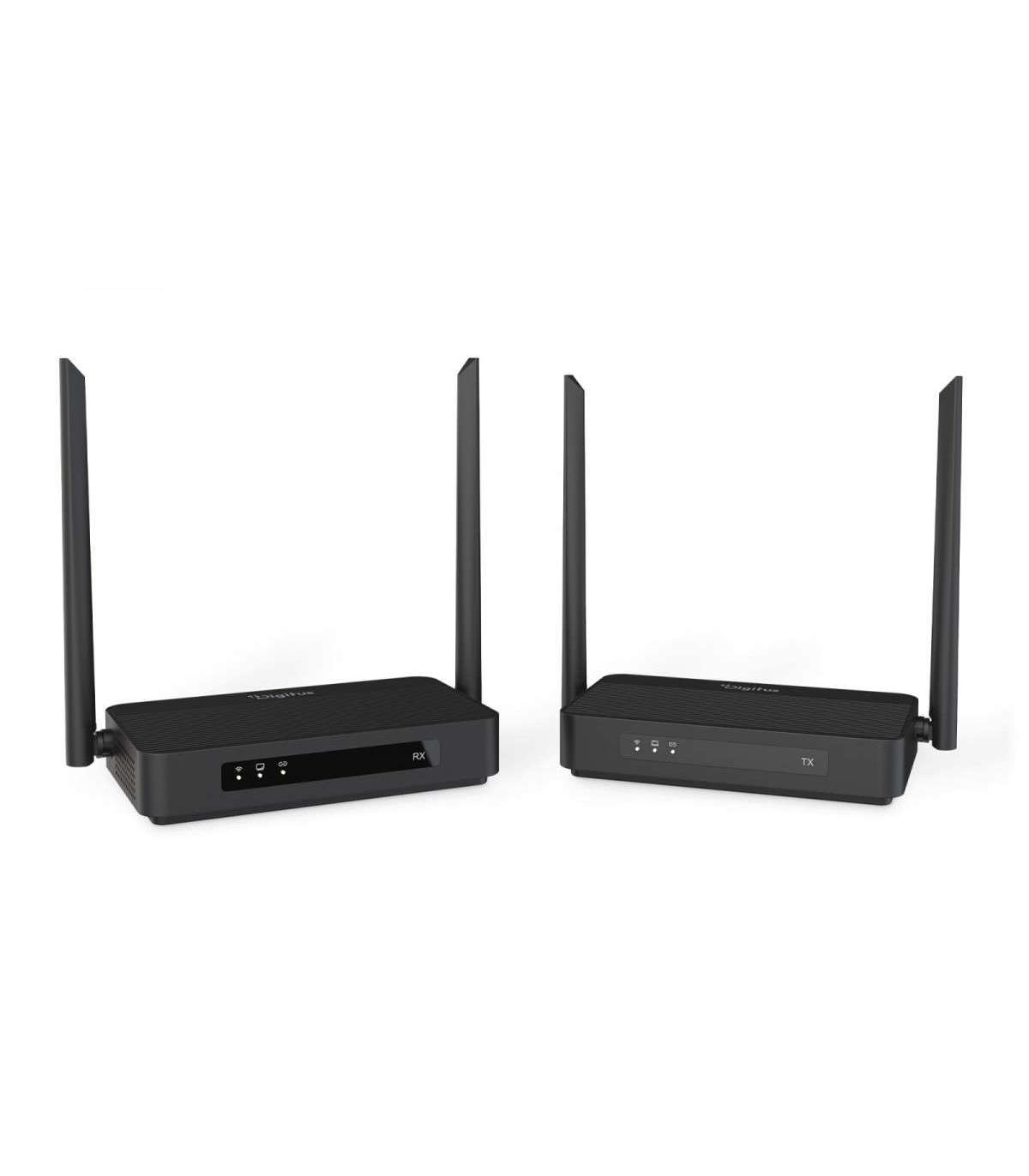

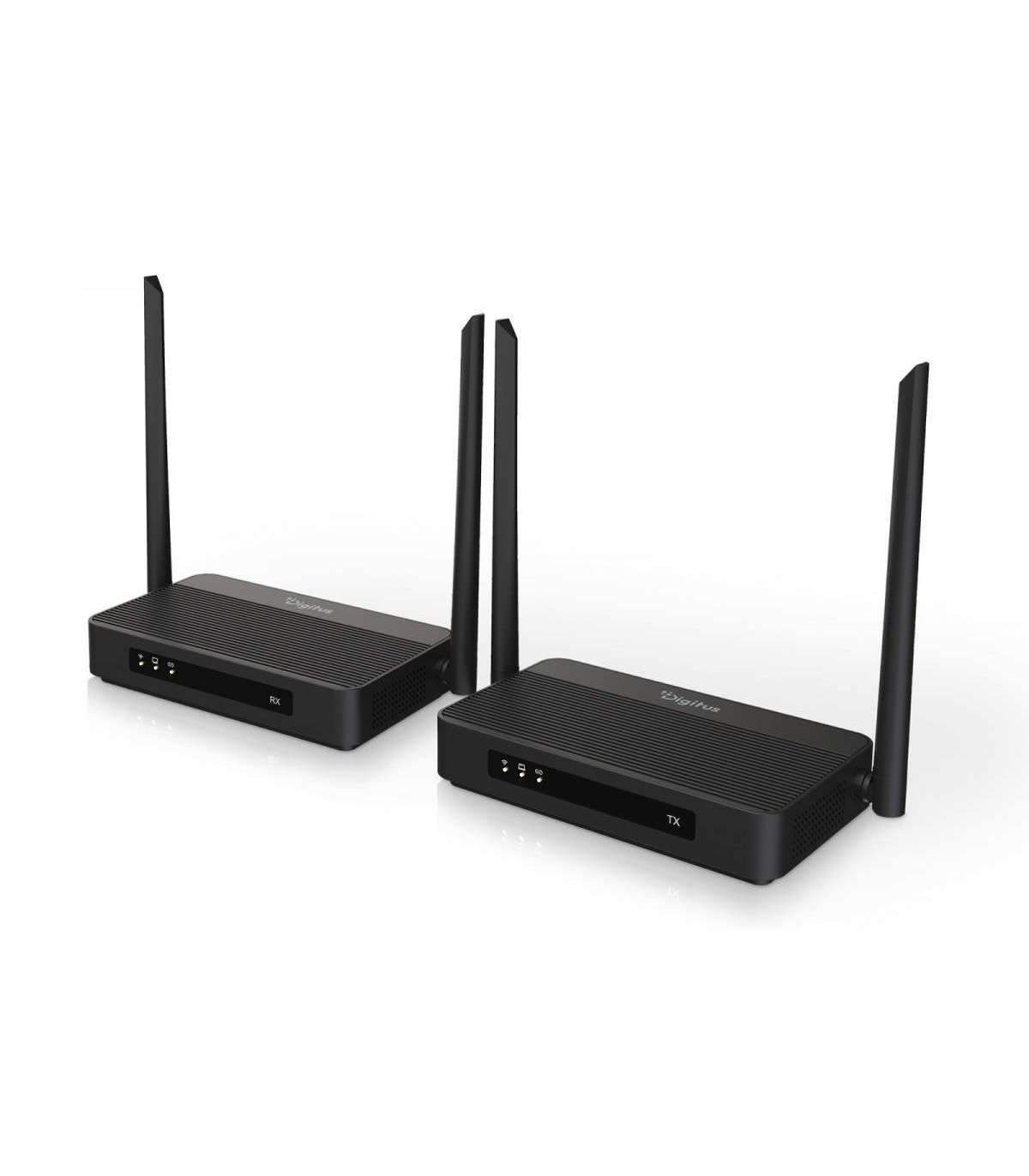

Extender HDMI DS-55360

Description:

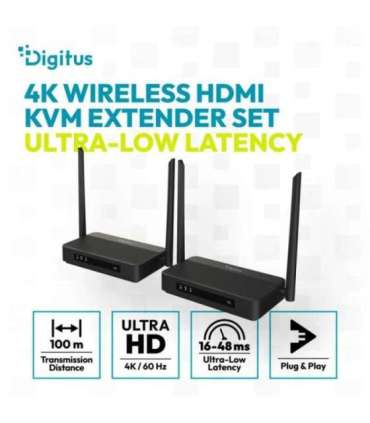

Wireless HDMI signal transmission in UHD 4K/60Hz resolution over distances of up to 100 meters (unobstructed) with ultra-low latency (16-48 ms).

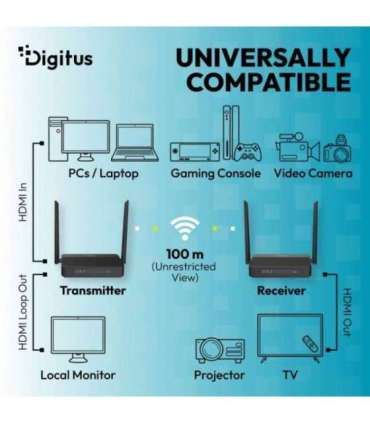

The 4K HDMI Wireless KVM Extender enables wireless transmission of HDMI video and audio signals in Ultra HD (4K/60Hz) resolution over distances of up to 100 meters completely cable-free and with clear line of sight. Thanks to a state-of-the-art encoder (proprietary parallel processing architecture) and ultra-low latency of 16 to 48 ms (average: approximately 32 ms), content is transmitted virtually lag-free ideal for presentations, streaming, or gaming. The integrated KVM function (2x USB-A) allows you to connect a mouse and keyboard on the receiver side, allowing you to conveniently control the connected source remotely. A touchscreen display can also be connected here for touch control (Touch Panel Back Control). A local monitor can also be connected directly via the transmitter's HDMI output to simultaneously monitor the signal on the transmitter. Plug & Play eliminates the need for additional software or drivers simply plug and play. Automatic channel selection ensures a stable connection using the best available WiFi channel. 128-bit AES encryption and WPA2 authentication ensure maximum security during transmission. For added convenience, bidirectional IR extension allows for convenient control of both the signal source and the output device via the remote control. Support for HDMI 2.0, HDCP 2.2, and HDR10 ensures future-proofing and ensures excellent image quality in any application.

• Wireless HDMI signal transmission in 4K/60Hz resolution at up to 100 m (unobstructed view)
• Ultra-low latency: 16 ms (min.) - 48 ms (max.) / average: 32 ms (transmission from transmitter to receiver)
• State-of-the-art codec design: Patented parallel processing architecture optimized for video compression and decompression
• KVM support: Mouse and keyboard connection and touchscreen display on the receiver

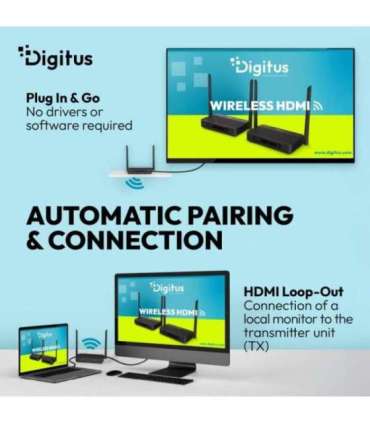

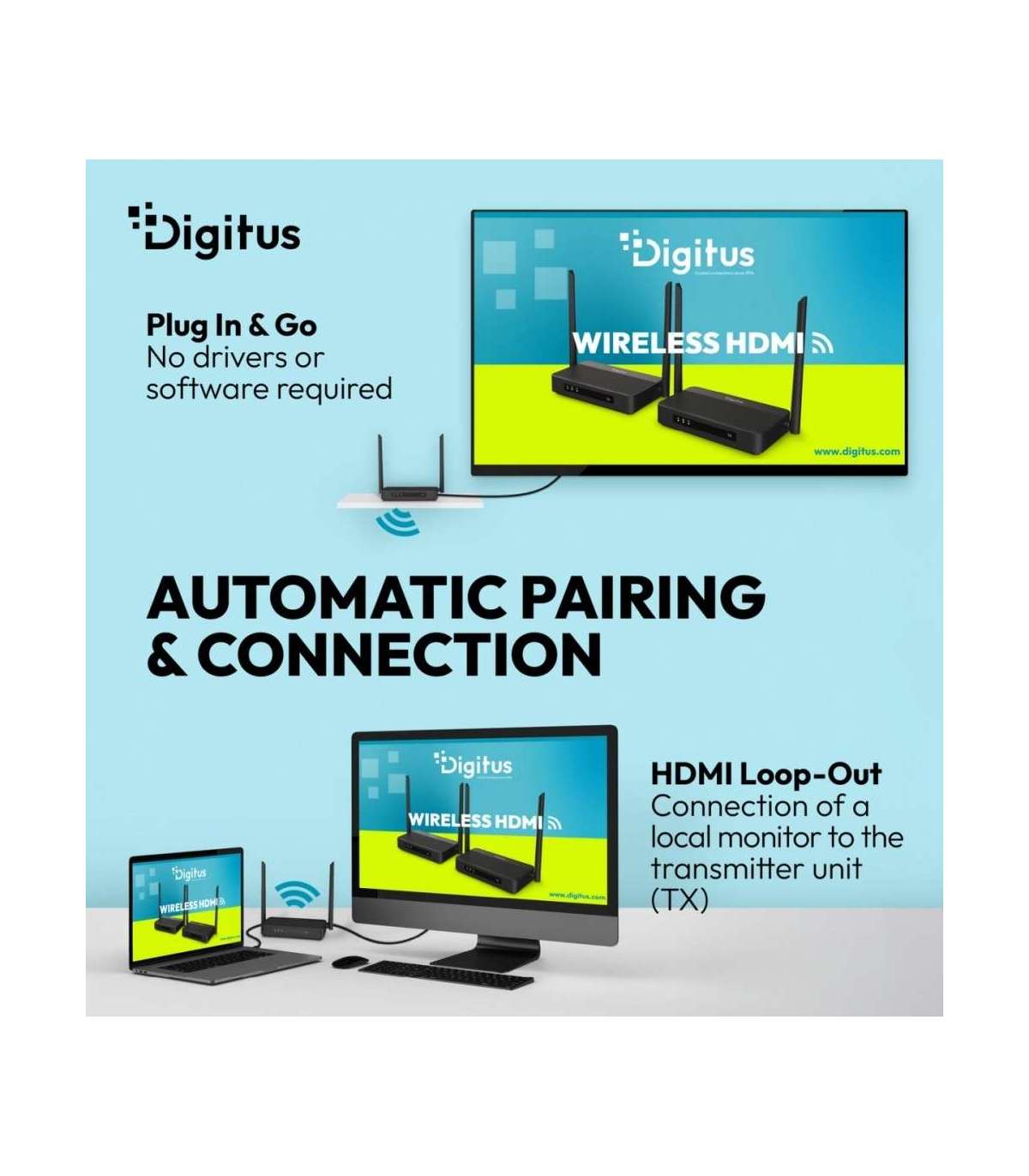

• HDMI Loop Out: Connect a local monitor to the transmitter (TX)
• Easy plug-and-play operation - plug and play, no drivers or software required
• Automatic pairing and connection: Automatically connects via the best Wi-Fi channel to ensure the best possible Wi-Fi performance
• Bi-directional IR extension for controlling the signal source or display
• 128-bit AES encryption / WPA2 protocol

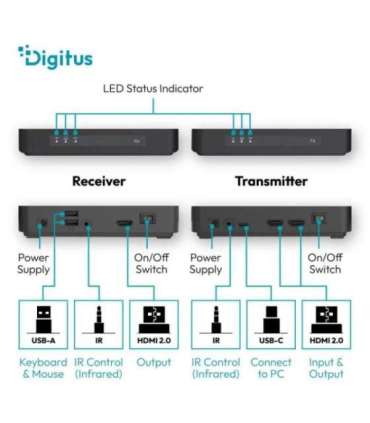

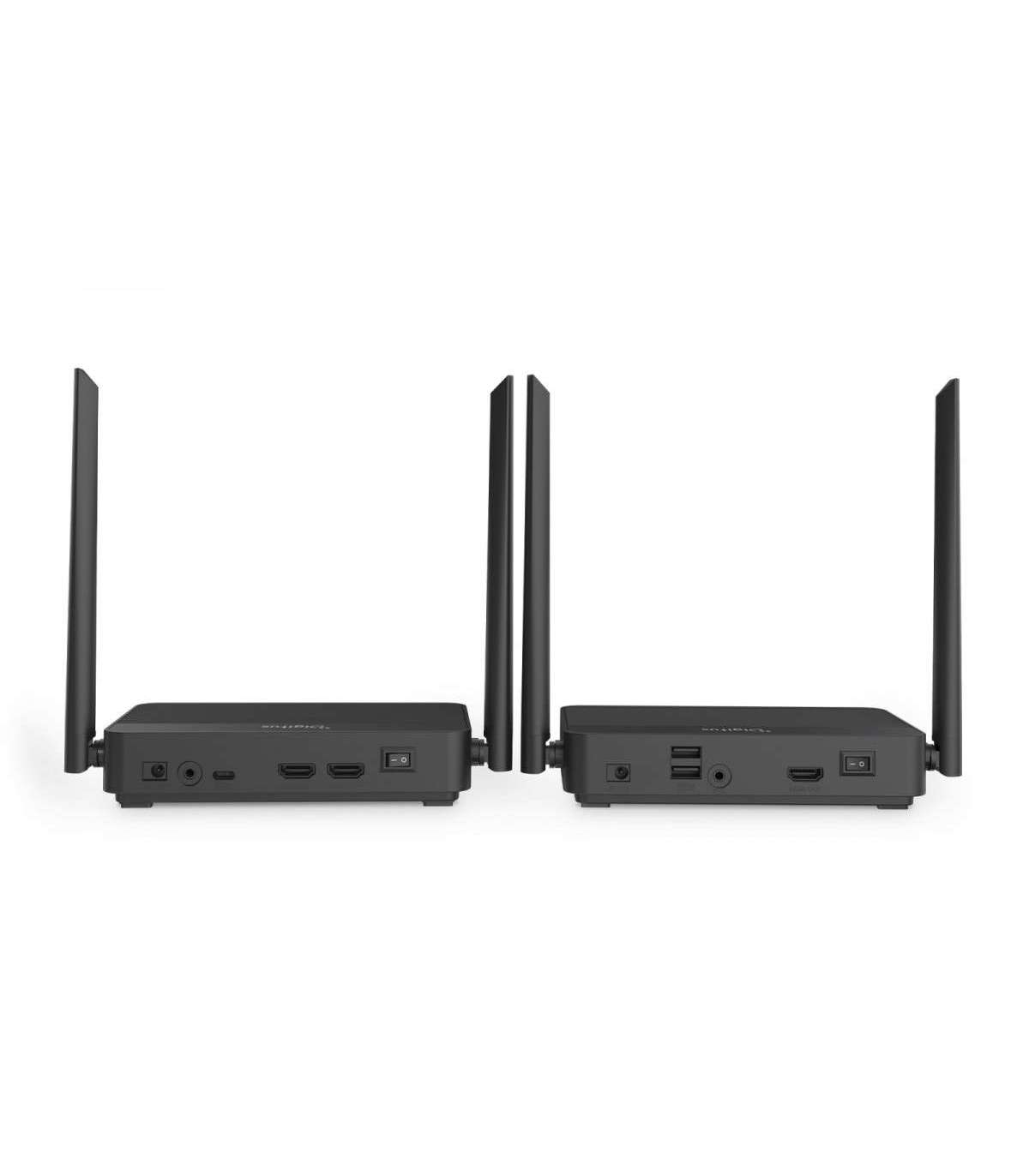

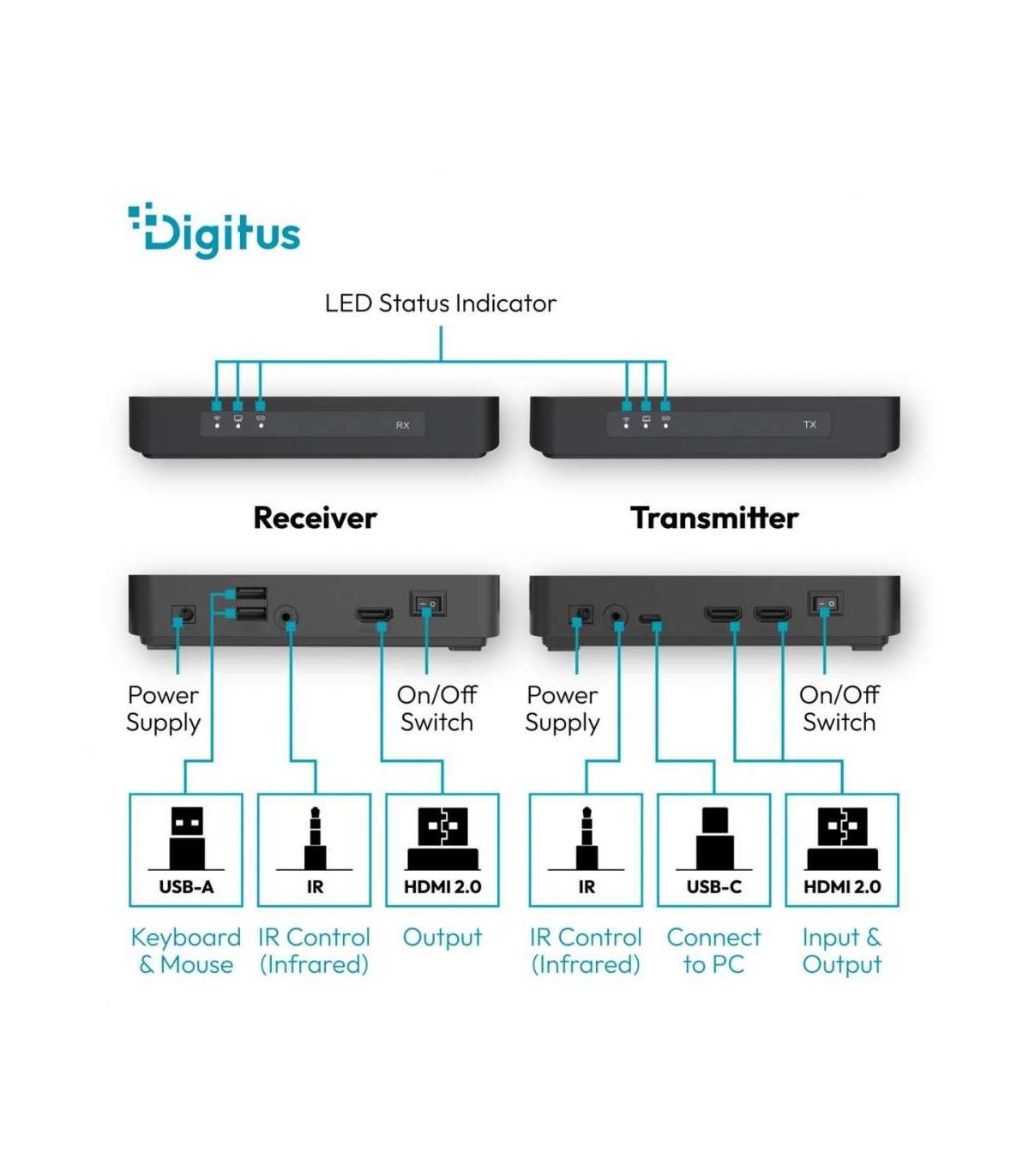

Transmitter (TX) connections:

• 1x input HDMI (4K/60Hz) - Signal Source Connection
• 1x HDMI Output (4K/60Hz) - Local Display Connection
• 1x IR Connector - Send/Receive IR Signal
• 1x USB-C Connection (PC) for KVM/Rear Touchpad Control
• 1x Power Connector (DC 12V/1.5A) - External Power Connector
• 1x On/Off Switch

Receiver Connections:

• 1x HDMI Output (4K/60Hz) - Local Display Connection
• 1x IR Connector - Send/Receive IR Signal
• 2x USB-A (1.1) - Mouse and Keyboard Connection or Touchscreen Connection
• 1x Power Connector (DC 12V/1.5A) - External Power Connector
• 1x On/Off Switch

Dimensions:

• (1 piece): W 16.1 x D 9.4 x H 3.4 cm

Accessories included:

• Transmitter
• Receiver
• 2 x HDMI connection cable (1.5 m)
• USB-A to USB-C cable (1.0 m)
• 2 x IR extension cable (1.5 m)
• 2 x 12V/1.5A power supply (1.5 m)
• User manual

Other features:

• Weight (1 pc.): 340 g

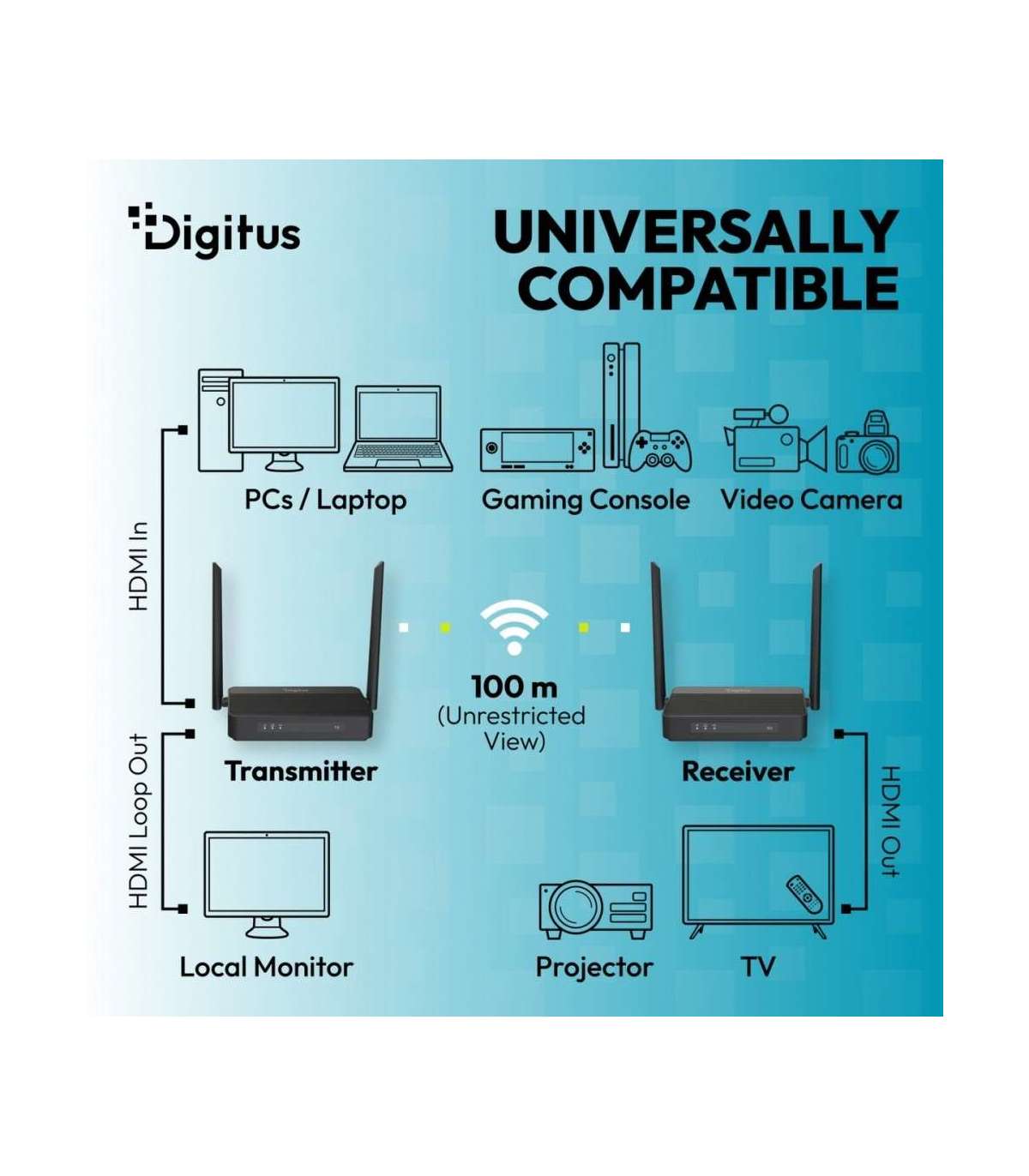

• Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
• Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
• HDMI 2.0 / HDCP 2.2 / HDR10
• Radio standard: IEEE 802.11.b/g/n/ac / Frequency band: 5G
• ABS housing
• Power consumption per unit: approximately 10W
• Operating temperature: 0-40°C
• Codec chip: Dedicated chipset for real-time video compression and decompression, optimized for 4K/60Hz transmission; advanced coding algorithms minimize transmission delay and guarantee high image quality
• Manufacturer's instructions:
• Transmission distance under limited line of sight conditions cannot be universally determined and depends on site conditions. Walls, glass, etc. shorten the signal range or cause it to be lost.
