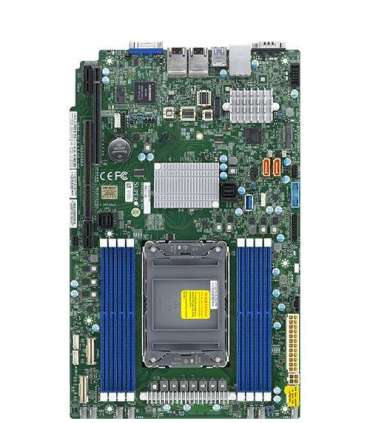

Supermicro MBD-X12SPW-TF-O motherboard Intel® C621 LGA 3647 (Socket P)

Характеристики

Depth

330 mm

Width

203 mm

Storage temperature (T-T)

0 - 50 °C

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

8 - 90%

Storage relative humidity (H-H)

5 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

2

Component for

Server

Ethernet interface type

10 Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card model

Aspeed AST2600

Maximum internal memory

2 TB

Motherboard chipset

Intel® C621

ECC

Yes

USB 2.0 connectors

2

Processor socket

LGA 3647 (Socket P)

Compatible processor series

Intel® Xeon®

Motherboard chipset family

Intel

Supported memory clock speeds

3200 MHz

Memory slots type

DIMM

Number of memory slots

8

Supported memory types

DDR4-SDRAM

LAN controller

Intel® X550

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC

PC health monitoring

Fan
LED
Temperature
Voltage

Number of SATA III connectors

10

TPM connector

Yes

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

RAID support

Yes

COM ports quantity

2

Memory voltage

1.2 V

ACPI version

6.0

System Management BIOS (SMBIOS) version

3.0
